Plan 910087WHD
EXCLUSIVE
12-Foot-Wide 432 Square Foot ADU
Heated S.F.
432
Beds
1
Baths
1
Stories
1
What's Included
Plan Details
  • This 12'-wide ADU gives has a contemporary exterior and gives you 432 square feet of living space inside.
  • A 6'-deep porch spans the front, giving you a shady fresh-air space to enjoy.
  • The bedroom is located in back and is separated from the kitchen and living room space by a bath with walk-in shower.
What's Included
  • General notes
  • Detailed floor plans
  • Elevations
  • Roof plan
  • Cross section
  • Electrical plan
  • Window and door schedules
  • Architectural details
  • Structural notes
  • Foundation plan
  • Floor framing
  • Roof framing
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

12-Foot-Wide 432 Square Foot ADU

  • 432

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Floors

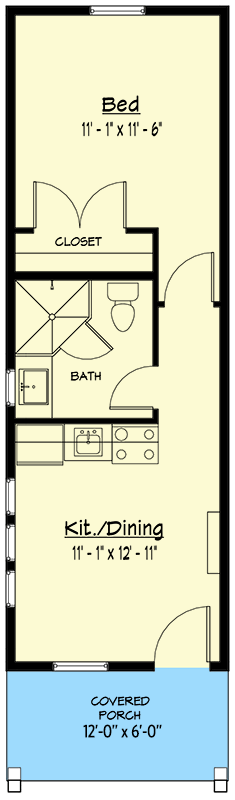

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 432 sq. ft.
  • 1st Floor: 432 sq. ft.

Dimensions

  • Width: 12' 0"
  • Depth: 42' 0"
  • Max ridge height: 15' 0"

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 2 on 12
  • Framing Type: Stick
