Plan 83141DC

12 Unit 3-Story Apartment Building with 1300 to 1370 Sq Ft 2 Bedroom Units

Heated S.F.
15,758
Units
12
Width
Depth

Floor Plan

Plan 83141DC

Main Level
Main Level
2nd and 3rd Floor Plan
2nd and 3rd Floor Plan

Plan 83141DC

M-F 9am-5pm EST |

1-203-761-8500

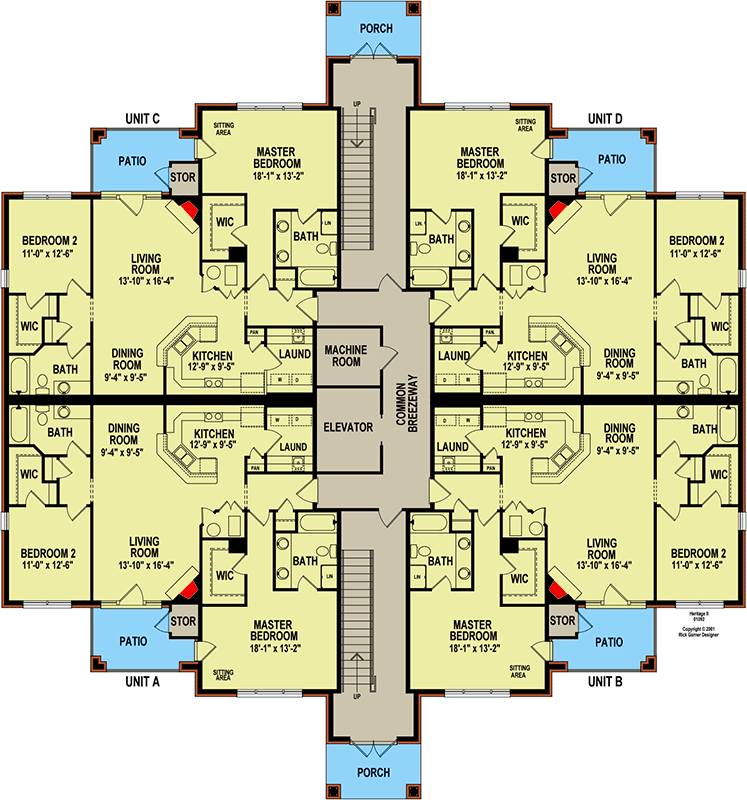

Main Level

Plan 83141DC: 12 Unit 3-Story Apartment Building with 1300 to 1370 Sq Ft 2 Bedroom Units - Floor Plan - Main Level - Traditional

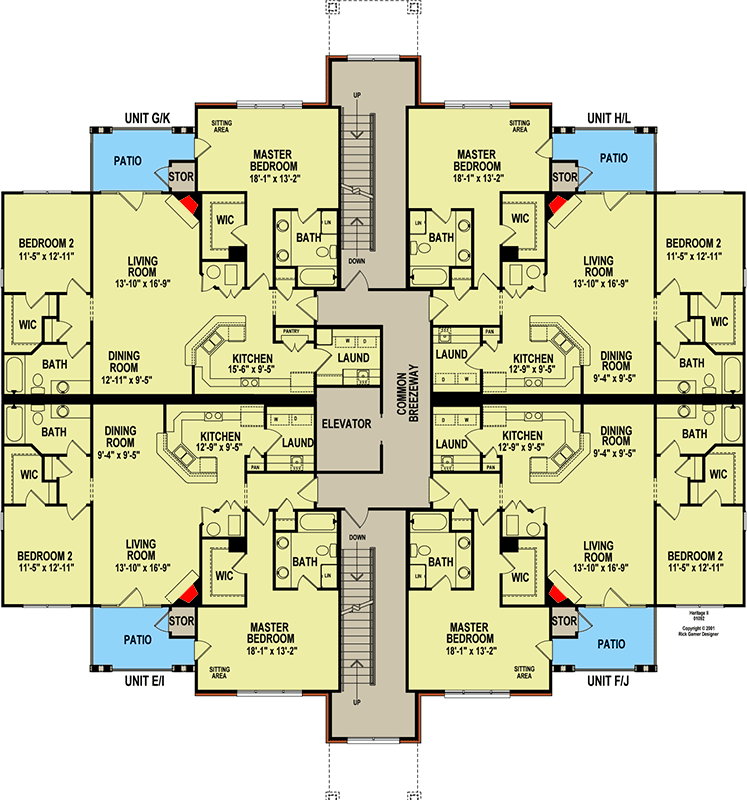

2nd and 3rd Floor Plan

Plan 83141DC: 12 Unit 3-Story Apartment Building with 1300 to 1370 Sq Ft 2 Bedroom Units - Floor Plan - 2nd and 3rd Floor Plan - Traditional

Plan Details

  • This 12-unit apartment plan gives four units on each of its three floors.
  • The first floor units are 1,300 square feet each with 2 beds and 2 baths.
  • The second and third floor units are larger and give you between 1,303 sq. ft. to 1,370 sq. ft. of living space with 2 beds and 2 baths.
  • There is a grand total of 24 bedrooms with 24 full baths in the entire complex.
  • A central stairwell with breezeway separates the left units from the right. And all units enjoy outdoor access with private patios.
  • All ceilings are 9'.
  • Related Plans: Get an alternate 12-unit apartment complex with plan 83117DC and 83131DC.
Unit First Floor
Heated Area
1,300Sq. Ft.
1300 Sq. Ft. 1st
Beds
2Beds
Baths
2Full Baths
0

What's Included

  • Foundation plan
  • Floor plans with electrical
  • Elevations
  • Cross sections
  • Firewall and other details
  • Roof Plan
  • Floor framing plans for each floor
  • Ceiling framing Plan
  • Rafter plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

15,758 sq. ft.

1st Floor

5,200 sq. ft.

2nd Floor

5,279 sq. ft.

3rd Floor

5,279 sq. ft.

Beds/Baths

Bedrooms

10

Full bathrooms

8

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

94' 6"

Depth

100' 6"

Ceiling Heights

First Floor

9'

Second Floor

9'

Third Floor

9' 0''

Architectural Style

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Laundry - Upstairs

Master Suite - 1st Floor

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

15,758 sq. ft.

1st Floor

5,200 sq. ft.

2nd Floor

5,279 sq. ft.

3rd Floor

5,279 sq. ft.

Beds/Baths

Bedrooms

10

Full bathrooms

8

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

94' 6"

Depth

100' 6"

Ceiling Heights

First Floor

9'

Second Floor

9'

Third Floor

9' 0''

Architectural Style

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Laundry - Upstairs

Master Suite - 1st Floor

Master Suite - Upstairs
