1200 Square Foot Cabin with Huge Front Porch

Plan 777035MTL

  • 1,200

    Heated s.f.

  • 1

    Beds

  • 1.5

    Baths

  • 1

    Stories

  • This 1200 square foot rustic cabin house plan has a 48-foot wide and 8-foot deep front porch (and a smaller side porch) with timber supports giving it great curb appeal.
  • An open concept area gives you a living room, dining room and kitchen with an island, corner pantry and double sink set under a window on the back wall.
  • A single bedroom with bath and walk-in closet occupies the left side of the home. A laundry room and powder room - and a space for mechanicals - are found off the hallway.
  • This Metal House Plan was designed with a Pre-Engineered Metal Building (PEMB) in mind.  A PEMB is the most commonly used structure when building a barndominium.  A PEMB can be engineered, fabricated and shipped to any location in the world and generally can be installed in a much shorter time than a traditionally framed home. Pre-Engineered Metal Buildings get a project in the dry very quickly and allow for interior build-outs to be convenient, not having to support roof loads.
  • This metal house plan is available with 2x6 exterior framing by selecting it the Options menu.

  • Cover sheet
  • Foundation Plan
  • Floor plan with basic Electrical Plan and Door/Window Schedule
  • Framing plan
  • Roof plan
  • Elevations with necessary sections
The following details are NOT included in the plans:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

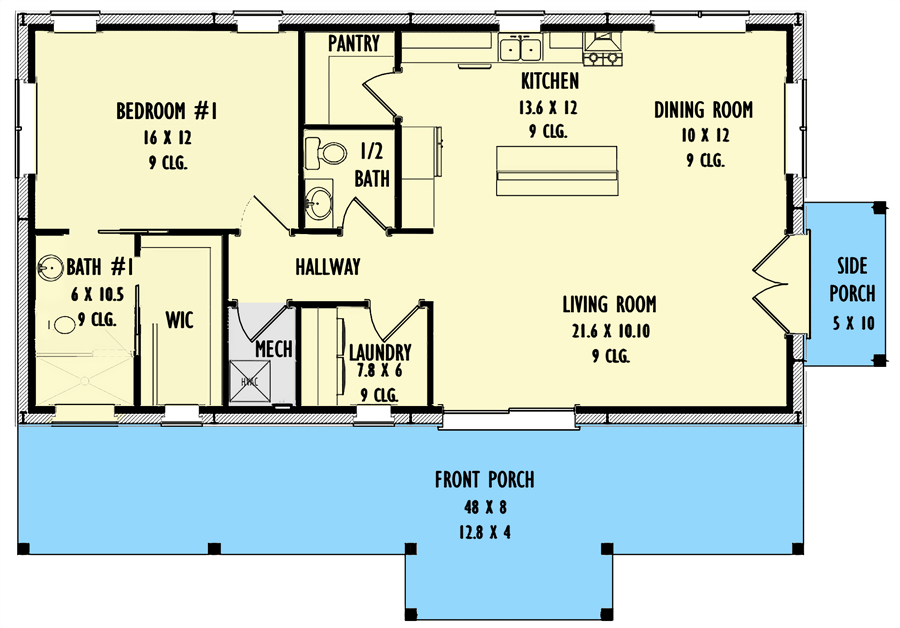

1200 Square Foot Cabin with Huge Front Porch - 777035MTL floor plan - Main Level

Metal Wall Framing Detail

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
1200 Square Foot Cabin with Huge Front Porch - 777035MTL floor plan - Metal Wall Framing Detail

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,200 sq. ft.
  • 1st Floor: 1,200 sq. ft.
  • Porch, Combined: 485 sq. ft.
  • Porch, Rear: 50 sq. ft.
  • Porch, Front: 435 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab, Stem Wall, Monolithic Slab, Post Frame

Exterior Walls

  • Standard Type(s): Metal
  • Optional Type(s): 2x6

Dimensions

  • Width: 48' 0"
  • Depth: 37' 0"
  • Max ridge height: 11' 0"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Stick Or Truss

Architectural Style

Special features

Plan Collections

1200 Square Foot Cabin with Huge Front Porch

  • 1,200

    Heated s.f.

  • 1

    Beds

  • 1.5

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $1,095
  • PDF - Unlimited Build $1,595
  • View all purchase option online

About This Plan

  • This 1200 square foot rustic cabin house plan has a 48-foot wide and 8-foot deep front porch (and a smaller side porch) with timber supports giving it great curb appeal.
  • An open concept area gives you a living room, dining room and kitchen with an island, corner pantry and double sink set under a window on the back wall.
  • A single bedroom with bath and walk-in closet occupies the left side of the home. A laundry room and powder room - and a space for mechanicals - are found off the hallway.
  • This Metal House Plan was designed with a Pre-Engineered Metal Building (PEMB) in mind.  A PEMB is the most commonly used structure when building a barndominium.  A PEMB can be engineered, fabricated and shipped to any location in the world and generally can be installed in a much shorter time than a traditionally framed home. Pre-Engineered Metal Buildings get a project in the dry very quickly and allow for interior build-outs to be convenient, not having to support roof loads.
  • This metal house plan is available with 2x6 exterior framing by selecting it the Options menu.

Floor Plans

  • Main Level

  • Metal Wall Framing Detail

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,200 sq. ft.
  • 1st Floor: 1,200 sq. ft.
  • Porch, Combined: 485 sq. ft.
  • Porch, Rear: 50 sq. ft.
  • Porch, Front: 435 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab, Stem Wall, Monolithic Slab, Post Frame

Exterior Walls

  • Standard Type(s): Metal
  • Optional Type(s): 2x6

Dimensions

  • Width: 48' 0"
  • Depth: 37' 0"
  • Max ridge height: 11' 0"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Stick Or Truss
Plan 777035MTL
View this and more for this plan by visiting www.architechtecturaldesigns.com/777035MTL
|
