Plan 420048WNT 1240 Sq Ft Rustic 3 Bedroom New American Ranch with Large Mudroom

1240 Sq Ft Rustic 3 Bedroom New American Ranch with Large Mudroom

Plan 420048WNT

  • 1,240

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

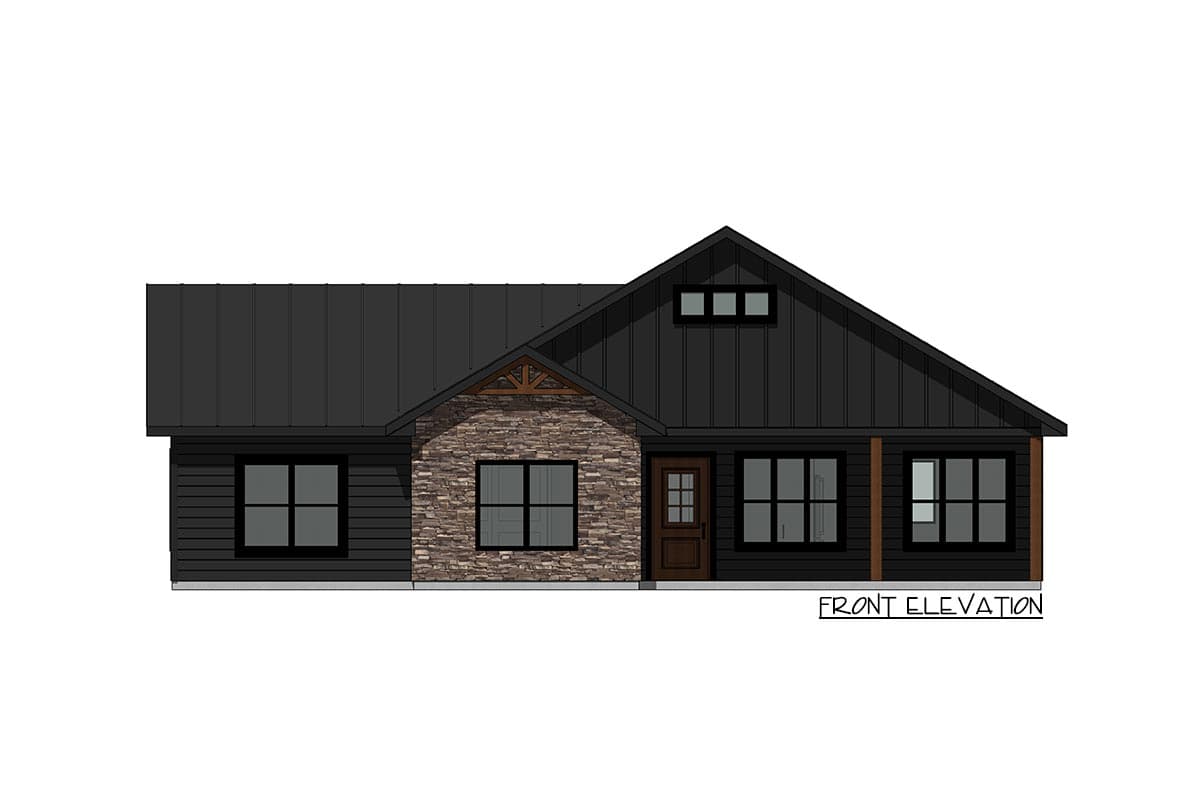

  • The stunning rustic exterior adds to the curb appeal provided by this 3-bedroom New American Ranch home plan.
  • An inviting 22'6" by 7' front porch invites family and friends inside where a living room resides to the right.
  • The C-shaped has a sink centered over a window on the back wall, counter seating and a roomy pantry. A door has direct access to the back porch for al fresco eating.
  • Bedroom 1 includes a full bathroom and a walk-in closet. The two remaining bedrooms share a hall bath.
  • A large mud room with washer and dryer has direct access to the rear covered porch.
  • Related Plans: Get an alternate exterior with house plan 420043WNT and get a smaller version (1,162 square feet) with house plan 420042WNT.

What is Included in Our Plans?

Each plan is designed to meet nationally recognized building codes for the year they were created. Following is a listing of sheets included in our plans:

Foundation Plan

outlines details of the slab, crawl space, or basement specifically associated with the house that this plan has been designed for. These details may include; Footing sizes and locations, Floor framing information, Slab information etc.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

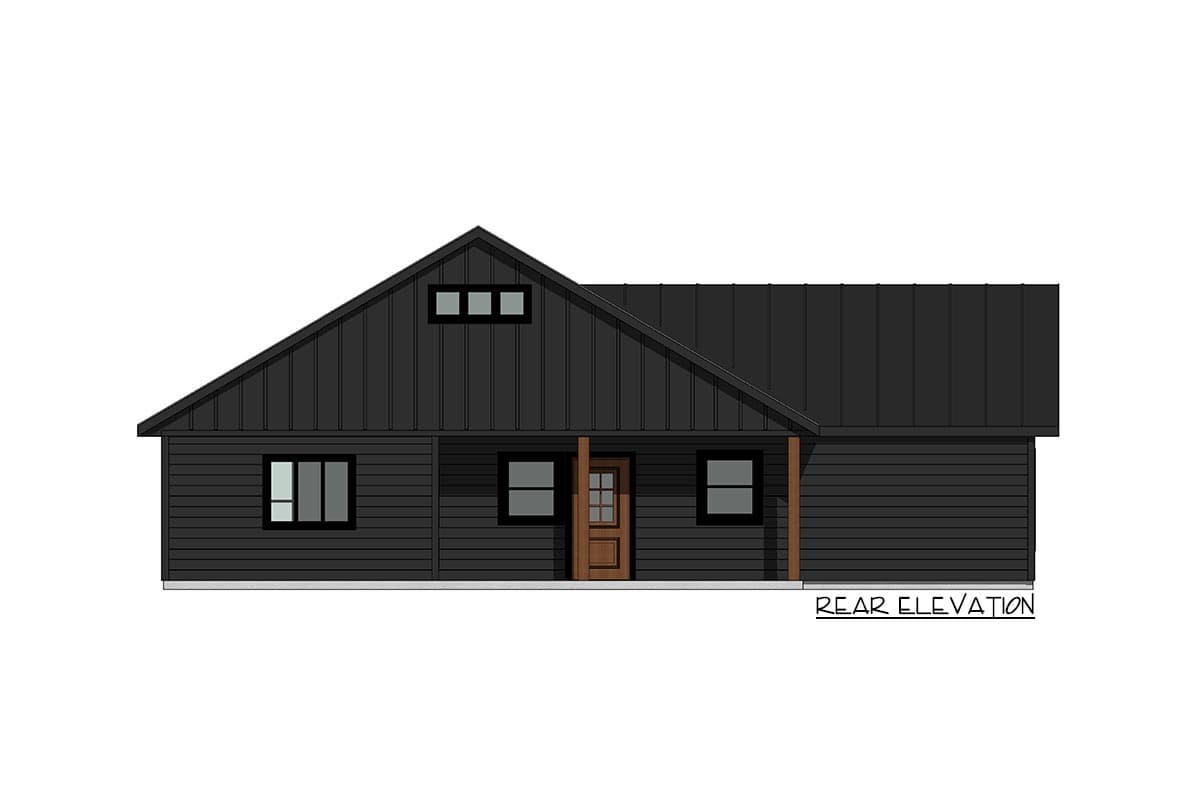

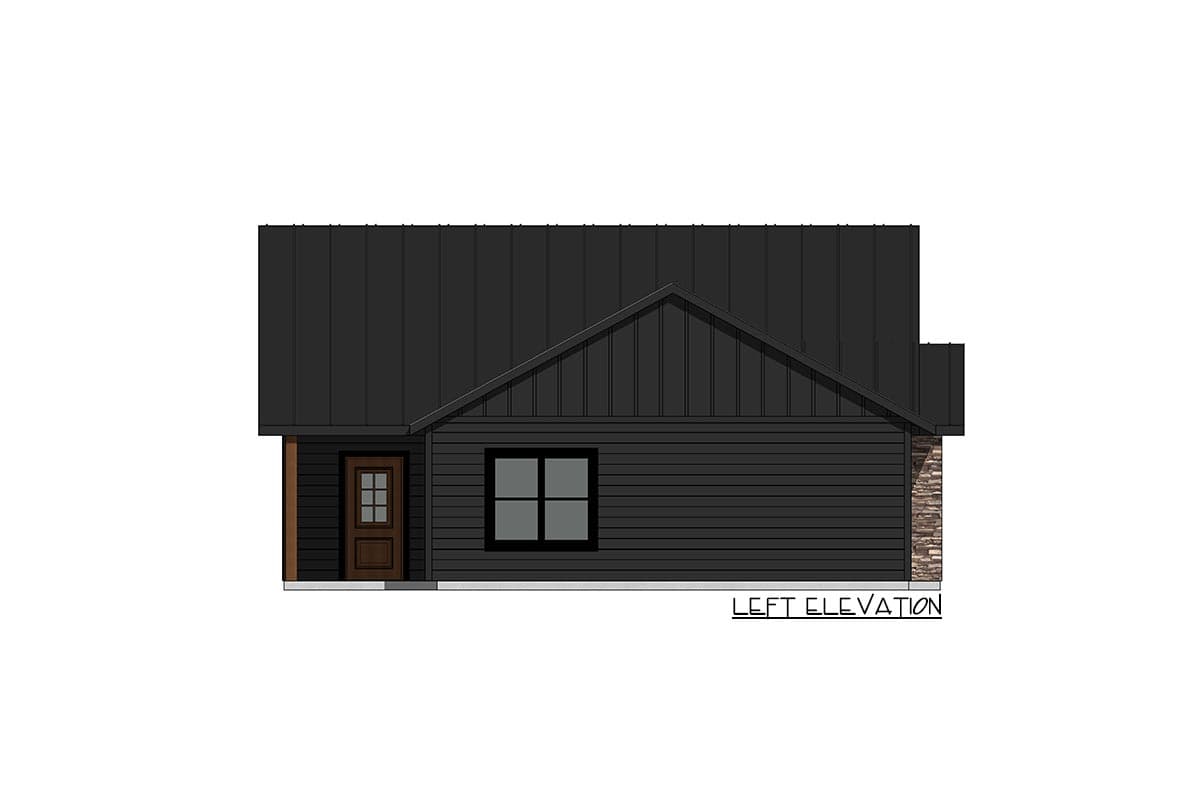

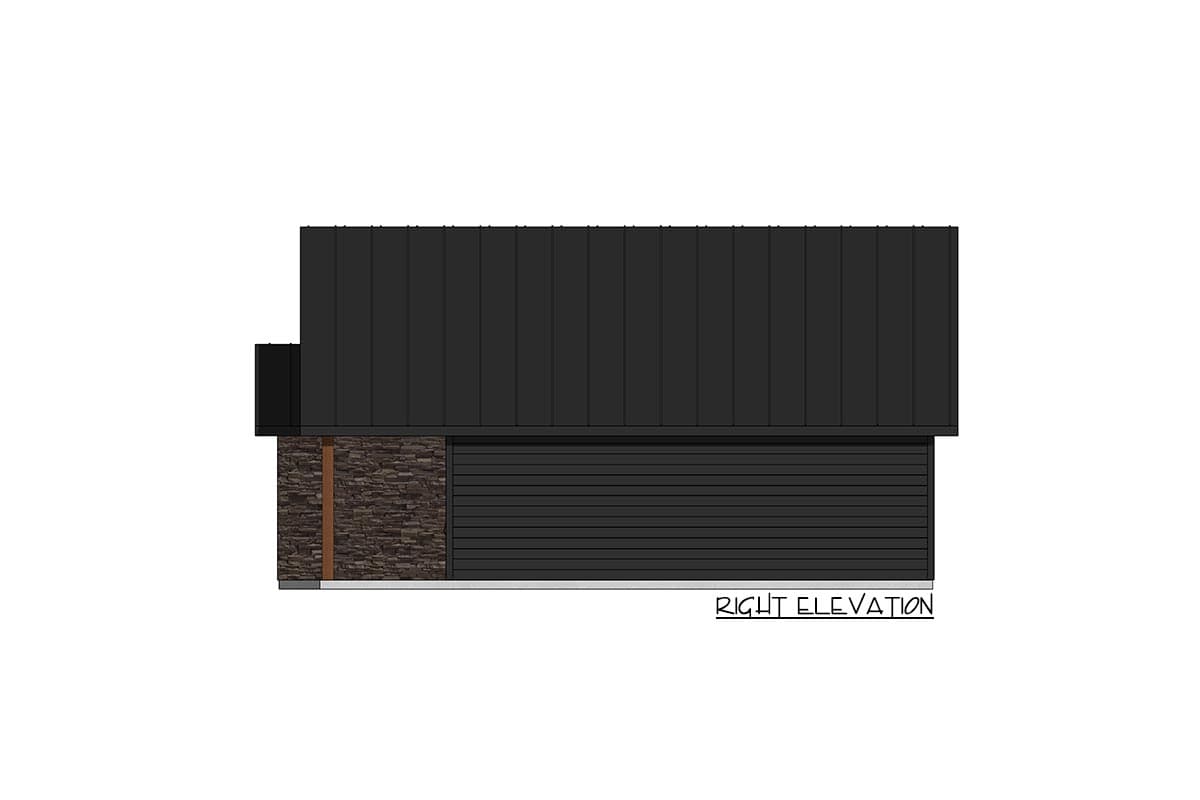

Exterior Elevations

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.


Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan (available as an upgrade option)
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Framing layouts with beam sizes and locations
  •           Energy calculations

Building Code

Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

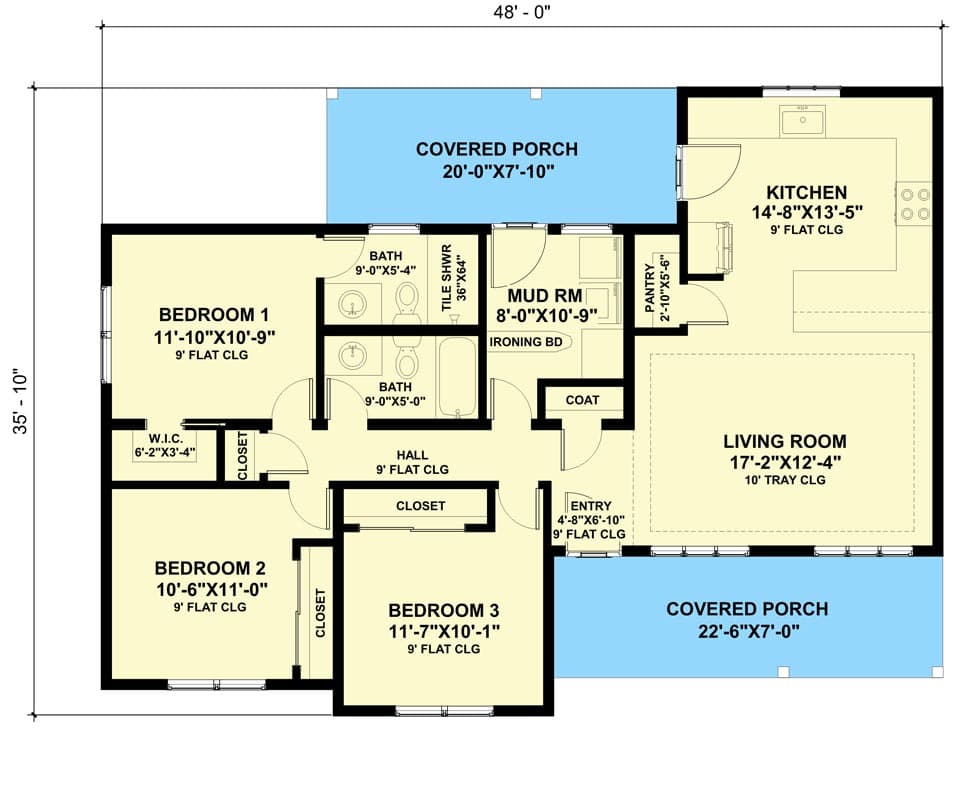

1240 Sq Ft Rustic 3 Bedroom New American Ranch with Large Mudroom - 420048WNT floor plan - Main Level

Plan details

1240 Sq Ft Rustic 3 Bedroom New American Ranch with Large Mudroom

  • 1,240

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $995
  • 5 Sets $1,145
  • 5 Sets + PDF $1,245
  • CAD - Unlimited Build $1,895
  • View all purchase option online

About This Plan

  • The stunning rustic exterior adds to the curb appeal provided by this 3-bedroom New American Ranch home plan.
  • An inviting 22'6" by 7' front porch invites family and friends inside where a living room resides to the right.
  • The C-shaped has a sink centered over a window on the back wall, counter seating and a roomy pantry. A door has direct access to the back porch for al fresco eating.
  • Bedroom 1 includes a full bathroom and a walk-in closet. The two remaining bedrooms share a hall bath.
  • A large mud room with washer and dryer has direct access to the rear covered porch.
  • Related Plans: Get an alternate exterior with house plan 420043WNT and get a smaller version (1,162 square feet) with house plan 420042WNT.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,240 sq. ft.
  • 1st Floor: 1,240 sq. ft.
  • Covered Patio: 314 sq. ft.
  • Porch, Combined: 314 sq. ft.
  • Porch, Rear: 158 sq. ft.
  • Porch, Front: 156 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Monolithic Slab, Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 48' 0"
  • Depth: 35' 10"
  • Max ridge height: 19' 6"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 6.5 on 12
  • Framing Type: Truss
