1416 Square Foot Rustic Cabin with 2-Car Garage and Side Porch

Heated S.F.
1,416
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 420102WNT

Main Level
Main Level

Plan 420102WNT

M-F 9am-5pm EST |

1-203-761-8500

Main Level

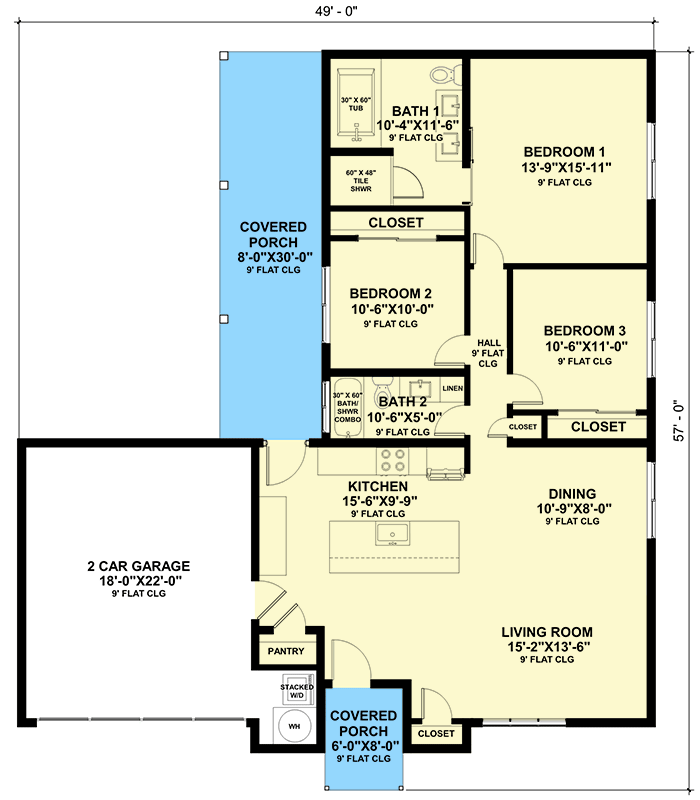

Plan 420102WNT: 1416 Square Foot Rustic Cabin with 2-Car Garage and Side Porch - Floor Plan - Main Level - Cabin, Mountain, Ranch, Rustic

Plan Details

  • This 3 bed. 2 bath rustic cabin house plan gives you 1,416 square feet of heated living and has a 428 square foot 2-car garage. Enjoy the outdoors on the 240 square foot side porch accessible from the kitchen and Bed 2.
  • The front of the home is open concept with the kitchen against the far wall. An island with sink gives you work space and casual seating.
  • All bedrooms have access to the outdoors with the master bedroom and Bed 3 having sliding doors on the side.
  • NOTE: Please allow 3 to 5 business days for delivery.

What's Included

  • Foundation Plan - Footing sizes, slab thickness, floor framing sizes/layout, etc.
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Electrical Layout Plan - Locations of electrical panels, lights, switches, outlets, etc.
  • Roof Plan - Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.
  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Building Cross Section - View that depicts a vertical slice through the building.
  • Details and notes - Dissected drawings of foundation/footings, typical wall section, floor framing, door framing, window framing, roof framing, roof venting, insulation information etc.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp
  • Mechanical Drawings (Drawings for HVAC duct sizes/locations) Typically provided by your HVAC subcontractor
  • Plumbing Drawings (Drawings for plumbing pipe sizes/locations) Typically provided by your Plumbing Subcontractor
  • Energy Calculations (Property specific energy efficiency calculations) Typically provided by local Energy Consultant

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,416 sq. ft.

1st Floor

1,416 sq. ft.

Porch, Front

48 sq. ft.

Porch, Rear

240 sq. ft.

Porch, Combined

288 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

49' 0"

Depth

57' 0"

Max Ridge Height

18' 6"

Garage

Type

Attached

Area

428 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Cabin

Mountain

Ranch

Rustic

Special Features

Bedrooms - Clustered

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

1,416 sq. ft.

1st Floor

1,416 sq. ft.

Porch, Front

48 sq. ft.

Porch, Rear

240 sq. ft.

Porch, Combined

288 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

49' 0"

Depth

57' 0"

Max Ridge Height

18' 6"

Garage

Type

Attached

Area

428 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Cabin

Mountain

Ranch

Rustic

Special Features

Bedrooms - Clustered

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Exclusive
