Plan 28103J

1469 Square Foot Country Craftsman with 3 Upstairs Bedrooms

Heated S.F.
1,469
Beds
3
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 28103J

Main Level
Main Level
2nd Floor
2nd Floor

Plan 28103J

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 28103J: 1469 Square Foot Country Craftsman with 3 Upstairs Bedrooms - Floor Plan - Main Level - Country, Craftsman, New American, Northwest, Traditional

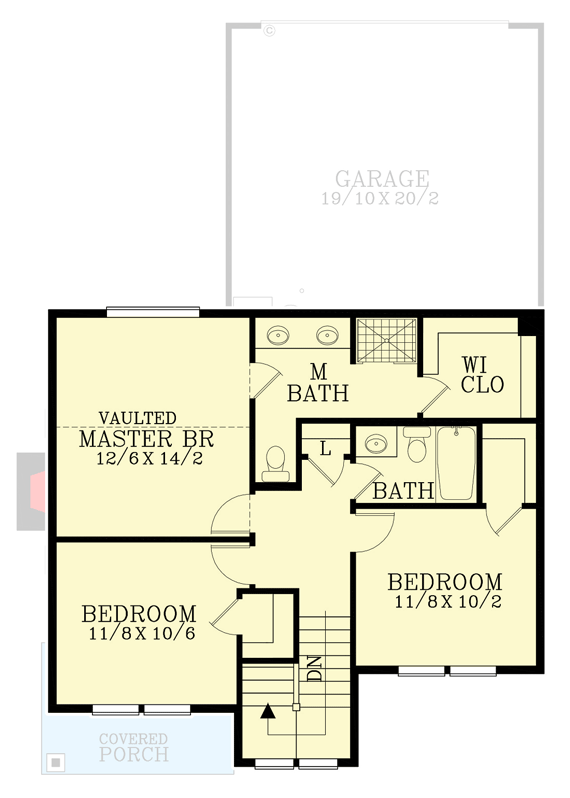

2nd Floor

Plan 28103J: 1469 Square Foot Country Craftsman with 3 Upstairs Bedrooms - Floor Plan - 2nd Floor - Country, Craftsman, New American, Northwest, Traditional

Plan Details

  • All 3 bedrooms are located on the upper floor of this 1,469 square foot Country Craftsman house plan with a slim 32'-wide footprint making it suitable for narrower lots.
  • Step in off the covered entry porch and find a wide open floor plan with the great room and dining area ahead and the C-shaped kitchen to the right.
  • Sliding doors on the back wall take you to the back yard.
  • Laundry is located by the mud room which serves as the transition area from the main floor to the garage.

What's Included

  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,469 sq. ft.

1st Floor

708 sq. ft.

2nd Floor

761 sq. ft.

Porch, Front

65 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

32' 0"

Depth

48' 0"

Max Ridge Height

27' 3"

Garage

Type

Attached

Area

452 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Second Floor

8'

Room

Ceiling Type

Height

Master Bedroom

Vaulted

8' 0''

Roof Details

Primary Pitch

12 on 7

Secondary Pitch

12 on 10

Framing Type

Truss

Architectural Style

Country

Craftsman

New American

Northwest

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Laundry - Main Level

Master Suite - Upstairs

Mudroom
