Plan 28138J
15-Foot-Wide 3-Bed House Plan with 1-Car Garage - 1580 Sq Ft
Heated S.F.
1,580
Beds
3
Baths
2.5
Stories
2
Cars
1
What's Included
Plan Details
  • This 15-foot-wide house plan gives you 3 beds, 2.5 baths and 1,580 square feet of heated living. A 1-car 252 square foot garage is located in front.
  • All three bedrooms are located on the second floor, as is laundry for your convenience. The master suite has a vaulted ceiling and a 4-fixture bath.
  • Enter this narrow lot house plan through the foyer or from the garage and find yourself in a hallway with a powder room located before you get to the stairs.
  • The back of the home is open from the great room to the C-shaped kitchen and dining area. A door on the back wall takes you to a patio.
  • Related Plans: Get alternate versions with house plans 28085J (70' deep), 28084J (64' deep), 28083J (62' deep) and 28082J (60' deep).
What's Included
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

15-Foot-Wide 3-Bed House Plan with 1-Car Garage - 1580 Sq Ft

  • 1,580

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 1

    Car garage

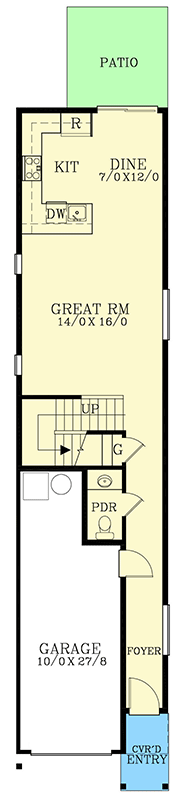

Floor Plan

  • Main Level

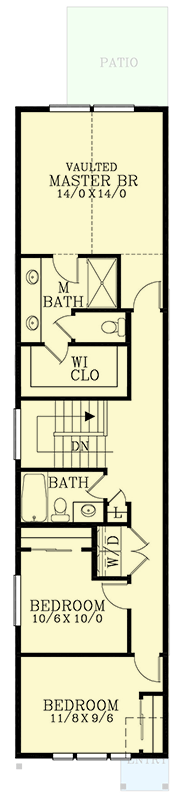

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,580 sq. ft.
  • 1st Floor: 680 sq. ft.
  • 2nd Floor: 900 sq. ft.

Dimensions

  • Width: 15' 0"
  • Depth: 64' 0"
  • Max ridge height: 25' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 252 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Post/Beam

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 10
  • Secondary Pitch: 12 on 10
  • Framing Type: Truss
