16-Unit Multi-Family Complex Plan - 1218 Sq Ft 2 Bedroom Units

Heated S.F.
19,488
Units
16
Width
Depth

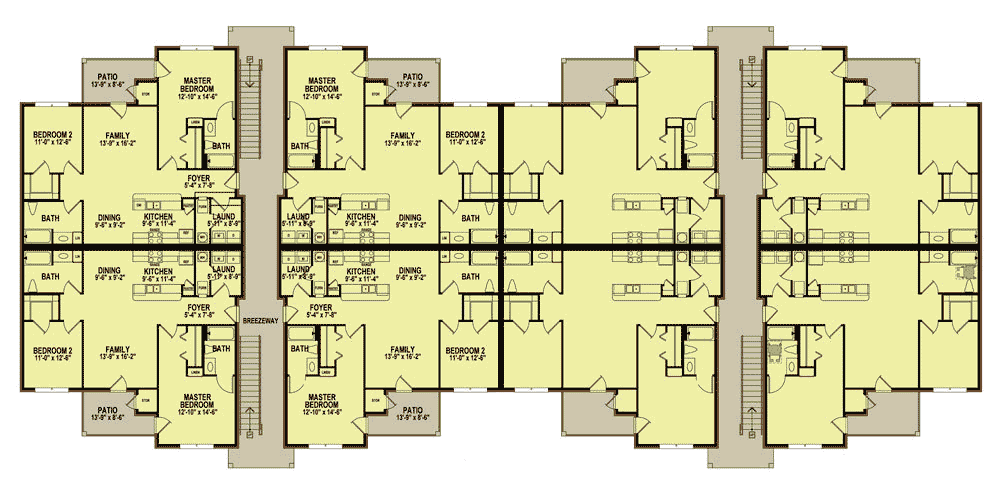

Floor Plan

Plan 83138DC

Main Level
Main Level

Plan 83138DC

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 83138DC: 16-Unit Multi-Family Complex Plan - 1218 Sq Ft 2 Bedroom Units - Floor Plan - Main Level - Traditional

Plan Details

  • There are sixteen two bedroom units, each with a patio or porch, in this apartment style multi-family plan.
  • Square footage for each unit is 1,218 and includes a walk-in closet in bedroom 2 and a laundry room for each unit.
  • Related Plans: Get an 8-unit version with apartment plan 83139DC and an alternate 16-unit plan with 83137DC.
Unit A
Heated Area
1,218Sq. Ft.
1218 Sq. Ft. 1st
Beds
2Beds
Baths
2Full Baths
