Plan 849019PGE
1600 Sq Ft 2-Story House Plan with Informal Dining and Lower Level Expansion
Heated S.F.
1,606
Beds
4
Baths
2.5
Stories
2
Cars
2
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

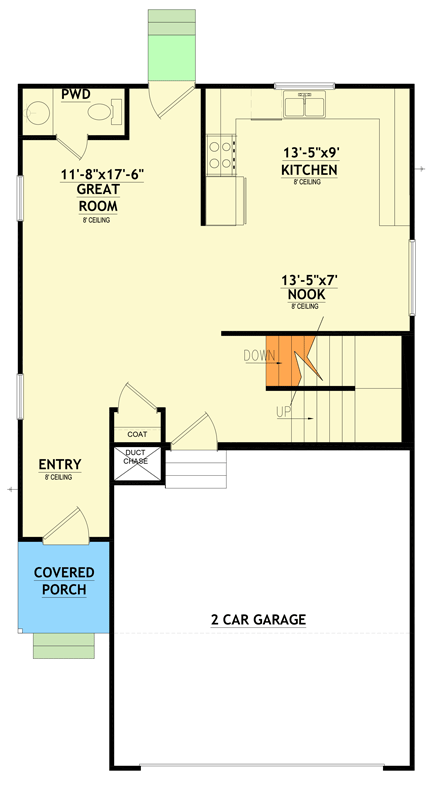

1600 Sq Ft 2-Story House Plan with Informal Dining and Lower Level Expansion - 849019PGE floor plan - Main Level
2nd Floor
Reverse Floor Plan

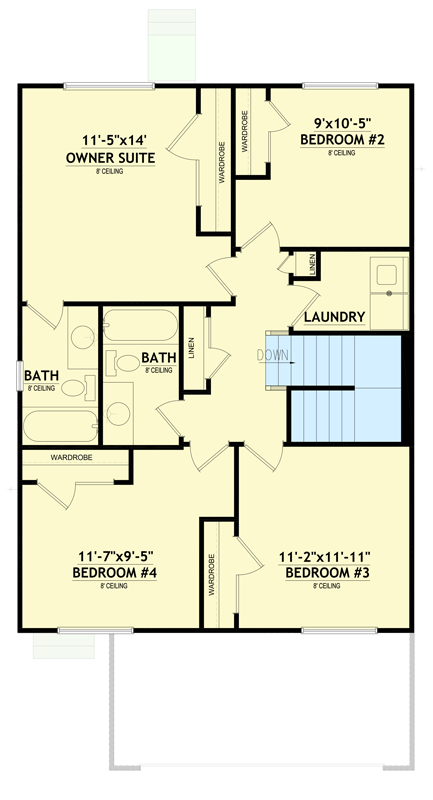

1600 Sq Ft 2-Story House Plan with Informal Dining and Lower Level Expansion - 849019PGE floor plan - 2nd Floor
Optionally Finished Lower Level
Reverse Floor Plan

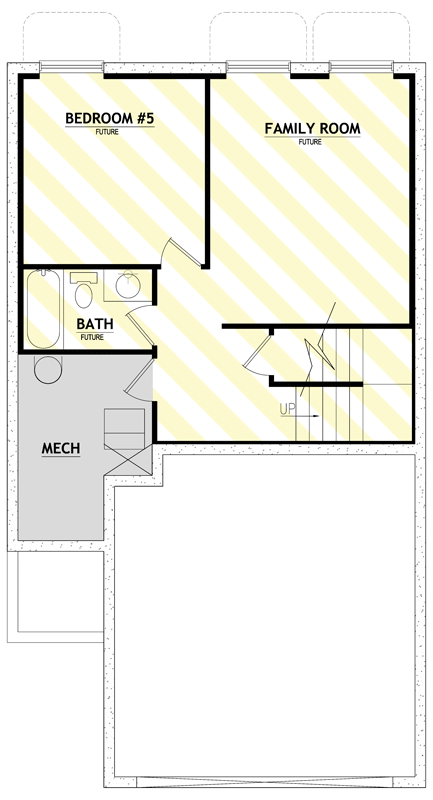

1600 Sq Ft 2-Story House Plan with Informal Dining and Lower Level Expansion - 849019PGE floor plan - Optionally Finished Lower Level
Plan Details
  • This 1,606 square foot house plan gives you 4 beds, 2.5 baths and has lower level expansion that gets you 605 square feet of additional living space including two more bedrooms and a bath.
  • A covered entry opens to a foyer with views that extend to the great room beyond. A wall offers privacy and separates this space from the kitchen which is open to an informal eating nook.
  • All 4 bedrooms - plus laundry - are located on the second floor.
What's Included
  • Cover Sheet
  • Elevations
  • Foundation Plan
  • Floor Plan
  • Details and Schedules
  • Upper Floor Framing Plan
  • Roof Flaming Plan
  • Details
  • Sections and Notes
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

1600 Sq Ft 2-Story House Plan with Informal Dining and Lower Level Expansion

  • 1,606

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Optionally Finished Lower Level

Plan Details

Square Footage Breakdown

  • Total: 1,606 sq. ft.
  • 1st Floor: 670 sq. ft.
  • 2nd Floor: 936 sq. ft.

Dimensions

  • Width: 26' 0"
  • Depth: 45' 0"
  • Max ridge height: 25' 10"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 420 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site
