Plan 421521CHD 1605 Square Foot Townhouse-Style House Plan with Flex Room

1,605 4 3 2 1
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

1605 Square Foot Townhouse-Style House Plan with Flex Room

Plan 421521CHD

  • 1,605

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 1

    Cars

  • Get 3 or 4 bedrooms - depending on how you use the main floor flex room (i.e. as a bedroom or an office or den) - with this 1605 square foot townhouse-style house plan.
  • The dining and living rooms are open to each other and located in back of the home. The kitchen sinks are set below a window looking out back and a peninsula gives you work space and casual seating.
  • Three bedrooms are on the second floor as is the washer and dryer for your convenience.

Each plan set includes the following:

  • Cover Page
  • Foundation Plan with Notes and Footing Details
  • Dimensioned Floor Plans with Notes and Window & Door Schedules
  • Exterior Elevations and Roof Plan with Notes
  • Electrical Layout Plans with Legend

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

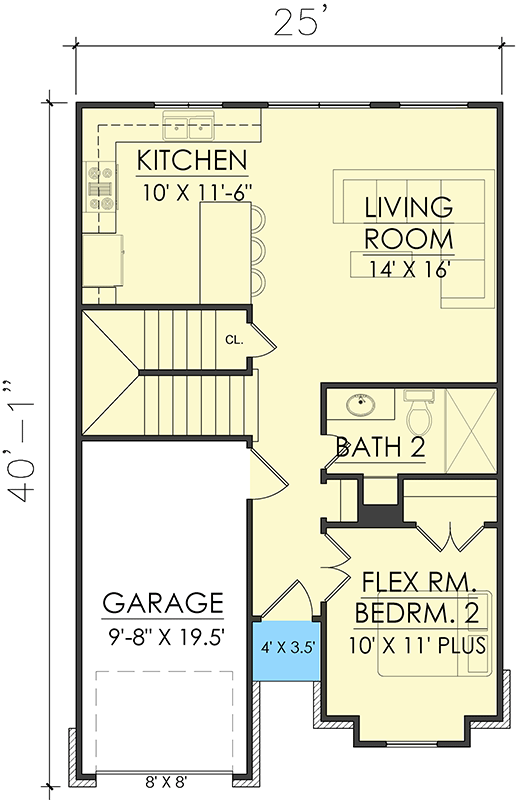

1605 Square Foot Townhouse-Style House Plan with Flex Room - 421521CHD floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

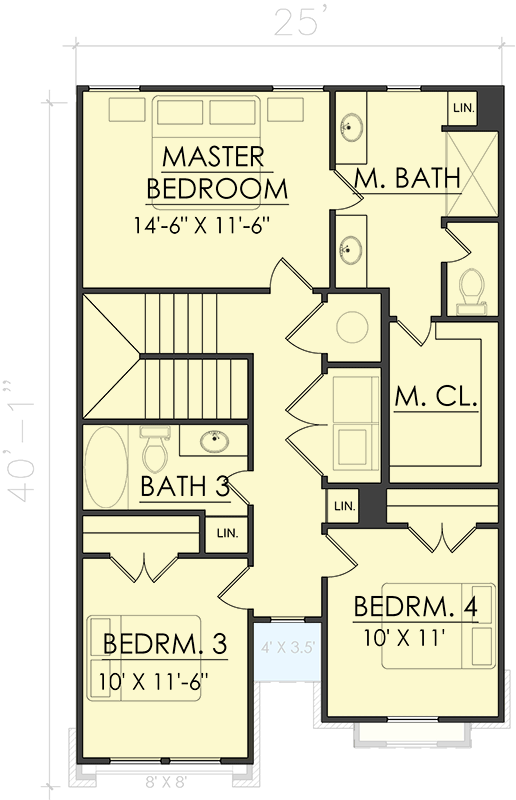

1605 Square Foot Townhouse-Style House Plan with Flex Room - 421521CHD floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,605 sq. ft.
  • 1st Floor: 738 sq. ft.
  • 2nd Floor: 867 sq. ft.
  • Porch, Front: 14 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 25' 0"
  • Depth: 40' 1"
  • Max ridge height: 32' 10"

Garage

  • Type: Attached
  • Area: 201 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

1605 Square Foot Townhouse-Style House Plan with Flex Room

  • 1,605

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 1

    Car garage

Buy This Plan
  • PDF - Single-Build $1,295
  • 5 Sets + PDF $1,545
  • PDF - Unlimited Build $1,895
  • CAD Unlimited + PDF $2,295
  • View all purchase option online

About This Plan

  • Get 3 or 4 bedrooms - depending on how you use the main floor flex room (i.e. as a bedroom or an office or den) - with this 1605 square foot townhouse-style house plan.
  • The dining and living rooms are open to each other and located in back of the home. The kitchen sinks are set below a window looking out back and a peninsula gives you work space and casual seating.
  • Three bedrooms are on the second floor as is the washer and dryer for your convenience.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,605 sq. ft.
  • 1st Floor: 738 sq. ft.
  • 2nd Floor: 867 sq. ft.
  • Porch, Front: 14 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 25' 0"
  • Depth: 40' 1"
  • Max ridge height: 32' 10"

Garage

  • Type: Attached
  • Area: 201 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
