1611 Square Foot 3 Bed New American House Plan with Single Level Living
Heated S.F.
1,611
Beds
3
Baths
2
Stories
1
Cars
1
Floor Plan

Plan 801126PM

Main Level
slide image 0

Plan 801126PM

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • This 3 bed, 2 bath New American house plan gives you 1,611 square feet of single-level living and has an attractive exterior with board and batten siding with wood accents on the porch and the gable peaks.
  • All three bedrooms are clustered on the right with the master bedroom with walk-in closet and a private bathroom in back and the other two bedrooms sharing a bath. The front bedroom can be turned into a home office giving a great work-from-home space..
  • An open-concept area gives you a living room, dining room and the kitchen with a central island and a walk-in pantry.
  • A vestibule connects the garage and the entrance of the house and a laundry room completes the package.
  • NOTE: Please allow 15 to 20 business days for delivery.
What's Included
Please note this plan is designed to the National Building Code of Canada.

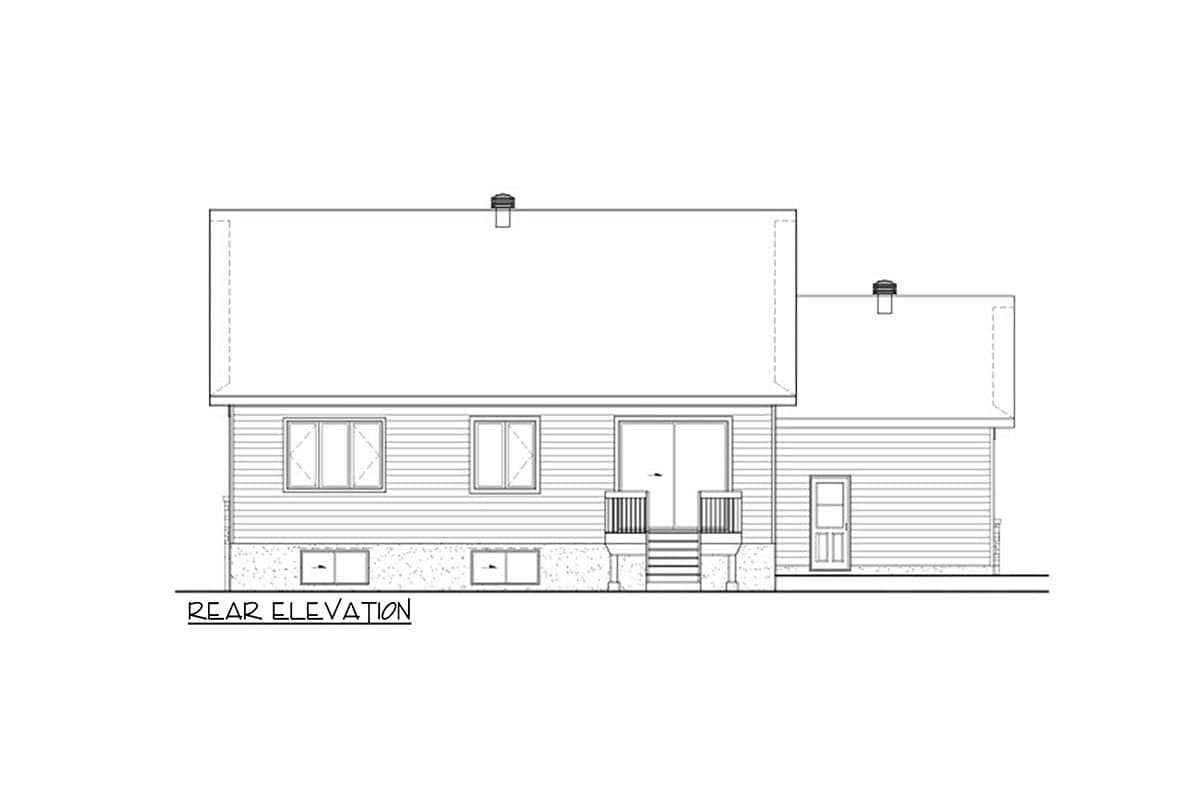

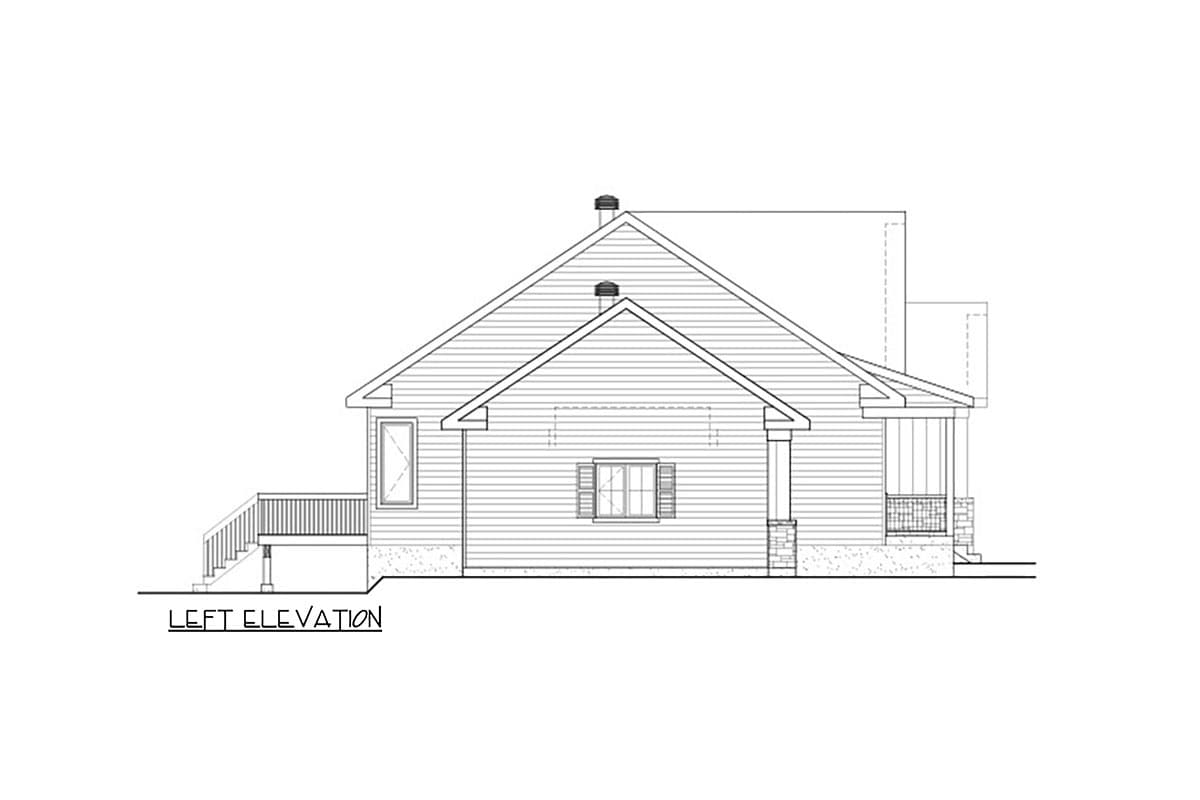

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.

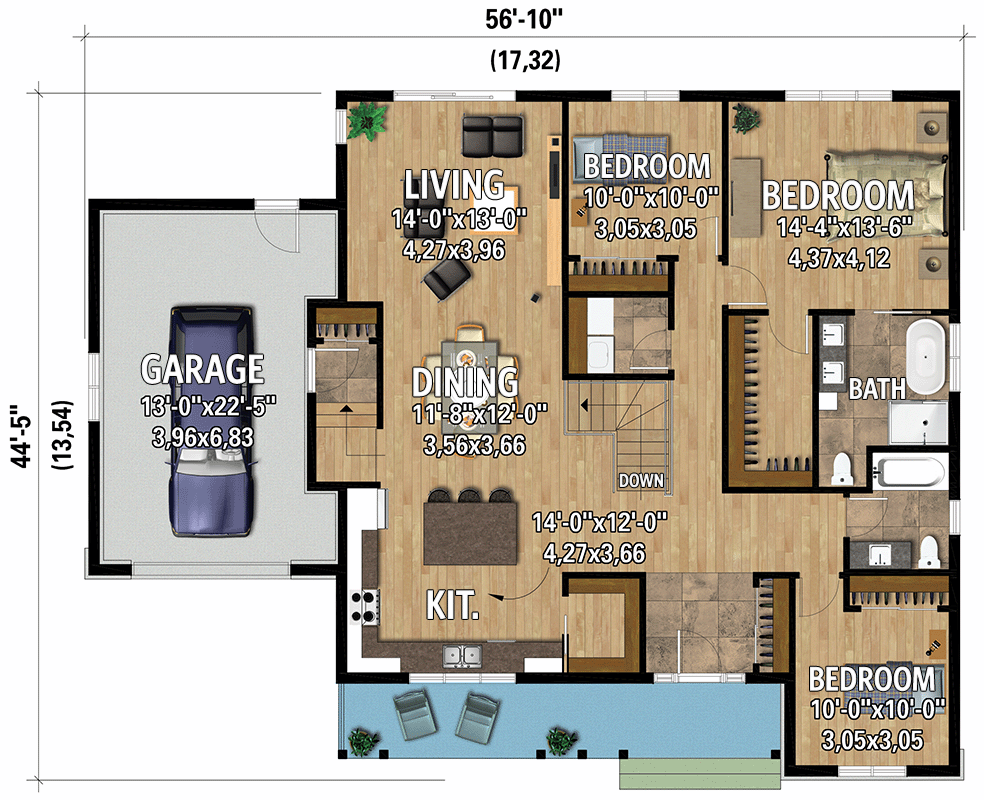

  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
