Plan 380009ASH
EXCLUSIVE
1617 Square Foot 3 Bed Contemporary Cottage with Tray Ceiling in Living Room
Heated S.F.
1,617
Beds
3
Baths
2
Stories
1
What's Included
Plan Details
  • This 3 bed, 2 bath contemporary house plan gives you 1,617 square feet of heated living with all three bedrooms lining the right side of the home, leaving the left side open front to back.
  • Enter the home from the 168 square foot front porch and you are welcomed to views that extend through the living room with tray ceiling to the back of the home.
  • The kitchen is to your left and has a 4' by 8' island and a 6' by 3' pantry.
  • In back, a 168 square foot covered porch extends your enjoyment to the outdoors.
What's Included

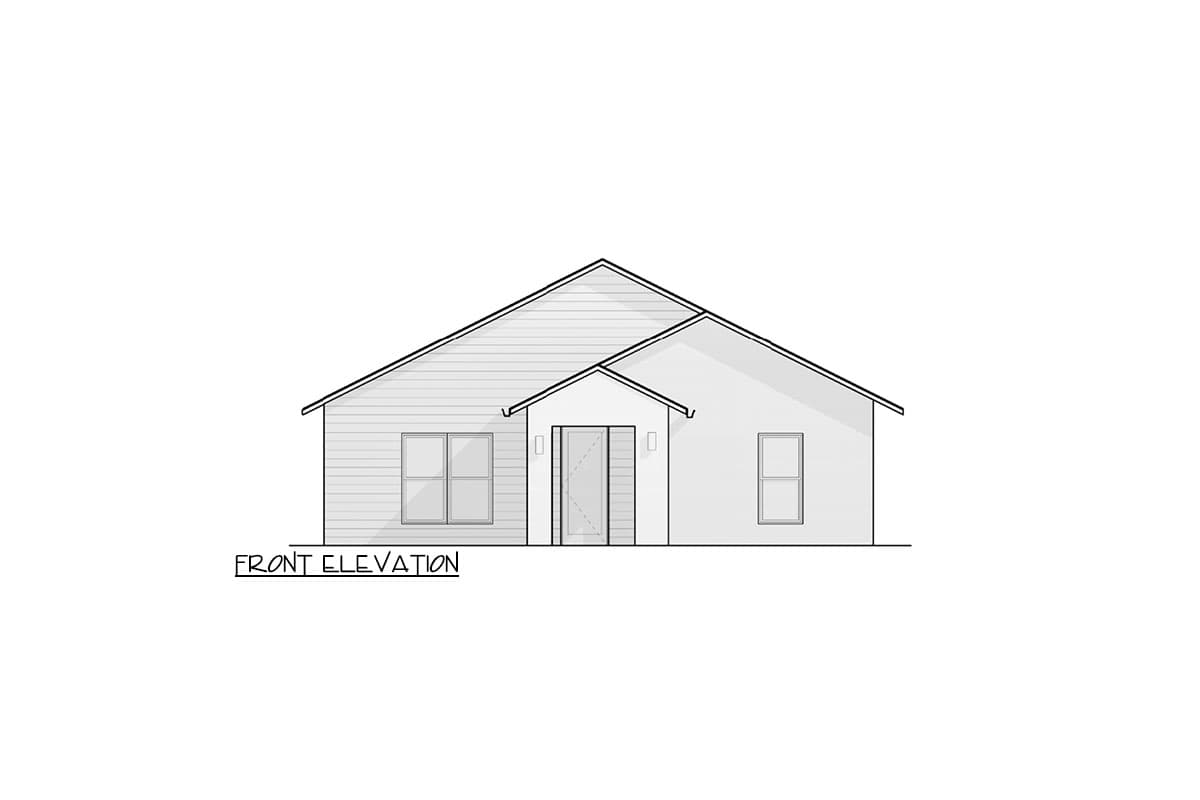

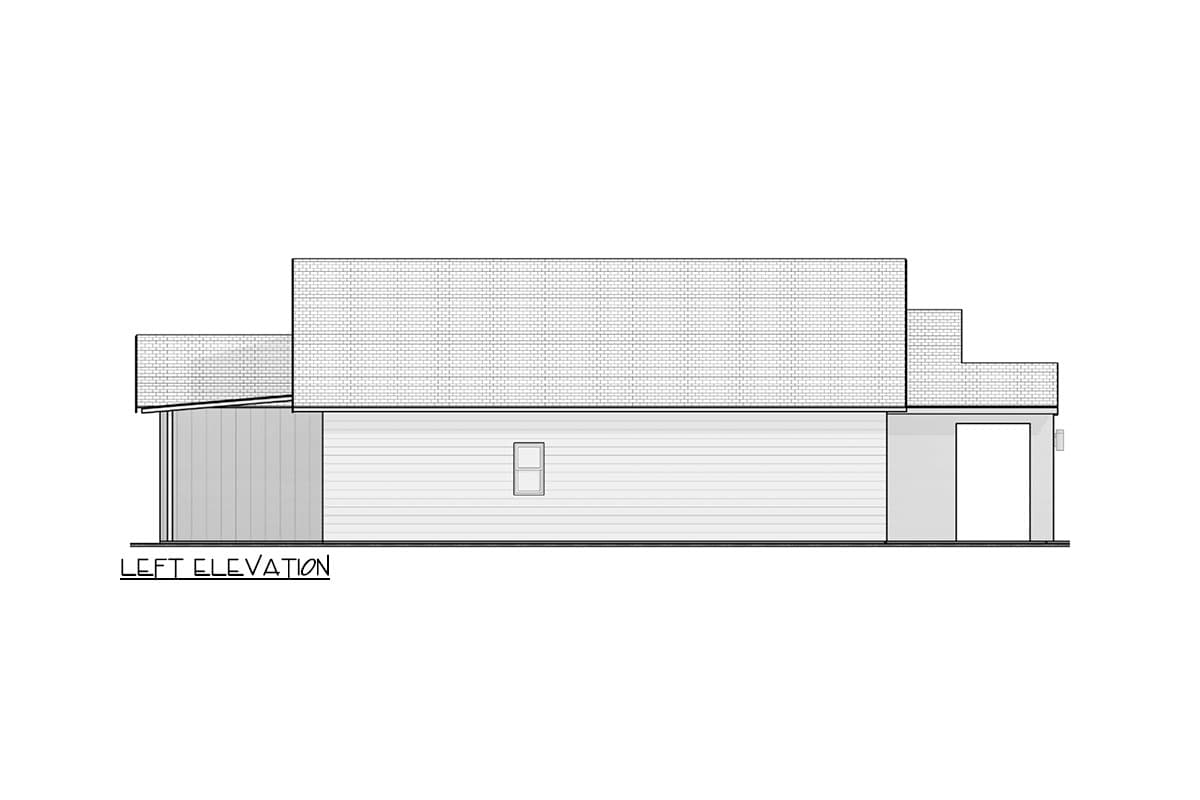

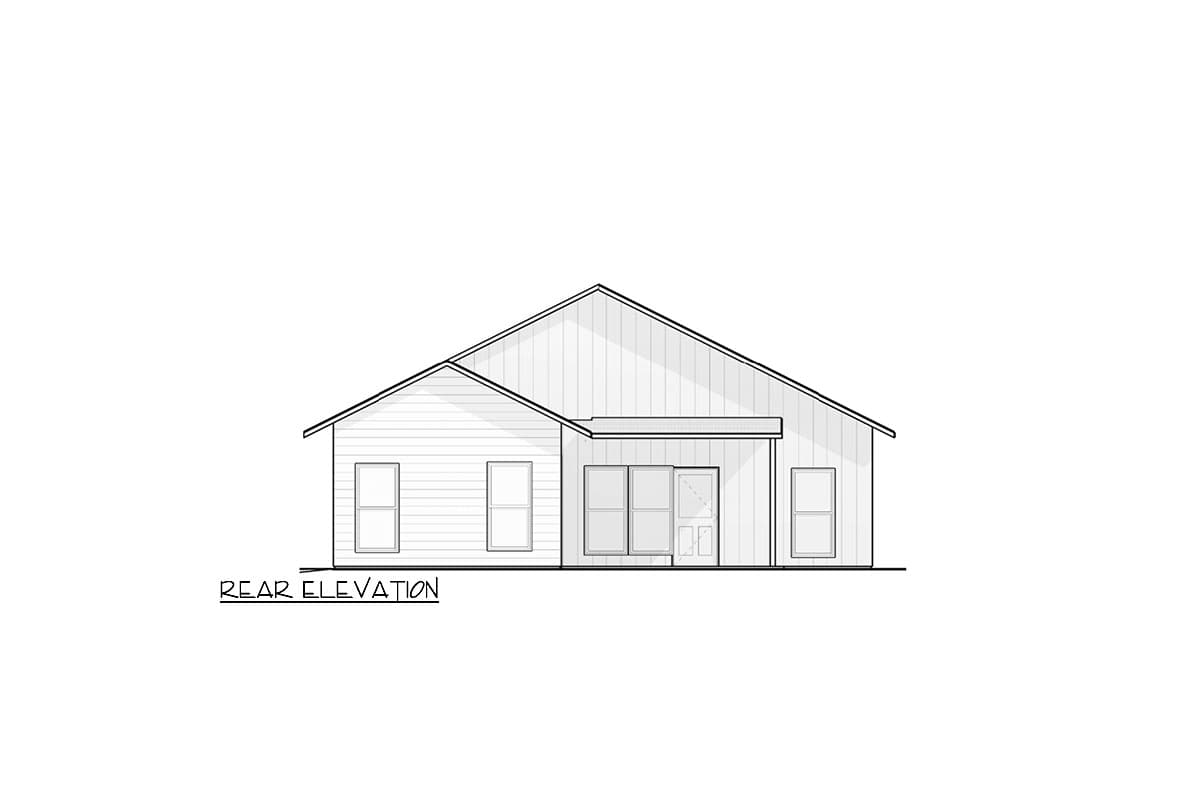

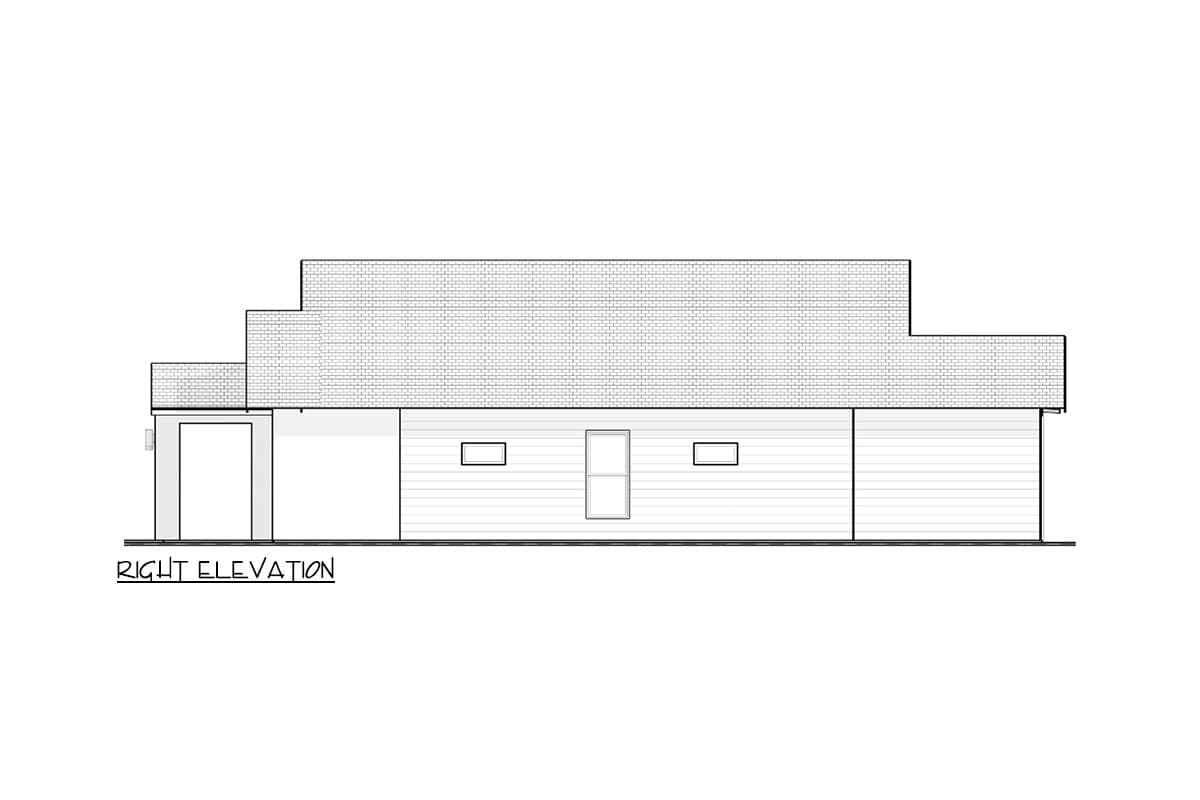

  • Exterior Elevations: Shows the front, rear and sides of the home

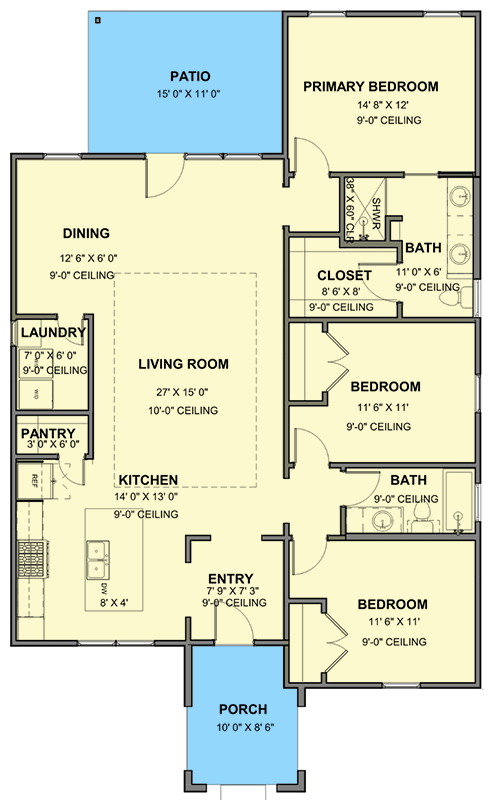

  • Floor Plans: Fully dimensioned floor plans
  • Schematic Lighting & Power Plan
  • Foundation Layout & Plumbing Plan
  • Roof Plan & sections
  • Window & door schedule
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

1617 Square Foot 3 Bed Contemporary Cottage with Tray Ceiling in Living Room

  • 1,617

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,617 sq. ft.
  • 1st Floor: 1,617 sq. ft.

Dimensions

  • Width: 37' 0"
  • Depth: 61' 0"
  • Max ridge height: 19' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Stick Or Truss
