Plan 623277DJ

1661 Square Foot 2-Bed Modern House Plan with Carport

Heated S.F.
1,661
Beds
2
Baths
2
Stories
1
Cars
2
Tour

Floor Plan

Plan 623277DJ

Main Level
Main Level

Plan 623277DJ

M-F 9am-5pm EST |

1-203-761-8500

Main Level

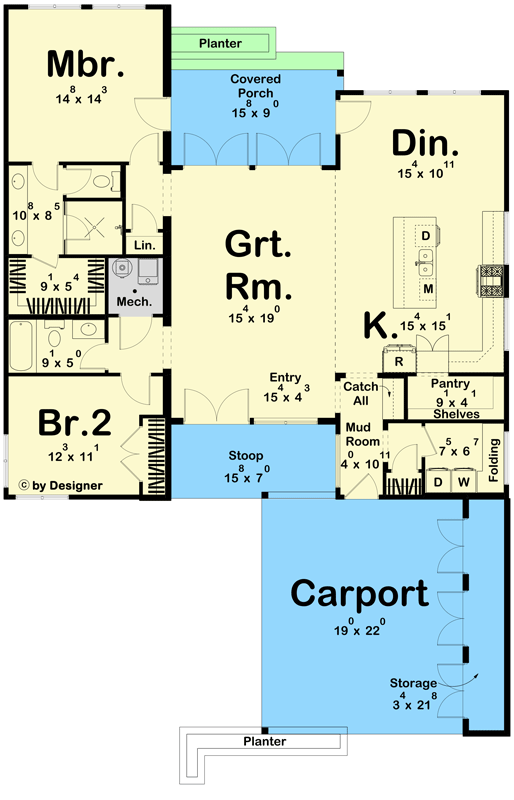

Plan 623277DJ: 1661 Square Foot 2-Bed Modern House Plan with Carport - Floor Plan - Main Level - Contemporary, Mid Century Modern, Modern

Plan Details

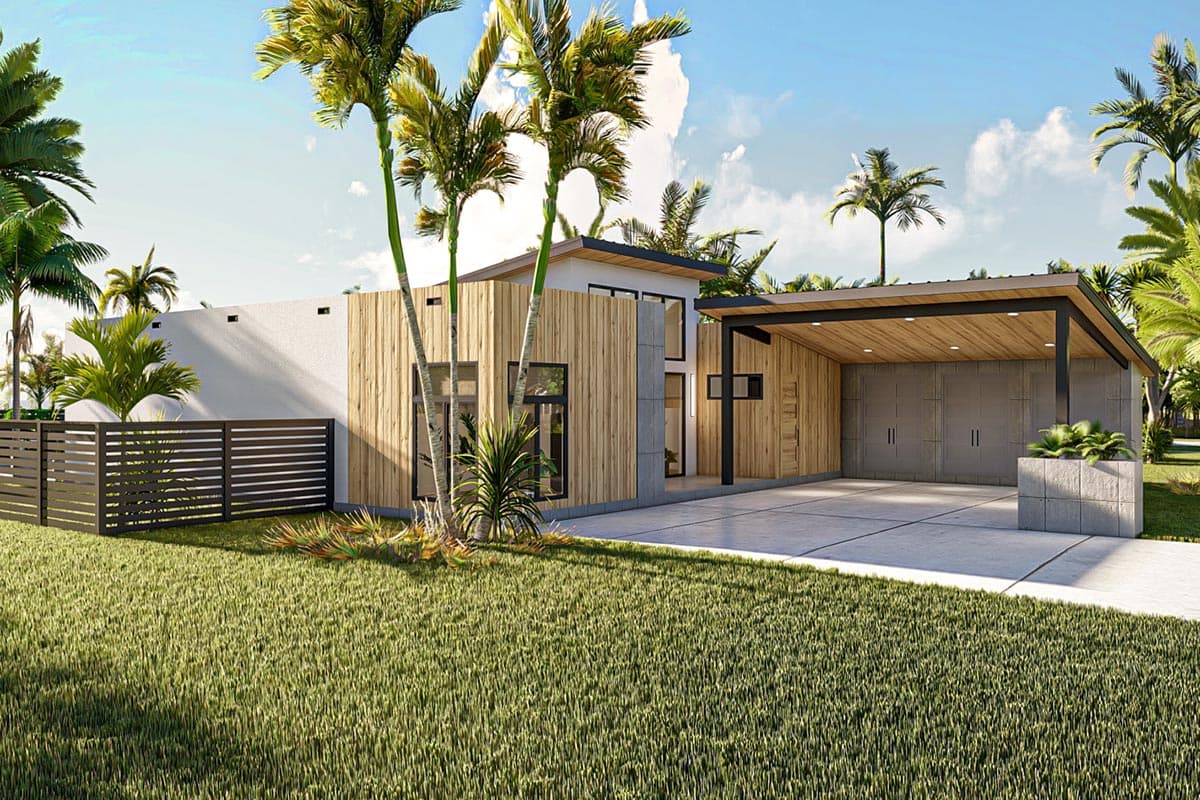

  • This 1,661 square foot modern house plan has 2 beds, 2 baths and a 2-car carport (418 sq. ft.).

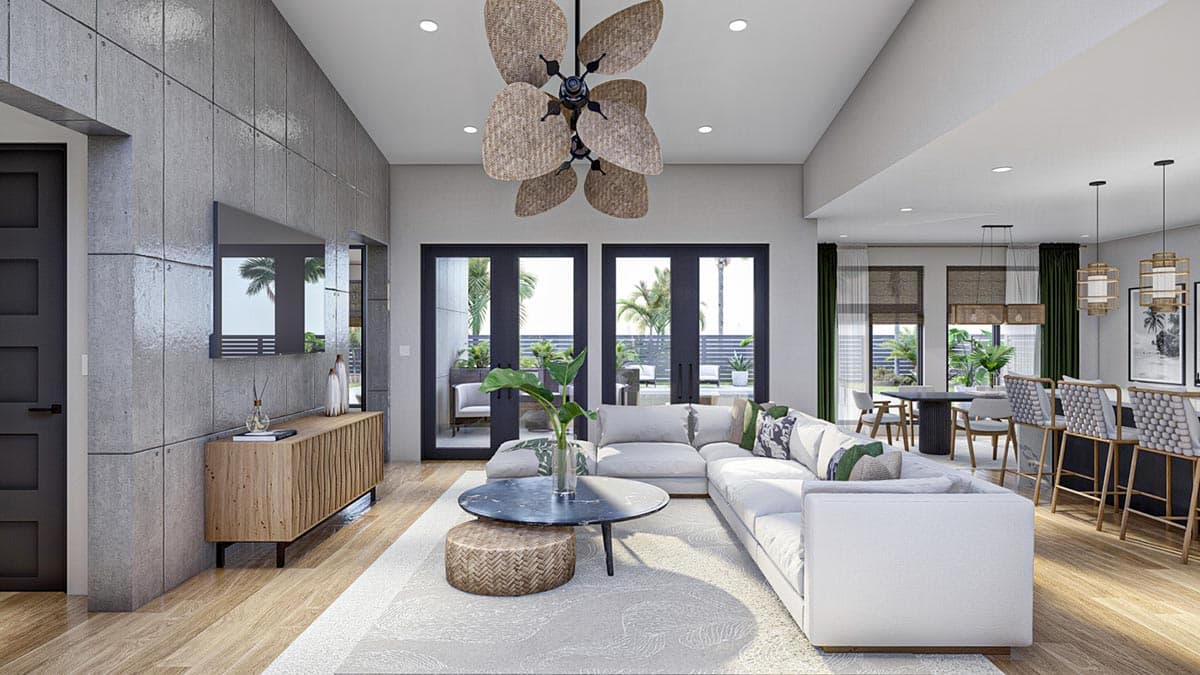

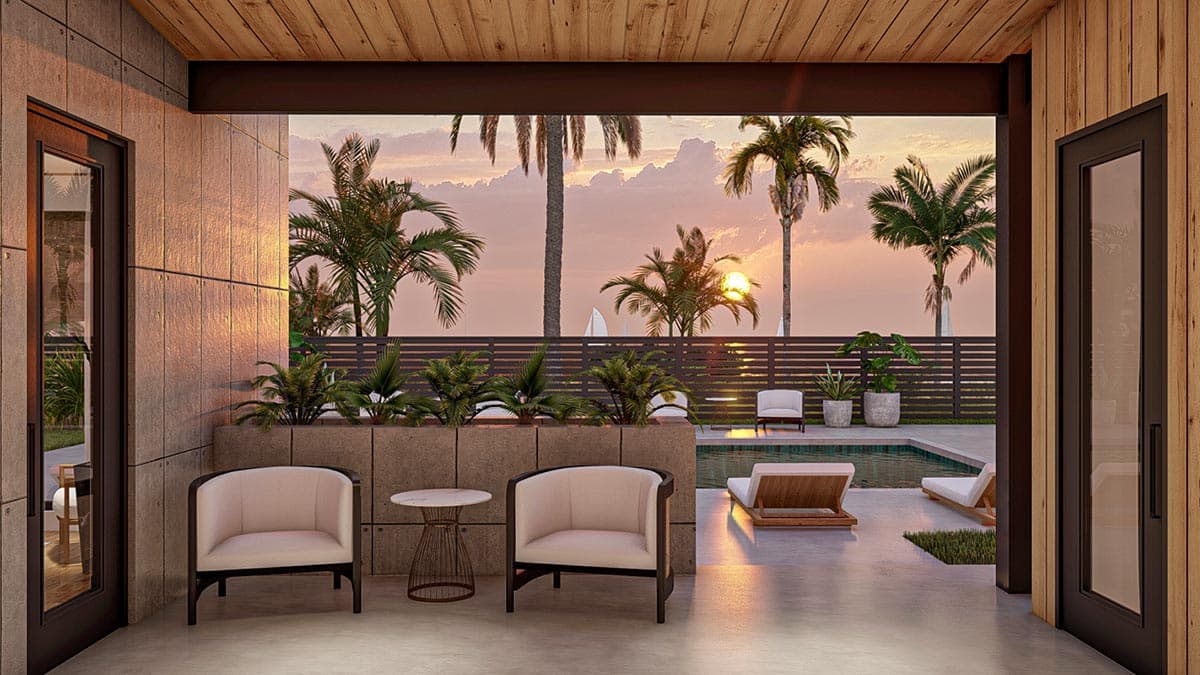

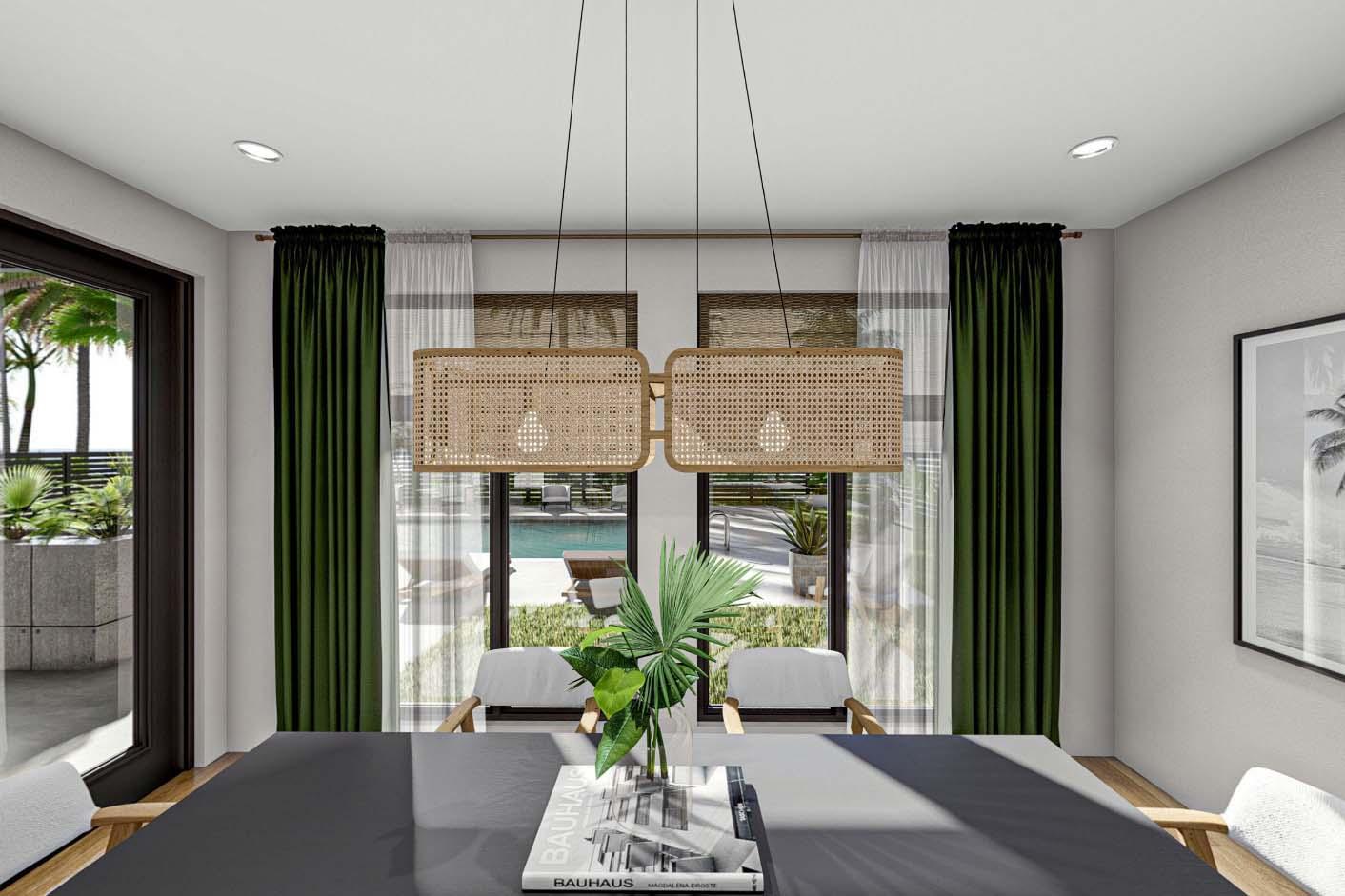

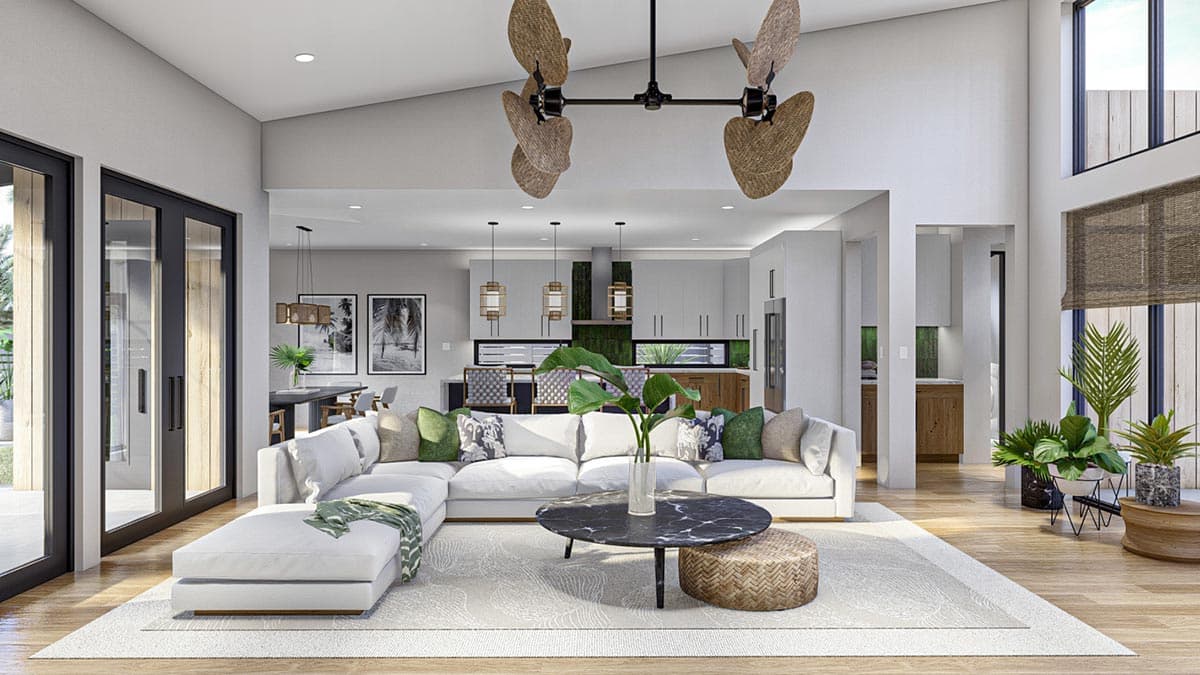

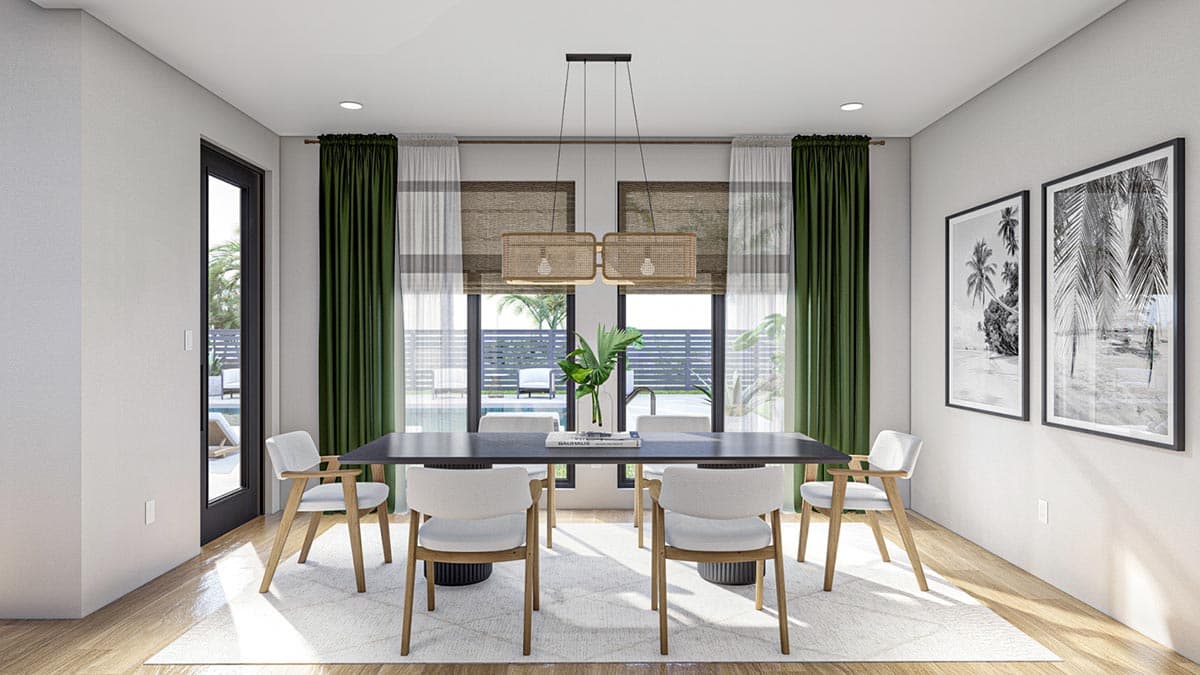

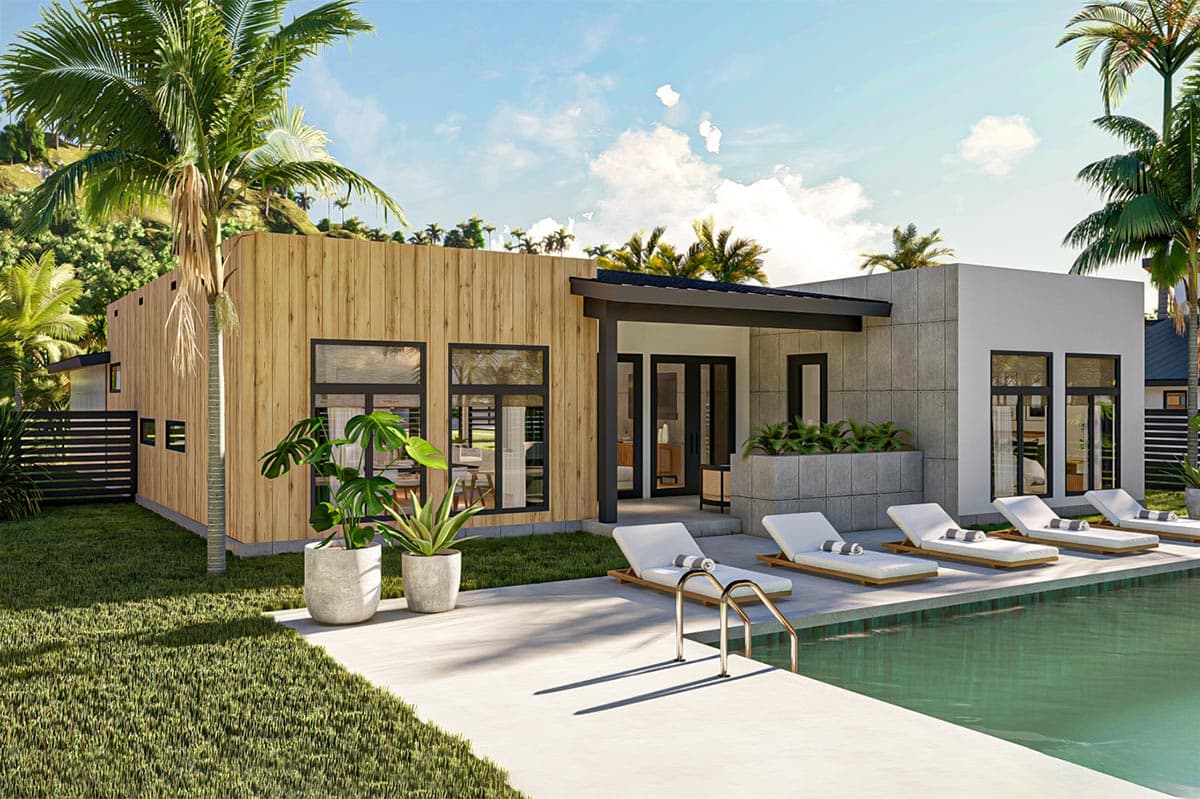

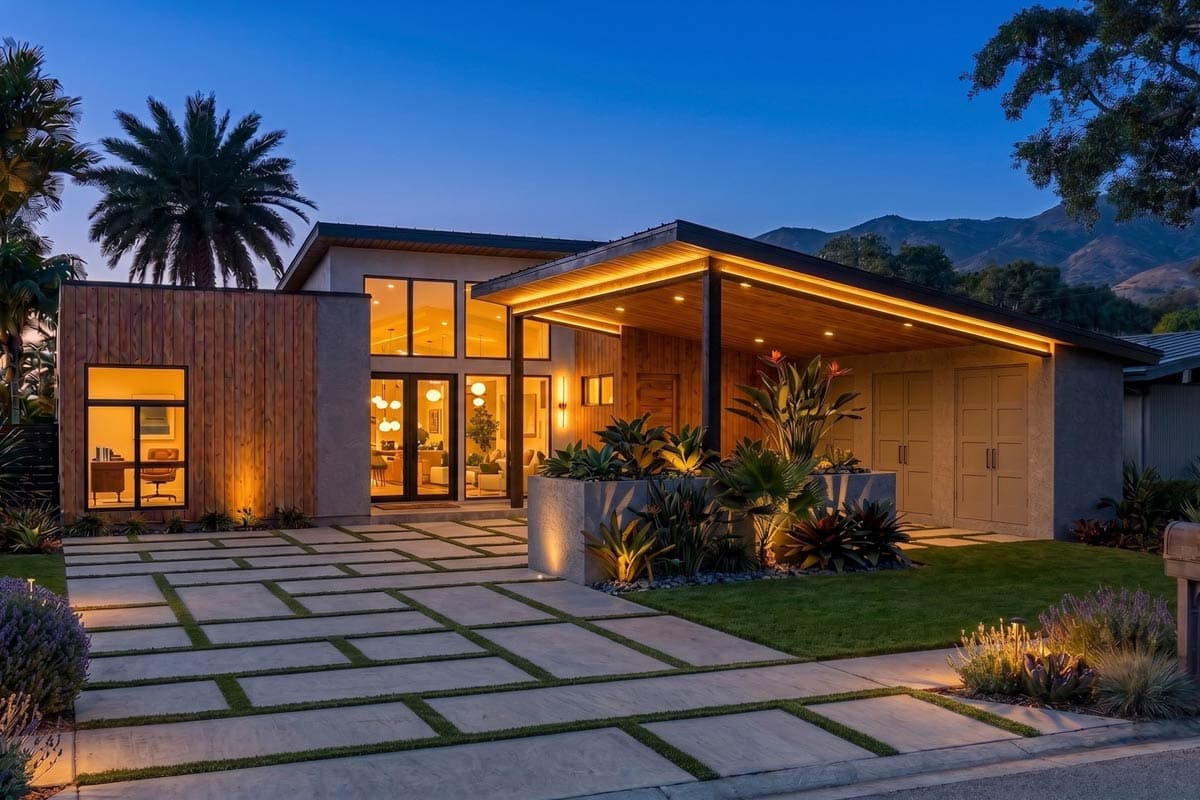

  • French doors open off the 7'-deep covered entry and open to the great room. Two sets of French doors across the room open to the rear covered porch and the great room opens to the dining room and kitchen to the right.

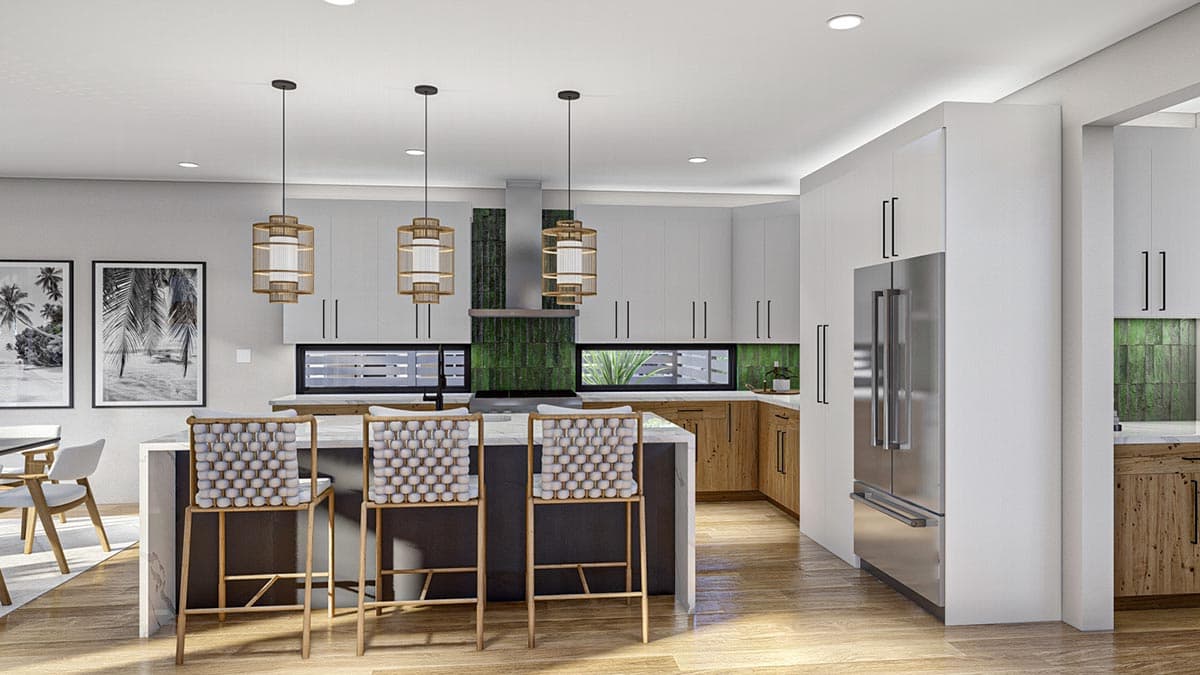

  • A large kitchen island has a double sink on one side and casual seating on the other. A roomy walk-in pantry (9'1" by 4'1" gives you great storage).

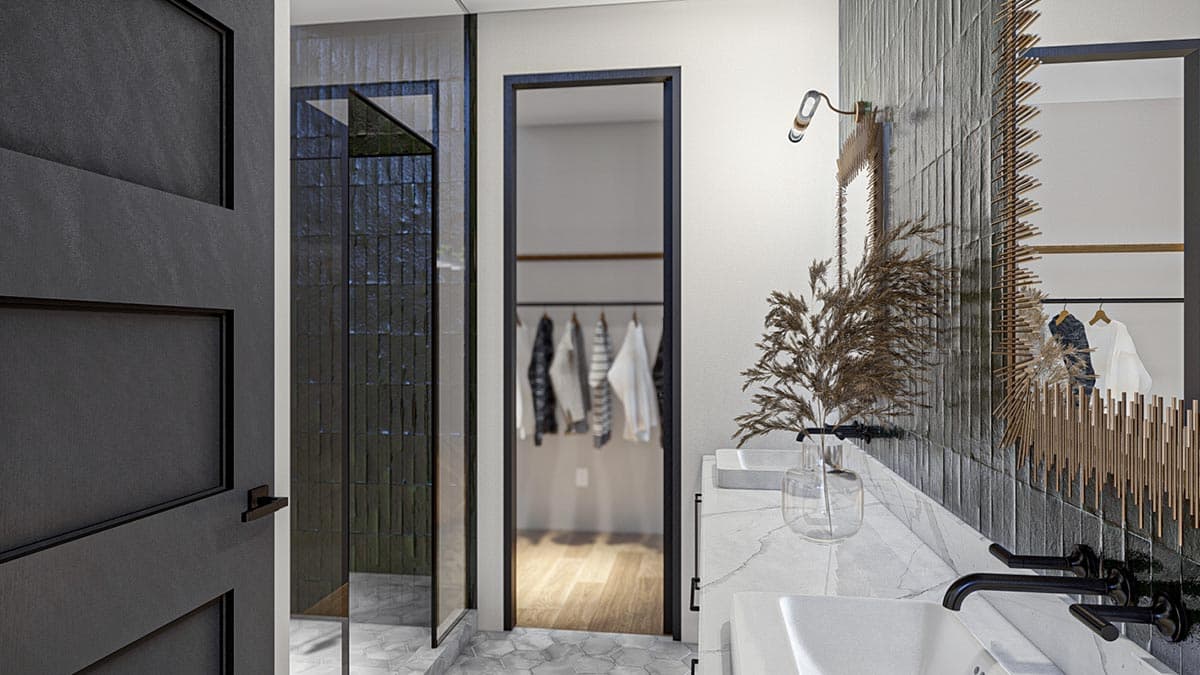

  • Bedrooms line the left side of the home with the master suite having outdoor access, a four-fixture bath and a walk-in closet. Bed 2 has a linear closet and nearby access to the hall bath. Laundry is located by the mud room by the carport entry.
  • Three sets of doors in back of the carport give you secure space to store your valuables.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,661 sq. ft.

1st Floor

1,661 sq. ft.

Carport

418 sq. ft.

Porch, Combined

163 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

47' 0"

Depth

72' 8"

Max Ridge Height

16' 8"

Garage

Type

Attached, Carport

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

2 on 12

Framing Type

Truss

Architectural Style

Contemporary

Mid Century Modern

Modern

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry
