1664 Square Foot 2 Bed Modern Lake House Plan with Finished Lower Level
Heated S.F.
1,664
Beds
2
Baths
1.5
Stories
2
Plan Details
  • This 2 bed, 2 bath lake house plan gives you 1,664 square feet of heated living with a rustic mid century modern exterior. Exposed rafters extend in front of the house - and run through the interior - giving you shady space in front and a great feel inside.

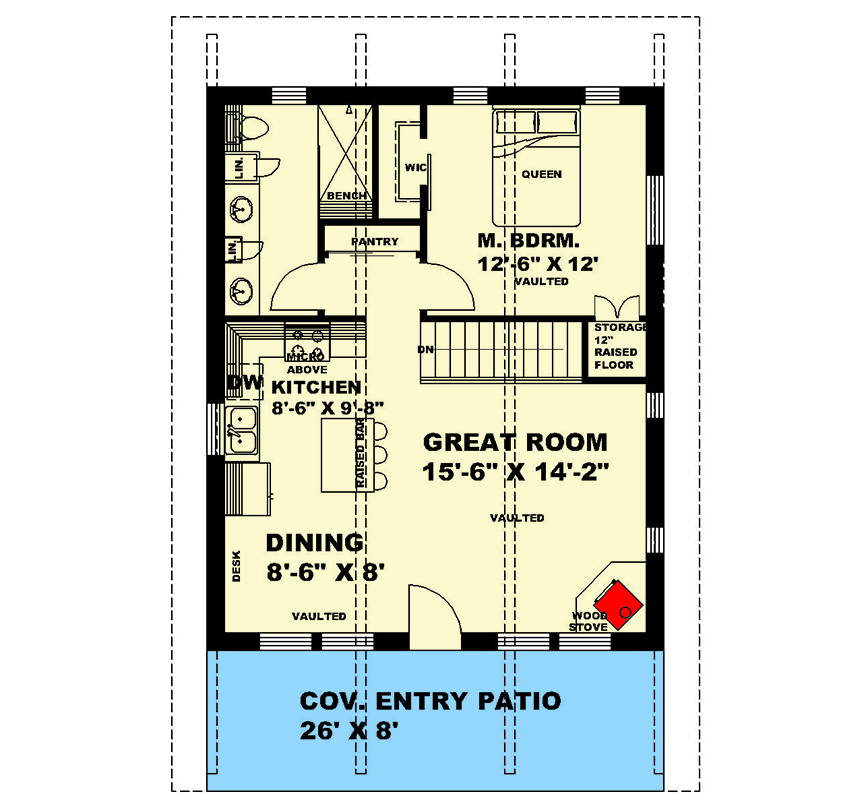

  • The front of the home is open concept with great views through tall windows. The great room has a corner fireplace and the kitchen has room for an island with seating for thre.
  • In back, the master suite fills the rest of the floor.

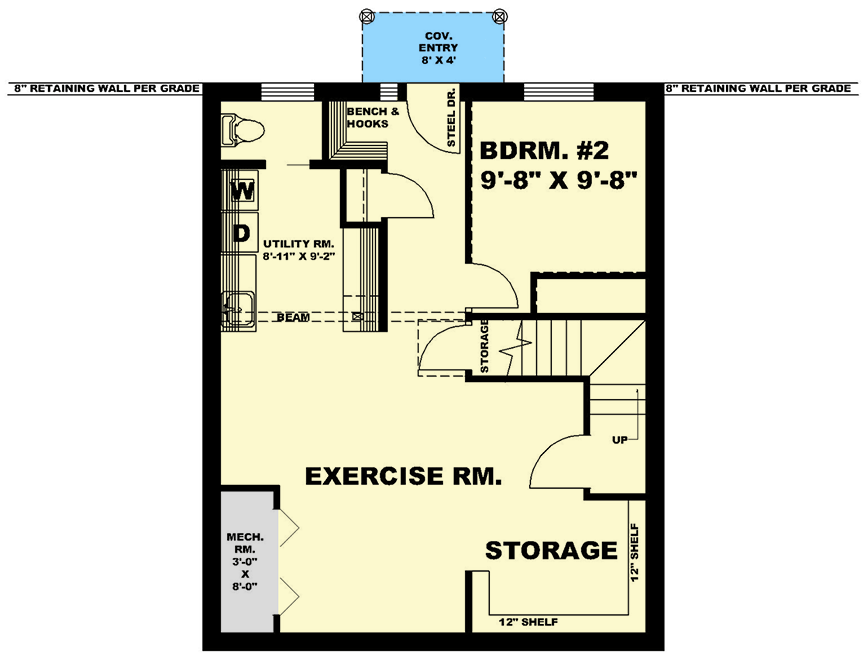

  • Below, a walkout entry with built-in bench with hooks helps control clutter while a bedroom and an open room with storage fills the bulk of the floor.
  • Laundry is located on the lower level.
What's Included
  • Coversheet: This is an artist's rendering of the finished home. This is used as a visual aid, but it is not needed for construction.

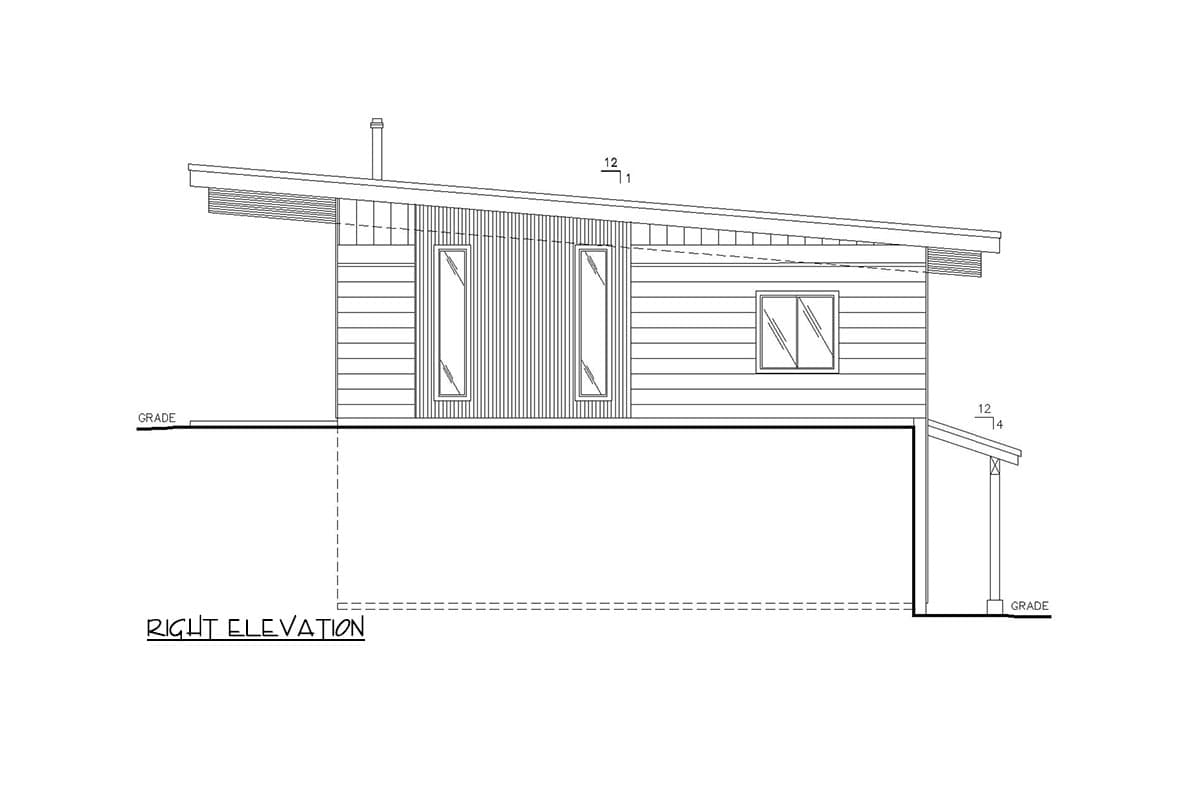

  • Exterior Elevations:  The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
  • Floor Plans:  The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
  • Foundation Plan: This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
  • Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
  • Interior Elevations: The interior elevations show built-in features of a house plan, such as kitchen cabinets, fireplaces, built-in bookshelves and desks, vanities, moldings, and hand rails.
  • Basic Electric: This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
  • Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
  • Details: This page includes the structural details for the construction of the house.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

1664 Square Foot 2 Bed Modern Lake House Plan with Finished Lower Level

  • 1,664

    Heated s.f.

  • 2

    Beds

  • 1.5

    Baths

  • 2

    Floors

Floor Plan

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 1,664 sq. ft.
  • Lower Level: 832 sq. ft.
  • 1st Floor: 832 sq. ft.

Dimensions

  • Width: 26' 0"
  • Depth: 32' 0"
  • Max ridge height: 24' 7"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): ICF

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 4"

Roof

  • Primary Pitch: 1 on 12
  • Framing Type: SIPs
