1665 Square Foot 3-Bed Craftsman Cottage with Vaulted Great Room
Heated S.F.
1,665
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • A gabled covered entry welcomes you to this 3-bed Craftsman cottage with 1665 square feet of single floor living. The front door has sidelights and transoms bringing natural light into the foyer with coat closet.
  • All three bedrooms are on the right side of the home with the vaulted master in back.
  • The left side of the home is open front to back with the vaulted great room with fireplace flowing into the eating nook and tot he kitchen in front.
  • Related Plan: Get an alternate version with house plan 28048J (1,649 sq. ft.).
What's Included
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

1665 Square Foot 3-Bed Craftsman Cottage with Vaulted Great Room

  • 1,665

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

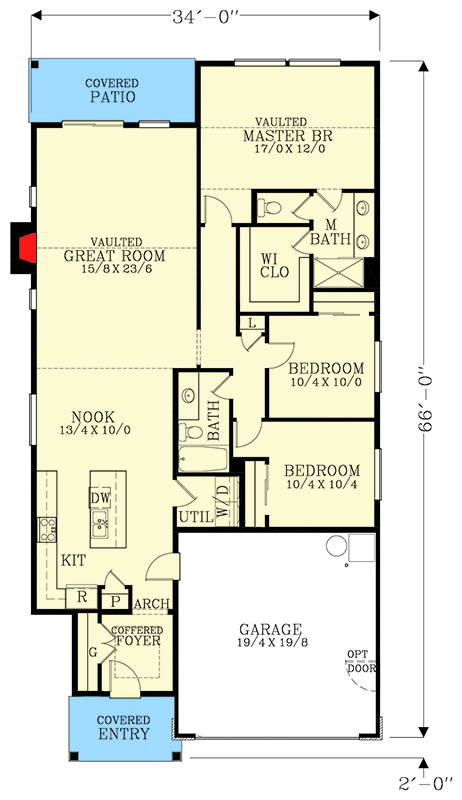

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,665 sq. ft.
  • 1st Floor: 1,665 sq. ft.

Dimensions

  • Width: 34' 0"
  • Depth: 66' 0"
  • Max ridge height: 23' 2"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 381 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6
