Plan 400020FTY
EXCLUSIVE
1685 Sq Ft Mid-Century Modern House Plan with Lower Level Drive-Through Workshop
Heated S.F.
1,685
Beds
3
Baths
2.5
Stories
1
Cars
2-4
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

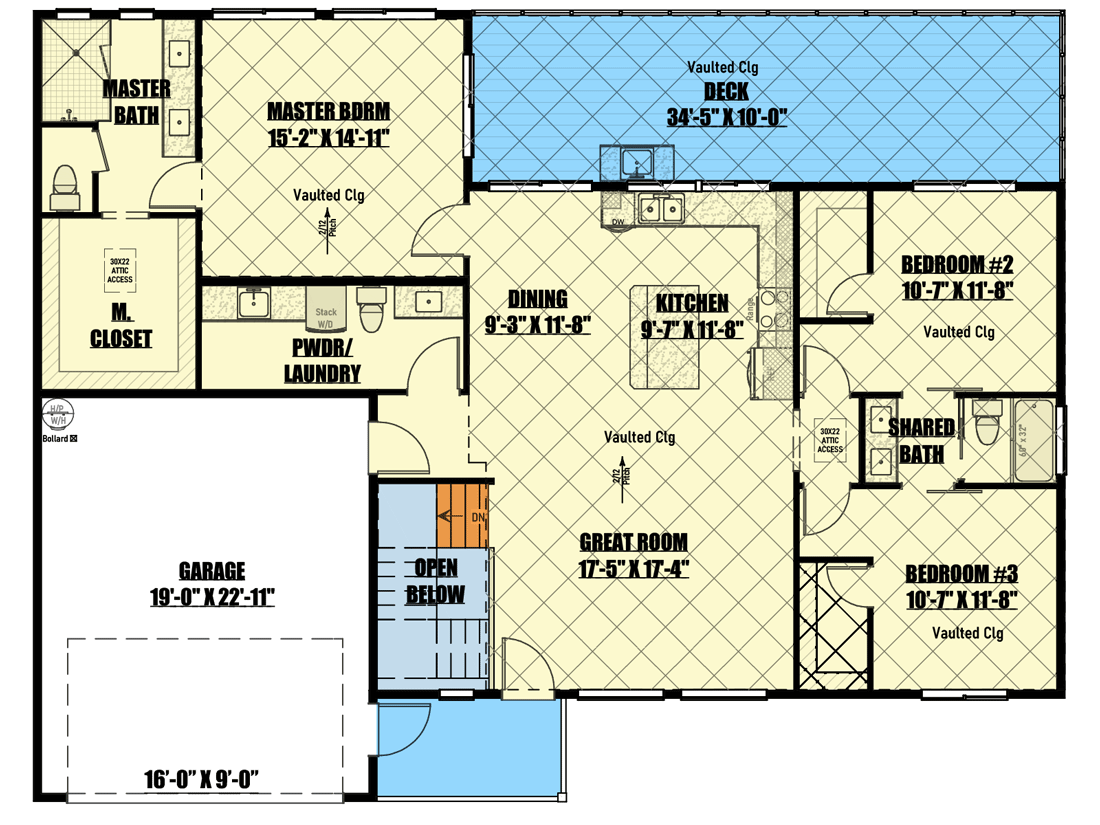

1685 Sq Ft Mid-Century Modern House Plan with Lower Level Drive-Through Workshop - 400020FTY floor plan - Main Level
Lower Level Garage and Workshop
Reverse Floor Plan

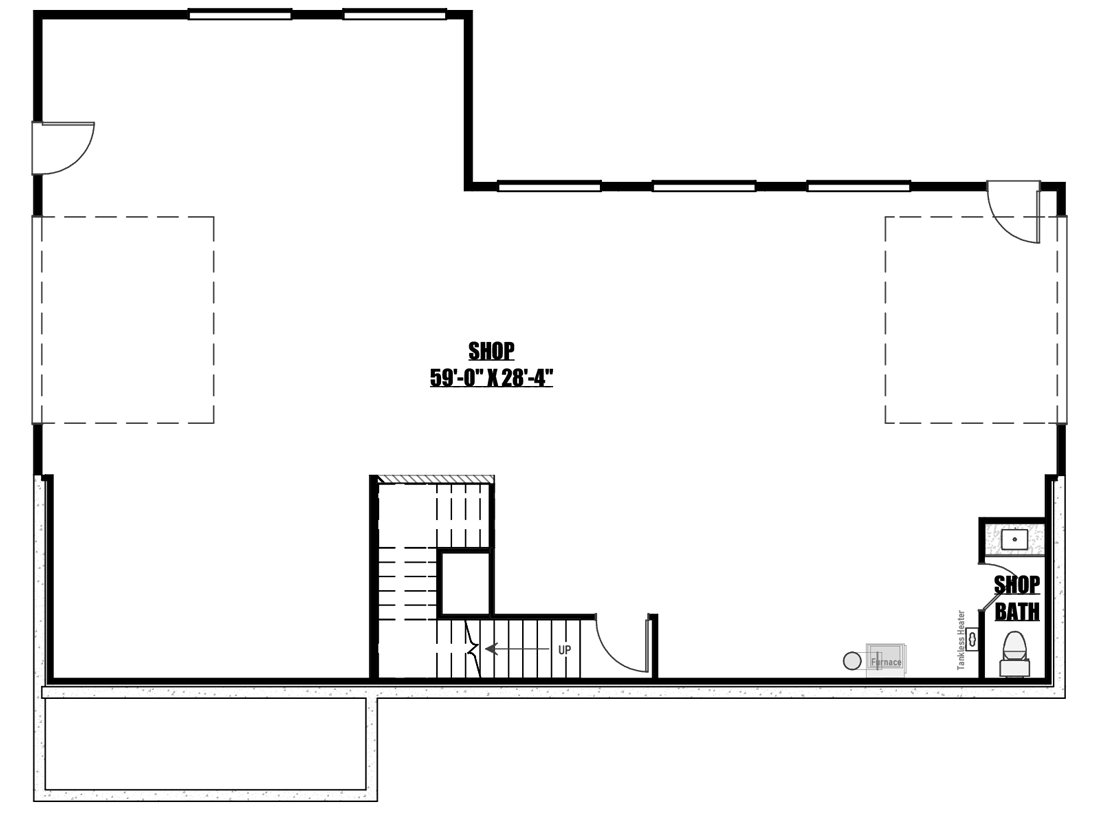

1685 Sq Ft Mid-Century Modern House Plan with Lower Level Drive-Through Workshop - 400020FTY floor plan - Lower Level Garage and Workshop
Plan Details
  • This mid-century modern house plan gives you 1,685 square feet of heated living space with 3 beds and 2.5 baths all on one floor. Perfect for a rear-sloping lot, the lower level gives you a drive-through shop space with a shop bath so you can clean up after working on your projects.
  • An expansive 10'-deep covered deck in back is accessible from the dining room the master suite and Bed 2.
  • An open concept layout has a ceiling that slopes front to back.

What's Included
  • Building elevations
  • Detailed floorplan
  • Window and Door schedules
  • Roof plan
  • Electrical Plan
  • Standard and typical details
  • General notes and specifications
  • Foundation Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
