Plan 38018LB

17' Wide Duplex with Rear Load Garage

Heated S.F.
3,008
Units
2
Width
Depth

Floor Plan

Plan 38018LB

Basement
Basement
Main Level
Main Level
2nd Floor
2nd Floor

Plan 38018LB

M-F 9am-5pm EST |

1-203-761-8500

Basement

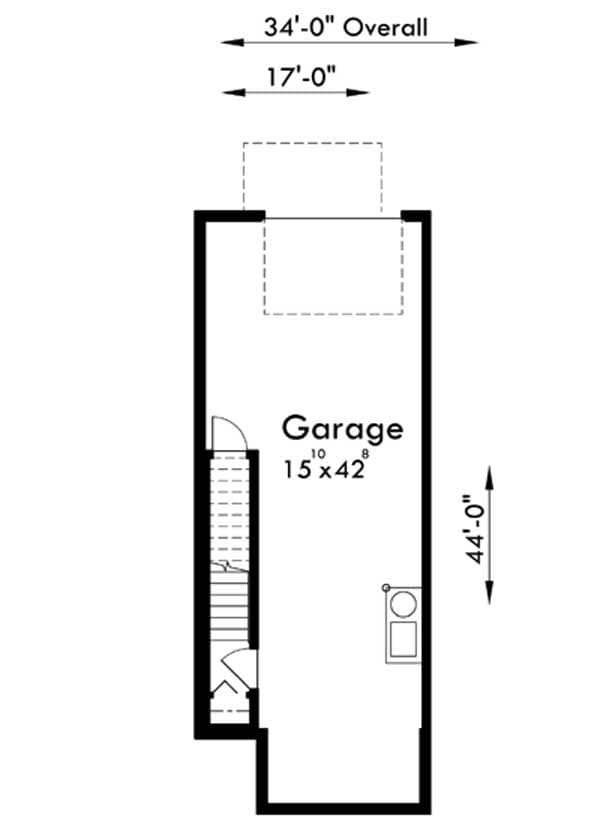

Plan 38018LB: 17' Wide Duplex with Rear Load Garage - Floor Plan - Basement

Main Level

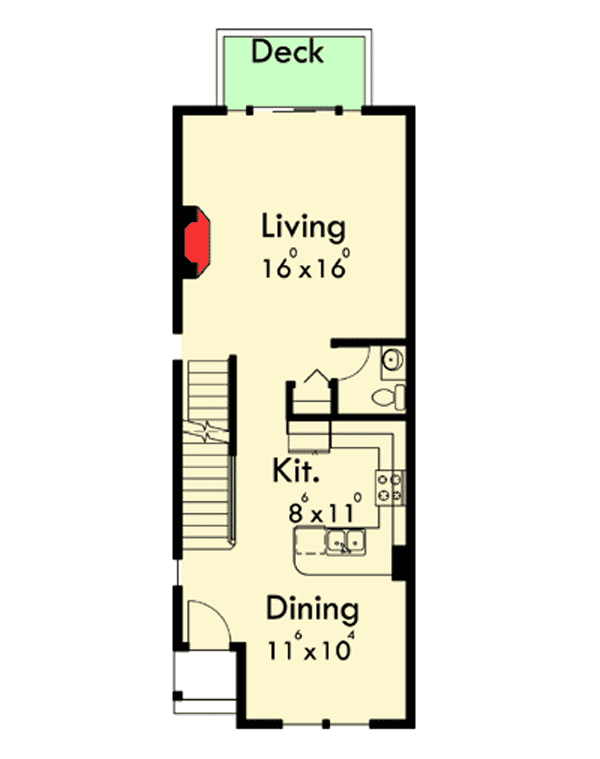

Plan 38018LB: 17' Wide Duplex with Rear Load Garage - Floor Plan - Main Level

2nd Floor

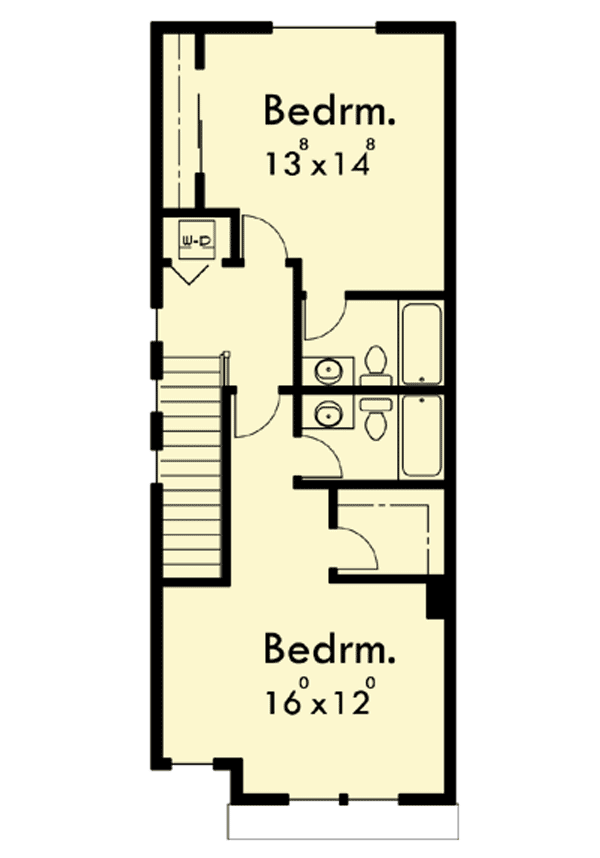

Plan 38018LB: 17' Wide Duplex with Rear Load Garage - Floor Plan - 2nd Floor

Plan Details

  • This duplex house plan gives you two 17'-wide units equal in size.
  • Each unit gives you 1,412 square feet of living (723 sq. ft. on the main floor, 689 sq. ft. on the upper floor) and a 577 square foot garage.
  • The lower level gives you a garage with rear access if your lot lopes to the rear.
  • The kitchen is located in the middle and conveniently serves the front dining room. The back has a living room with fireplace and sliding doors that take you to the back deck.
  • The beds are on the second floor with stackable laundry tucked away by the landing.
Unit A
Heated Area
1,504Sq. Ft.
723 Sq. Ft. 1st
689 Sq. Ft. 2nd
Beds
2Beds
Baths
2Full Baths
1Half Bath
Cars
Drive Under
577 Sq. Ft.
Dimensions
17'width
44'depth
36' 1"height
Unfinished Areas
577 Sq. Ft. Garage
Unit B
Heated Area
1,504Sq. Ft.
723 Sq. Ft. 1st
689 Sq. Ft. 2nd
Beds
2Beds
Baths
2Full Baths
1Half Bath
Cars
Drive Under
577 Sq. Ft.
Dimensions
17'width
44'depth
36' 1"height
Unfinished Areas
577 Sq. Ft. Garage

What's Included

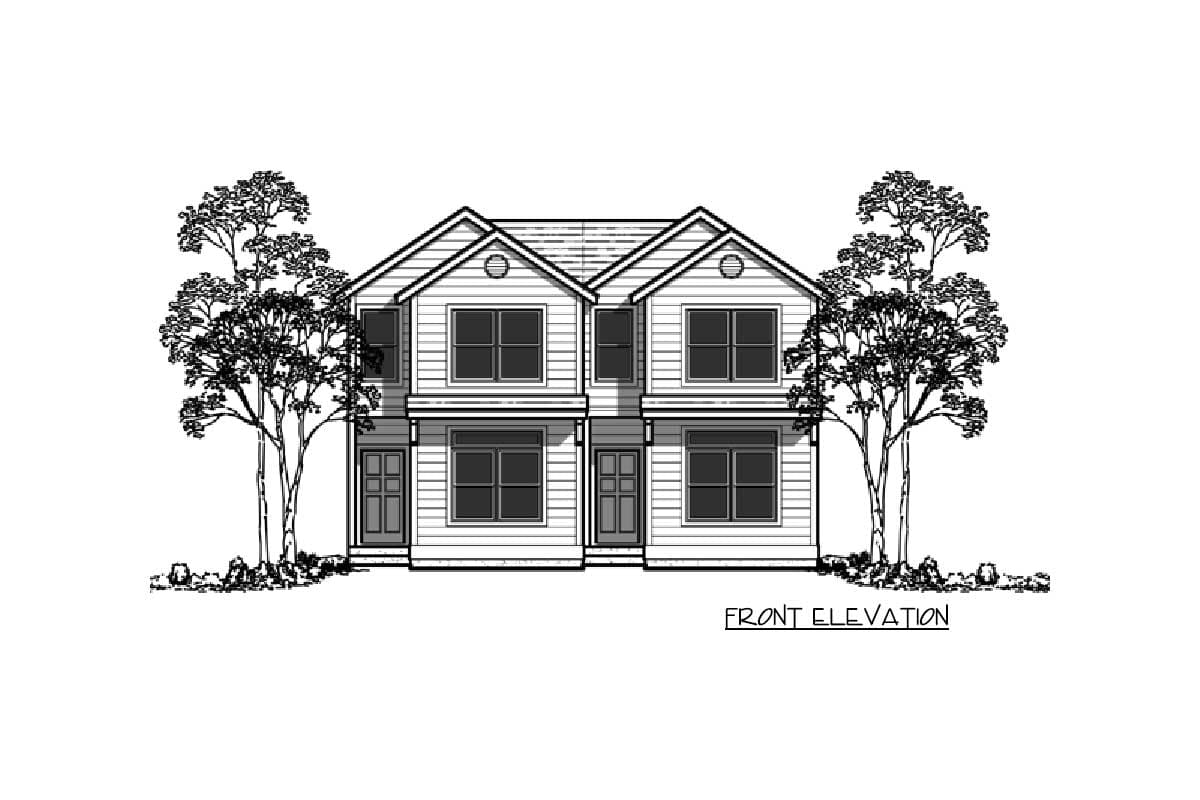

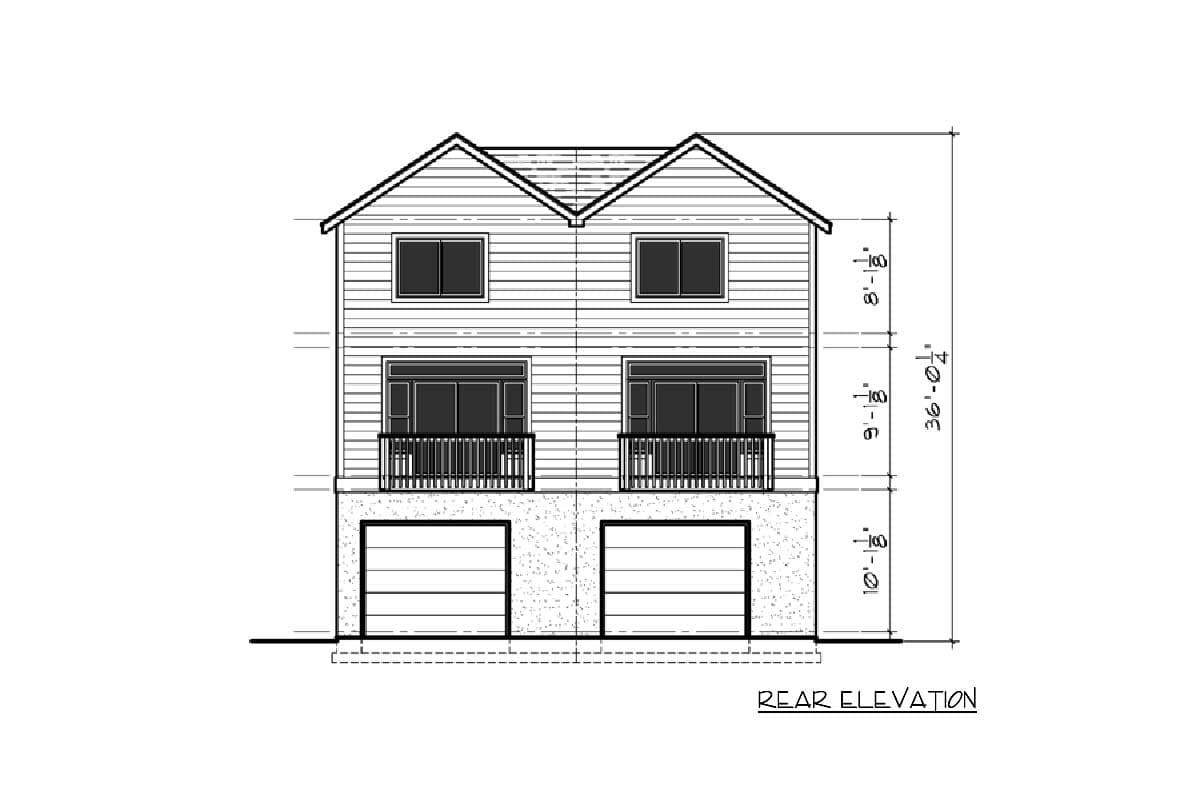

  • Elevations (All 4 Sides: Front, Left, Rear, Right)
  • Dimensioned Foundation Plan
  • Dimensioned Floor Plan(s)
  • Upper Level Framing Plan & Notes (if applicable)
  • Building Sections
  • Roof Framing Plan/Truss Layout
  • Typical Notes & Details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,008 sq. ft.

Lower Level

184 sq. ft.

1st Floor

1,446 sq. ft.

2nd Floor

1,378 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2, 3, or 4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

17' 0"

Depth

44' 0"

Max Ridge Height

36' 1"

Garage

Type

Drive Under

Area

1154 sq. ft.

Count

4 Cars

Entry Location

Rear

Special Features

Master Suite - Upstairs

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

3,008 sq. ft.

Lower Level

184 sq. ft.

1st Floor

1,446 sq. ft.

2nd Floor

1,378 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2, 3, or 4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

17' 0"

Depth

44' 0"

Max Ridge Height

36' 1"

Garage

Type

Drive Under

Area

1154 sq. ft.

Count

4 Cars

Entry Location

Rear

Special Features

Master Suite - Upstairs

Plan Collections

Photo Gallery
