Plan 801096PM

1743 Square Foot New American Cottage with 3 Beds and Centralized Laundry

Heated S.F.
1,743
Beds
3
Baths
3
Stories
2
Cars
2

Floor Plan

Plan 801096PM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 801096PM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

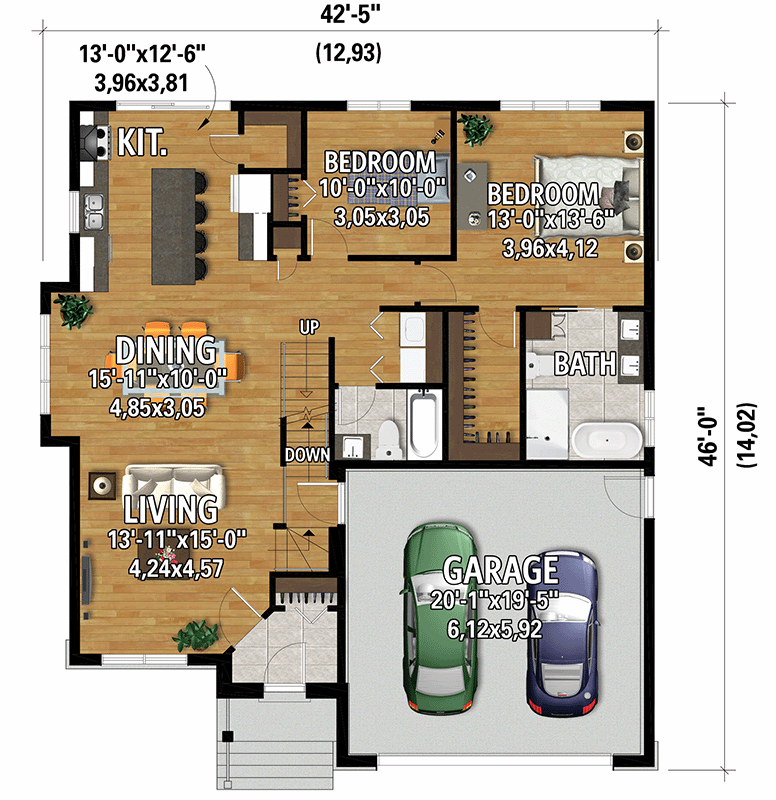

Plan 801096PM: 1743 Square Foot New American Cottage with 3 Beds and Centralized Laundry - Floor Plan - Main Level - Cottage, Country, Craftsman, New American

2nd Floor

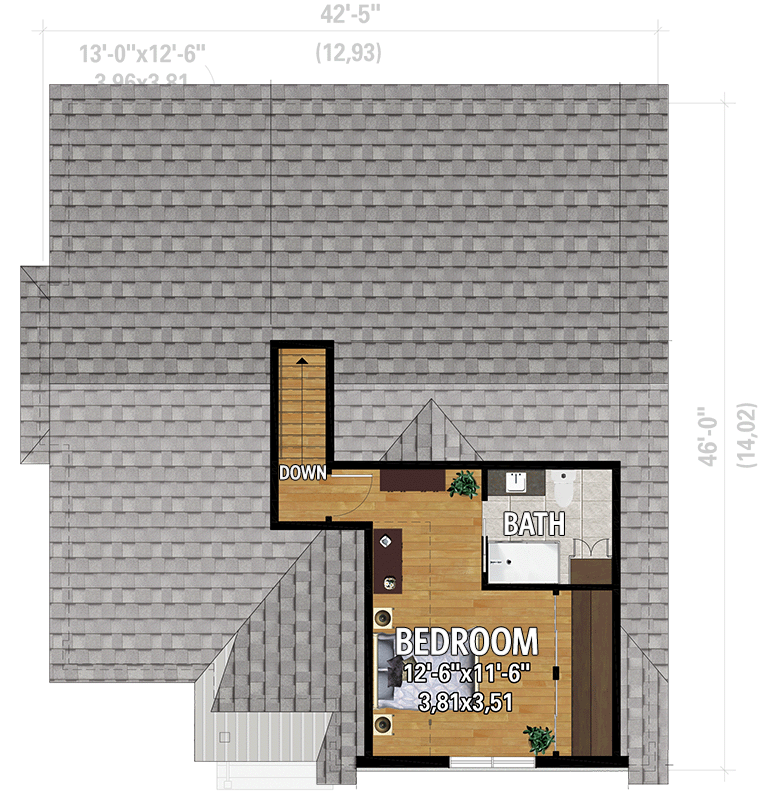

Plan 801096PM: 1743 Square Foot New American Cottage with 3 Beds and Centralized Laundry - Floor Plan - 2nd Floor - Cottage, Country, Craftsman, New American

Plan Details

  • This 3 bed, 3 bath New American cottage house plan has an attractive exterior with a mix of board and batten, clapboard siding, stone and a metal roof over the covered entry. The home plan has a footprint measuring 42 feet 5 inches and it is 46 feet deep and a 2-car garage with an access into the home.
  • There is a living room, a kitchen with a walk-in pantry, an open-concept dining room as well as two bedrooms, two complete bathrooms and a centralized laundry.
  • A third bedroom with bath on the 435 square foot second floor completes the home.

What's Included

Please note this plan is designed to the National Building Code of Canada.

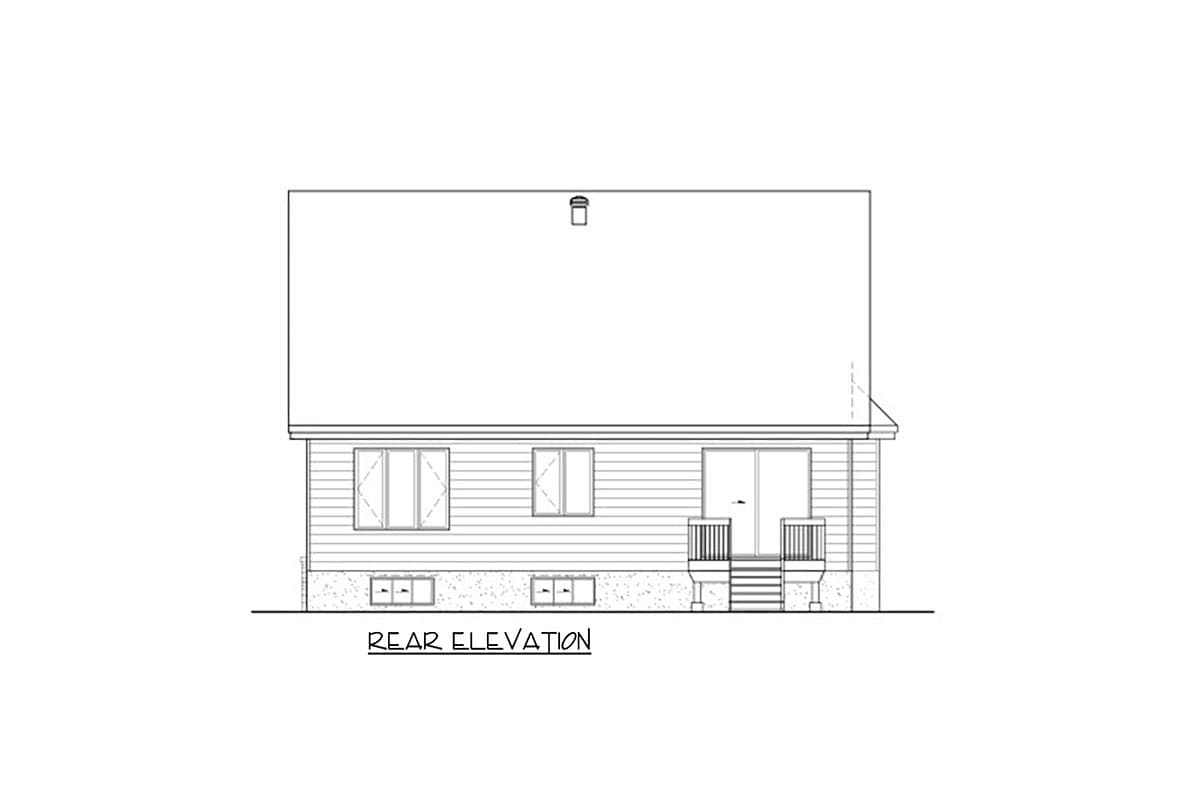

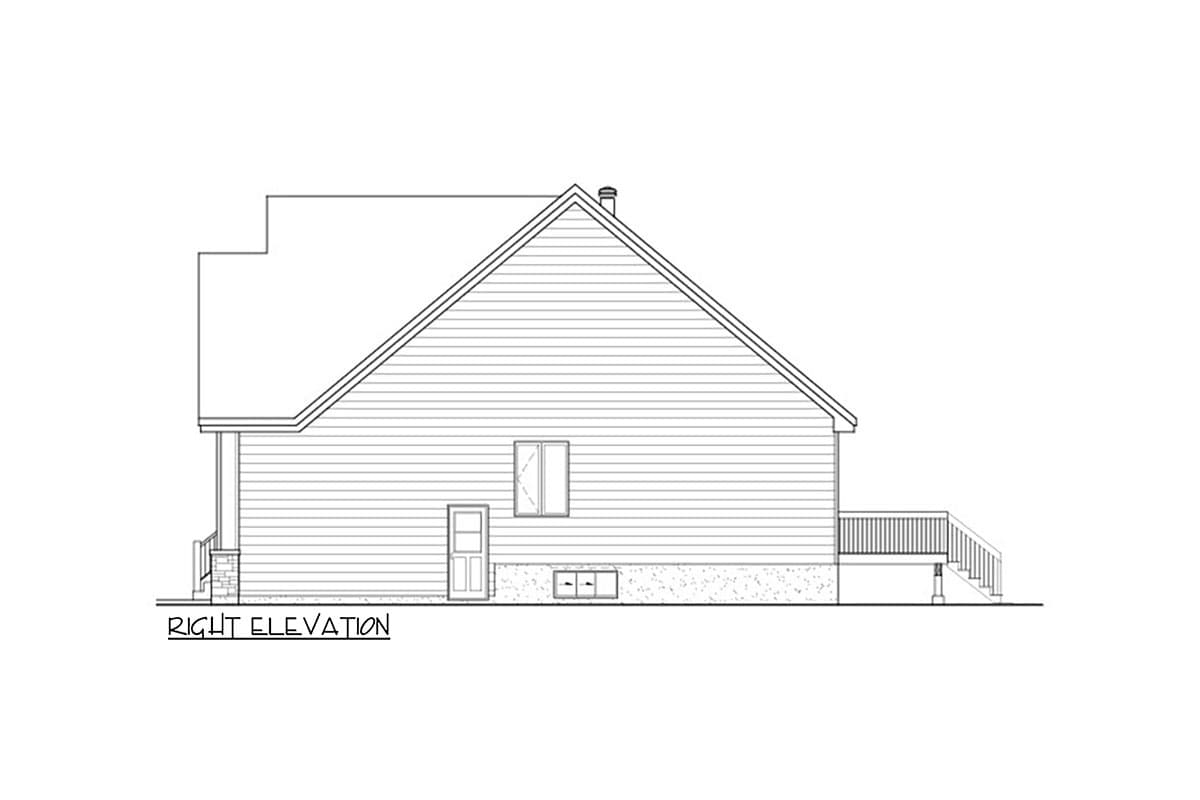

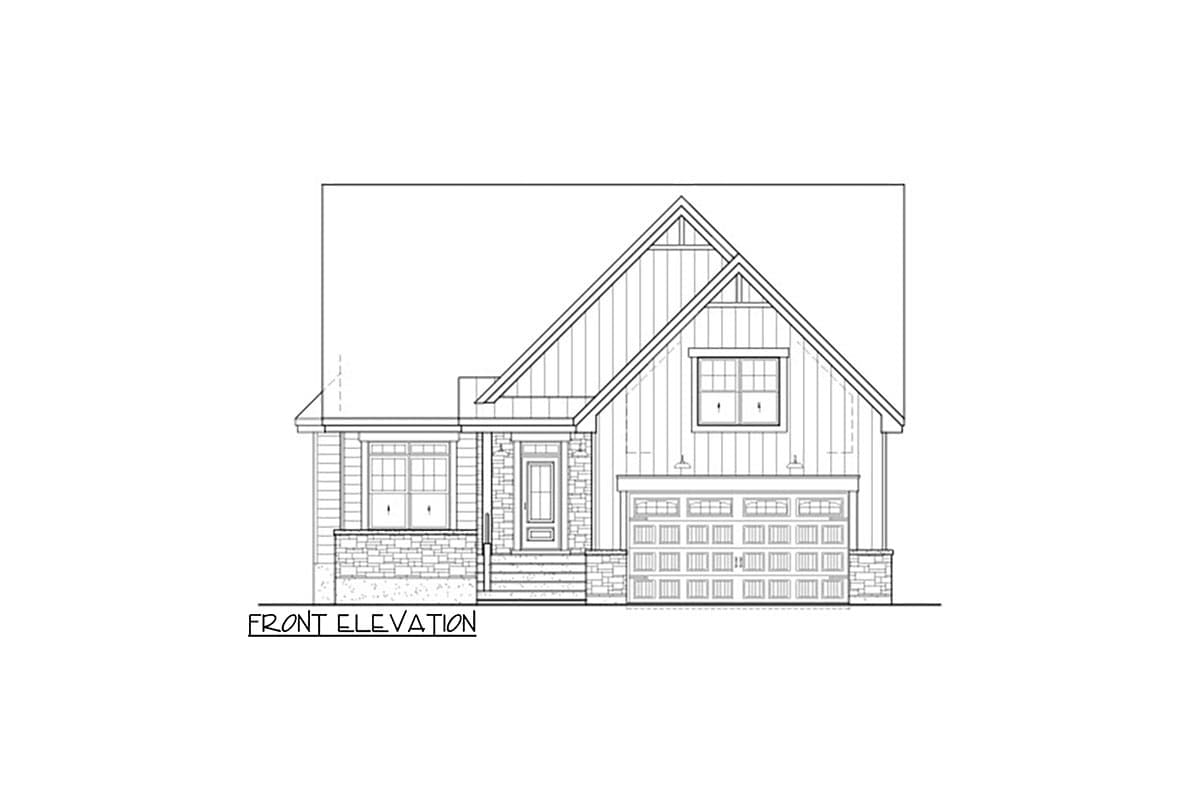

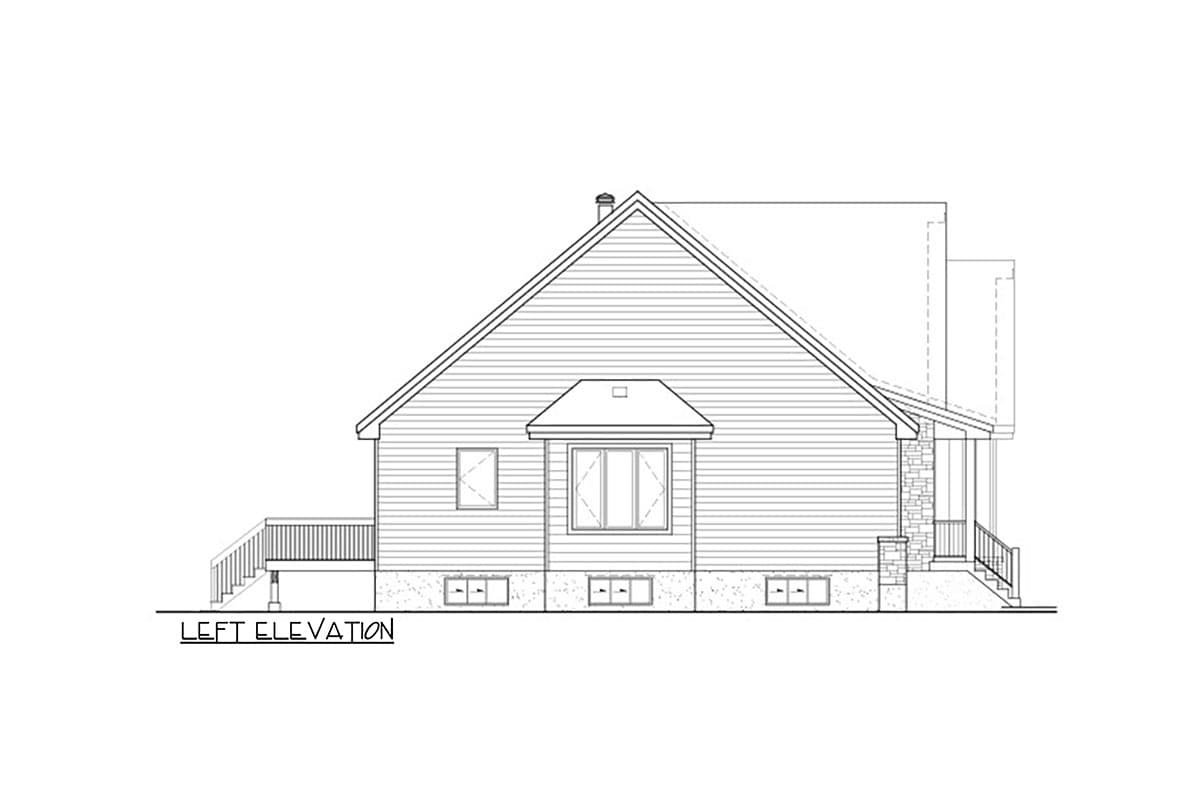

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,743 sq. ft.

1st Floor

1,308 sq. ft.

2nd Floor

435 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

42' 5"

Depth

46' 0"

Max Ridge Height

30' 10"

Garage

Type

Attached

Area

446 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Architectural Style

Cottage

Country

Craftsman

New American

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Plan Collections

Canadian House Plans

Square Footage Breakdown

Total Heated Area

1,743 sq. ft.

1st Floor

1,308 sq. ft.

2nd Floor

435 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

42' 5"

Depth

46' 0"

Max Ridge Height

30' 10"

Garage

Type

Attached

Area

446 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Architectural Style

Cottage

Country

Craftsman

New American

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Plan Collections

Canadian House Plans
