1750 Square Foot 3 Bedroom Contemporary Barndominium-Style House Plan

Plan 777039MTL

  • 1,750

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • This 3-bed, 2.5 bathroom contemporary barndominium-style house plan gives you 1,750 square feet of heated living.
  • A 50' wide and 10' deep porch in front has sliding doors that access a wide open floor plan with a vaulted living room, dining room and kitchen flowing seamlessly together.
  • Bedrooms line the back of the home with beds 2 and 3 sharing a bath and the master bedroom - with pocket doors concealing the walk-in closet - having its own 4-fixture bath.
  • On the right, the mudroom is accessible from the outside. Mechanicals and a powder room are also located steps away.
  • This Metal House Plan was designed with a Pre-Engineered Metal Building (PEMB) in mind.  A PEMB is the most commonly used structure when building a barndominium.  A PEMB can be engineered, fabricated and shipped to any location in the world and generally can be installed in a much shorter time than a traditionally framed home. Pre-Engineered Metal Buildings get a project in the dry very quickly and allow for interior build-outs to be convenient, not having to support roof loads.
  • This metal house plan is available with 2x6 exterior framing by selecting it the Options menu.

  • Cover sheet
  • Foundation Plan
  • Floor plan with basic Electrical Plan and Door/Window Schedule
  • Framing plan
  • Roof plan
  • Elevations with necessary sections
The following details are NOT included in the plans:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

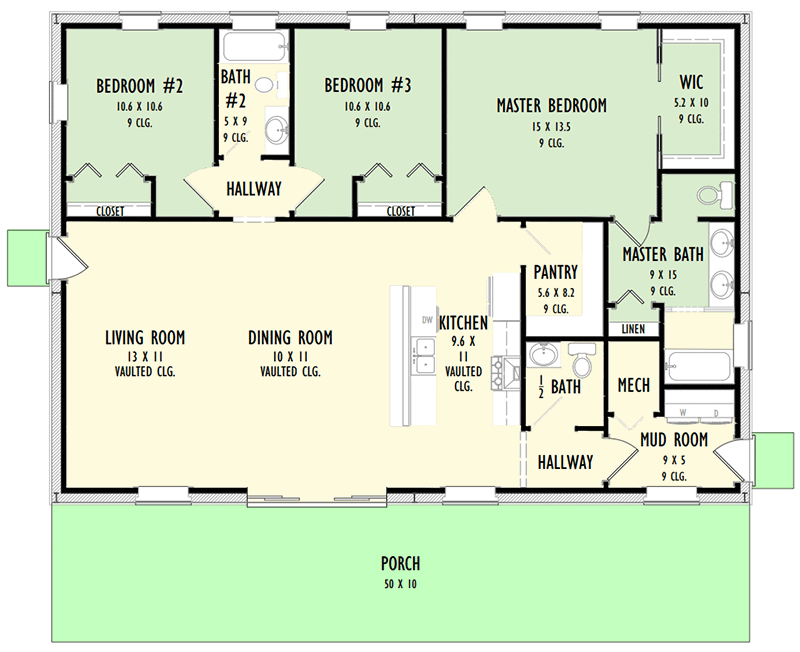

1750 Square Foot 3 Bedroom Contemporary Barndominium-Style House Plan - 777039MTL floor plan - Main Level

Metal Wall Framing Detail

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
1750 Square Foot 3 Bedroom Contemporary Barndominium-Style House Plan - 777039MTL floor plan - Metal Wall Framing Detail

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,750 sq. ft.
  • 1st Floor: 1,750 sq. ft.
  • Porch, Front: 500 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab, Stem Wall, Monolithic Slab, Post Frame

Exterior Walls

  • Standard Type(s): Metal
  • Optional Type(s): 2x6

Dimensions

  • Width: 50' 0"
  • Depth: 45' 0"
  • Max ridge height: 11' 0"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 2 on 12
  • Framing Type: Stick Or Truss

Architectural Style
