1800 Square Foot Barn with Vaulted Loft Above
Heated S.F.
1,800
Stories
2
What's Included
Plan Details
  • This rustic barn plan gives you 1800 square feet on the ground level and another 1800 square feet in the vaulted and skylight-filled loft above.
  • A half bath on the ground level and stairs going up are the only features that take away from a completely unobstructed space that is accessed by barn doors front and back.

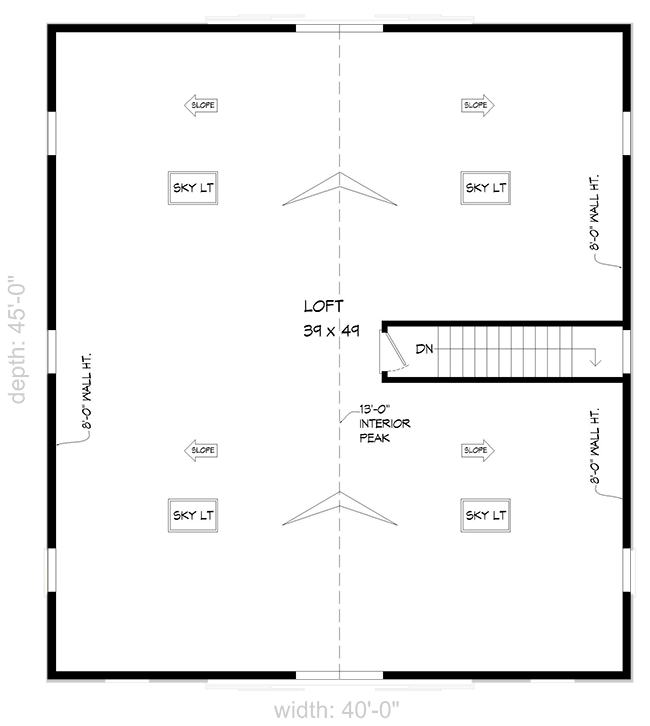

  • The loft has 8' walls and a center peak that maxes out at 13'.
What's Included

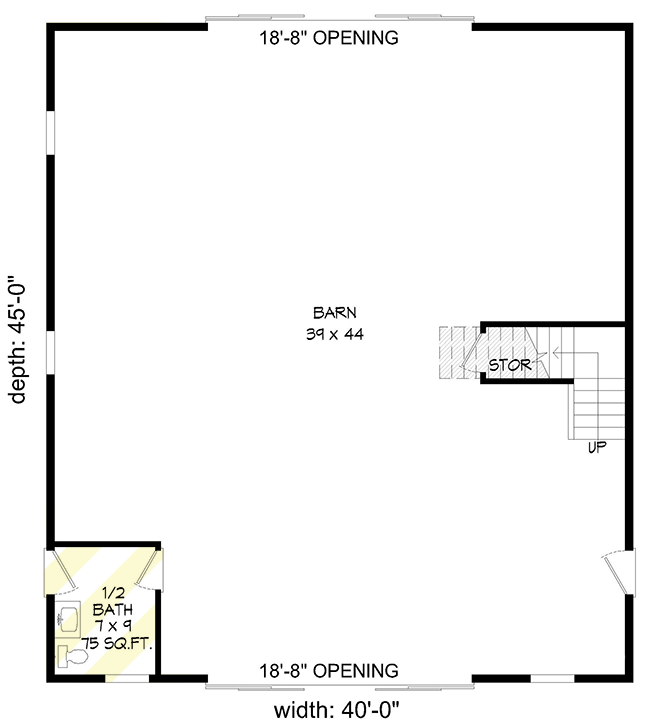

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

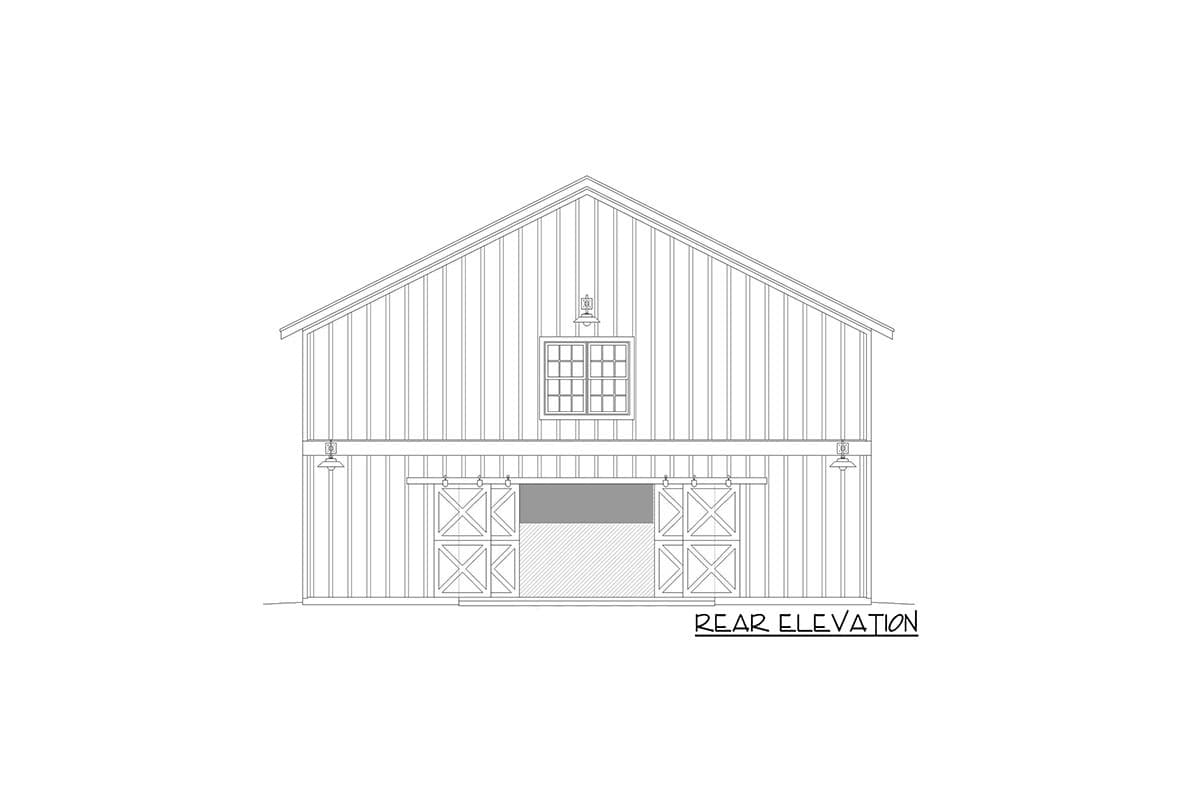

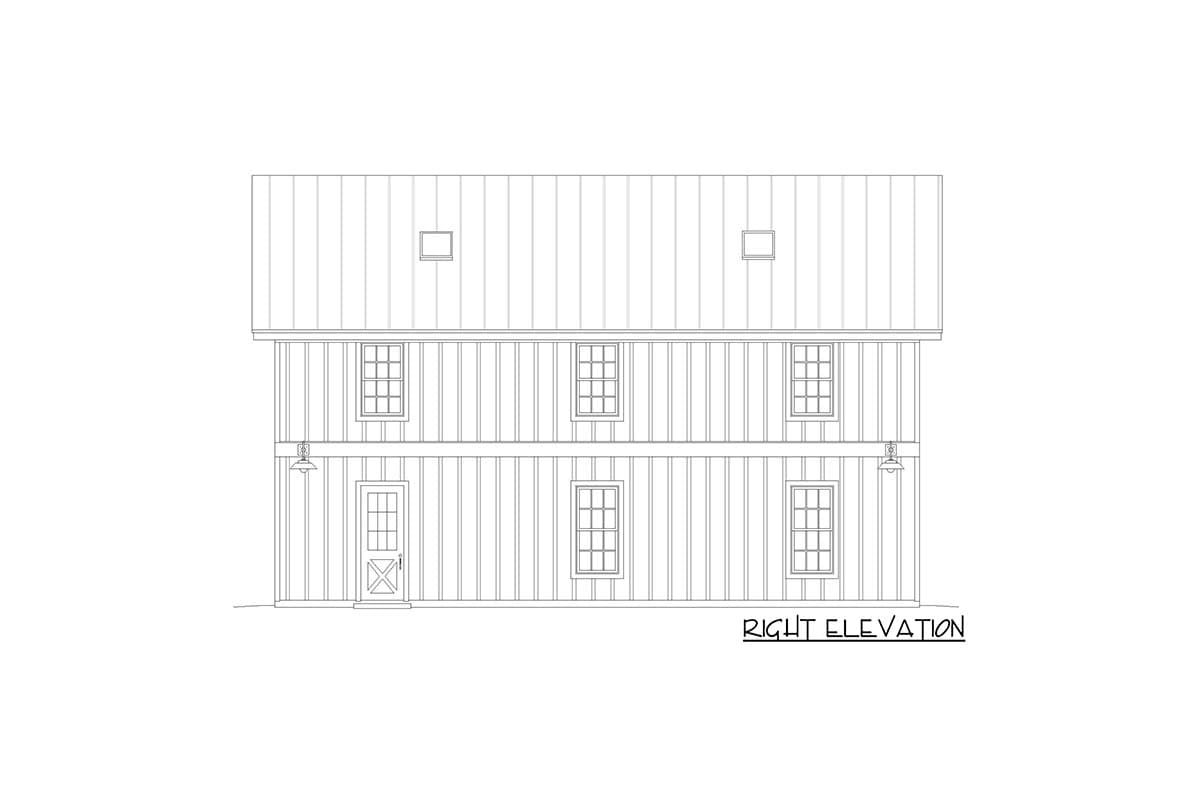

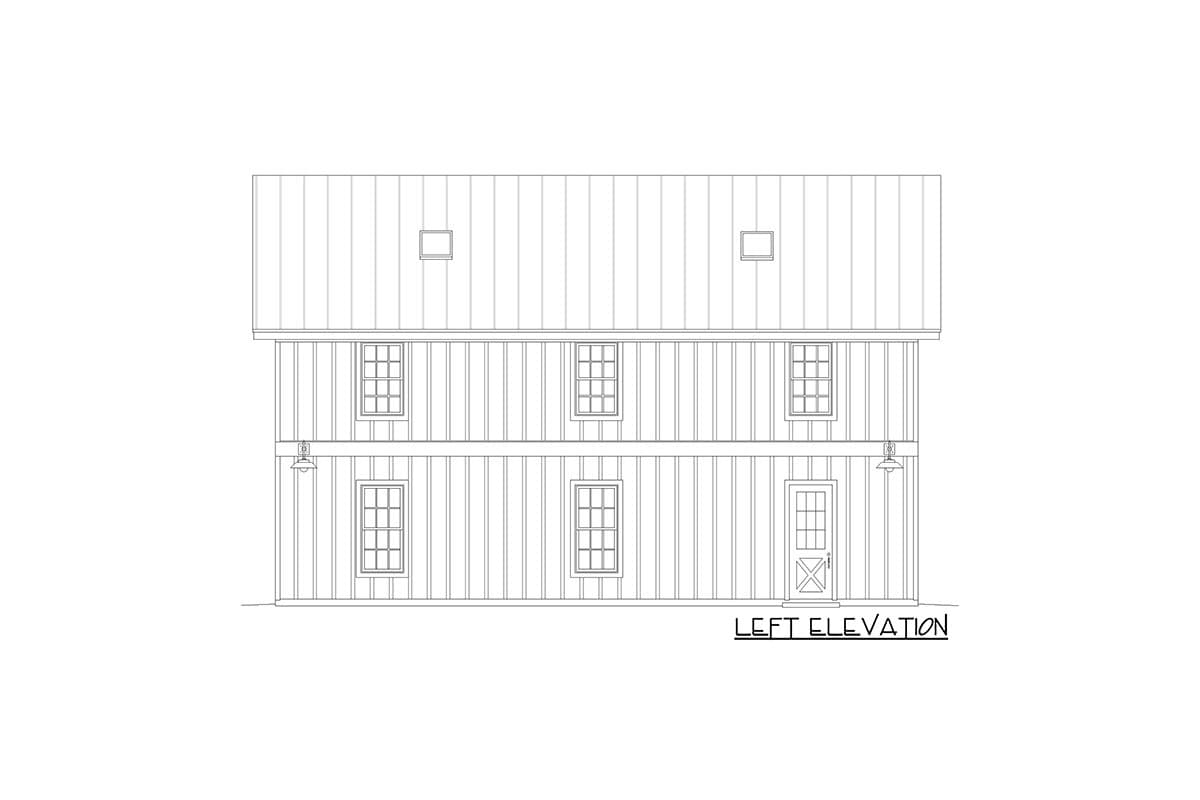

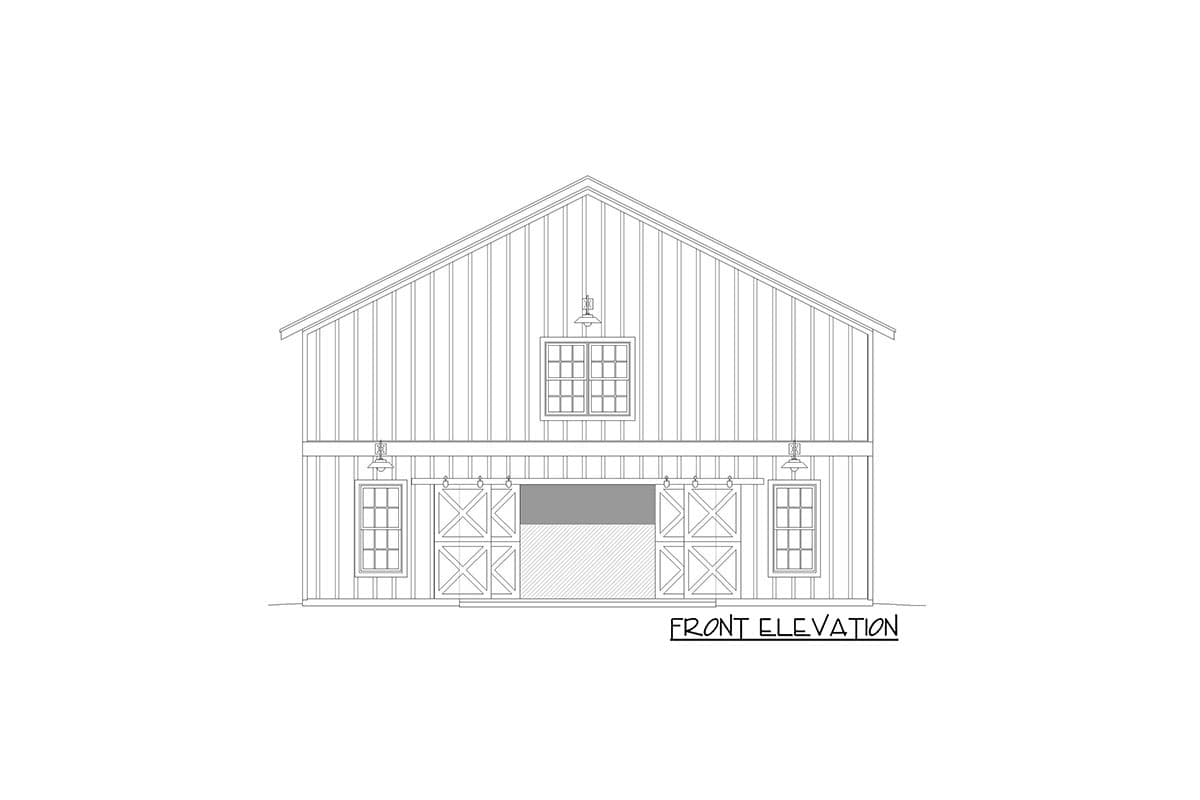

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • A building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
