1807 Square Foot Transitional House Plan with Steep Curved Roofline
Heated S.F.
1,807
Beds
2
Baths
3
Stories
2
Cars
2
Tour
What's Included
Plan Details
  • This 2-story Transitional house plan has a brick and clapboard exterior with a steep pitched roof along with the curved porch roof giving it great curb appeal. The mixture of the different textures and colors really bring this home to life.
  • On the inside, the entry greets you with a bench & hook drop zone. Stepping further inside is the 2 story staircase that opens to multiple windows on the front. There is a flex room at the front of the home that could be used as a third bedroom, a sewing room, an exercise room, or any other room that you feel necessary. The kitchen, great room, and dining room are all open to each other making this a great place to socialize. The kitchen includes a walk-in pantry and island.
  • Heading upstairs you will find a master bedroom that has it's own bath and large walk-in closet. Across the hall is a large laundry room and the second bedroom. This bedroom also has a walk-in closet and a bath that is accessed from the hallway.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement

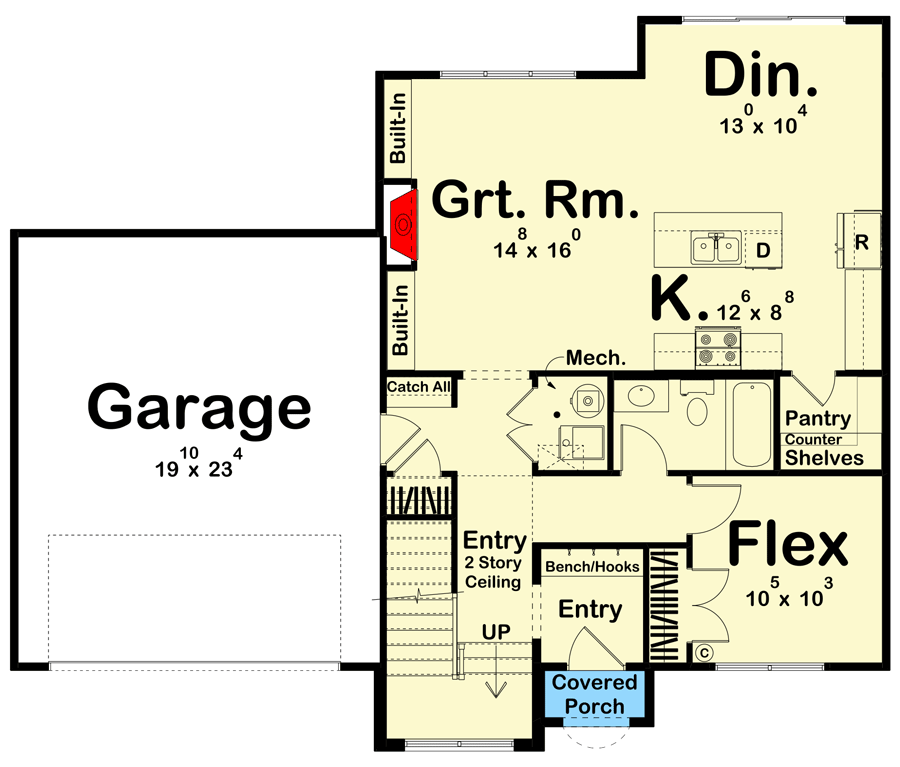

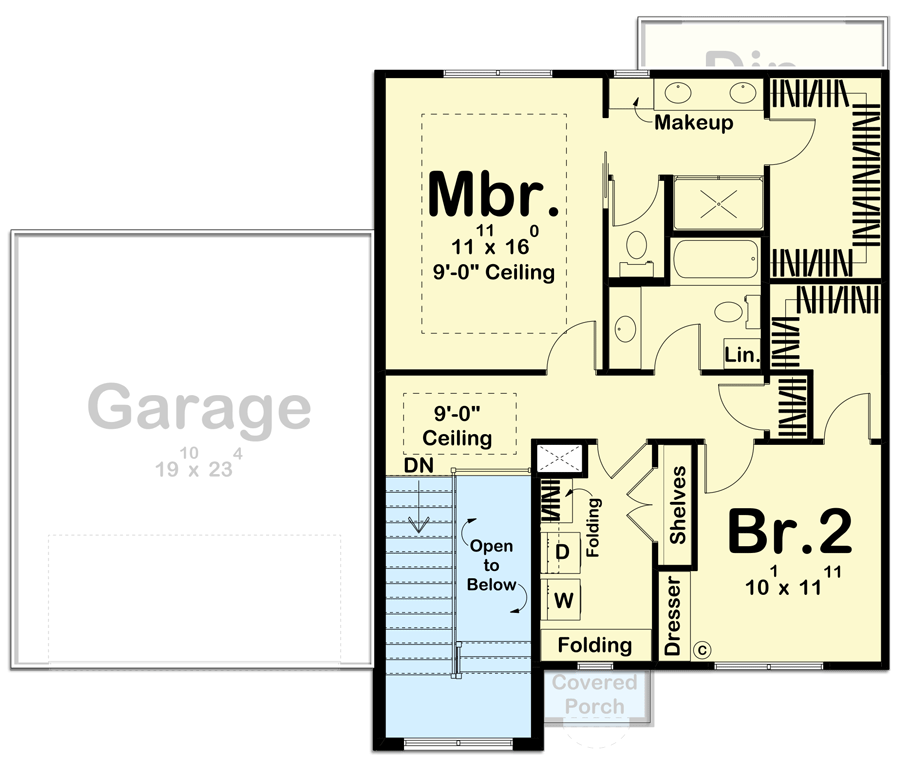

  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section
  • Cabinets Elevations
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

1807 Square Foot Transitional House Plan with Steep Curved Roofline

  • 1,807

    Heated s.f.

  • 2

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,807 sq. ft.
  • 1st Floor: 976 sq. ft.
  • 2nd Floor: 831 sq. ft.

Dimensions

  • Width: 48' 0"
  • Depth: 40' 0"
  • Max ridge height: 27' 3"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 480 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 14 on 12
