1861 Sq Ft New American Craftsman Plan with Option to Finish Basement

Plan 910077WHD

  • 1,861

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • With loads of charm and curb appeal, this New American Craftsman plan is suitable for all neighborhoods.
  • A parlor welcomes you inside, where a coat closet and powder bath are conveniently located nearby. The great room, dining area, and kitchen consume the remainder of the main level, lining the rear elevation with sliding door access to the back yard.
  • An island in the kitchen features a breakfast bar and the grocery shopper in the home will appreciate the space available in the walk-in pantry.
  • The master suite shares the second level with two family bedrooms, a full bathroom, and laundry room.
  • Finish the lower level to gain a fourth bedroom, bath, and family space; a total of 922 square feet in the basement.

This house plan includes:

  • General notes
  • Detailed floor plans
  • Elevations
  • Roof plan
  • Cross section
  • Electrical plan
  • Window and door schedules
  • Architectural details
  • Structural notes
  • Foundation plan
  • Floor framing
  • Roof framing
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

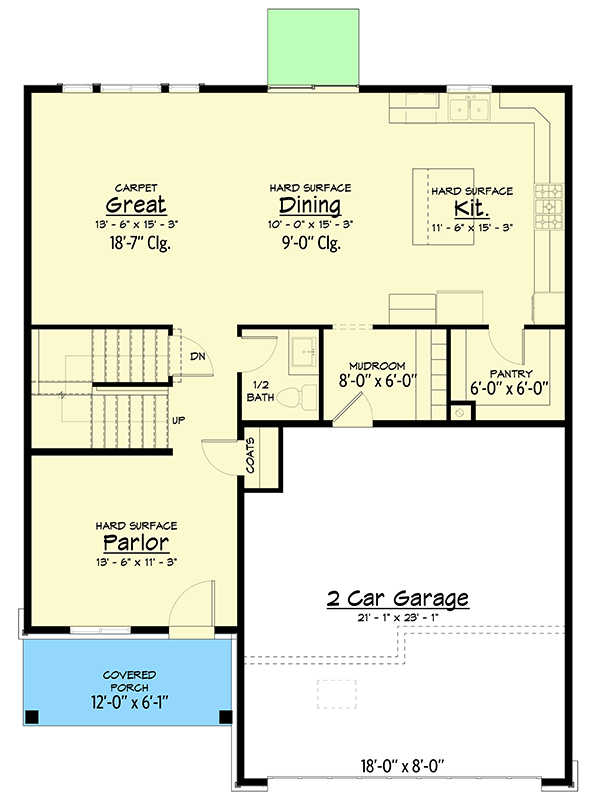

1861 Sq Ft New American Craftsman Plan with Option to Finish Basement - 910077WHD floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

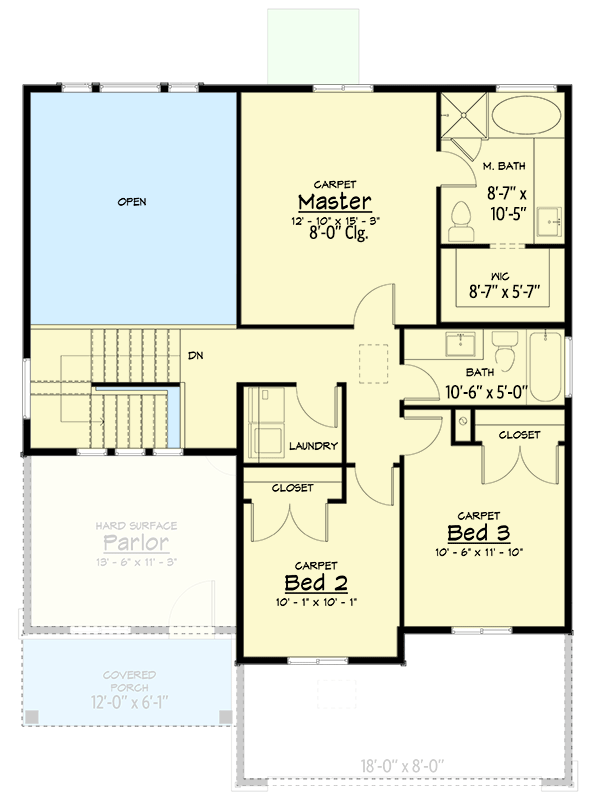

1861 Sq Ft New American Craftsman Plan with Option to Finish Basement - 910077WHD floor plan - 2nd Floor

Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

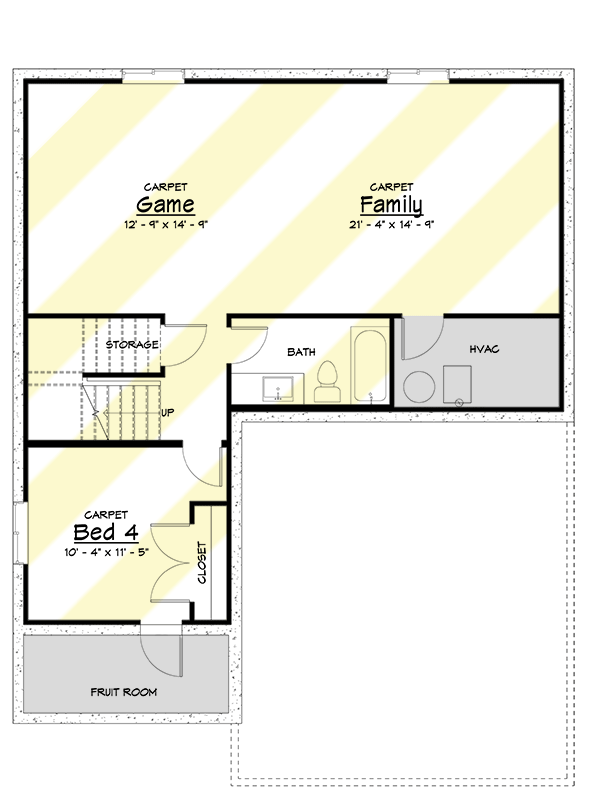

1861 Sq Ft New American Craftsman Plan with Option to Finish Basement - 910077WHD floor plan - Basement

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,861 sq. ft.
  • 1st Floor: 1,015 sq. ft.
  • 2nd Floor: 846 sq. ft.
  • Storage: 66 sq. ft.
  • Deck: 30 sq. ft.
  • Porch, Front: 76 sq. ft.
  • Optional Lower Level: 922 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 36' 0"
  • Depth: 46' 0"
  • Max ridge height: 27' 1"

Garage

  • Type: Attached
  • Area: 476 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Stick And Truss

Architectural Style

Special features

Plan Collections

1861 Sq Ft New American Craftsman Plan with Option to Finish Basement

  • 1,861

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,795
  • 5 Sets $1,995
  • 5 Sets + PDF $2,195
  • CAD + PDF - Single-Build $2,495
  • View all purchase option online

About This Plan

  • With loads of charm and curb appeal, this New American Craftsman plan is suitable for all neighborhoods.
  • A parlor welcomes you inside, where a coat closet and powder bath are conveniently located nearby. The great room, dining area, and kitchen consume the remainder of the main level, lining the rear elevation with sliding door access to the back yard.
  • An island in the kitchen features a breakfast bar and the grocery shopper in the home will appreciate the space available in the walk-in pantry.
  • The master suite shares the second level with two family bedrooms, a full bathroom, and laundry room.
  • Finish the lower level to gain a fourth bedroom, bath, and family space; a total of 922 square feet in the basement.
