19-Foot-Wide 3 Bed House Plan Under 1600 Square Feet

Plan 52327WM

This plan plants 3 trees

1,567
Heated s.f.
3
Beds
2.5
Baths
2
Stories
1
Cars

With its 19'-wide footprint, this 3 bed, 2.5 bath house plan is great for your narrow lot. It gives you 1,567 square feet of heated living space with all three bedrooms upstairs, along with laundry and an alcove for hanging out outside of your rooms.

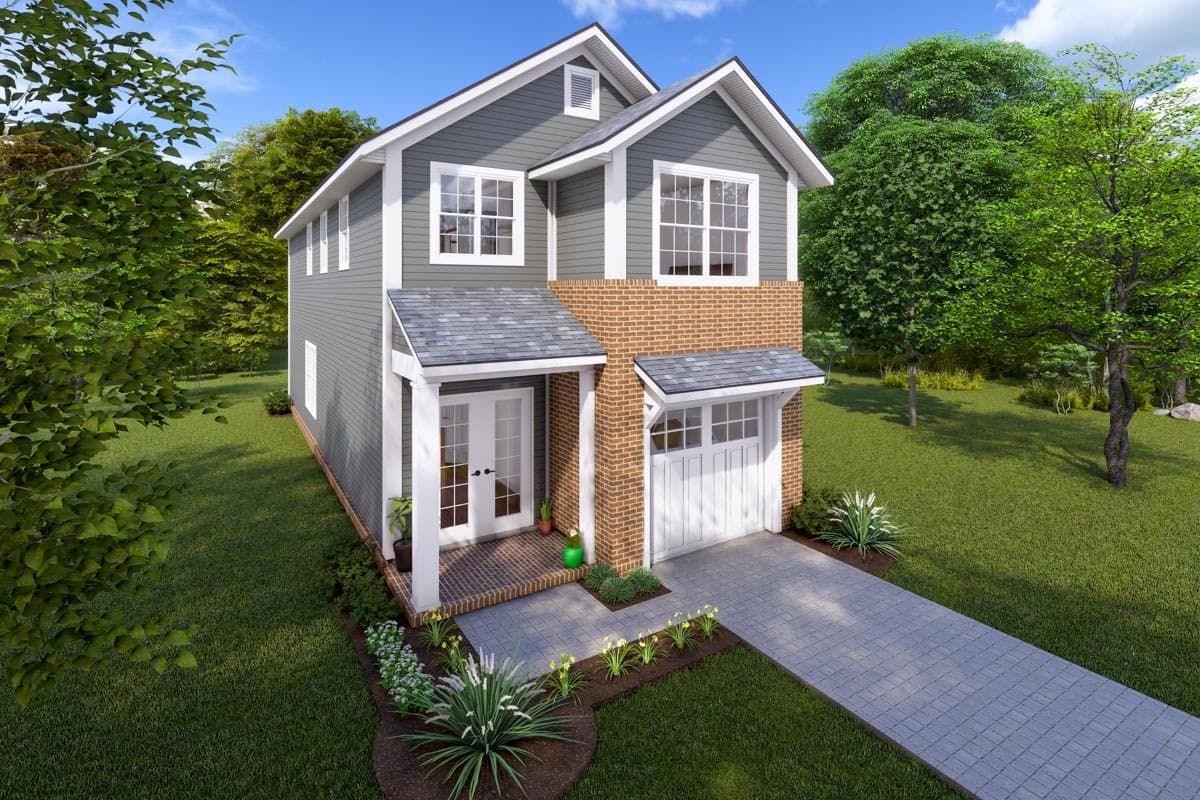

French doors open off the front porch and there's access to the home from the garage.

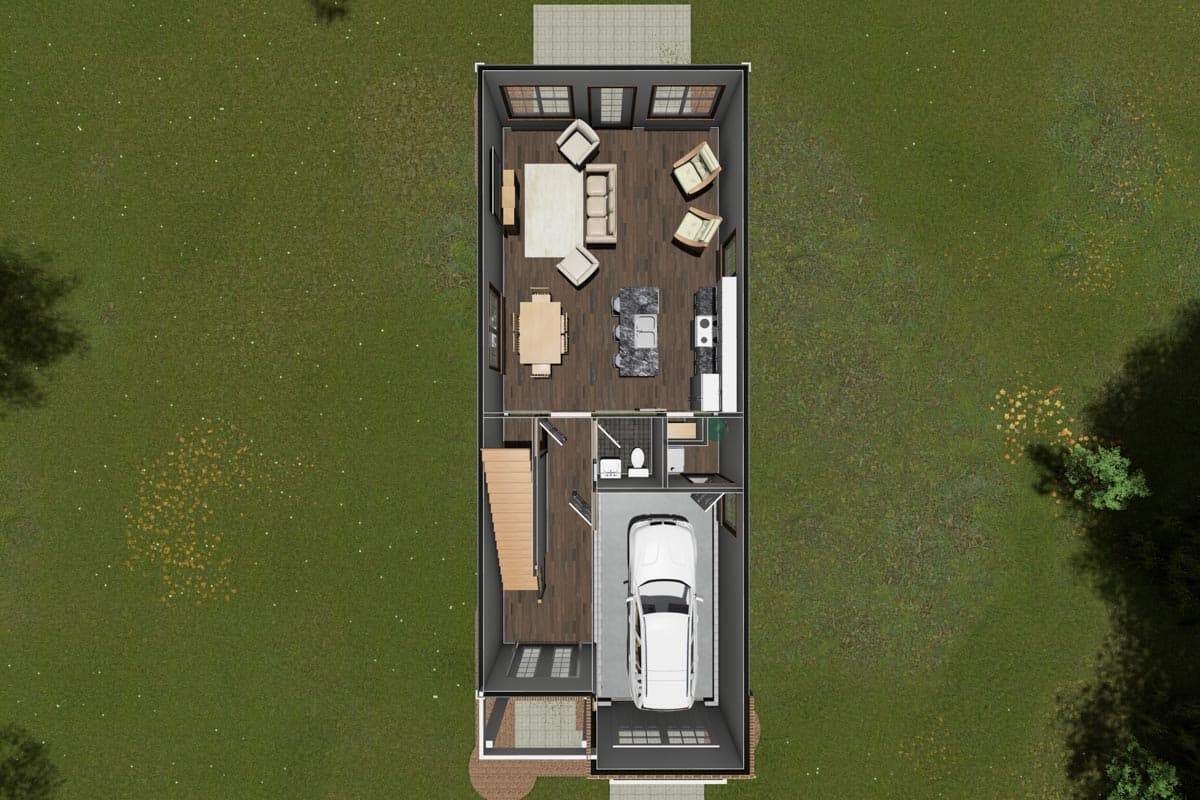

Past the powder room, the back of the home is open side to side with the living room in back and the kitchen and dining room in front of it.

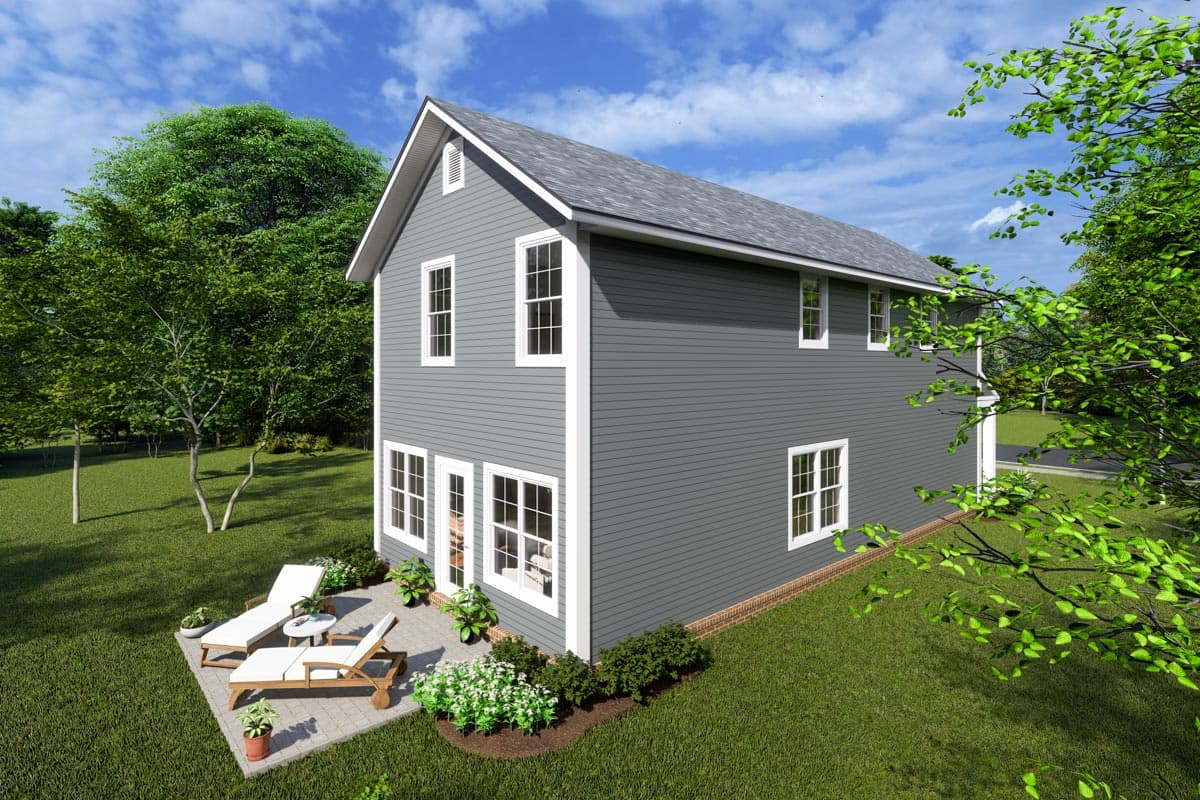

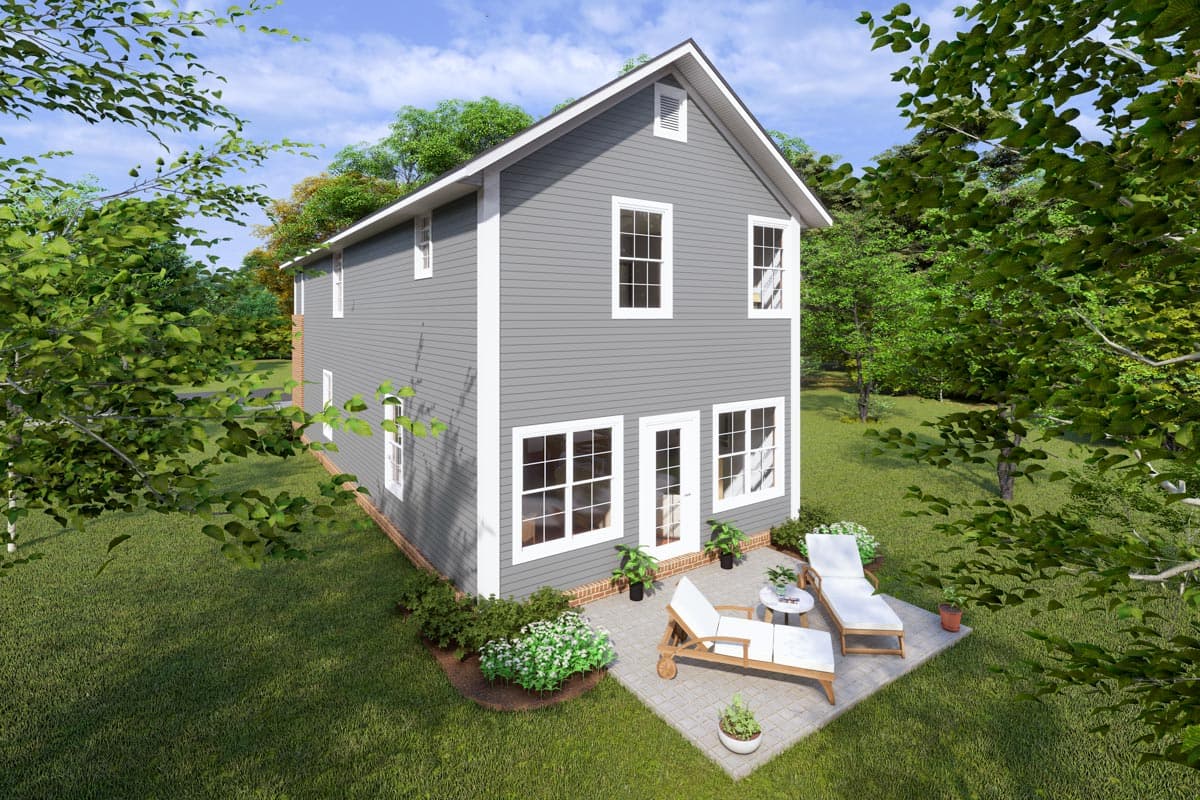

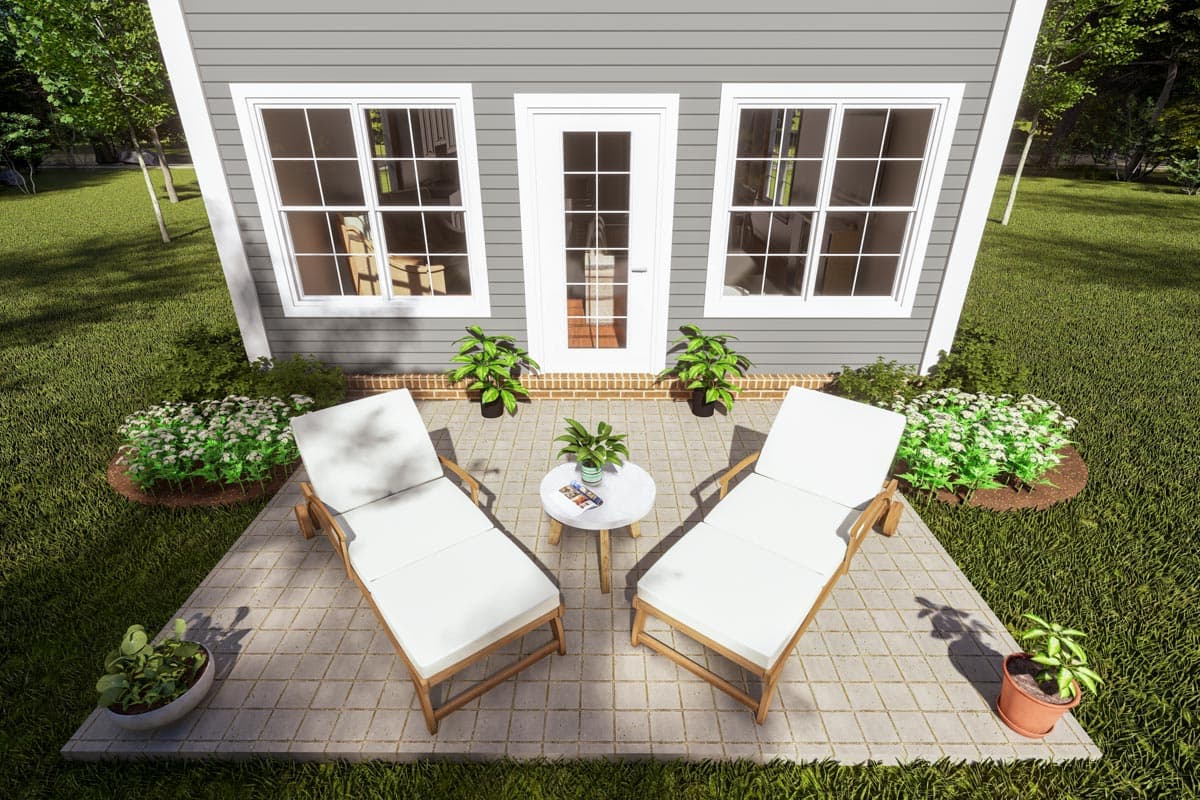

Windows are located on either side of a door centered on the back wall takes you out back.

Front elevation and construction notes
Rear and side elevations
Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
Second floor plan (if applicable) with the same details as the first level floor plan
Typical wall section
Typical foundation details
Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
Foundation plan
Most plans have an optional full building section--only available upon request--at no extra cost. This section is not typically required in the US but can be a requirement in Canada

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

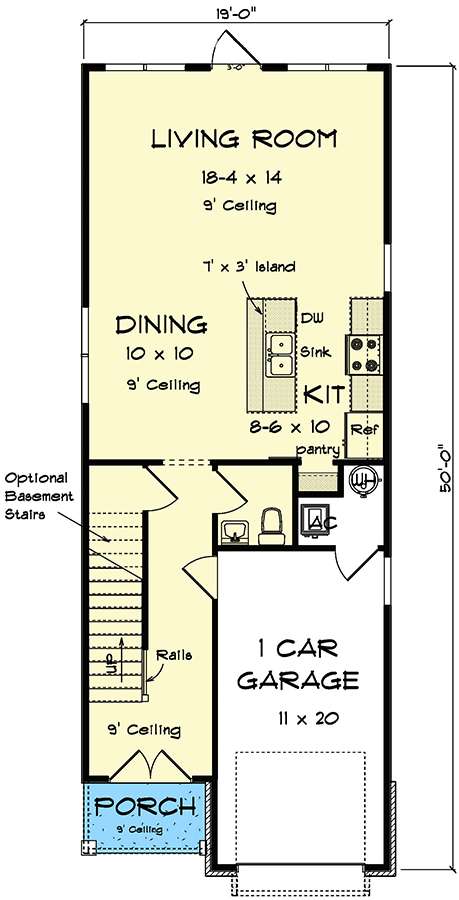

19-Foot-Wide 3 Bed House Plan Under 1600 Square Feet - 52327WM floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

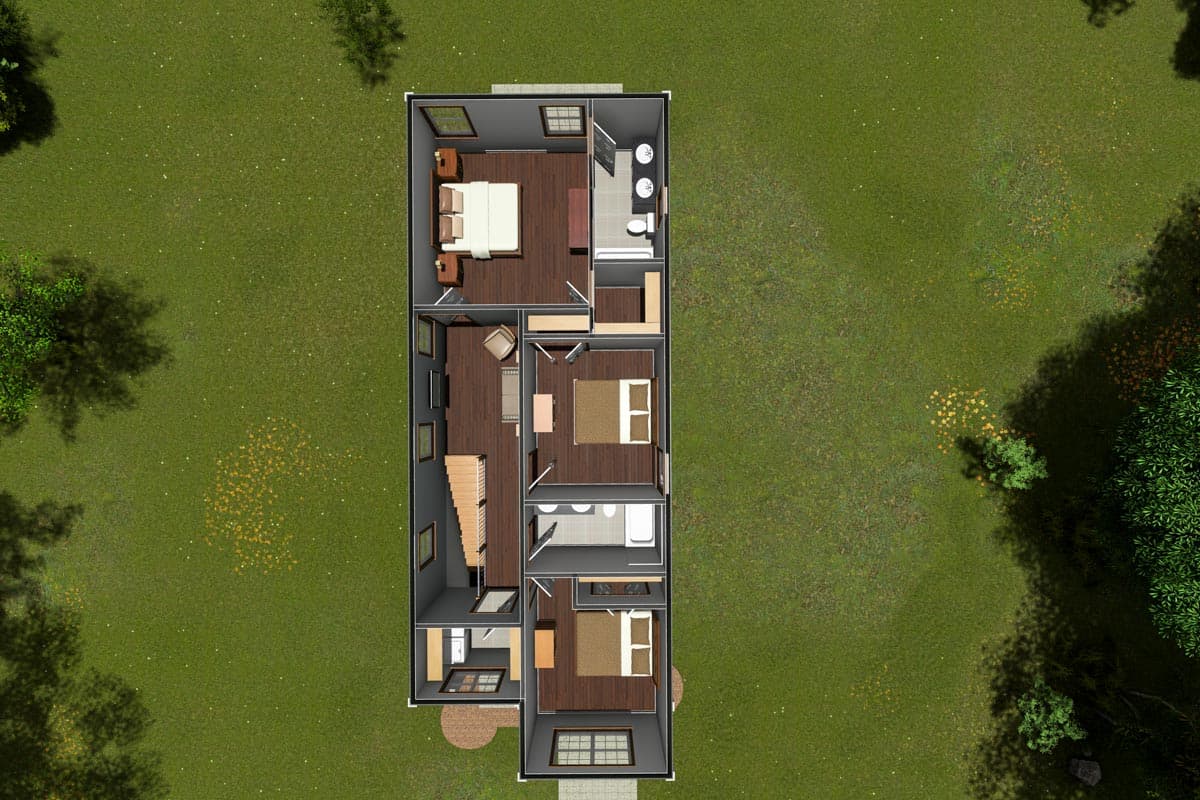

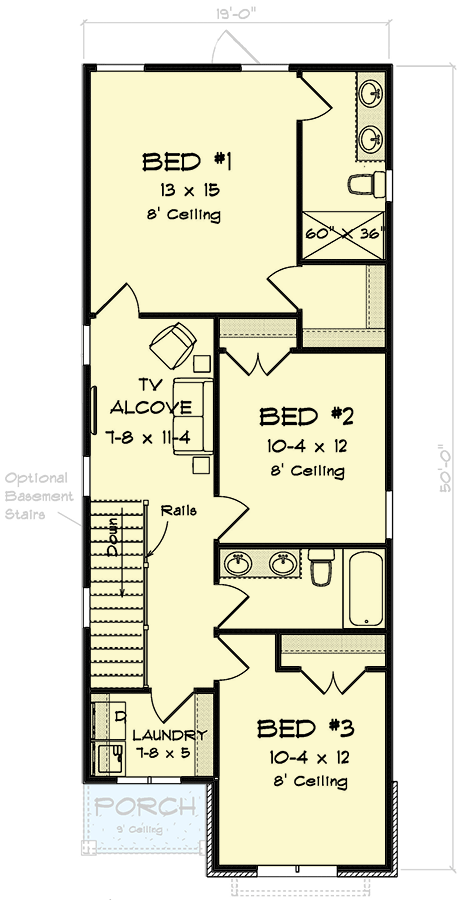

19-Foot-Wide 3 Bed House Plan Under 1600 Square Feet - 52327WM floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 1,567 sq. ft.
1st Floor: 661 sq. ft.
2nd Floor: 906 sq. ft.

Porch, Front: 36 sq. ft.

Beds/Baths

Bedrooms: 3

Full bathrooms: 2
Half bathrooms: 1

Foundation Type

Standard Foundations: Basement

Optional Foundations: Slab, Crawl

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Dimensions

Width: 19' 0"
Depth: 50' 0"
Max ridge height: 24' 10"

Garage

Type: Attached
Area: 245 sq. ft.
Count: 1 Cars
Entry Location: Front

Roof Details

Primary Pitch: 8 on 12

Framing Type: Stick Or Truss

Architectural Style

Special features
