Plan 22668DR 1970 Square Foot 3 Bedroom Cottage with Laundry Chute and a Finished Daylight Basement

1970 Square Foot 3 Bedroom Cottage with Laundry Chute and a Finished Daylight Basement

Plan 22668DR

  • 1,970

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • This 3 bedroom cottage gives you 1970 square feet of heated living with one bedroom on the main floor and two more in the finished daylight basement. The front split foyer  has a 12' ceiling and includes a walk-in closet as well as a practical bench.

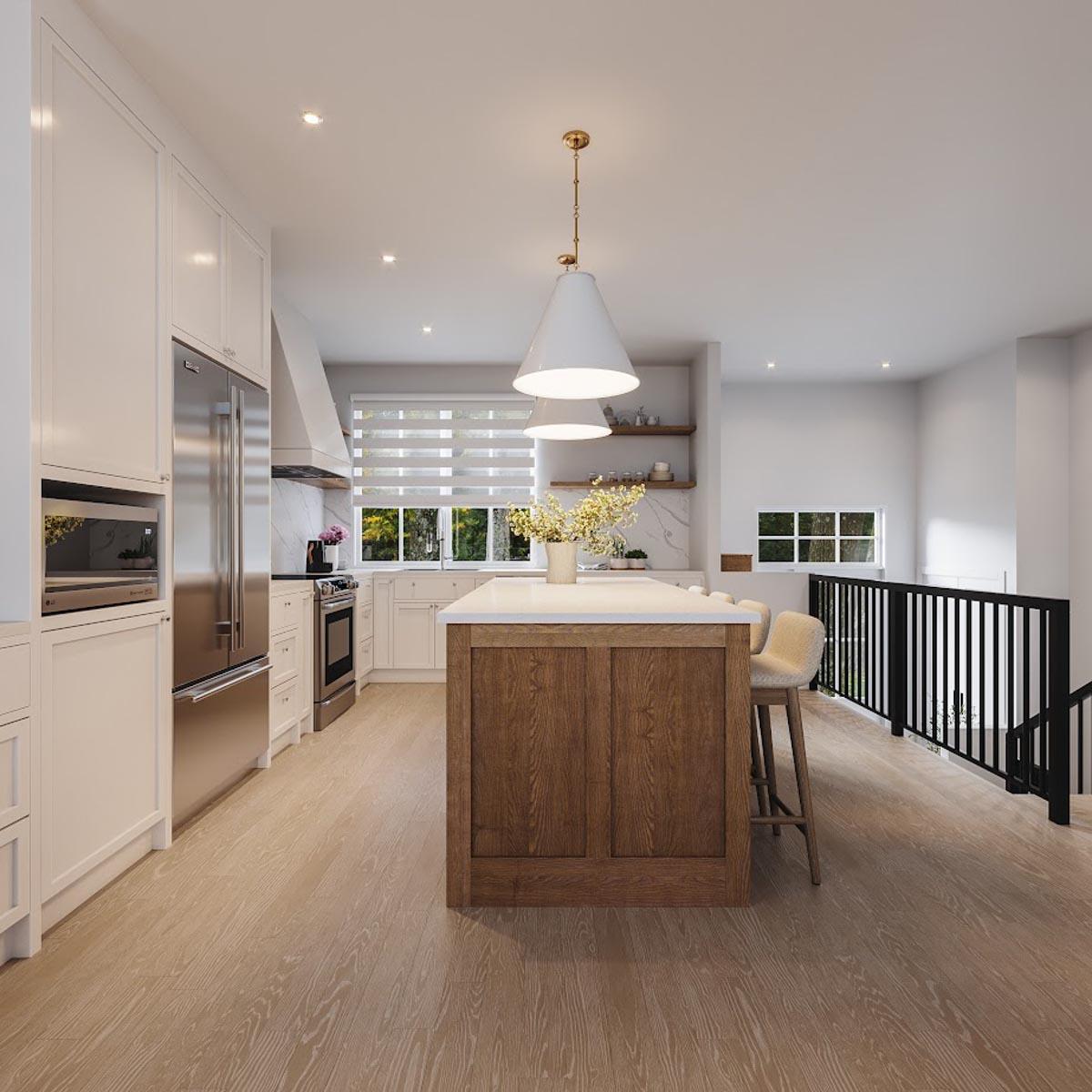

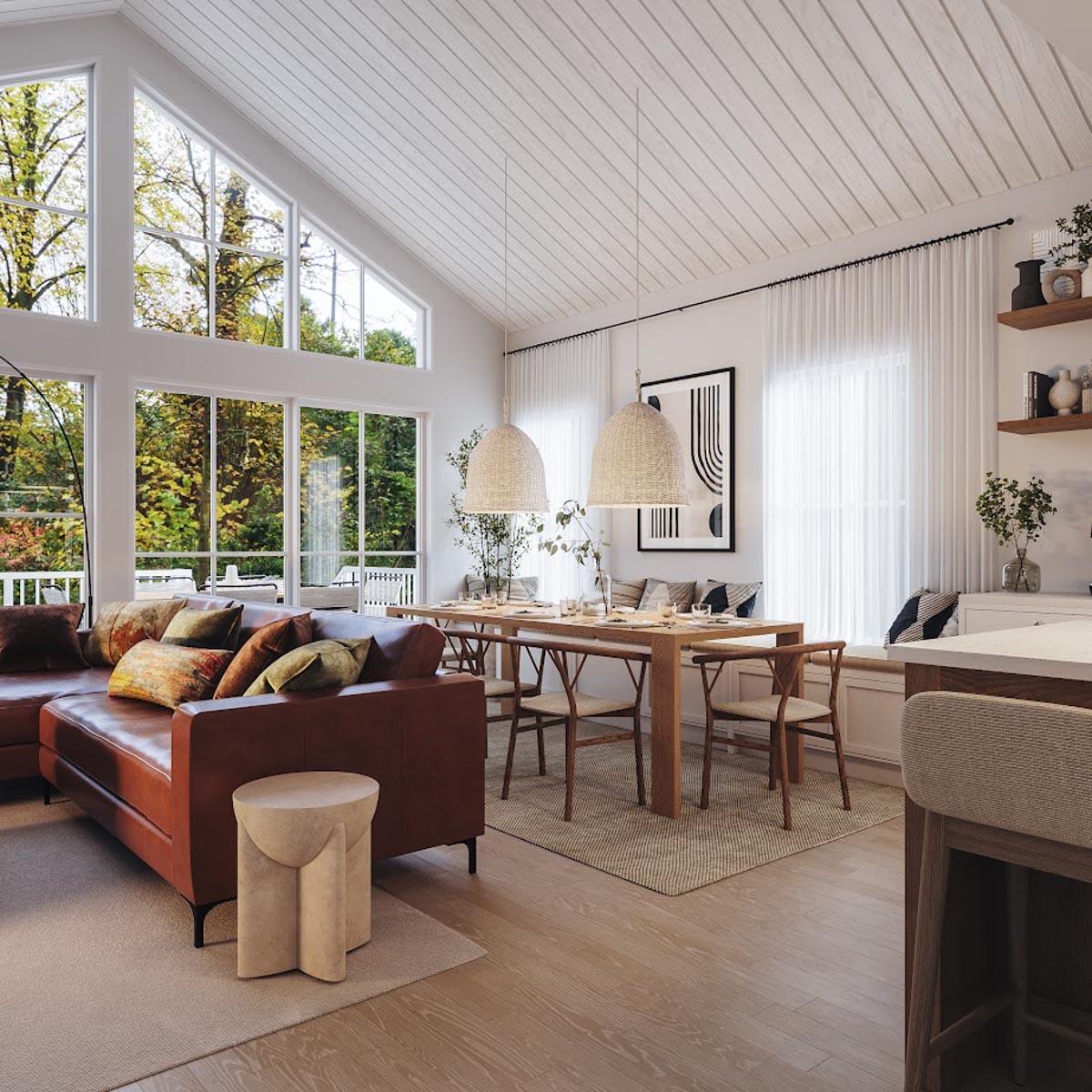

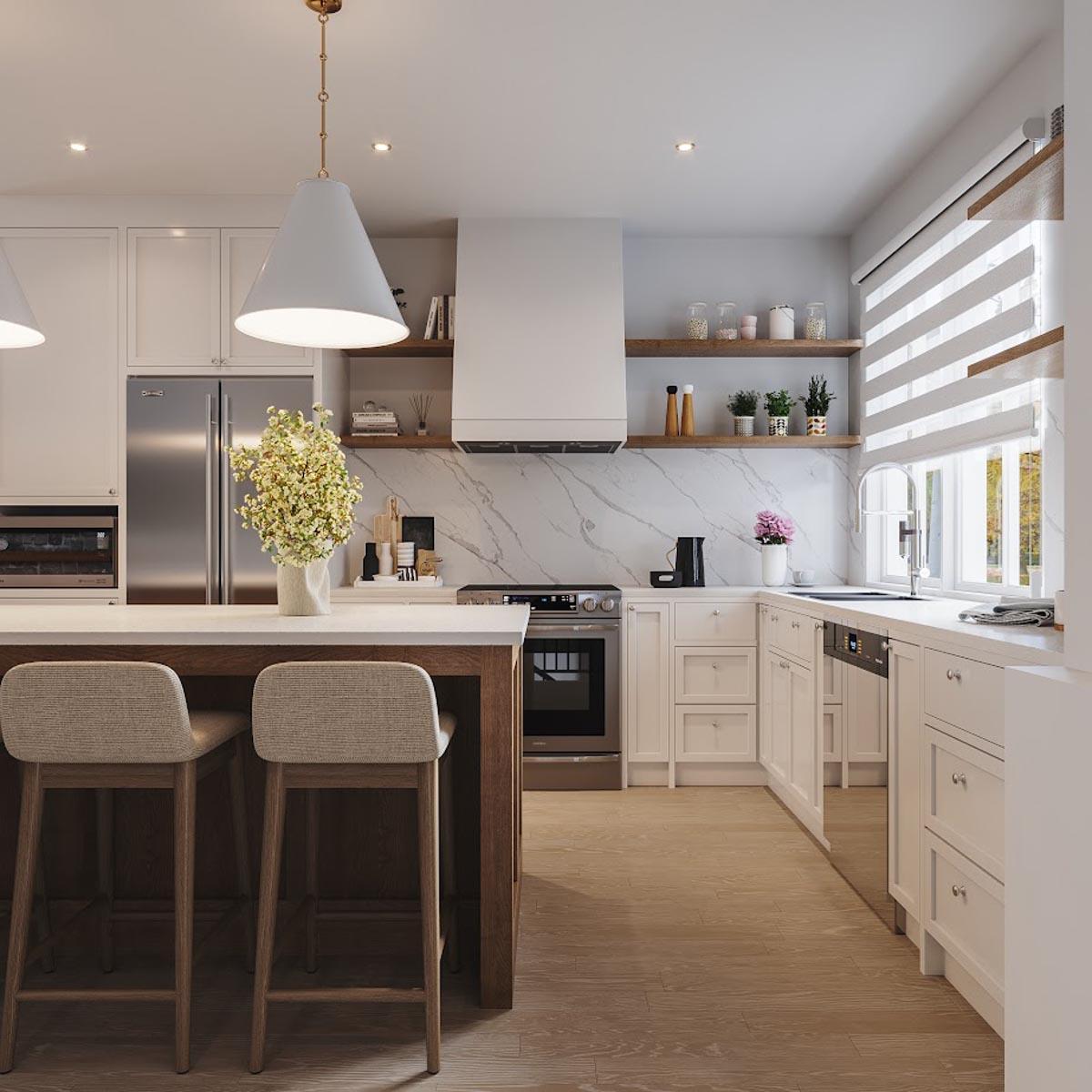

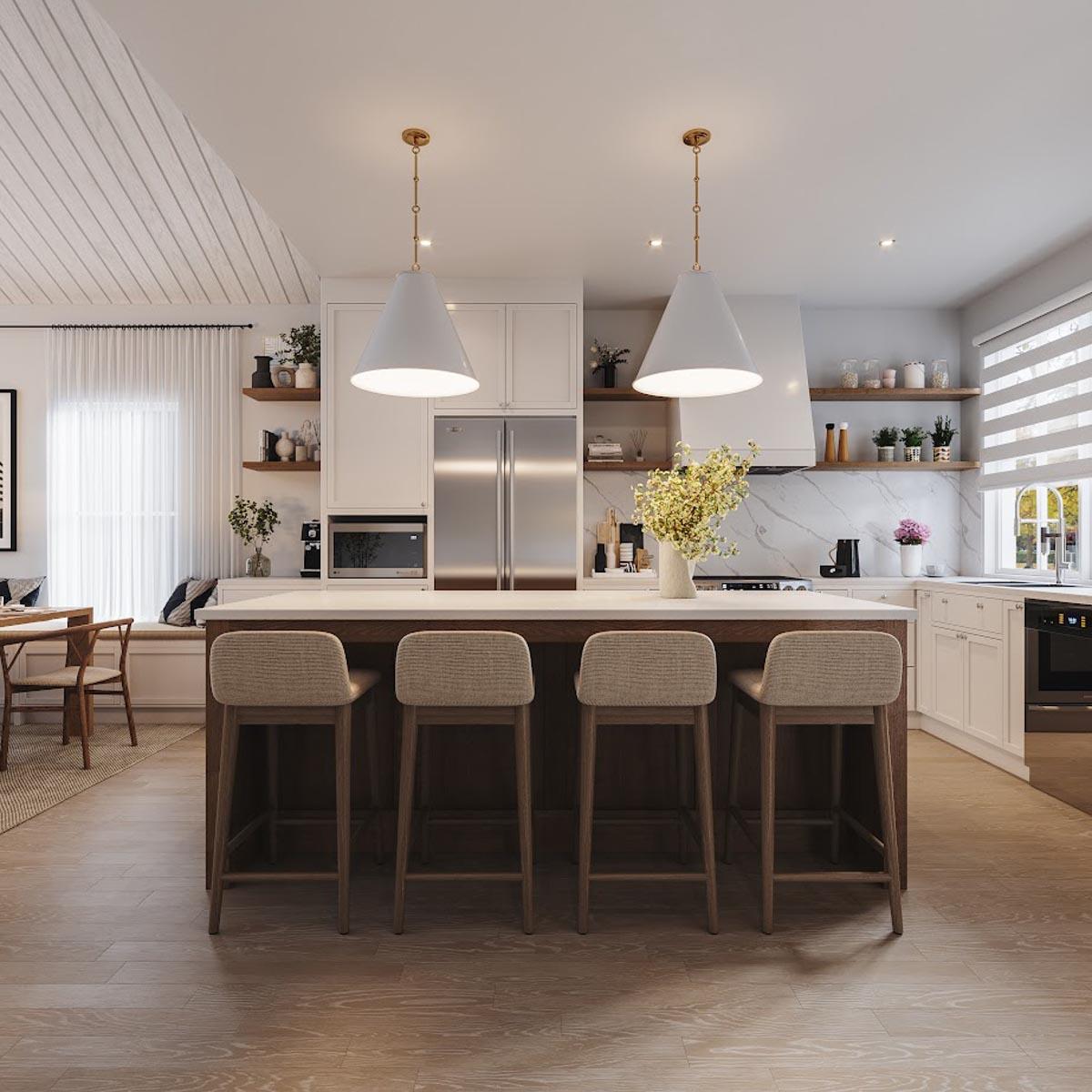

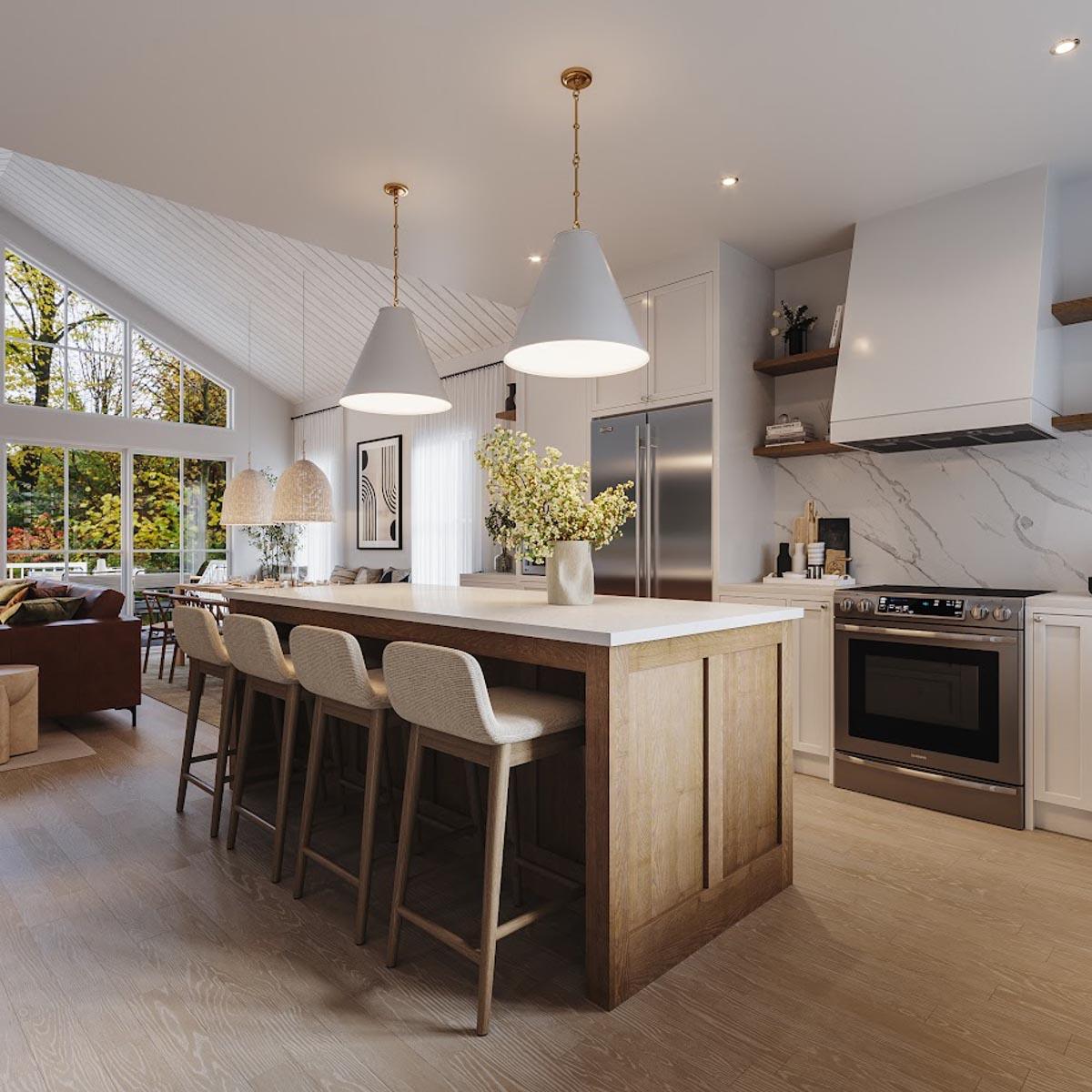

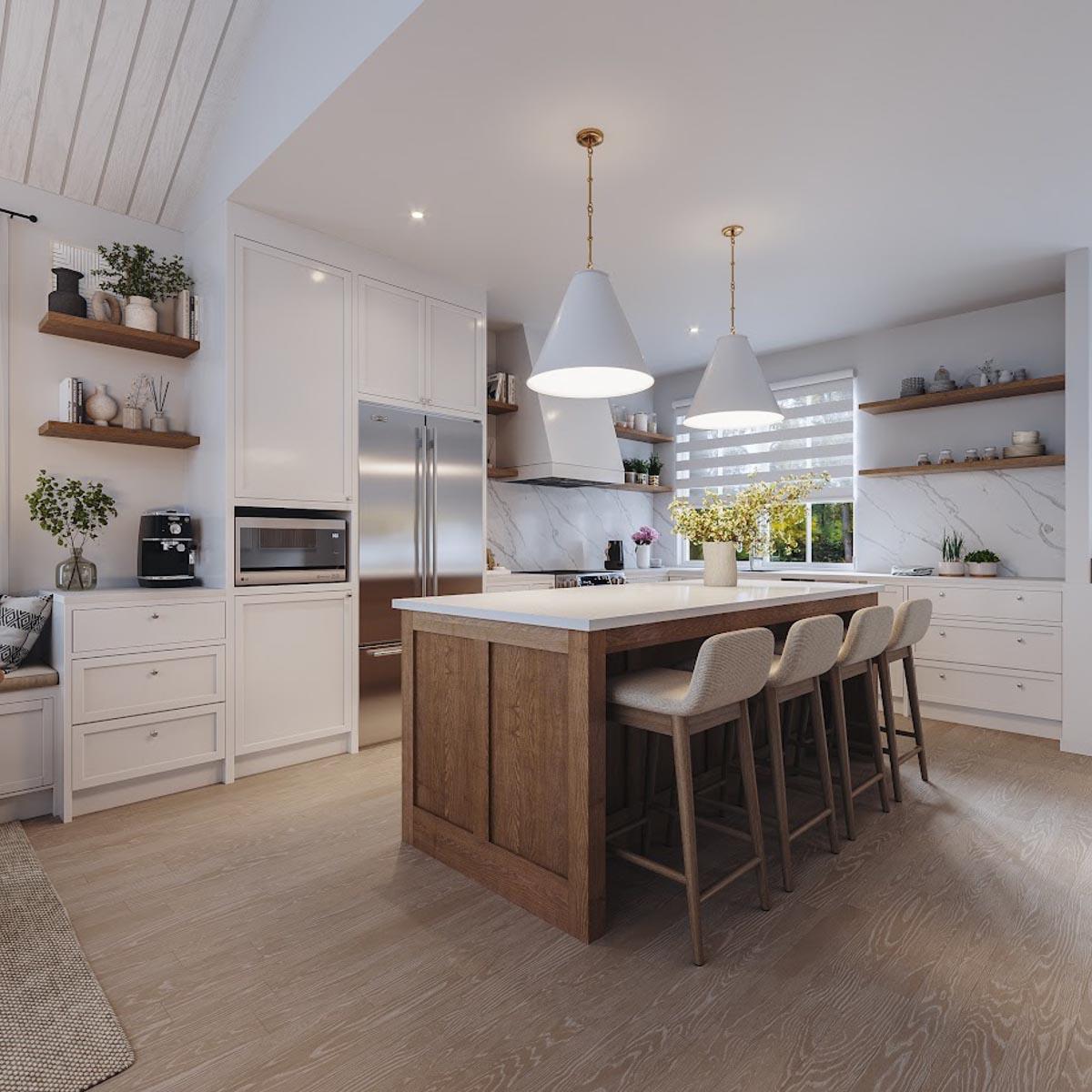

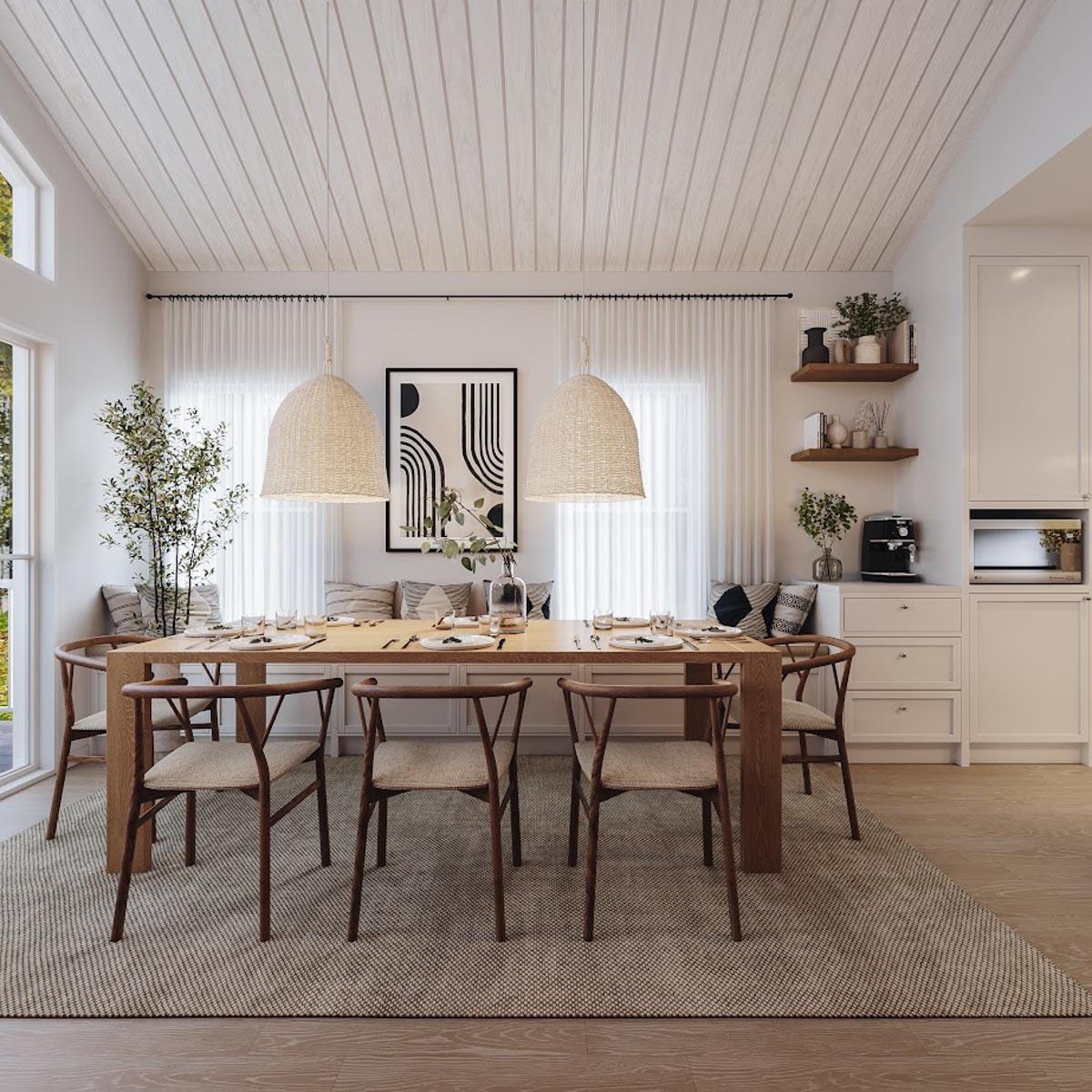

  • Taking the stairs to the main floor and you are greeted by an open concept space including the kitchen, the living room with 14'3" cathedral ceiling and the dining area. A coffee bar corner is provided between the kitchen and the dining room which can accommodate up to 6 people comfortably thanks to its built-in bench seating.

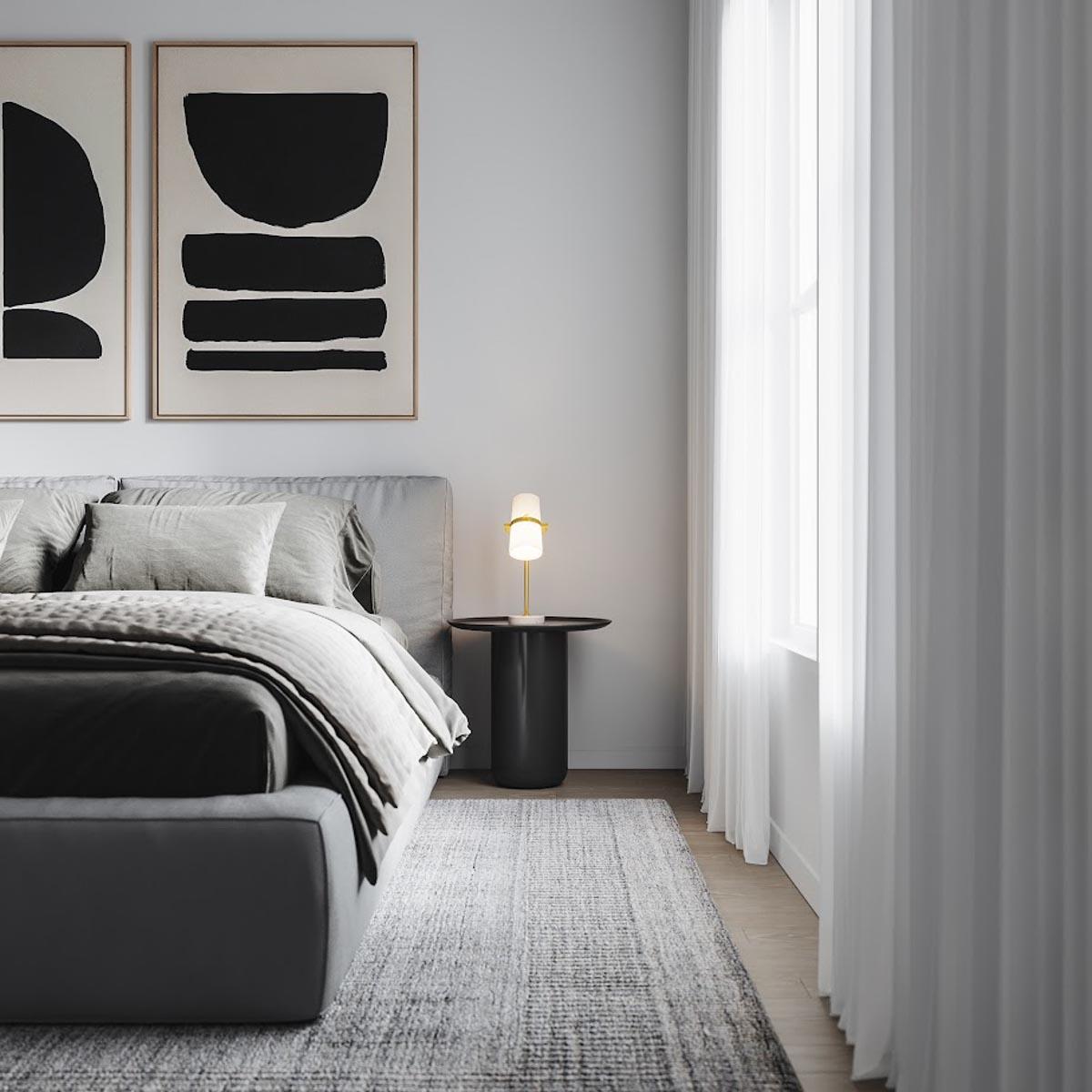

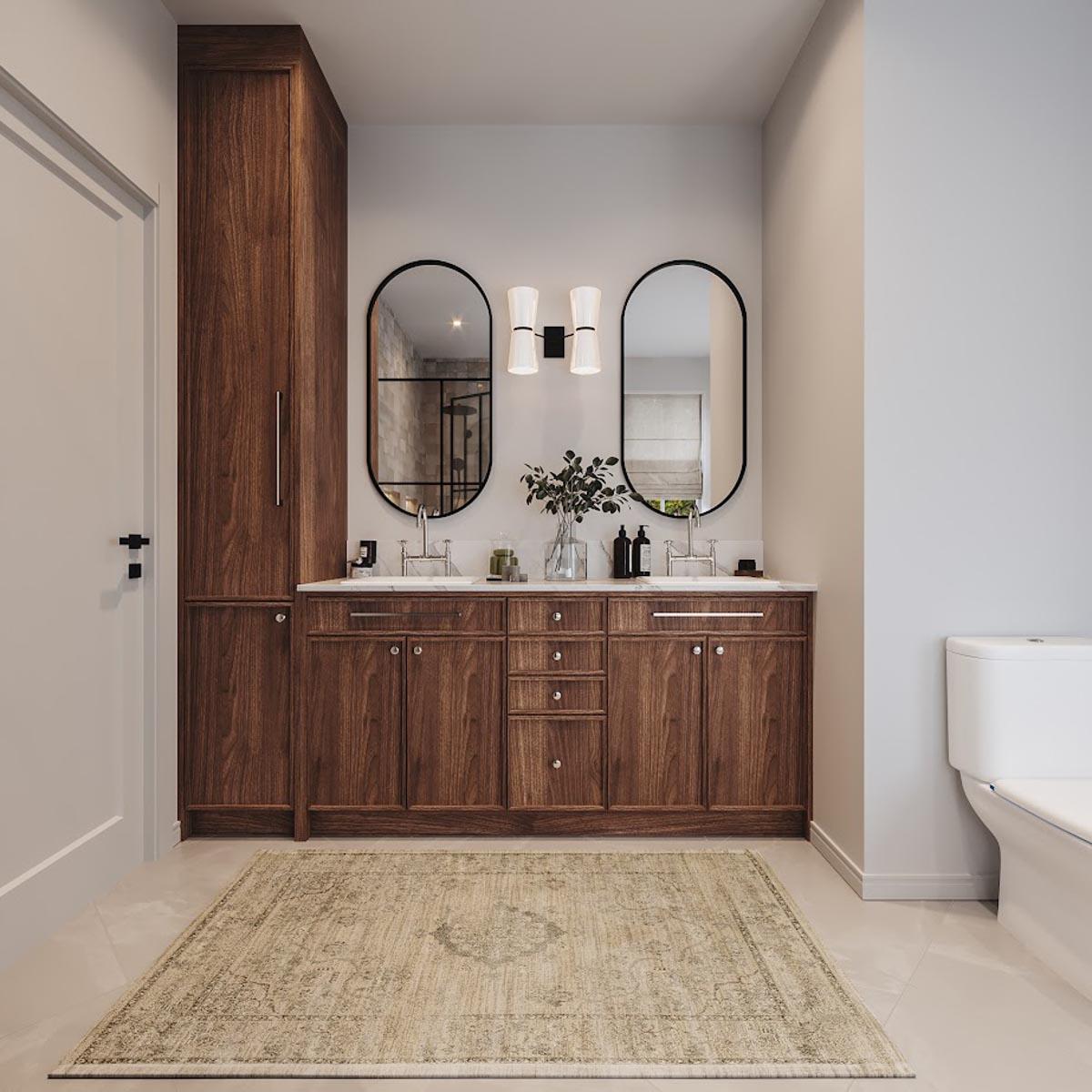

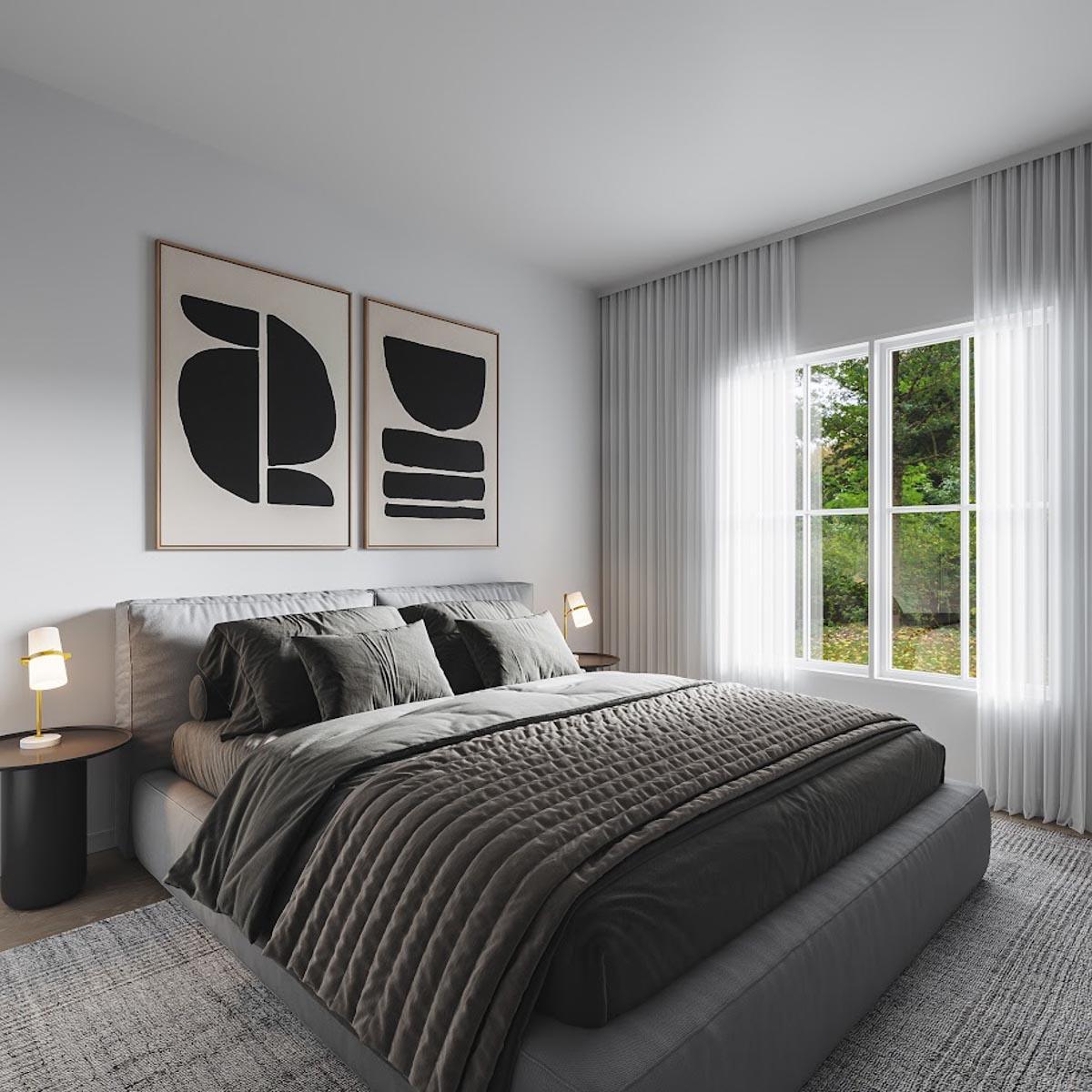

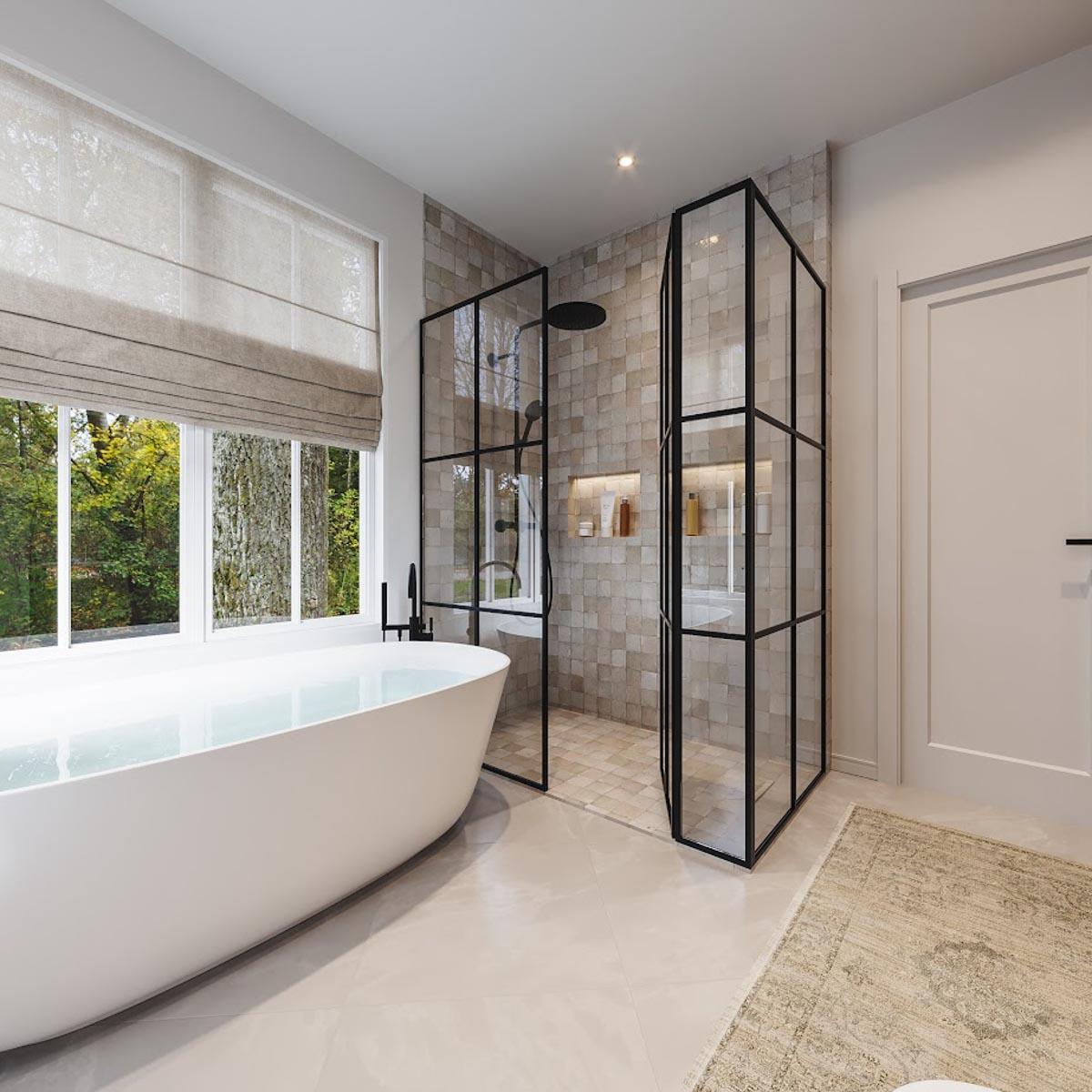

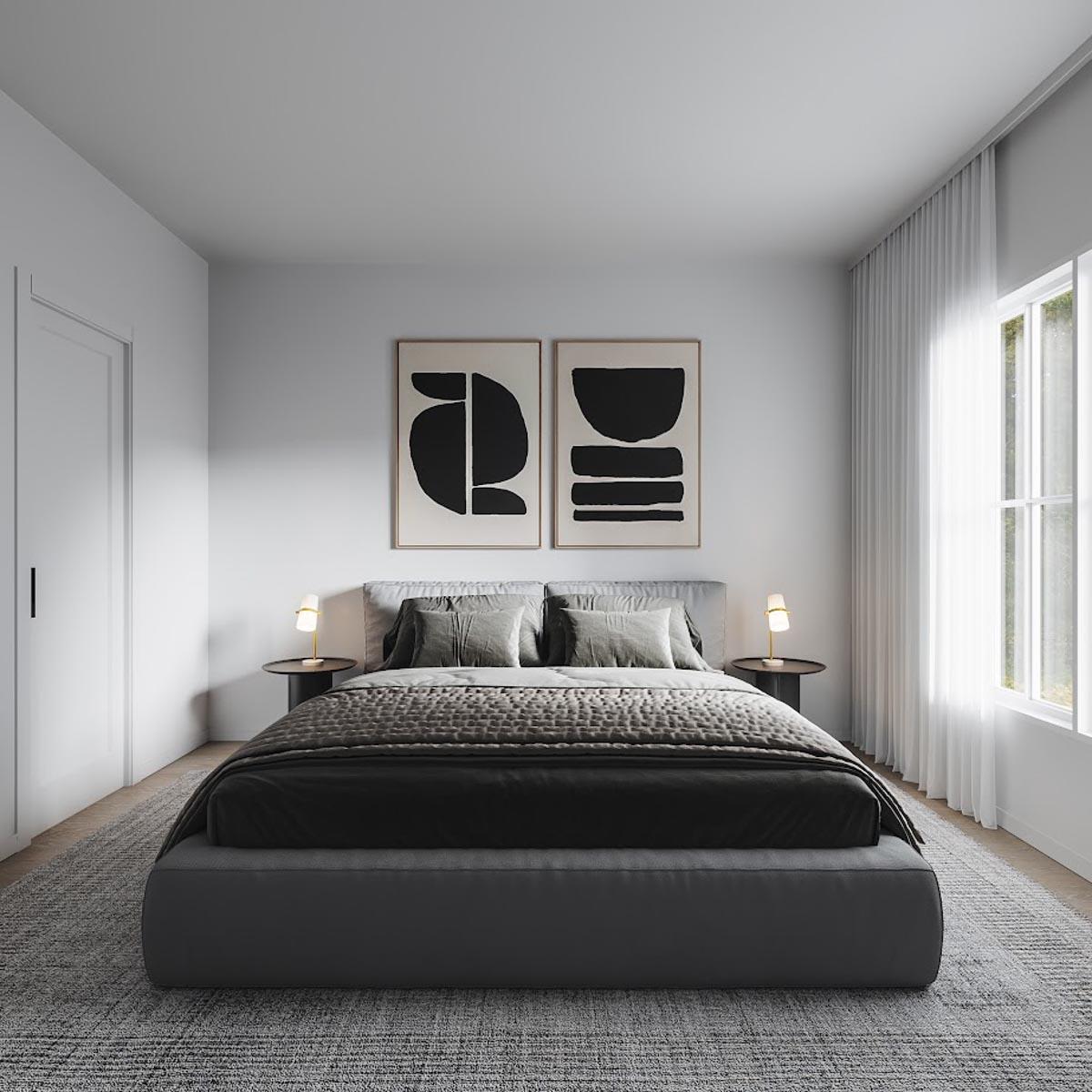

  • The master bedroom has a walk-in closet with an integrated laundry chute for your convenience. A complete bathroom offers a large shower and a separate bath, as well as two sinks and storage.
  • In the daylight basement, a family room with wood-burning fireplace compliments the bedrooms. A flexible space is also provided either to install some training accessories or an office area, your choice. The laundry room and a storage area complete this level.

      Each plan includes the following:

      * 4 Elevations
      * Foundation Plan
      * Main Floor Plan
      * Upper Floor Plans (if applicable)
      * Roof Plan
      * Building Section
      * Construction Details
      * Typical Wall Section

      These items are NOT included:
      • Architectural or Engineering Stamp - handled locally if required
      • Site Plan - handled locally when required
      • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
      • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
      • Energy calculations - handled locally when required


      Floor Plan

      NOTE:
      If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

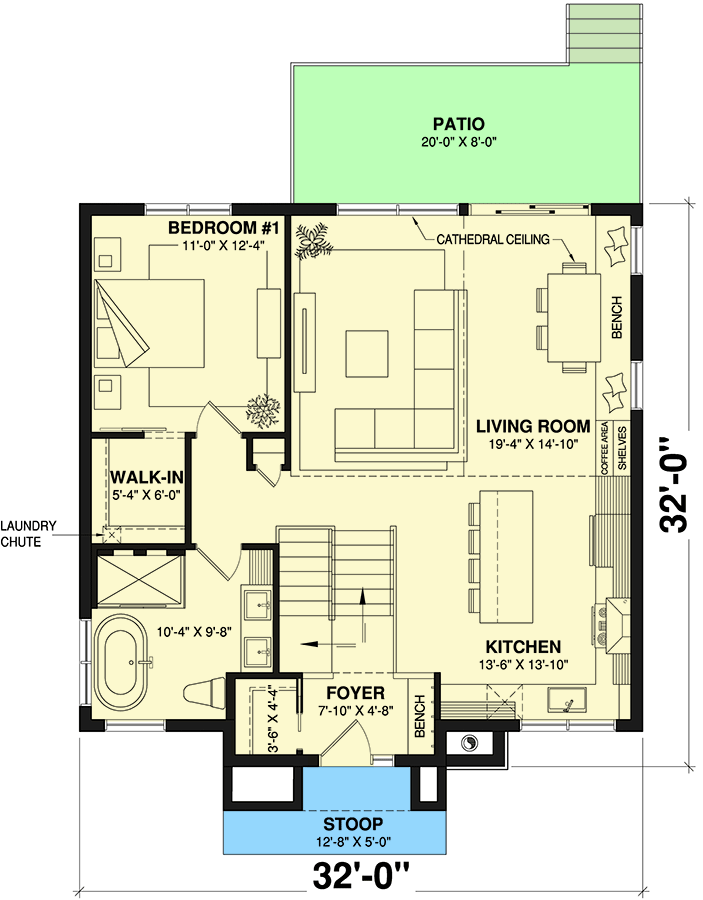

      1970 Square Foot 3 Bedroom Cottage with Laundry Chute and a Finished Daylight Basement - 22668DR floor plan - Main Level
      NOTE:
      If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

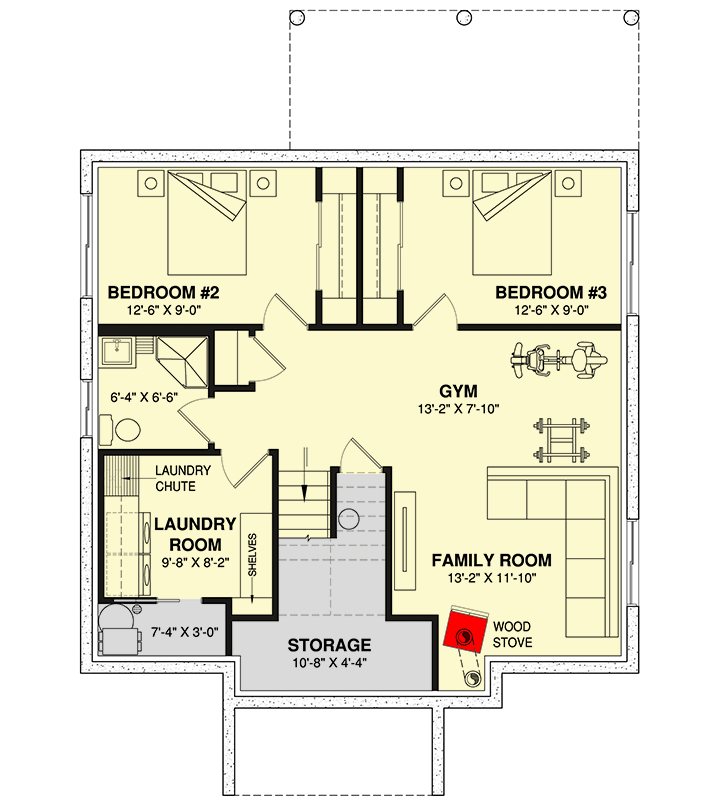

      1970 Square Foot 3 Bedroom Cottage with Laundry Chute and a Finished Daylight Basement - 22668DR floor plan - Lower Level

      Plan details

      1970 Square Foot 3 Bedroom Cottage with Laundry Chute and a Finished Daylight Basement

      • 1,970

        Heated s.f.

      • 3

        Beds

      • 2

        Baths

      • 1

        Floors

      Buy This Plan
      • PDF - Single-Build $1,500
      • CAD + PDF - Single-Build $2,100
      • View all purchase option online

      About This Plan

      • This 3 bedroom cottage gives you 1970 square feet of heated living with one bedroom on the main floor and two more in the finished daylight basement. The front split foyer  has a 12' ceiling and includes a walk-in closet as well as a practical bench.
      • Taking the stairs to the main floor and you are greeted by an open concept space including the kitchen, the living room with 14'3" cathedral ceiling and the dining area. A coffee bar corner is provided between the kitchen and the dining room which can accommodate up to 6 people comfortably thanks to its built-in bench seating.
      • The master bedroom has a walk-in closet with an integrated laundry chute for your convenience. A complete bathroom offers a large shower and a separate bath, as well as two sinks and storage.
      • In the daylight basement, a family room with wood-burning fireplace compliments the bedrooms. A flexible space is also provided either to install some training accessories or an office area, your choice. The laundry room and a storage area complete this level.

          Floor Plans

          • Main Level

          • Lower Level

          Plan Details

          Square Footage Breakdown

          • Total Heated Area: 1,970 sq. ft.
          • Lower Level: 985 sq. ft.
          • 1st Floor: 985 sq. ft.

          Beds/Baths

          • Bedrooms: 3
          • Full bathrooms: 2

          Foundation Type

            • Standard Foundations: Basement
            • Optional Foundations: Monolithic Slab, Walkout, Daylight, Slab, Crawl

          Exterior Walls

          • Standard Type(s): 2x6

          Dimensions

          • Width: 32' 0"
          • Depth: 32' 0"
          • Max ridge height: 23' 11"

          Ceiling Heights

          • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0"

          Roof

          • Primary Pitch: 10 on 12
          • Secondary Pitch: 7 on 12
