Plan 28045J
2,400 Square Foot Craftsman House Plan with Open Living Space
Heated S.F.
2,403
Beds
5-6
Baths
2.5
Stories
2
Cars
2
What's Included
Plan Details

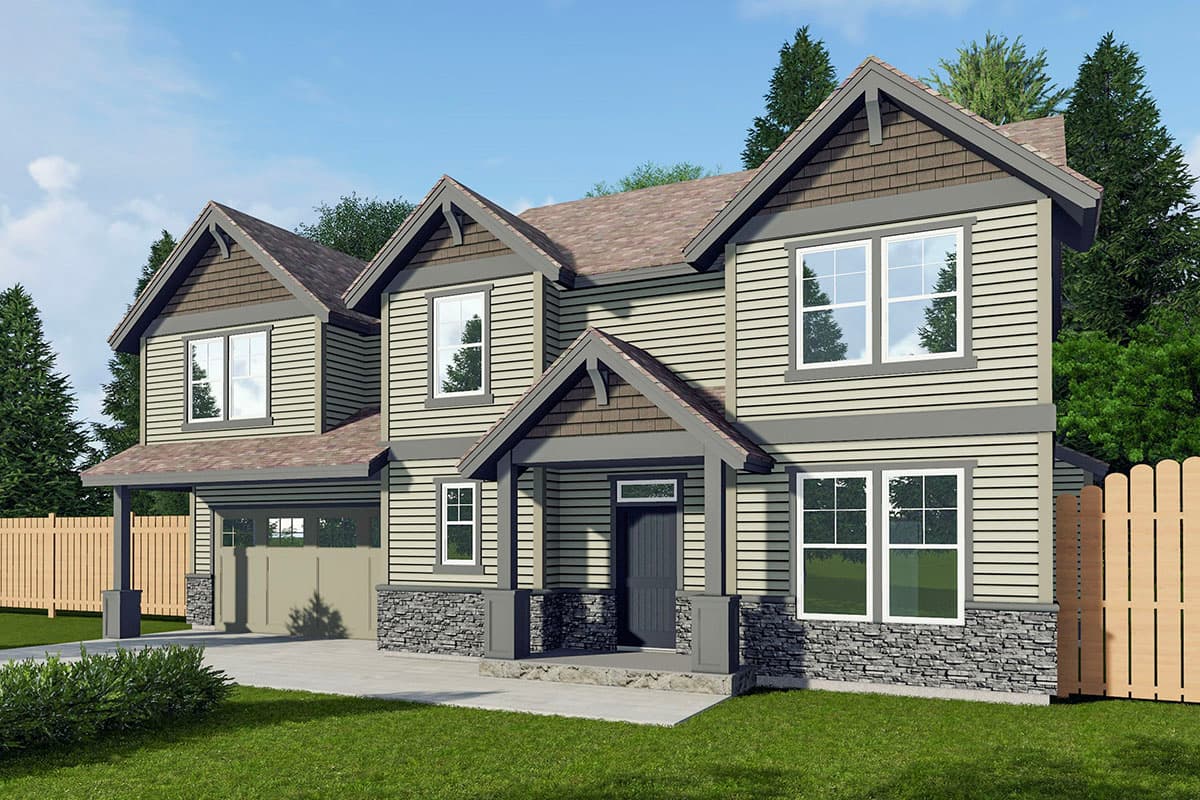

  • Stone and shakes add texture to the exterior of this 2,400 square foot Craftsman house plan.
  • The forward-facing garage is considerate of smaller lot lines and opens into the foyer with easy access to a powder bath.
  • Minimal walls allow you move easily between the kitchen, dining area, and great room, where three oversized windows allow natural light to fill the communal living spaces.
  • A covered porch provides the perfect spot to grill and dine outdoors, and a quiet den behind french doors can double as a guest bedroom.
  • Five bedrooms are located upstairs, including the vaulted master bedroom with a private deck and 5-fixture bathroom.
  • Related Plans: Get alternate versions with house plans 28043J and 28044J.
What's Included
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

2,400 Square Foot Craftsman House Plan with Open Living Space

  • 2,403

    Heated s.f.

  • 5-6

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,403 sq. ft.
  • 1st Floor: 934 sq. ft.
  • 2nd Floor: 1,469 sq. ft.

Dimensions

  • Width: 50' 0"
  • Depth: 32' 0"
  • Max ridge height: 27' 7"

Beds/Baths

  • Bedrooms: 5 or 6
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 390 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6
All house plans are copyright ©2024 by the architects and designers represented on our web site

2,400 Square Foot Craftsman House Plan with Open Living Space

  • 2,403

    Heated s.f.

  • 5-6

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

2,400 Square Foot Craftsman House Plan with Open Living Space

  • 2,403

    Heated s.f.

  • 5-6

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 2,403 sq. ft.
  • 1st Floor: 934 sq. ft.
  • 2nd Floor: 1,469 sq. ft.

Dimensions

  • Width: 50' 0"
  • Depth: 32' 0"
  • Max ridge height: 27' 7"

Beds/Baths

  • Bedrooms: 5 or 6
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 390 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

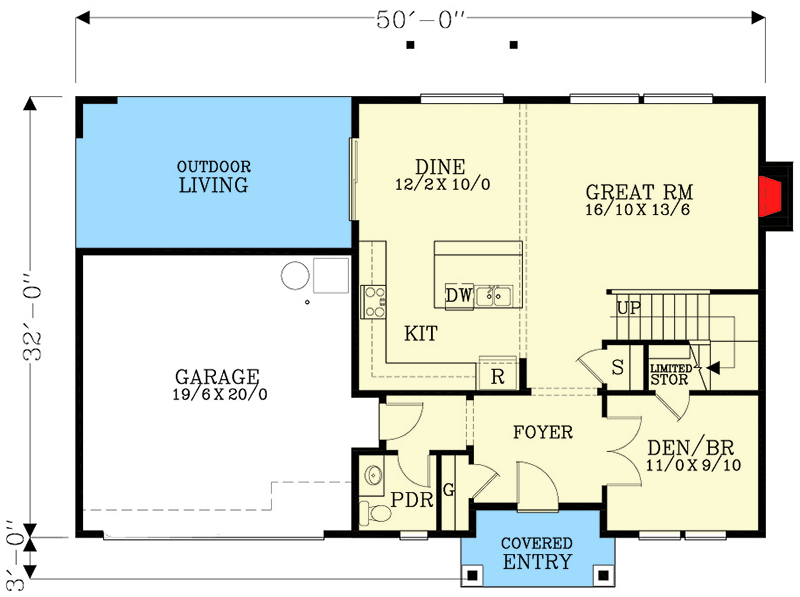

    Main Level

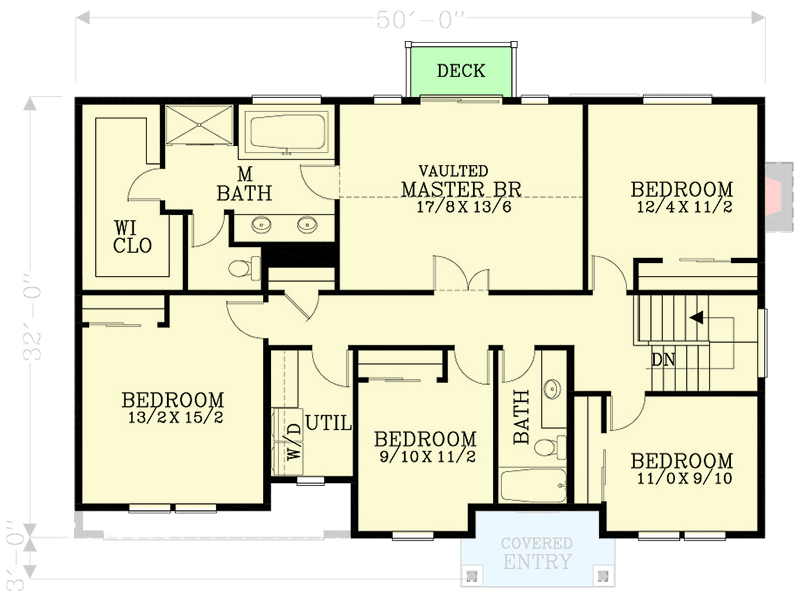

    2nd Floor
