Plan 29856RL

2 Bay Garage Apartment Plan

Heated S.F.
617
Beds
1
Baths
1
Stories
2
Cars
2

Floor Plan

Plan 29856RL

Main Level
Main Level
2nd Floor
2nd Floor

Plan 29856RL

M-F 9am-5pm EST |

1-203-761-8500

Main Level

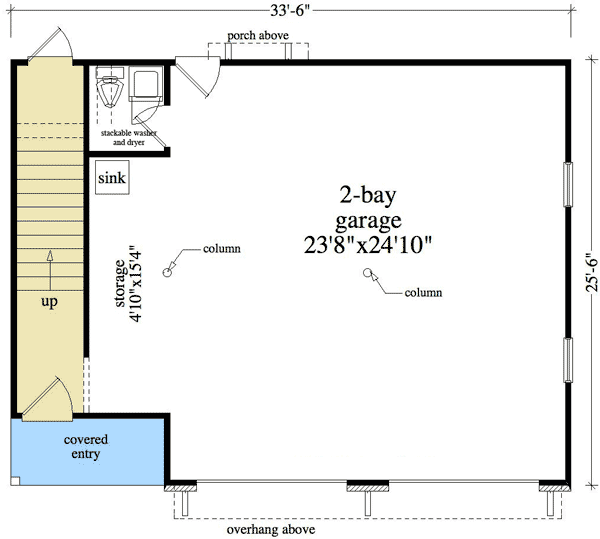

Plan 29856RL: 2 Bay Garage Apartment Plan - Floor Plan - Main Level - Carriage, Craftsman

2nd Floor

Plan 29856RL: 2 Bay Garage Apartment Plan - Floor Plan - 2nd Floor - Carriage, Craftsman

Plan Details

  • This is a traditional 2 bay 610 square foot garage with clapboard siding, stone accent with a 617 square foot apartment above.
  • The garage bays are over 23 feet wide and almost 25 feet deep. Additionally, there is room for storage, a sink, a water closet including space for a stackable washer and dryer.
  • The upstairs apartment has a full kitchen and generous storage.
  • The living room is quite comfortable and the bedroom is over 16 feet long.
  • The bathroom has a shower unit and no tub.

What's Included

  • All Four Elevations (front, rear, left, right)
  • 2D Roof overview
  • 3D Roof overview
  • Main Level Layout
  • Basement Level Layout
  • Cross-Section (Typical Wall, Stairs (if applicable))
  • Typical Details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

617 sq. ft.

1st Floor

617 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

33' 6"

Depth

25' 6"

Max Ridge Height

21' 6"

Garage

Type

Detached

Area

610 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Carriage

Craftsman

Special Features

Laundry - Main Level

Master Suite - Upstairs
