Plan 833053WAT

Exclusive

2-Bed ADU Cottage House Plan Under 600 Sq Ft

Heated S.F.
600
Beds
2
Baths
1
Stories
1

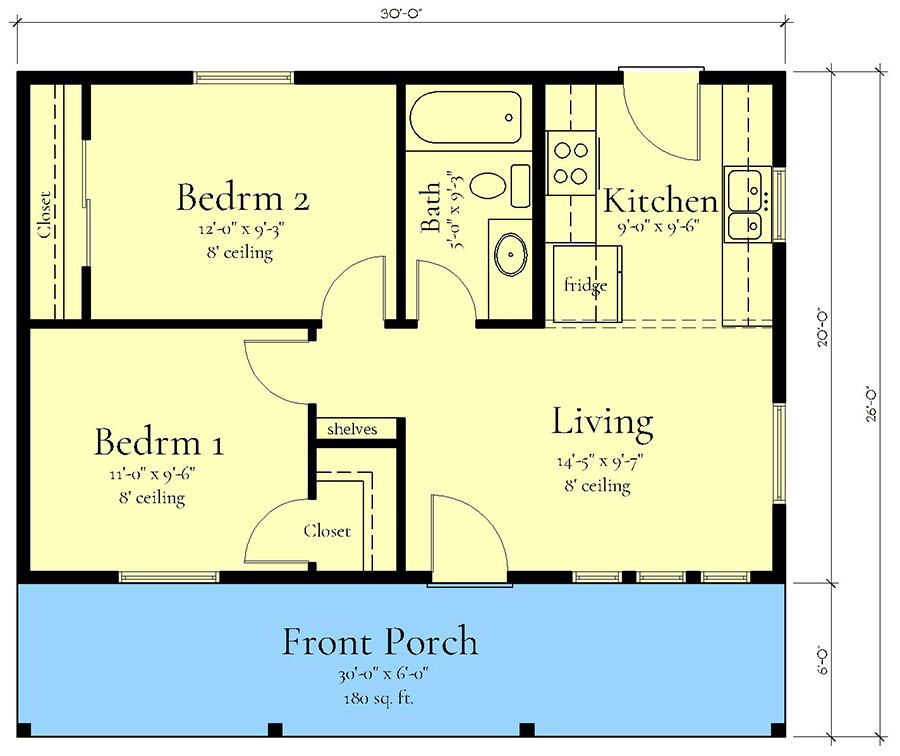

Floor Plan

Plan 833053WAT

Main Level
Main Level

Plan 833053WAT

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 833053WAT: 2-Bed ADU Cottage House Plan Under 600 Sq Ft - Floor Plan - Main Level - Cottage, Ranch

Plan Details

  • This charming 600 square foot Cottage and Ranch style house plan offers two comfortable bedrooms and a single well-appointed bathroom.
  • Upon entering from the welcoming front porch, you step directly into a bright, open-concept living area, thoughtfully designed to maximize space and flow.
  • The efficient layout places the kitchen adjacent to the living room, creating a seamless space for daily living, while the full bathroom is conveniently located nearby.
  • Both bedrooms offer comfortable retreats, each with dedicated closet space, and are thoughtfully clustered together for privacy and convenience.
  • An inviting 30-foot-wide front porch extends across the entire width of the home, providing a generous 180 square feet for morning coffee or evening relaxation.

What's Included

  • Cover Sheet
  • Floor Plan

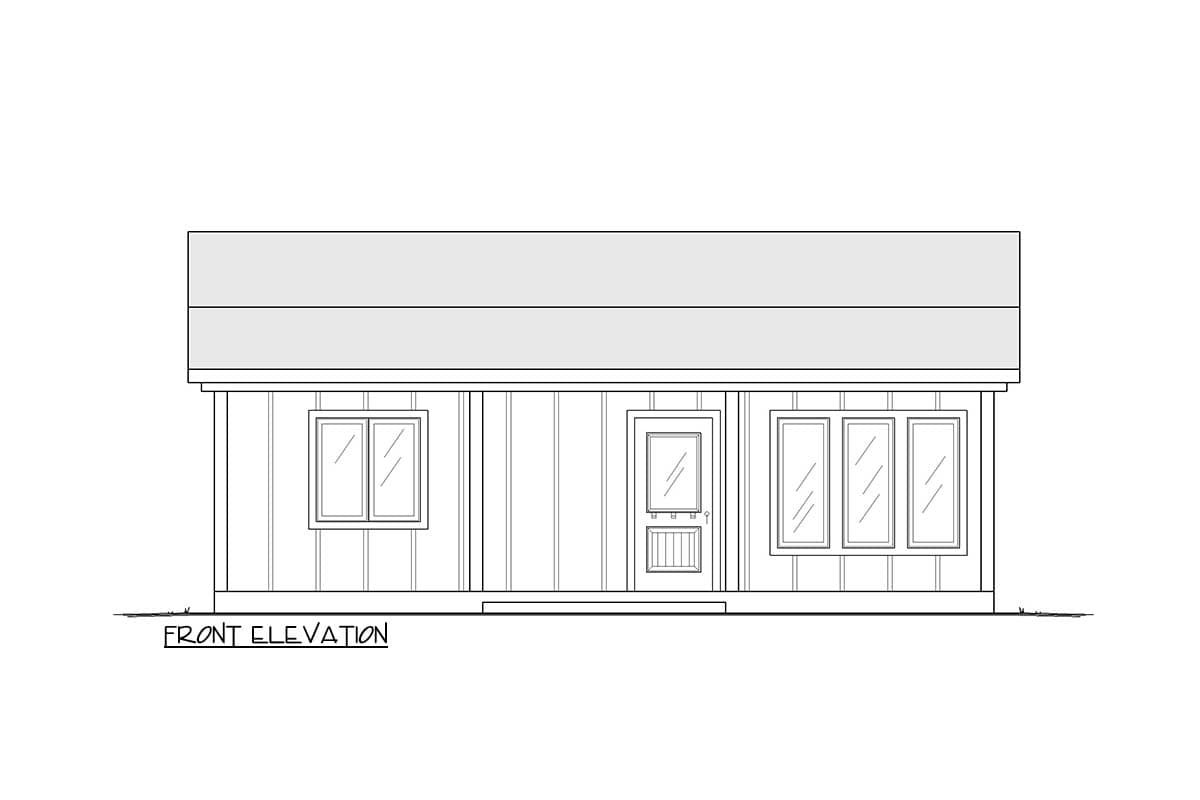

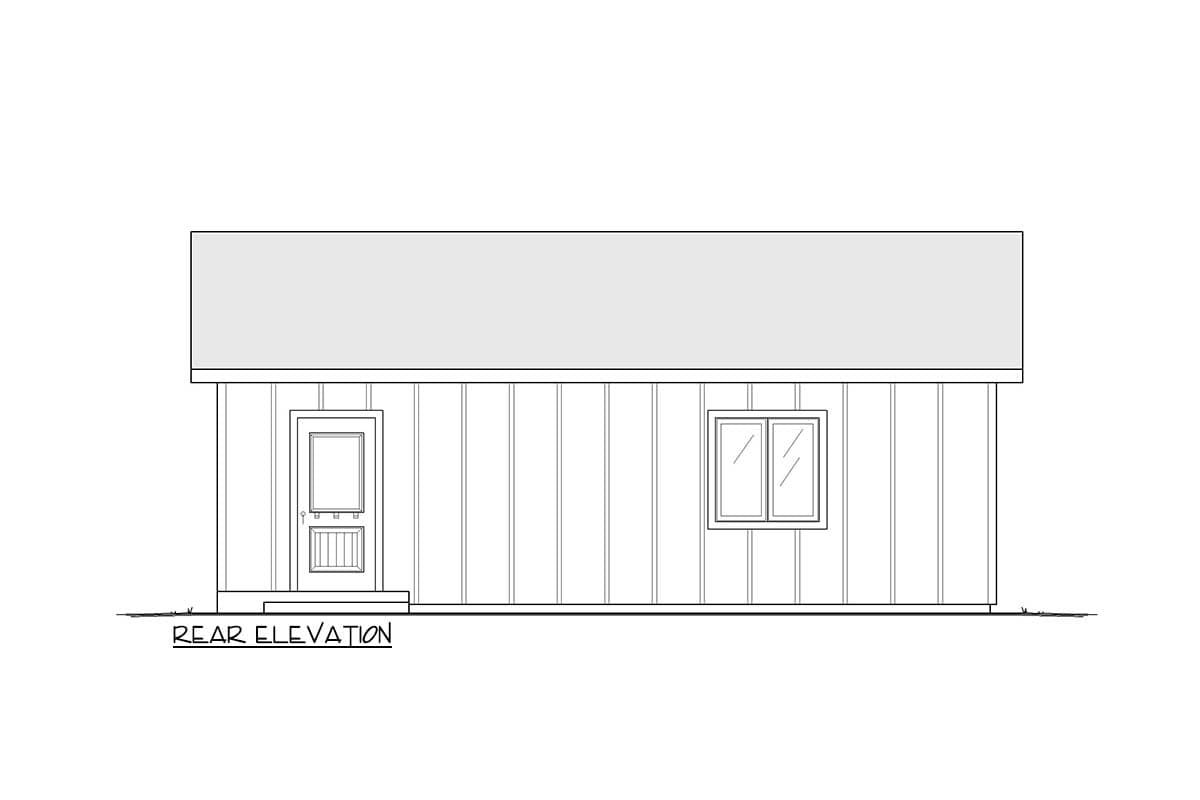

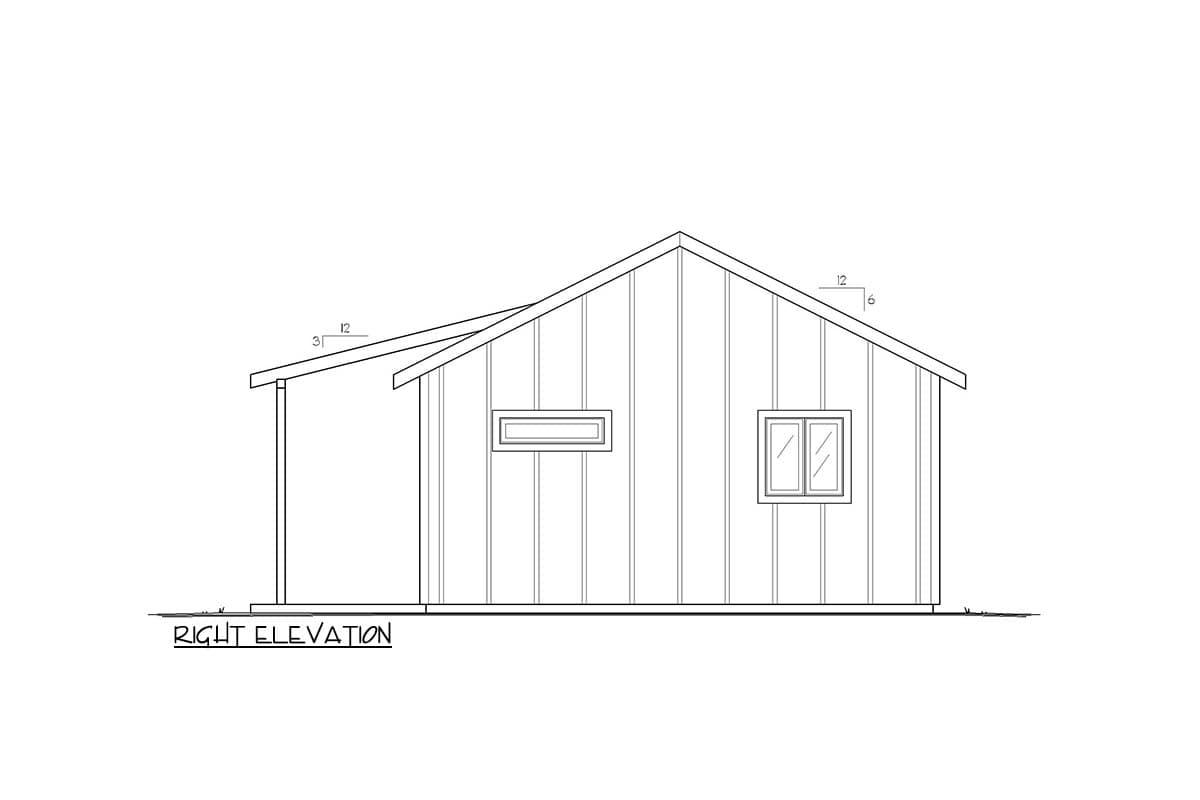

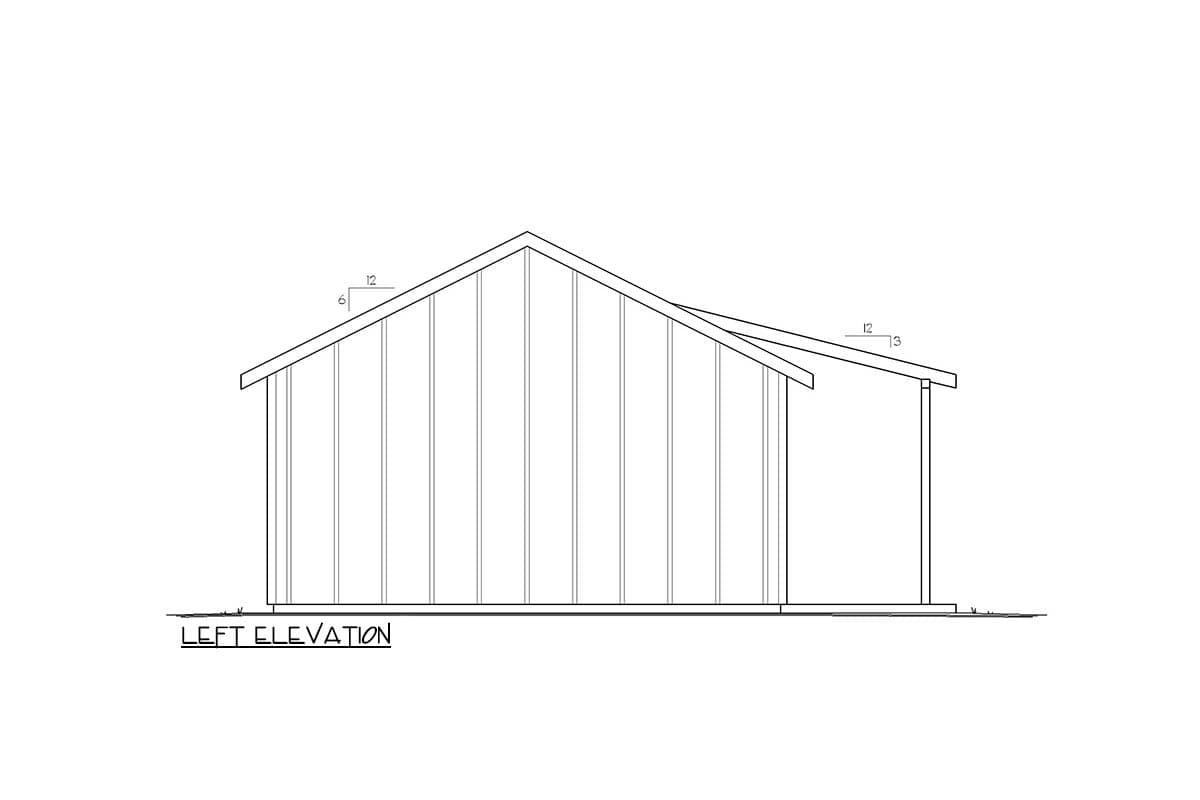

  • Elevations
  • Roof Plan
  • Thermal Envelope Plan (General Prescriptive Energy Compliance)
  • Detail Sheet
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

600 sq. ft.

1st Floor

600 sq. ft.

Porch, Front

180 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Crawl, Stem Wall

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

20' 0"

Max Ridge Height

14' 0"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

3 on 12

Framing Type

Truss

Architectural Style

Cottage

Ranch

Special Features

Bedrooms - Clustered

Flex Room

Master Suite - 1st Floor

Plan Collections

ADU

Exclusive

Square Footage Breakdown

Total Heated Area

600 sq. ft.

1st Floor

600 sq. ft.

Porch, Front

180 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Crawl, Stem Wall

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

20' 0"

Max Ridge Height

14' 0"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

3 on 12

Framing Type

Truss

Architectural Style

Cottage

Ranch

Special Features

Bedrooms - Clustered

Flex Room

Master Suite - 1st Floor

Plan Collections

ADU

Exclusive
