Plan 135159GRA
2-Bed Barndominium with 4,000 Square Foot Garage / Shop with Drive-through RV Bay
Heated S.F.
2,738
Beds
2
Baths
2.5
Stories
2
Cars
4
Flyer
What's Included
Plan Details
  • The right half of this Farmhouse-inspired Barndominium features a 4,000 square foot garage / workshop with a 2-car garage with a single 18' by 8' garage door and a drive-through RV bay with 12' by 14' overhead doors front and back.
  • A staircase in the garage leads to a second-level loft that can serve as an office or storage space and a half bah with sink is a nice convenience.
  • From the wraparound porch, french doors open into a combined great room, kitchen, and dining area which features everyone's favorite amenities: a fireplace, Cathedral ceiling, kitchen island, walk-in pantry and coffee bar.
  • Bed 2 has a walk-in closet and convenient access to both a hall bath and the laundry room with garage access.
  • The master bedroom is tucked into the rear of the design and includes a 4-fixture bathroom with a linen closet and a walk-in closet.
  • The exterior finish is spec'd for corrugated metal siding.
  • Related Plan: Get an alternate version with house plan 135072GRA and 135165GRA.
What's Included
  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

2-Bed Barndominium with 4,000 Square Foot Garage / Shop with Drive-through RV Bay

  • 2,738

    Heated s.f.

  • 2

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 4

    Car garage

Floor Plan

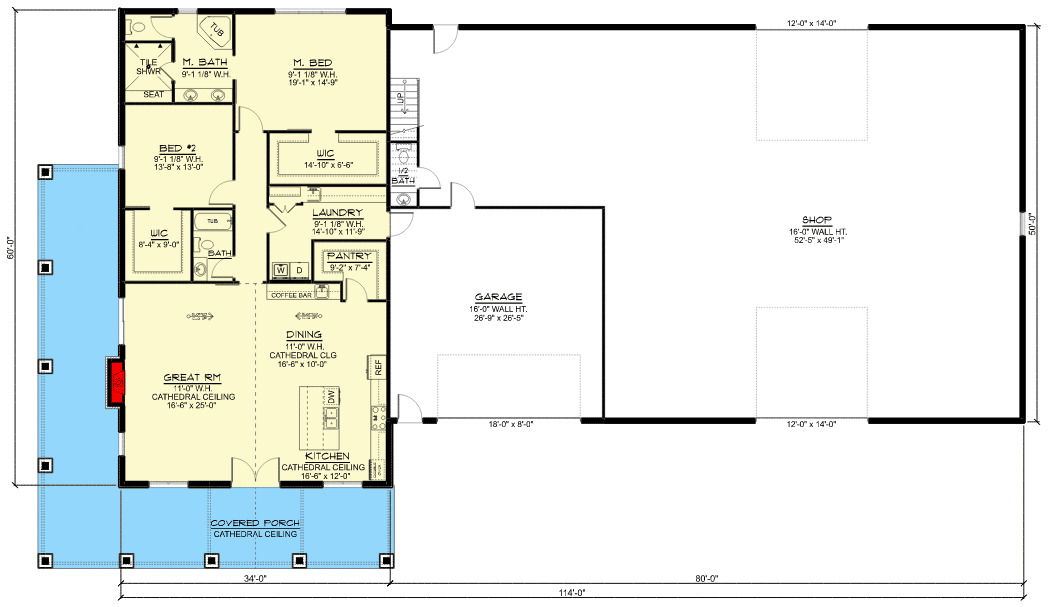

  • Main Level

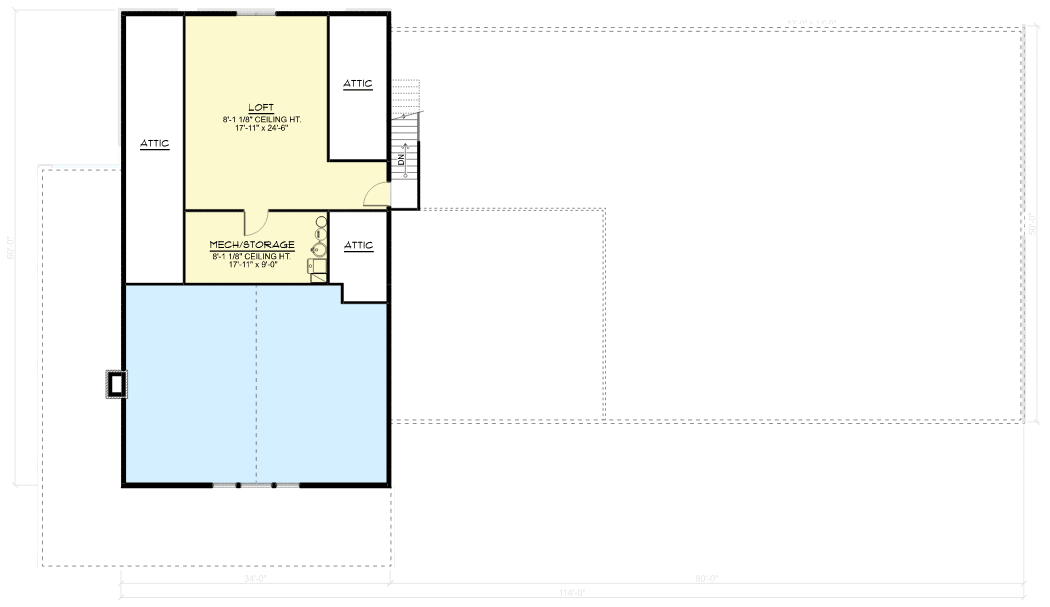

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,738 sq. ft.
  • 1st Floor: 2,048 sq. ft.
  • 2nd Floor: 690 sq. ft.

Dimensions

  • Width: 114' 0"
  • Depth: 60' 0"
  • Max ridge height: 25' 8"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 4000 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Walkout, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6
All house plans are copyright ©2024 by the architects and designers represented on our web site
