Plan 58626SV
2-Bed Barndominium with 4-Car Garage
Heated S.F.
2,523
Beds
2
Baths
2.5
Stories
2
Cars
4
What's Included
Plan Details
  • This multi-use, Barndominium provides a four-car garage, two home offices, two bedrooms, and a wine cellar that doubles as a safe room.
  • A 12'-deep porch with a fireplace extends from the main level, where you'll find the four-car garage / workshop, along with two sizable offices and a wash area.
  • Upstairs, the shared living space is open, supported by a cathedral ceiling, and featuring a fireplace and wet bar.
  • Two bedrooms occupy the left side of the second level, including the spacious primary bedroom with a tray ceiling, 5-fixture bathroom, and walk-in closet.
  • A safe room disguised as a wine cellar completes the layout.
What's Included
  • Foundation Sheet
  • 1st Level Floor Plan
  • 2nd & 3rd Level Floor Plans
  • Framing Section
  • Roof Plan
  • Cabinet Details
  • Stair Detail
  • Front and Side Elevation

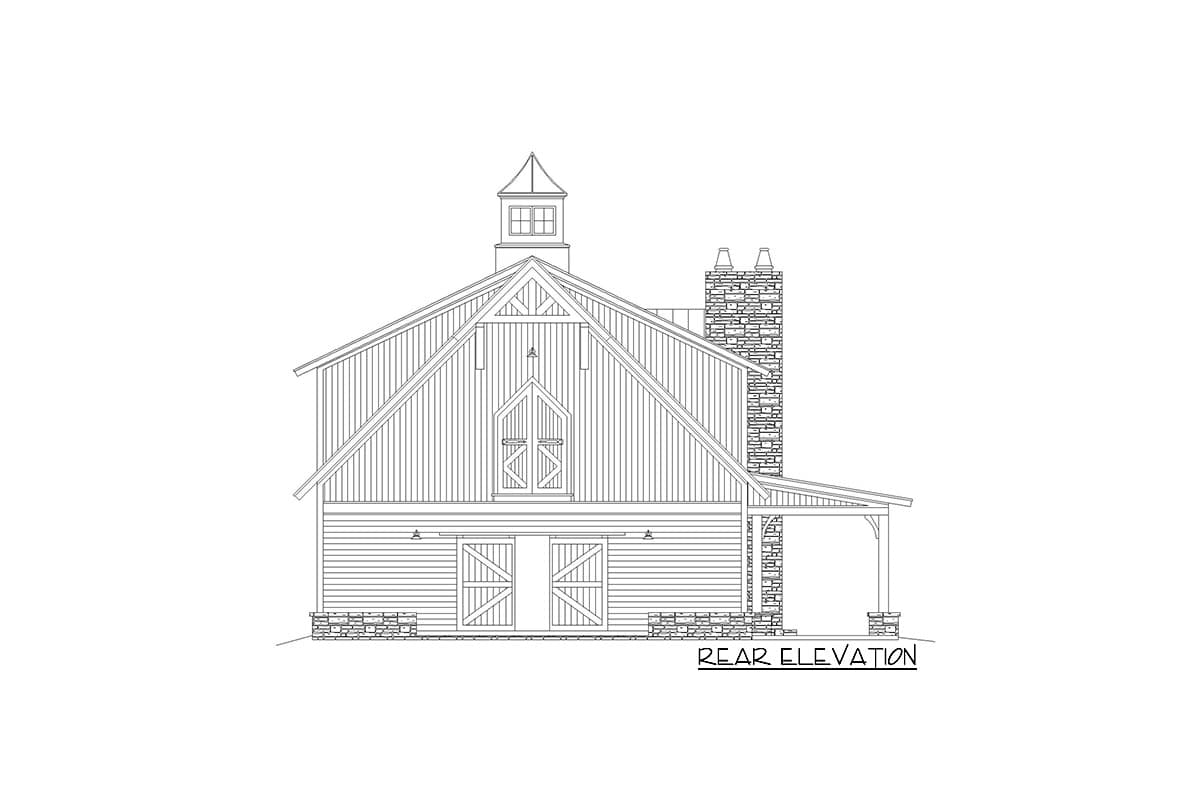

  • Rear and Side Elevations
May not apply to carports, garages, pool houses, storage bldgs, barns, ETC
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

2-Bed Barndominium with 4-Car Garage

  • 2,523

    Heated s.f.

  • 2

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 4

    Car garage

Floor Plan

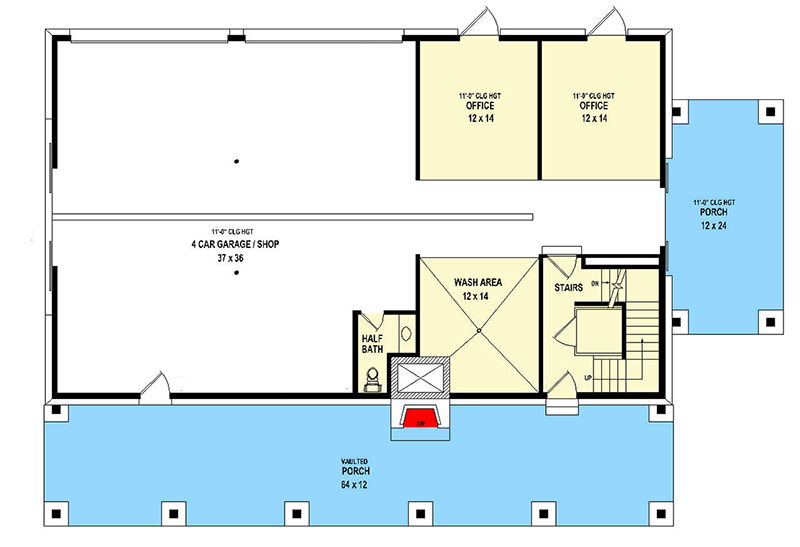

  • Main Level

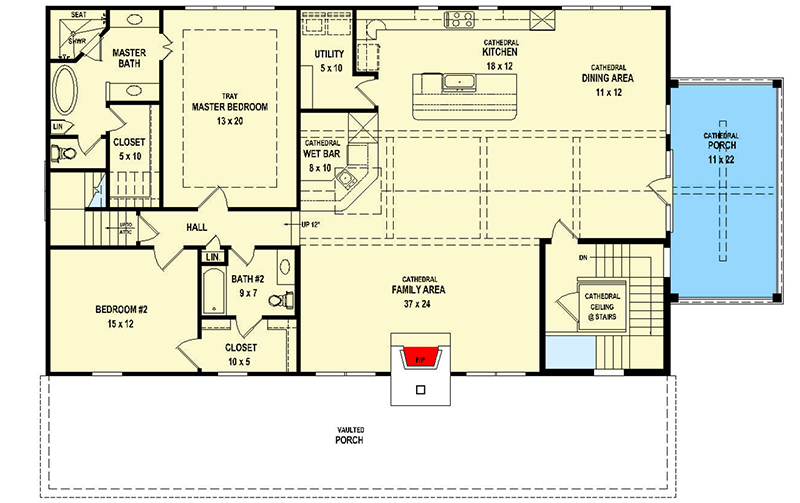

  • 2nd Floor

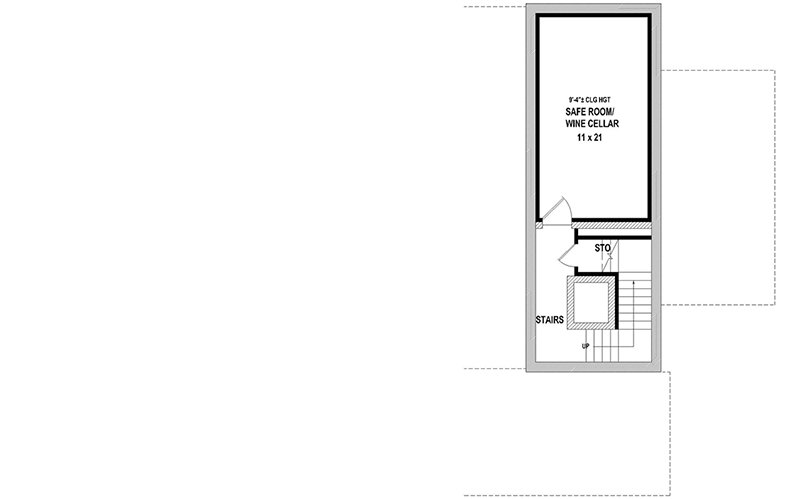

  • Wine Cellar

Plan Details

Square Footage Breakdown

  • Total: 2,523 sq. ft.
  • 1st Floor: 202 sq. ft.
  • 2nd Floor: 2,167 sq. ft.

Dimensions

  • Width: 73' 9"
  • Depth: 49' 3"
  • Max ridge height: 32' 3"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 2203 sq. ft.
  • Count: 4 Cars
  • Entry Location: Rear

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 11' 0" Second Floor / 10' 0"

Roof

  • Primary Pitch: 5 on 12
  • Secondary Pitch: 12 on 12
