Plan 61249UT 2-Bed Carriage Farmhouse with RV Garage

2-Bed Carriage Farmhouse with RV Garage

Plan 61249UT

  • 3,336

    Heated s.f.

  • 2

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • The center of this 2-bedroom Carriage Farmhouse plan features an RV garage with overhead doors on the front and rear elevations.
  • A single garage bay sits on either side of the RV garage with a man door on the side, while a sizable covered porch flows seamlessly into a lower-level kitchen; an ideal setting for outdoor get-togethers.
  • The formal entry features a powder bath, coat closet, and mudroom to gather and store your outdoor gear.
  • Upstairs, you will find an open family room and eat-in kitchen, anchored by an elongated kitchen island. Two corner pantries help provide enough storage for cookware and grocery buying in bulk.
  • Each bedroom features a bathroom and walk-in closet.

Each plan set includes the following:


  • General notes
  • Foundation plan
  • Detailed floor plans
  • Floor framing
  • Roof framing

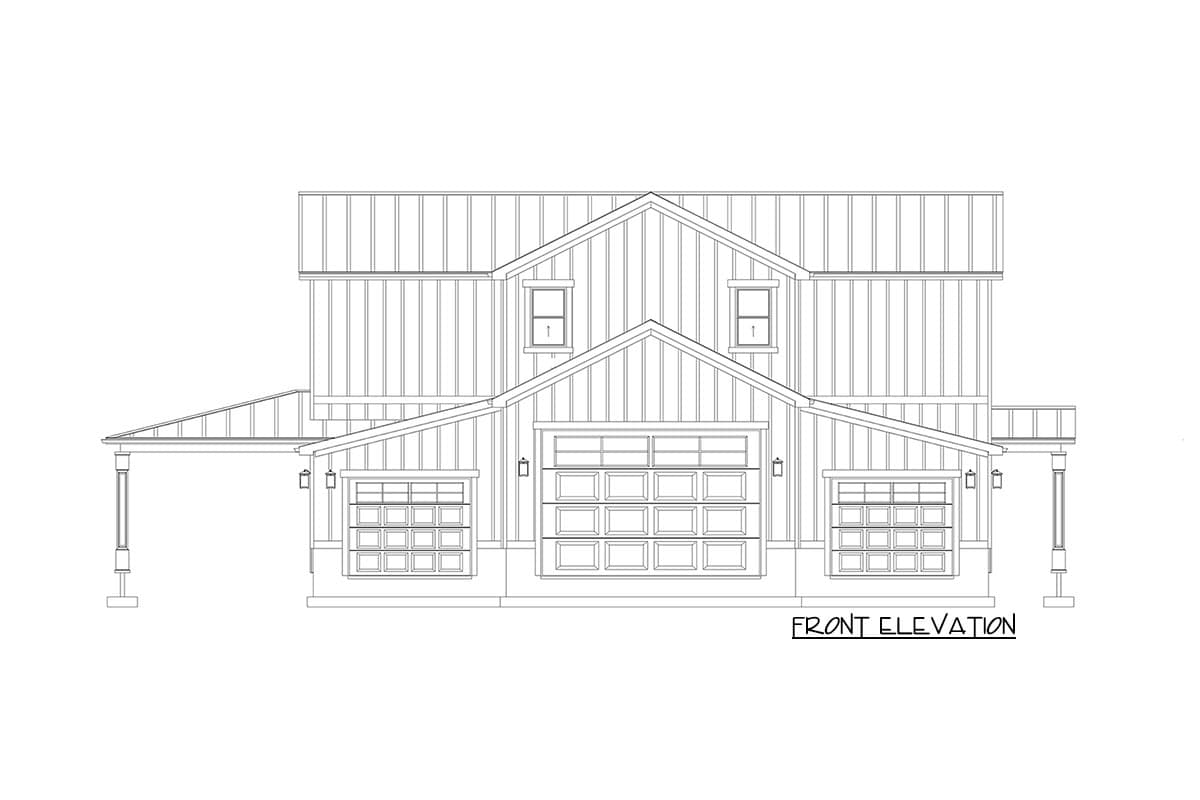

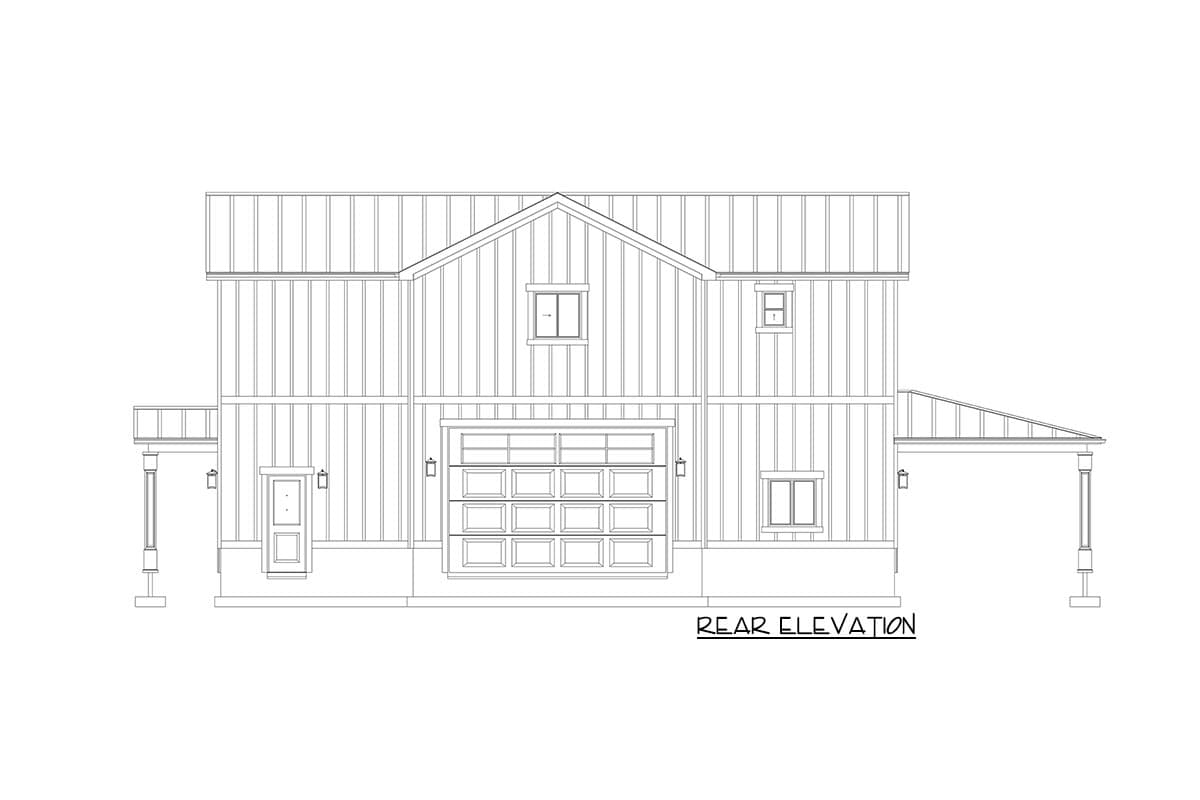

  • Elevations: front, left, rear, right
  • Cross sections
  • Electrical plans
  • General details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

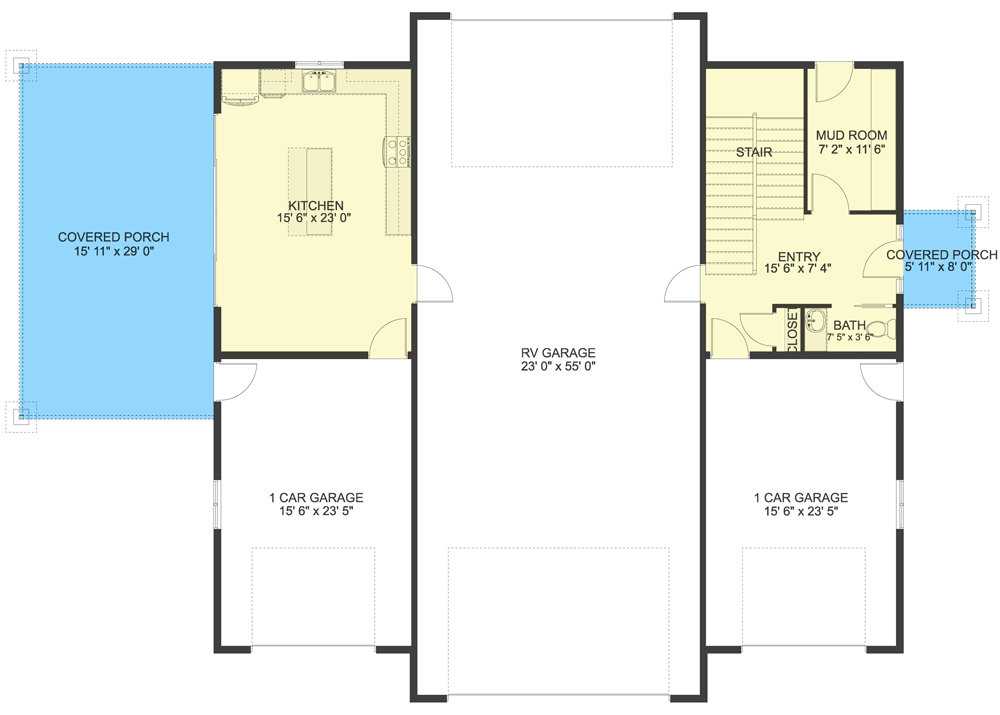

2-Bed Carriage Farmhouse with RV Garage - 61249UT floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

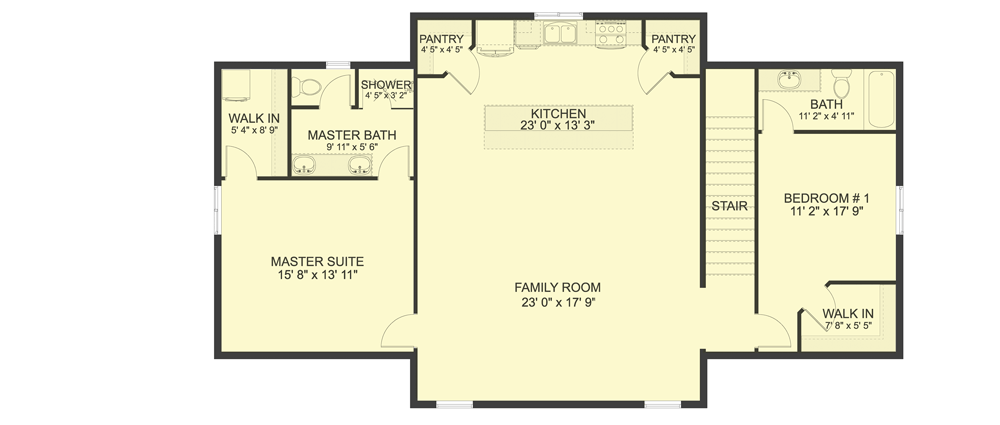

2-Bed Carriage Farmhouse with RV Garage - 61249UT floor plan - 2nd Floor

Plan details

2-Bed Carriage Farmhouse with RV Garage

  • 3,336

    Heated s.f.

  • 2

    Beds

  • 3

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $850
  • PDF - Unlimited Build $900
  • CAD - Unlimited Build $1,000
  • 5 Sets + PDF $1,050
  • View all purchase option online

About This Plan

  • The center of this 2-bedroom Carriage Farmhouse plan features an RV garage with overhead doors on the front and rear elevations.
  • A single garage bay sits on either side of the RV garage with a man door on the side, while a sizable covered porch flows seamlessly into a lower-level kitchen; an ideal setting for outdoor get-togethers.
  • The formal entry features a powder bath, coat closet, and mudroom to gather and store your outdoor gear.
  • Upstairs, you will find an open family room and eat-in kitchen, anchored by an elongated kitchen island. Two corner pantries help provide enough storage for cookware and grocery buying in bulk.
  • Each bedroom features a bathroom and walk-in closet.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,336 sq. ft.
  • 1st Floor: 1,800 sq. ft.
  • 2nd Floor: 1,536 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 50' 0"
  • Depth: 36' 0"
  • Max ridge height: 28' 9"

Garage

  • Type: RV Garage, Attached
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Truss
