2-Bed Carriage House Plan with 2-Car Garage

Plan 370011SEN

  • 971

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 2

    Stories

  • 2

    Cars

  • A gable roof, ornamented with shed dormers, rests atop this 2-bedroom, carriage house plan, while tapered columns add character to the front elevation.
  • On the main level, two garage stalls can be found, along with the mechanical room.
  • Upstairs, the eat-in kitchen greets you, and connects to the living room for open concept living.
  • The master suite includes a walk-in closet, and access to the full bath, shared by the second bedroom down the hall.
  • A laundry closet offers space for a stackable unit, and an unfinished storage room reduces clutter within the living space.

This house plan has 12 pages as follows:

  • Cover Sheet
  • General Notes

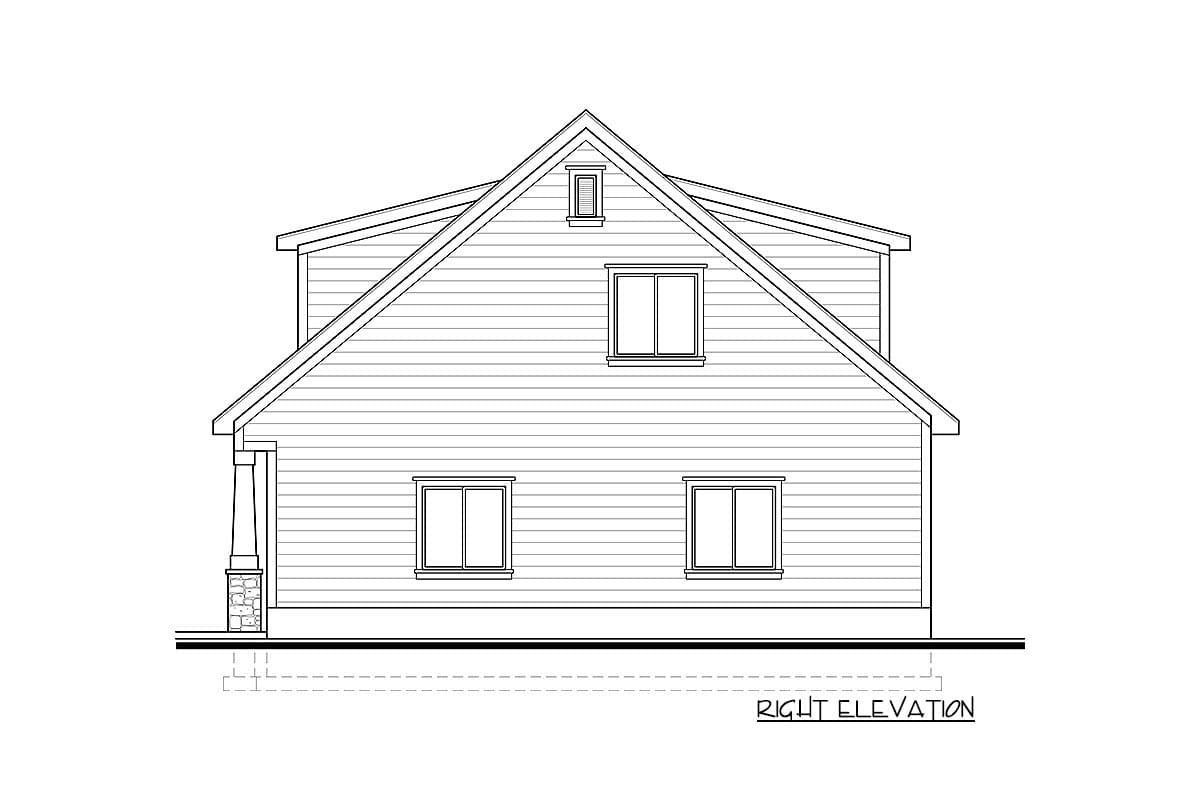

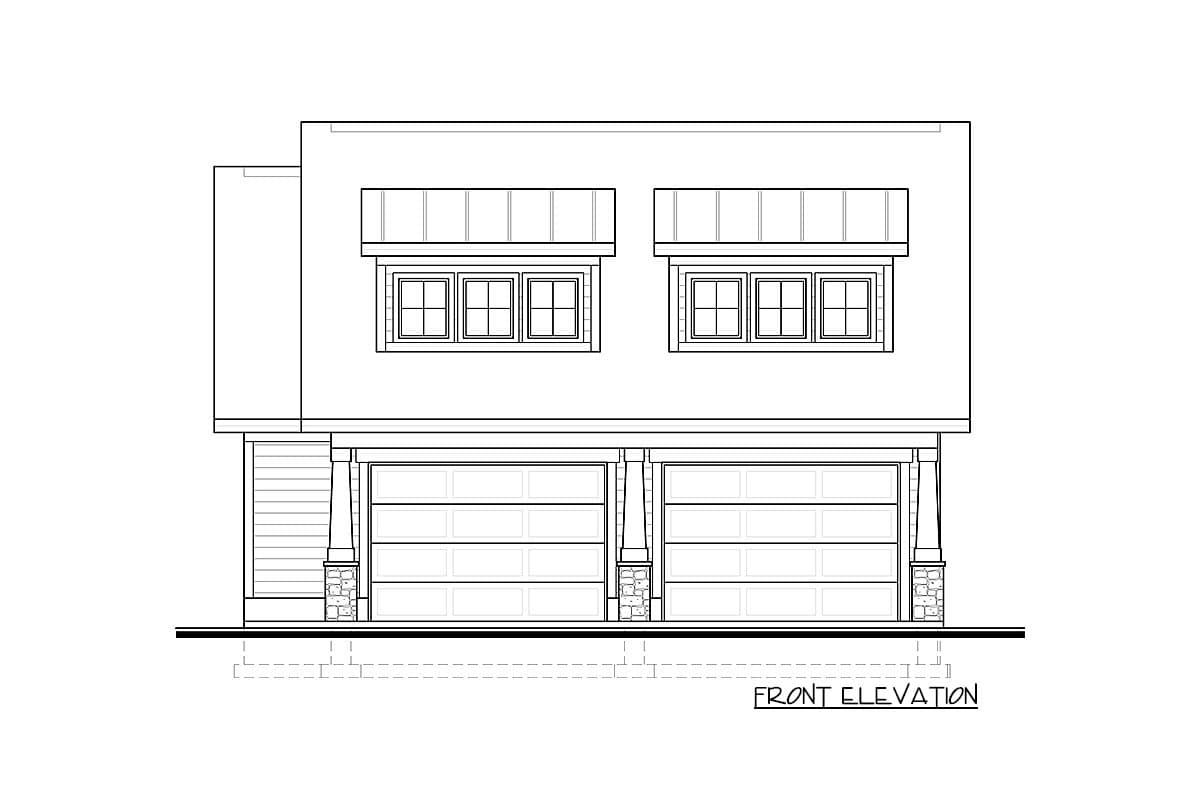

  • Front/Right Elevations

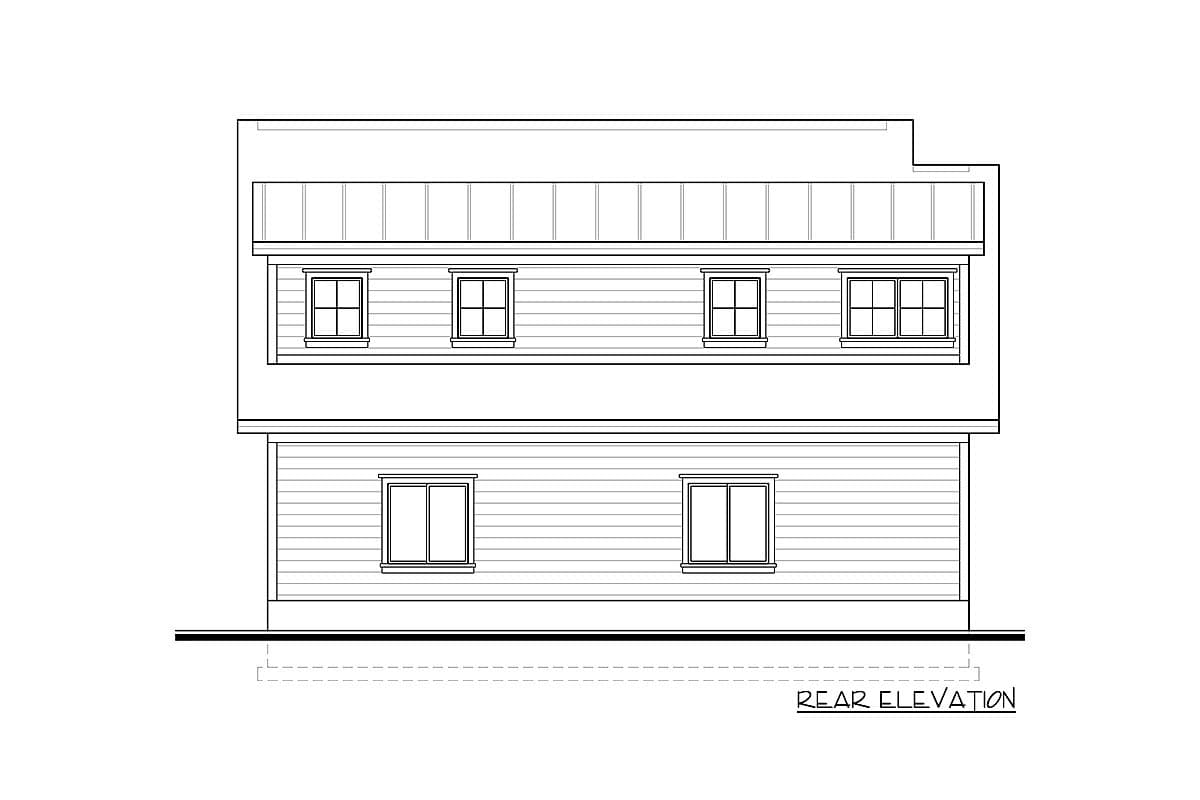

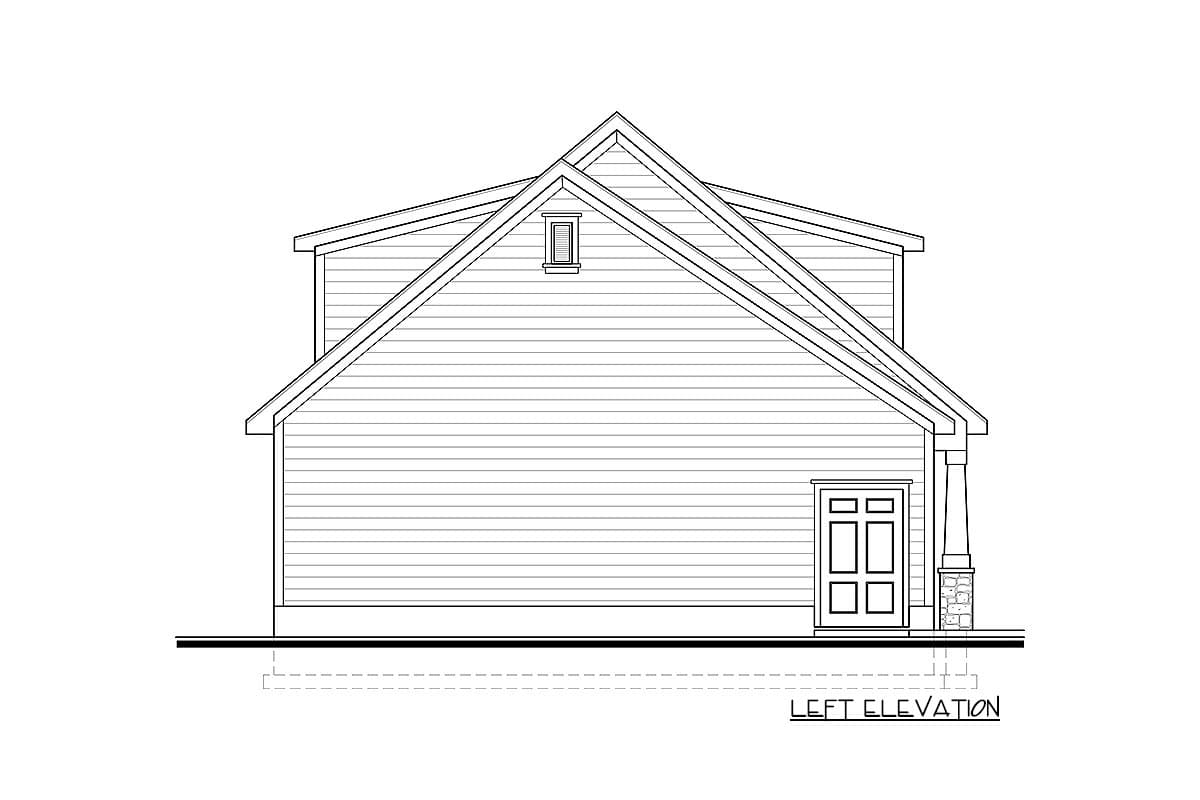

  • Rear/Left Elevations
  • Foundation Plan
  • Garage Floor Plan
  • Upper Floor Plan
  • Building/ Stair Section
  • Upper Floor Framing Plan
  • Roof Framing Plan
  • Garage Electrical Plan
  • Upper Electrical Plan
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

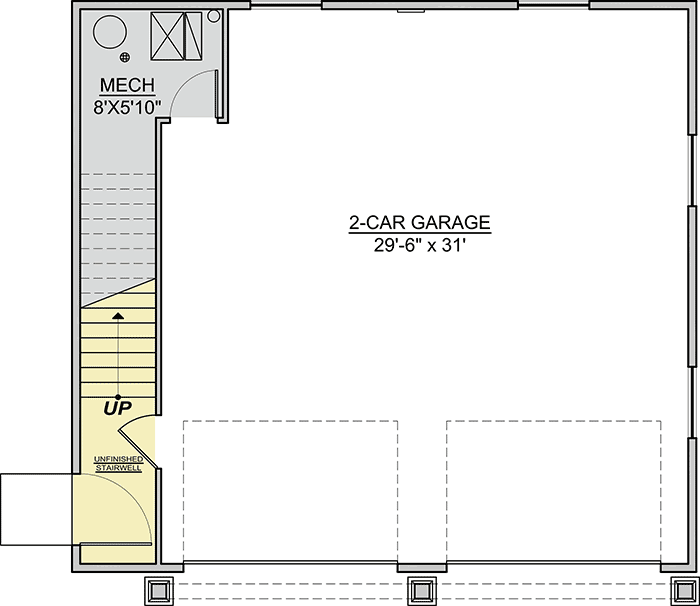

2-Bed Carriage House Plan with 2-Car Garage - 370011SEN floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

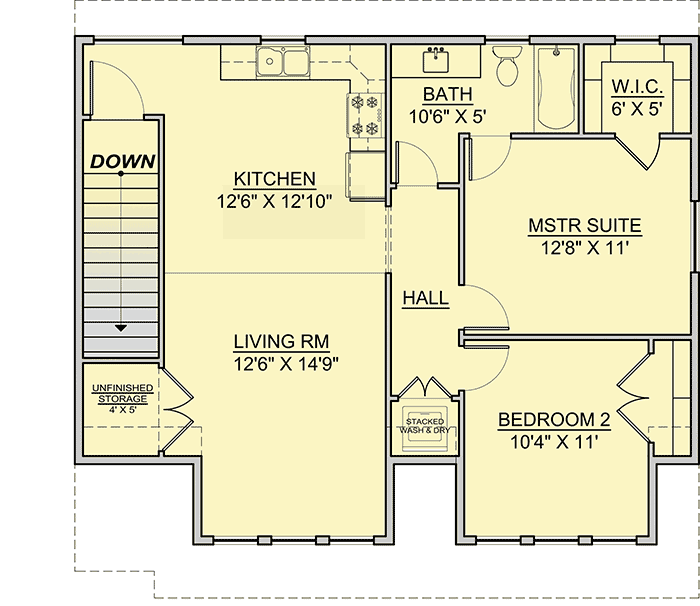

2-Bed Carriage House Plan with 2-Car Garage - 370011SEN floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 971 sq. ft.
  • 1st Floor: 105 sq. ft.
  • 2nd Floor: 866 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 35' 0"
  • Depth: 33' 6"
  • Max ridge height: 25' 6"

Garage

  • Type: Detached
  • Area: 1014 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Stick And Truss

Architectural Style

Special features

Plan Collections

2-Bed Carriage House Plan with 2-Car Garage

  • 971

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $495
  • 5 Sets + PDF $795
  • 8 Sets + PDF $895
  • CAD + PDF - Single-Build $895
  • View all purchase option online

About This Plan

  • A gable roof, ornamented with shed dormers, rests atop this 2-bedroom, carriage house plan, while tapered columns add character to the front elevation.
  • On the main level, two garage stalls can be found, along with the mechanical room.
  • Upstairs, the eat-in kitchen greets you, and connects to the living room for open concept living.
  • The master suite includes a walk-in closet, and access to the full bath, shared by the second bedroom down the hall.
  • A laundry closet offers space for a stackable unit, and an unfinished storage room reduces clutter within the living space.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 971 sq. ft.
  • 1st Floor: 105 sq. ft.
  • 2nd Floor: 866 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 35' 0"
  • Depth: 33' 6"
  • Max ridge height: 25' 6"

Garage

  • Type: Detached
  • Area: 1014 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Stick And Truss
