Plan 28947JJ

2-Bed Country Cabin with Vaulted Open Floor Plan - 1275 Sq Ft

Heated S.F.
1,275
Beds
2
Baths
2
Stories
1
Tour

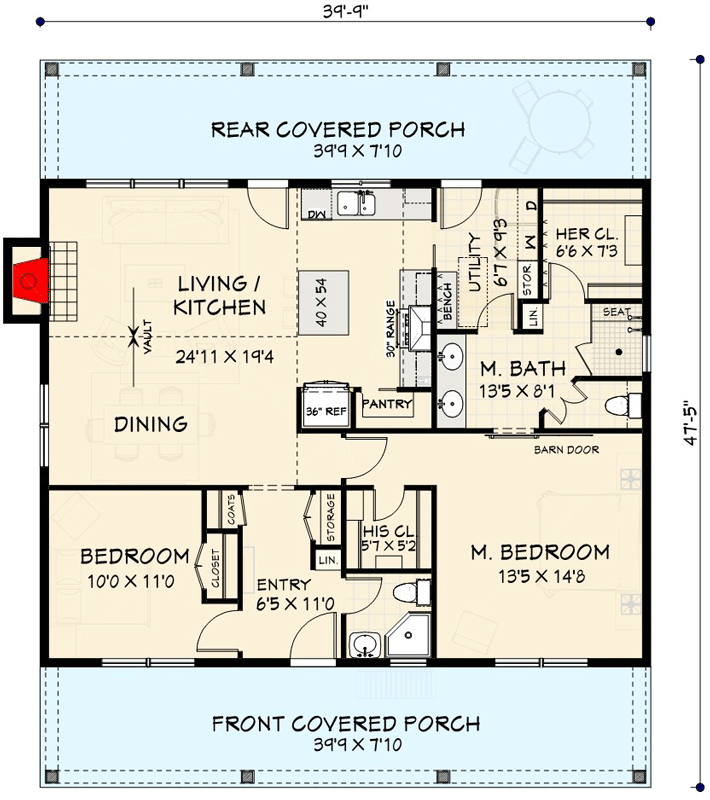

Floor Plan

Plan 28947JJ

Main Level
Main Level

Plan 28947JJ

M-F 9am-5pm EST |

1-203-761-8500

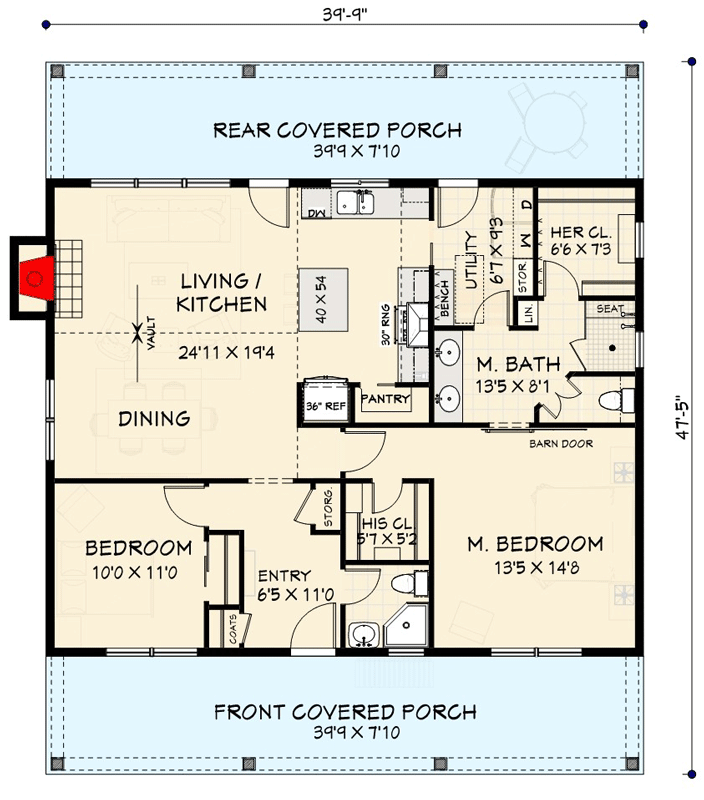

Main Level

Plan 28947JJ: 2-Bed Country Cabin with Vaulted Open Floor Plan - 1275 Sq Ft - Floor Plan - Main Level - Cabin, Cottage, Country, Farmhouse, Ranch, Rustic

Plan Details

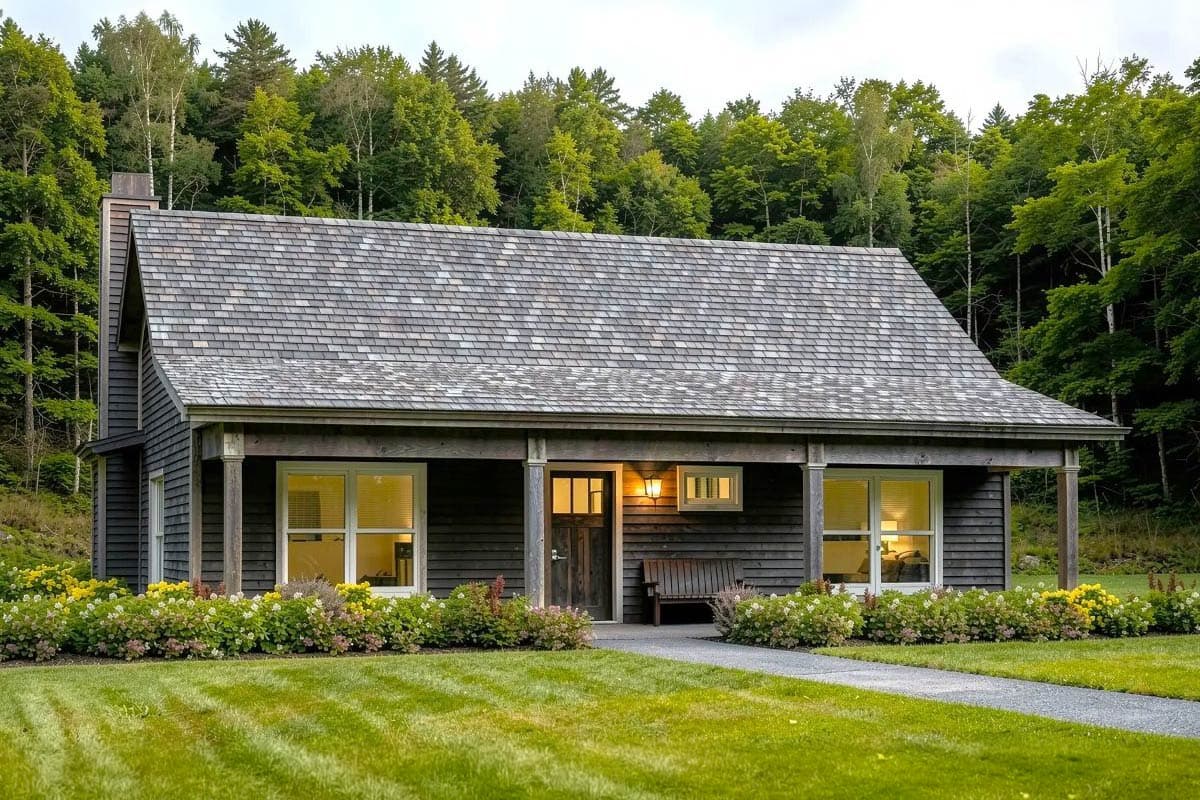

  • This attractive one-story 1,275 square foot Country Cabin house plan is great for someone looking to get a fresh start. It's simple footprint, modest size and flat lack of gables all contribute to it being an economical plan to build.

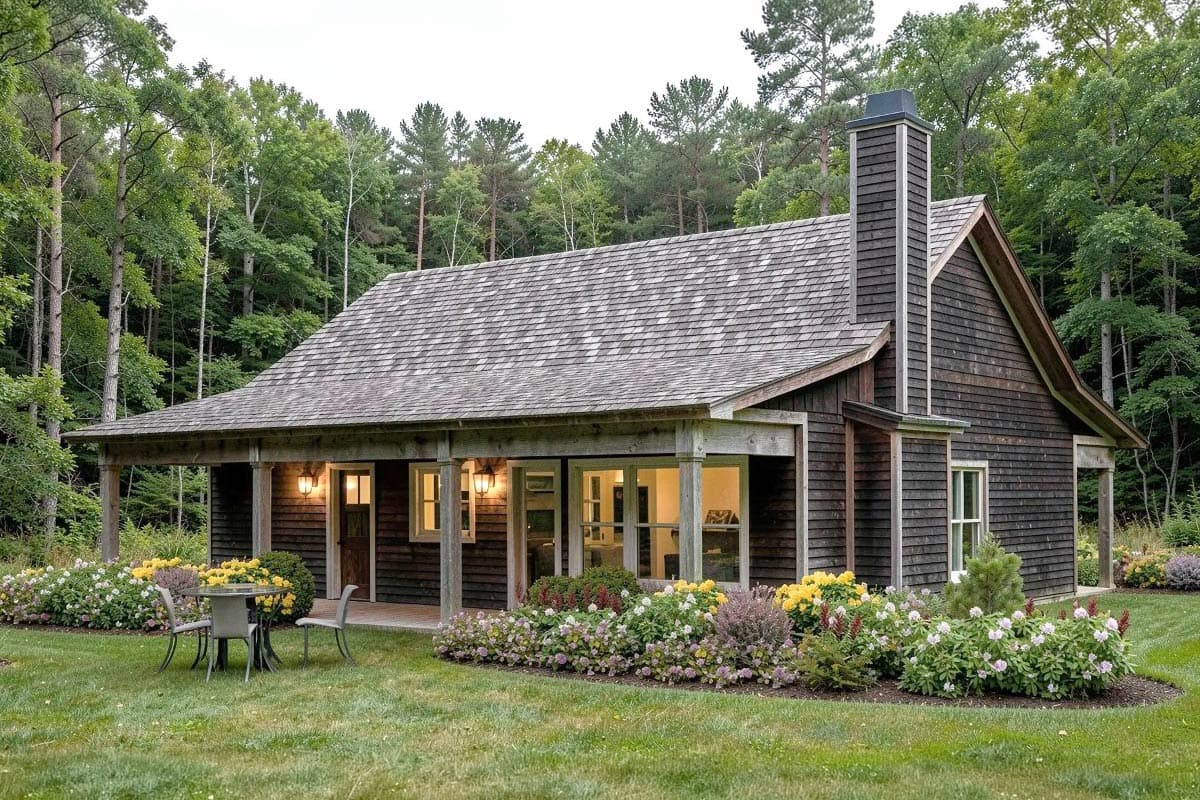

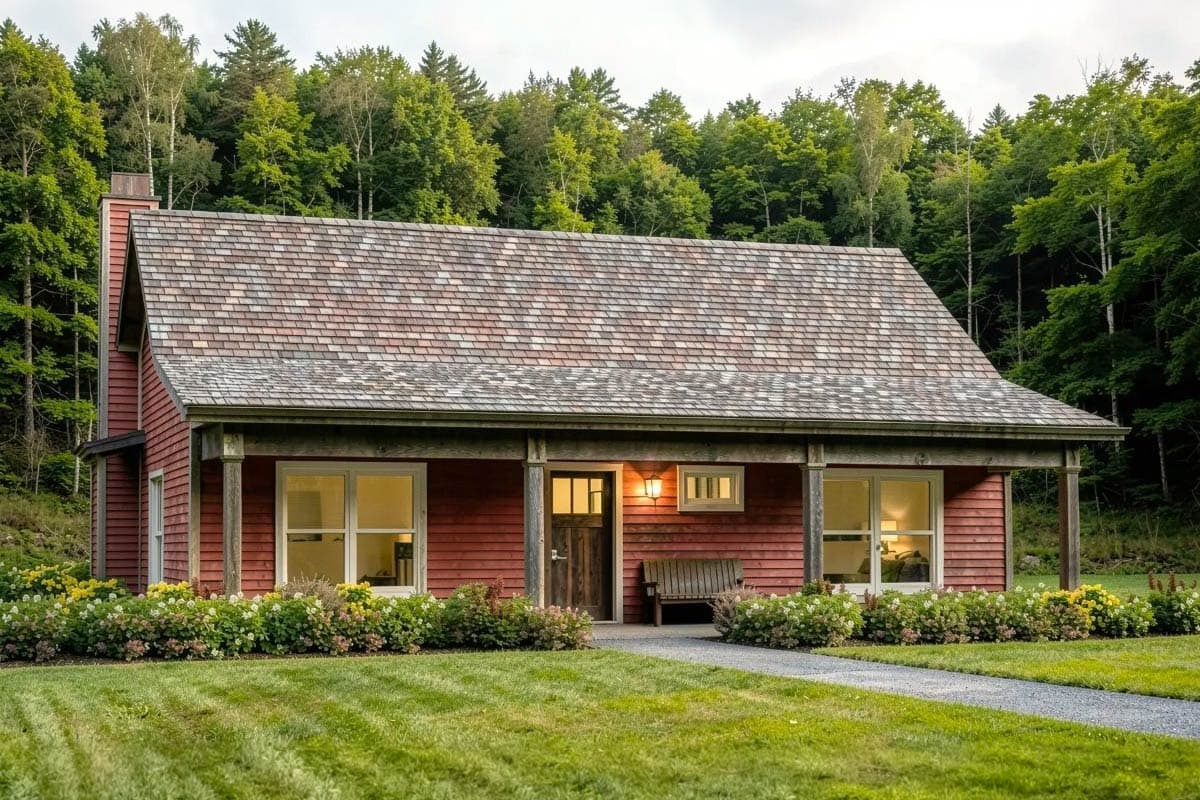

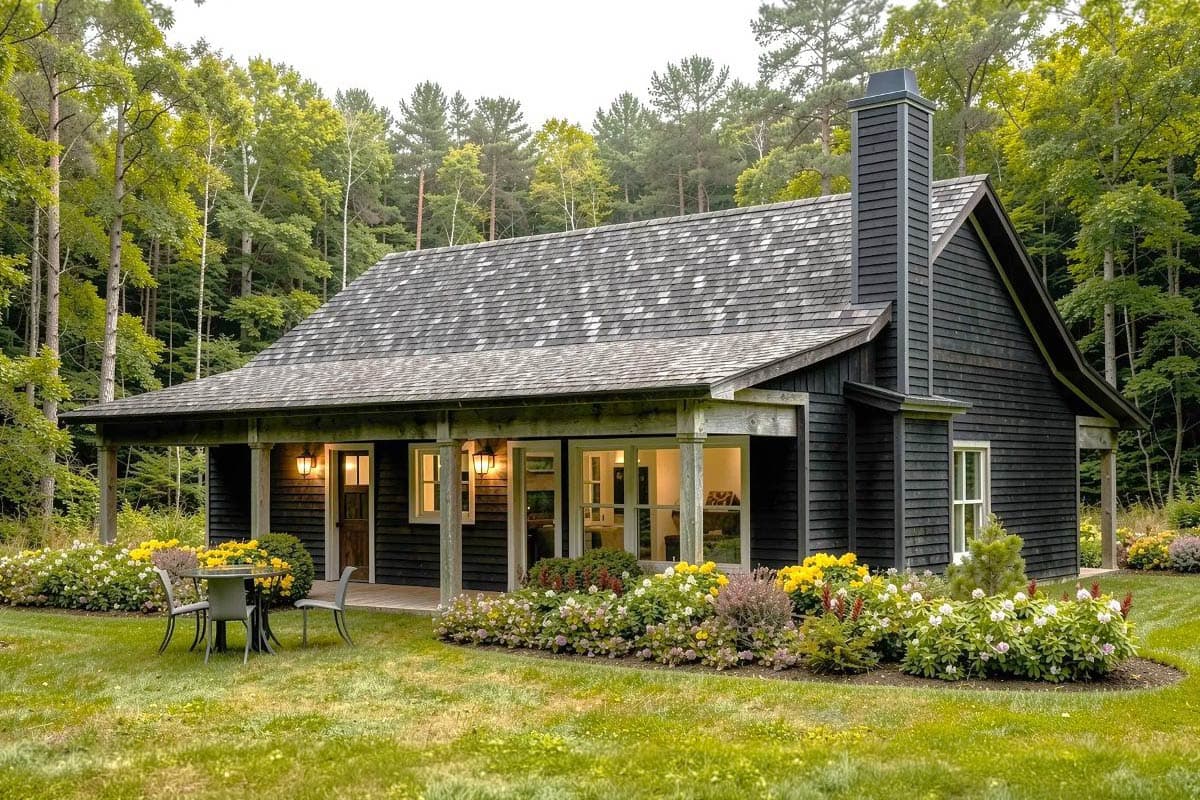

  • 7'10"-deep porches span the full width of the home front and back giving you two places to enjoy the fresh air and the views.

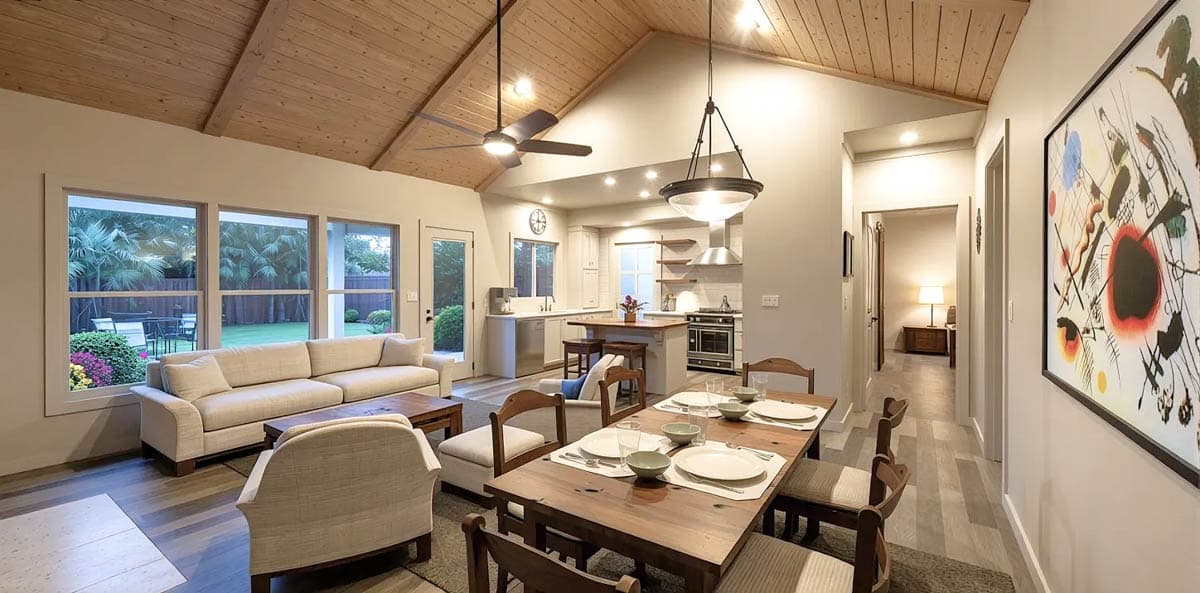

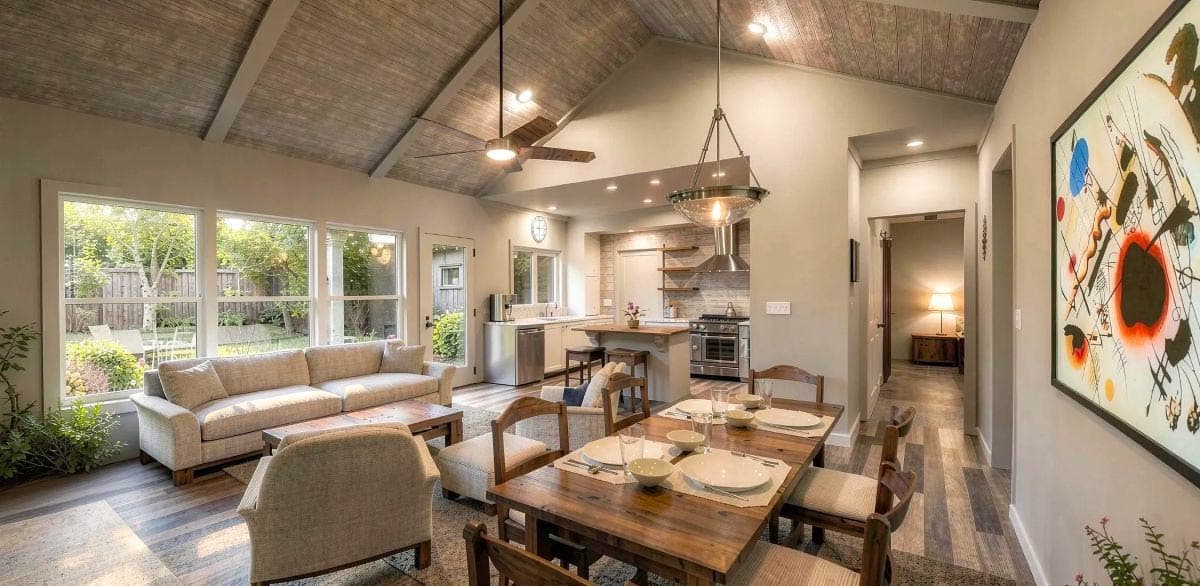

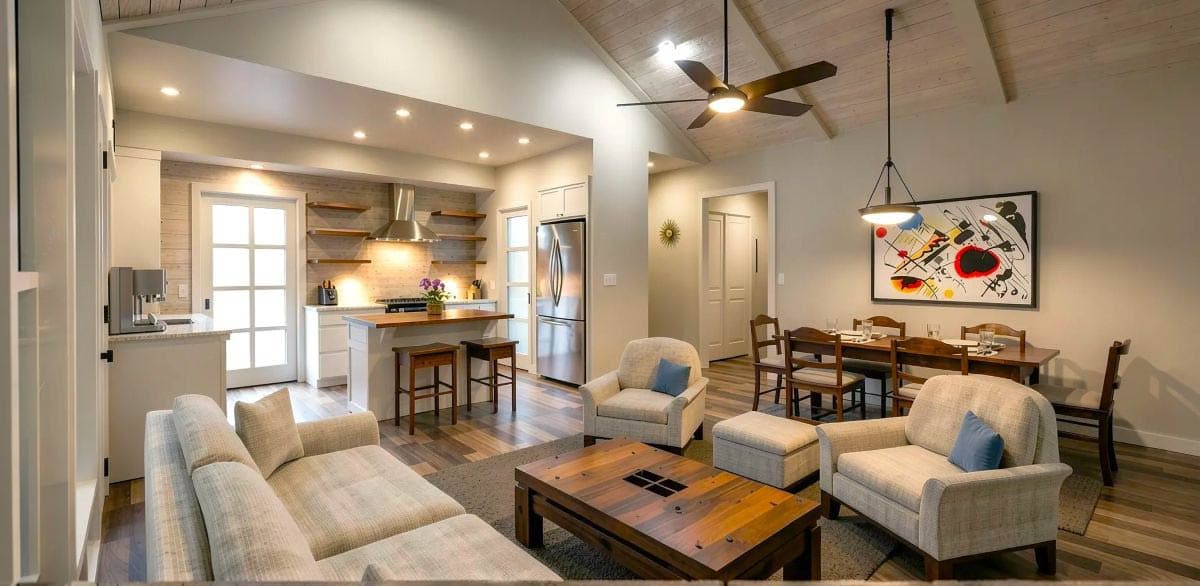

  • The living, dining and kitchen areas are all combined into one vaulted space with access to the back porch.
  • The kitchen has an island and a convenient pantry and mudroom access.

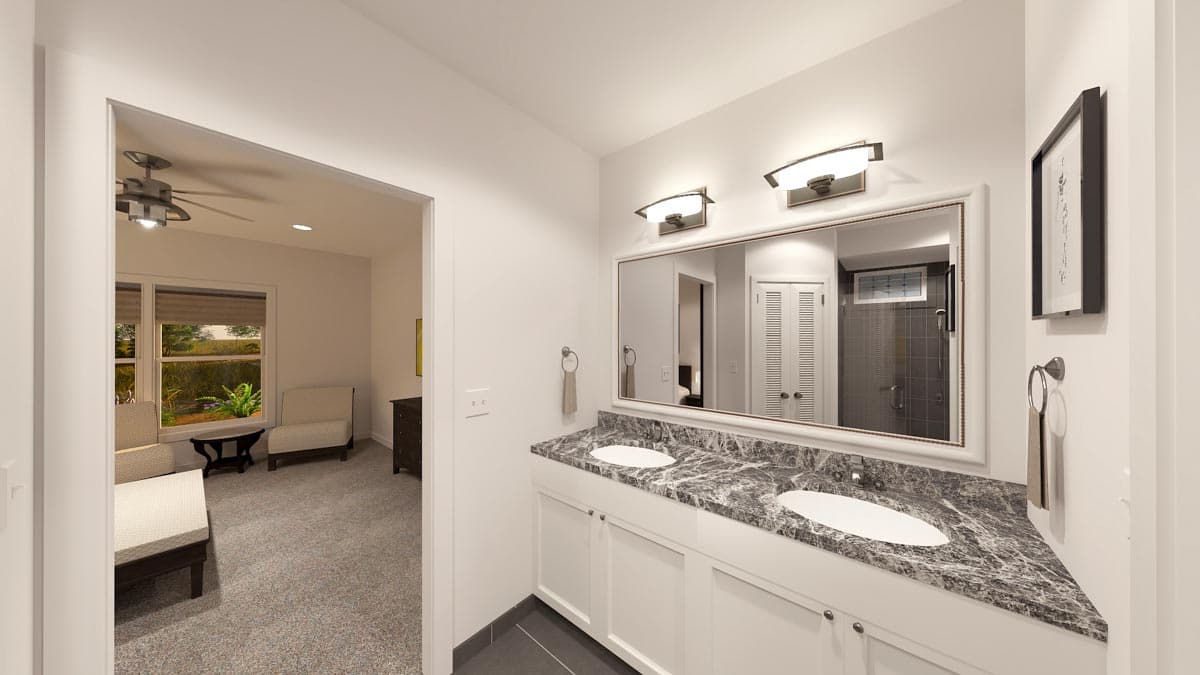

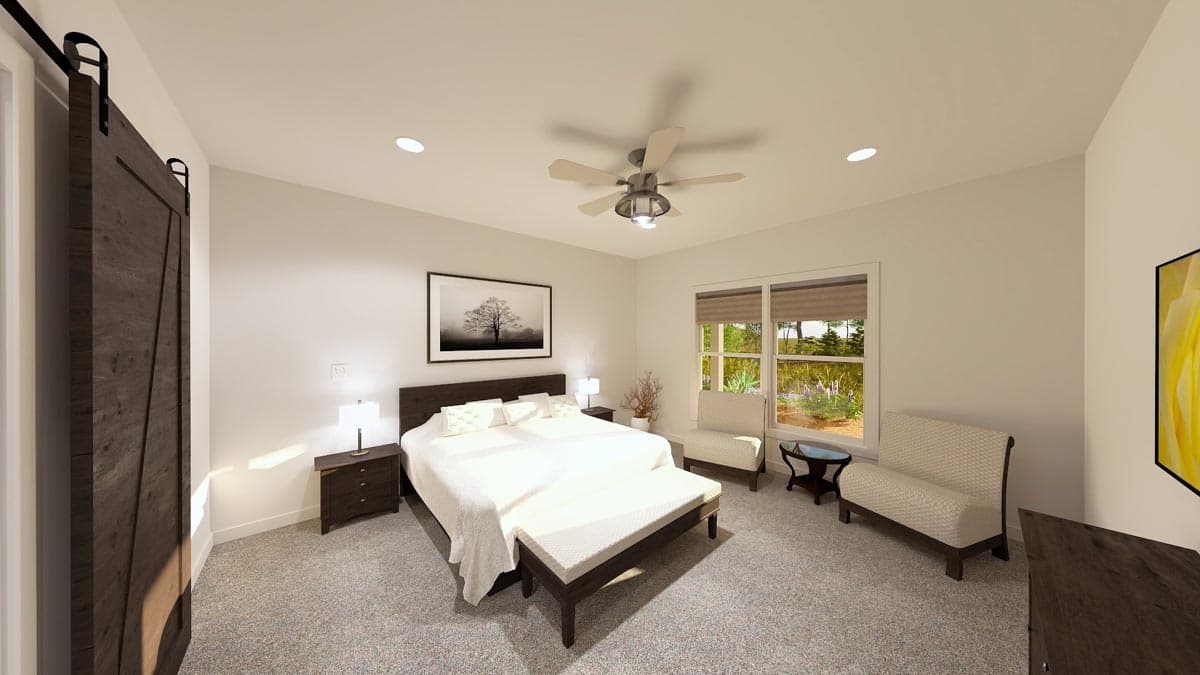

  • A split bedroom layout maximizes your privacy. The master suite is equipped with two separate "his and hers" walk-in closets, a barn door that opens to the bathroom and provides convenient access to the laundry room.
  • Related Plans: Get a larger version with house plan 28939JJ (1,662 sq. ft.).

What's Included

  • Cover Sheet
  • Fully dimensioned floor plan(s)

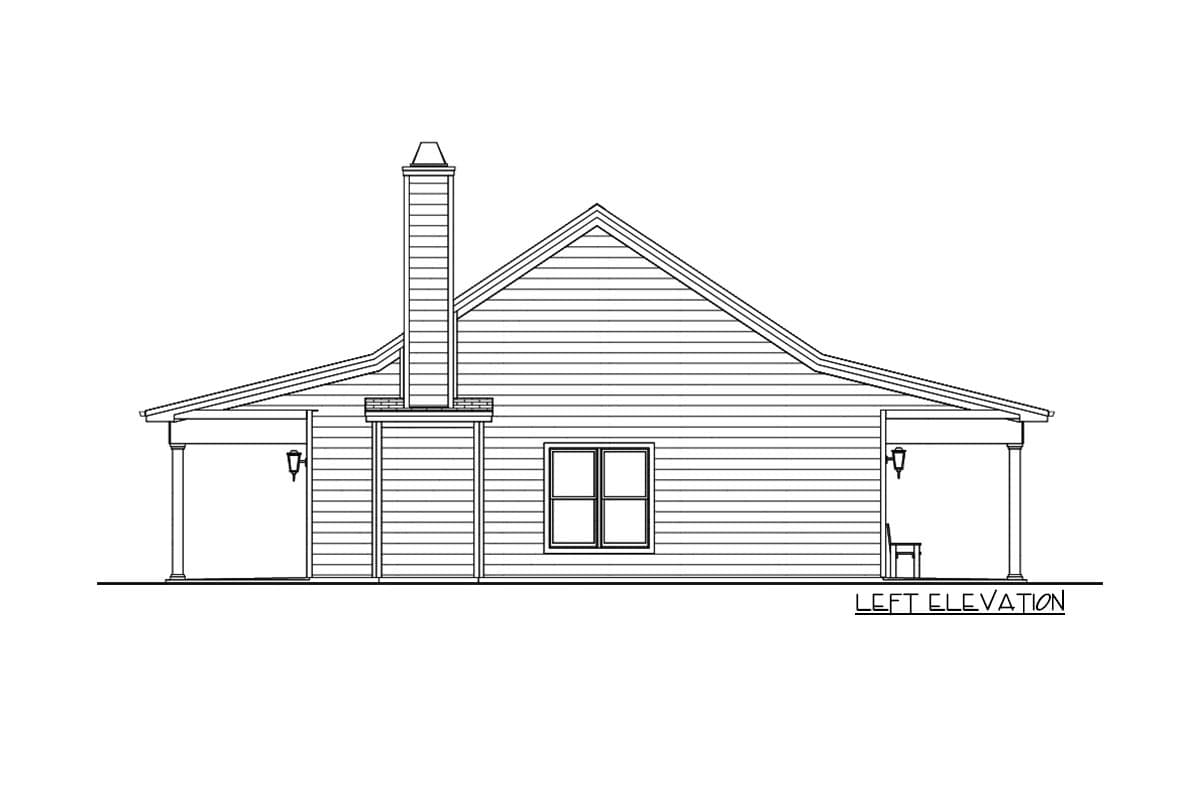

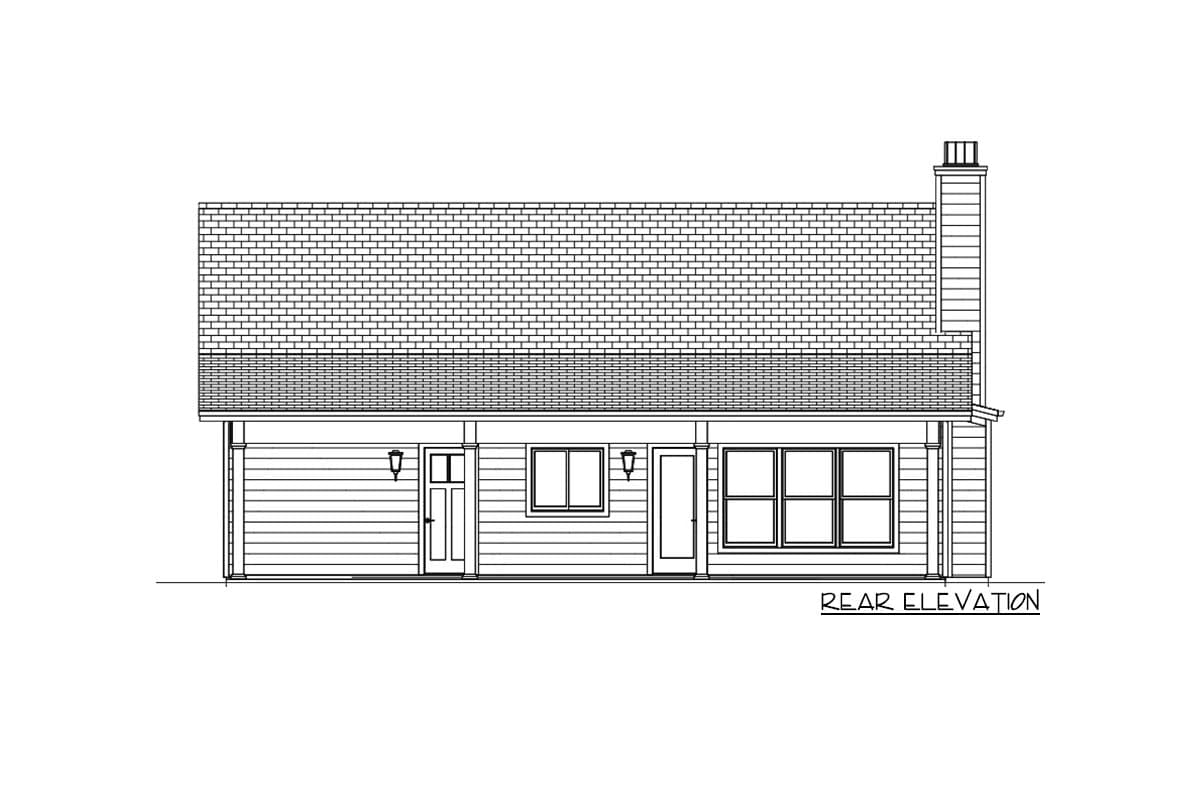

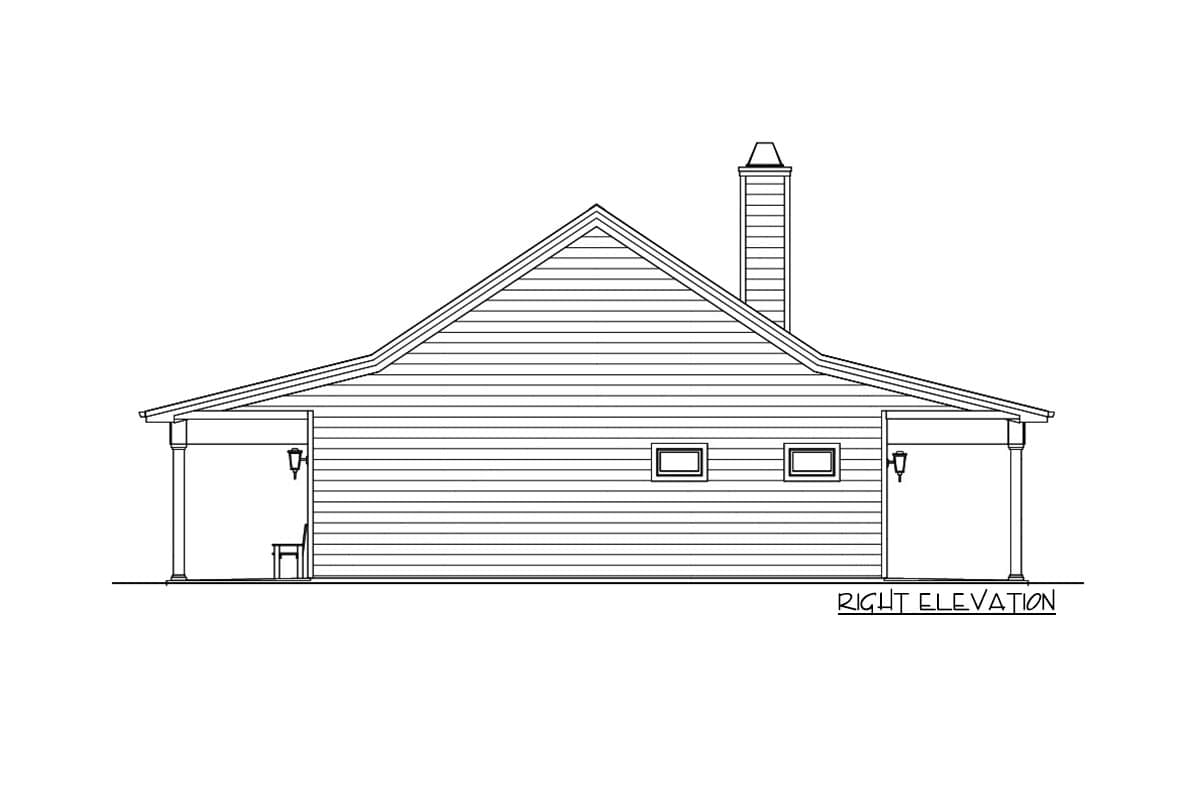

  • Elevations
  • Cross Sections/ Garage elevations when available
  • Foundation Plan
  • Roof Plan
  • Lighting layout
  • 3D Interior Drawings
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,275 sq. ft.

1st Floor

1,275 sq. ft.

Porch, Front

315 sq. ft.

Porch, Rear

315 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

39' 7"

Depth

47' 7"

Max Ridge Height

20' 6"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

3 on 12

Framing Type

Stick

Architectural Style

Cabin

Cottage

Country

Farmhouse

Ranch

Rustic

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Square Footage Breakdown

Total Heated Area

1,275 sq. ft.

1st Floor

1,275 sq. ft.

Porch, Front

315 sq. ft.

Porch, Rear

315 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

39' 7"

Depth

47' 7"

Max Ridge Height

20' 6"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

3 on 12

Framing Type

Stick

Architectural Style

Cabin

Cottage

Country

Farmhouse

Ranch

Rustic

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Two Story Great Room
