2-Bed Craftsman Cabin Plan Under 1000 Square Feet with Vaulted Living Room

Plan 420109WNT

  • 995

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Stories

  • This one-story house plan gives you 995 square feet of heated living space with 2 beds each with its own bathroom.
  • A double door entry opens with two coat closets opens to the vaulted living room and kitchen. An island separates the two spaces and has a sink and work space on one side and seating on the other.
  • Laundry is tucked away in a closet by Bed 2.
  • NOTE: Please allow 3 to 5 business days for delivery.

  • Foundation Plan - Footing sizes, slab thickness, floor framing sizes/layout, etc.
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Electrical Plan - Locations of electrical panels, lights, switches, outlets, etc.
  • Roof Plan - Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.
  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Details - Dissected drawings of foundation/footings, floor framing, door framing, window framing, roof framing, roof venting, etc.
This plan set does NOT include;
  • Architectural or Engineering Stamp
  • Site Plan (Available as an upgrade option)
  • Mechanical Drawings (Drawings for HVAC duct sizes/locations)Typically provided by your HVAC subcontractor
  • Plumbing Drawings (Drawings for plumbing pipe sizes/locations)Typically provided by your Plumbing subcontractor
  • Energy Calculations (Property specific energy efficiency calculations)Typically provided by local Energy Consultant

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

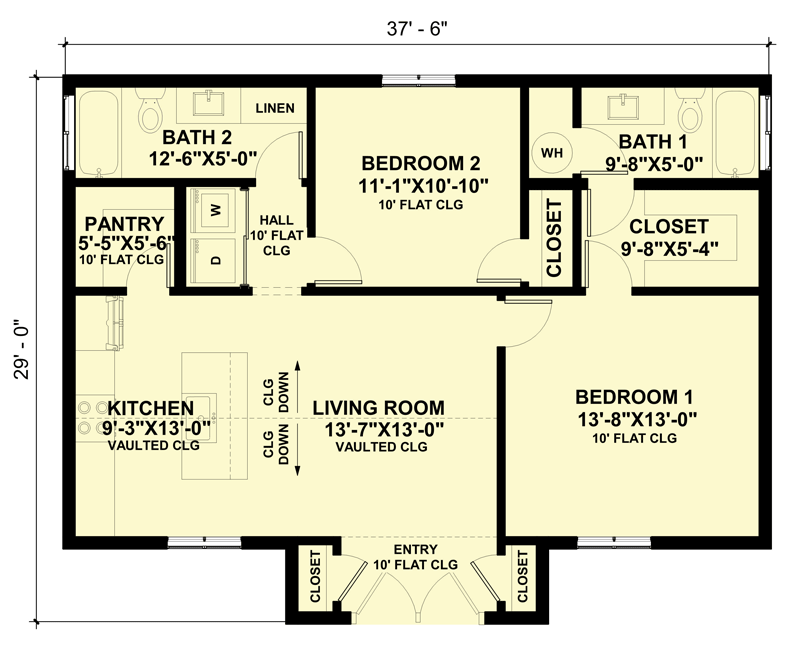

2-Bed Craftsman Cabin Plan Under 1000 Square Feet with Vaulted Living Room - 420109WNT floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 995 sq. ft.
  • 1st Floor: 995 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Slab, Monolithic Slab
  • Optional Foundations: Daylight, Walkout, Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 37' 6"
  • Depth: 29' 0"
  • Max ridge height: 16' 10"

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"
Room Details Ceiling Type Width Depth Height
Living Room Vaulted 10' 0" to 13' 0"
Kitchen Vaulted 10' 0" to 13' 0"

Architectural Style

Special features

Plan Collections

2-Bed Craftsman Cabin Plan Under 1000 Square Feet with Vaulted Living Room

  • 995

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $995
  • 5 Sets $1,145
  • 5 Sets + PDF $1,345
  • PDF - Unlimited Build $1,395
  • CAD Unlimited + PDF $1,895
  • View all purchase option online

About This Plan

  • This one-story house plan gives you 995 square feet of heated living space with 2 beds each with its own bathroom.
  • A double door entry opens with two coat closets opens to the vaulted living room and kitchen. An island separates the two spaces and has a sink and work space on one side and seating on the other.
  • Laundry is tucked away in a closet by Bed 2.
  • NOTE: Please allow 3 to 5 business days for delivery.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 995 sq. ft.
  • 1st Floor: 995 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab, Monolithic Slab
    • Optional Foundations: Daylight, Walkout, Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 37' 6"
  • Depth: 29' 0"
  • Max ridge height: 16' 10"

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"
