Plan 135074GRA 2-Bed Craftsman Carriage House Plan with Storage Space

2-Bed Craftsman Carriage House Plan with Storage Space

Plan 135074GRA

  • 856

    Heated s.f.

  • 2

    Beds

  • 1.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This 2-bedroom, Craftsman Carriage house plan is perfect for in-laws, an income property, or a boomerang child. The timeless design will blend with any style of home or neighborhhood.
  • The extra-deep double garage provides space for storage or a workshop, and includes a powder bath.
  • Upstairs, discover an open living room, kitchen, and dining area, with access to an intimate deck.
  • Two bedrooms line the left side and a full bathroom is centrally located for convenience.

  • All elevations
  • First Floor Plan
  • Basement Floor plan
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • First Floor Electrical
  • Basement Electrical
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

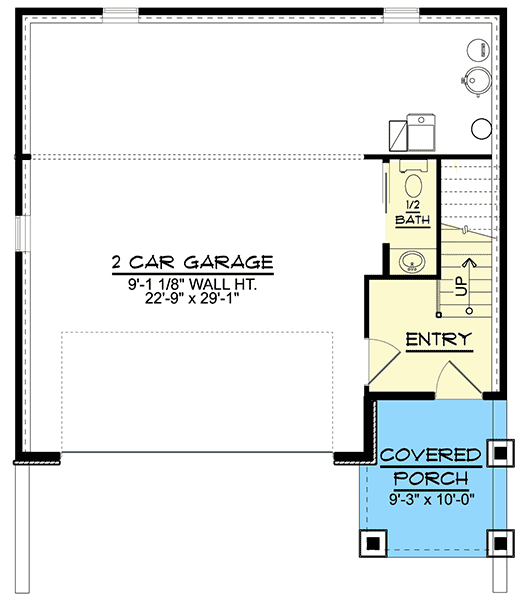

2-Bed Craftsman Carriage House Plan with Storage Space - 135074GRA floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

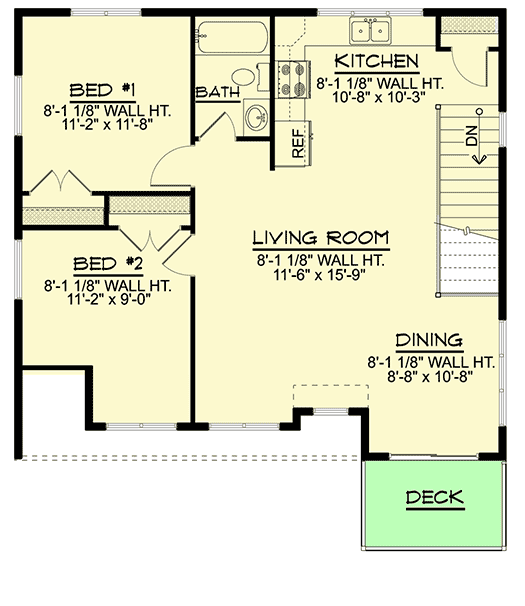

2-Bed Craftsman Carriage House Plan with Storage Space - 135074GRA floor plan - 2nd Floor

Plan details

2-Bed Craftsman Carriage House Plan with Storage Space

  • 856

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $850
  • 5 Sets $1,025
  • CAD - Single-Build $1,700
  • View all purchase option online

About This Plan

  • This 2-bedroom, Craftsman Carriage house plan is perfect for in-laws, an income property, or a boomerang child. The timeless design will blend with any style of home or neighborhhood.
  • The extra-deep double garage provides space for storage or a workshop, and includes a powder bath.
  • Upstairs, discover an open living room, kitchen, and dining area, with access to an intimate deck.
  • Two bedrooms line the left side and a full bathroom is centrally located for convenience.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 856 sq. ft.
  • 2nd Floor: 856 sq. ft.
  • Deck: 58 sq. ft.
  • Porch, Front: 100 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 32' 8"
  • Depth: 36' 0"
  • Max ridge height: 23' 7"

Garage

  • Type: Attached
  • Area: 944 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"
