2-Bed Craftsman Ranch Home Plan with Large Back Deck

Plan 790013GLV

  • 2,001

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • Two shingled dormers and a shed roof protecting the front of the 2-car garage add a punch of character to this 2-bed Craftsman Ranch home plan.
  • Half walls separate the study from the foyer and great room, giving you visual privacy while maintaining an open feel to the home.
  • The great room has a cathedral ceiling and a fireplace and is open to the kitchen and dining room.
  • A large back deck accessible from the dining room gives you outdoor eating options.
  • The kitchen has a large island with casual seating on one side and a double sink and dishwasher on the other. A walk-in pantry by the garage entry makes unloading groceries a breeze.
  • The bedrooms line the right side of the home and each have their own bathrooms.

Plans include the following details:

  • Cover sheet with notes
  • Elevations
  • Basement and foundation plan and typical wall section
  • Detailed floor plans
  • Sections
  • Roof plan
  • Details
  • Reinforcing notes
These items are NOT included:
  • Electrical Plans
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

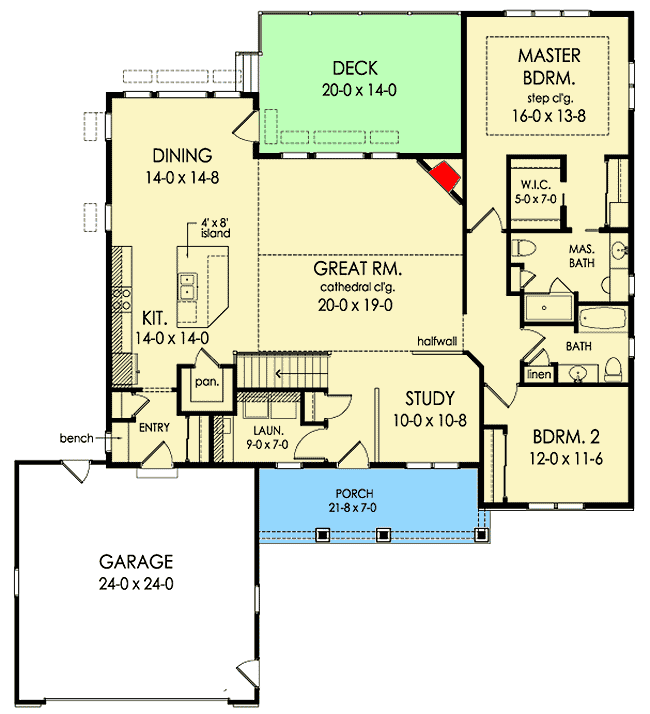

2-Bed Craftsman Ranch Home Plan with Large Back Deck - 790013GLV floor plan - Main Level

2-Bed Craftsman Ranch Home Plan with Large Back Deck

  • 2,001

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,001 sq. ft.
  • 1st Floor: 2,001 sq. ft.

Dimensions

  • Width: 61' 0"
  • Depth: 68' 4"
  • Max ridge height: 24' 6"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 566 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 10 on 12
