2-Bed Craftsman Ranch Home Plan with Options

Plan 42535DB

  • 2,083

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Stories

  • 3

    Cars

  • A mixed material exterior and a shed dormer over the covered entry gives this home great curb appeal.
  • The great room is open to the kitchen and dining room and has a fireplace.
  • The kitchen has views extending in two directions and enjoys a corner walk-in pantry and an island with double-sink and dishwasher on one side and casual seating on the other.
  • The master suite has a sitting area and a sunset deck as well as a pocket office.
  • Stairs lead to a bonus room over the garage giving you expansion possibilities.
  • The house plans include an optional master bath and alternate basement entry giving you great flexibility.
  • Related Plans: Get alternate versions with house plans 40898DB, 42537DB, 42536DB and 42538DB.

This house plan set has the following details:

  • General Notes

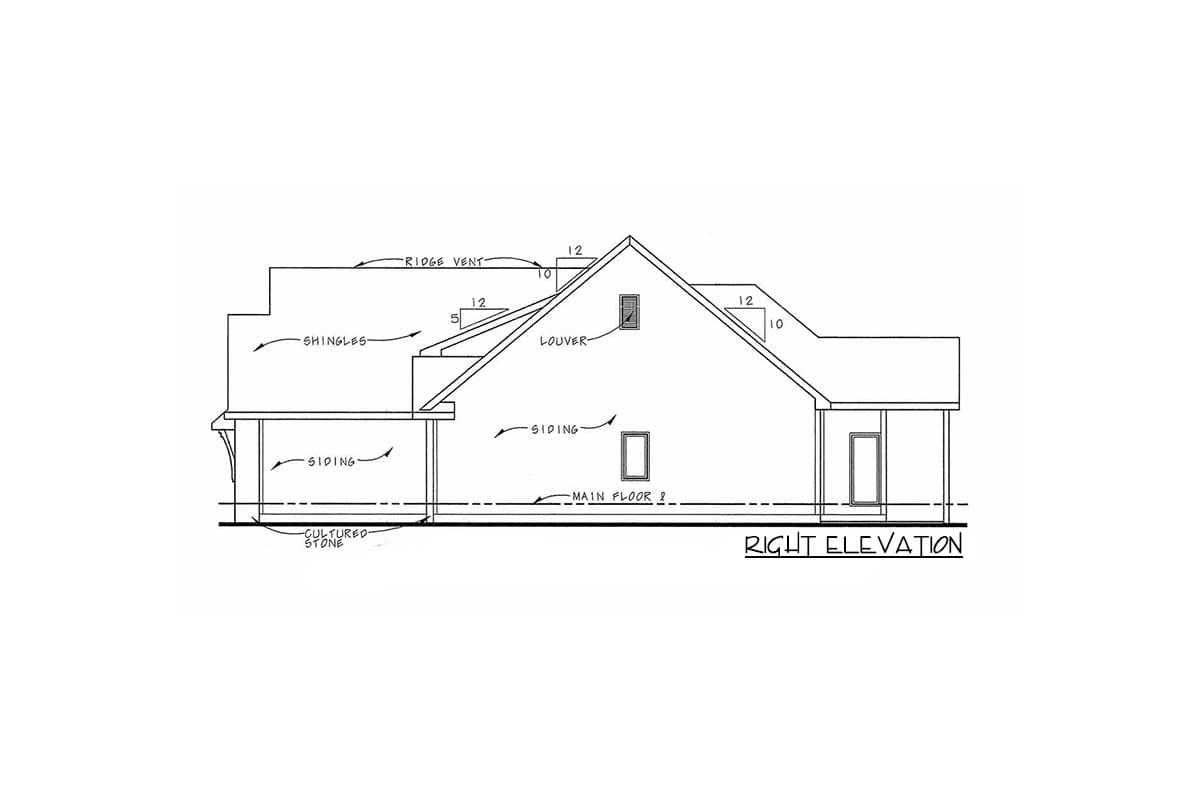

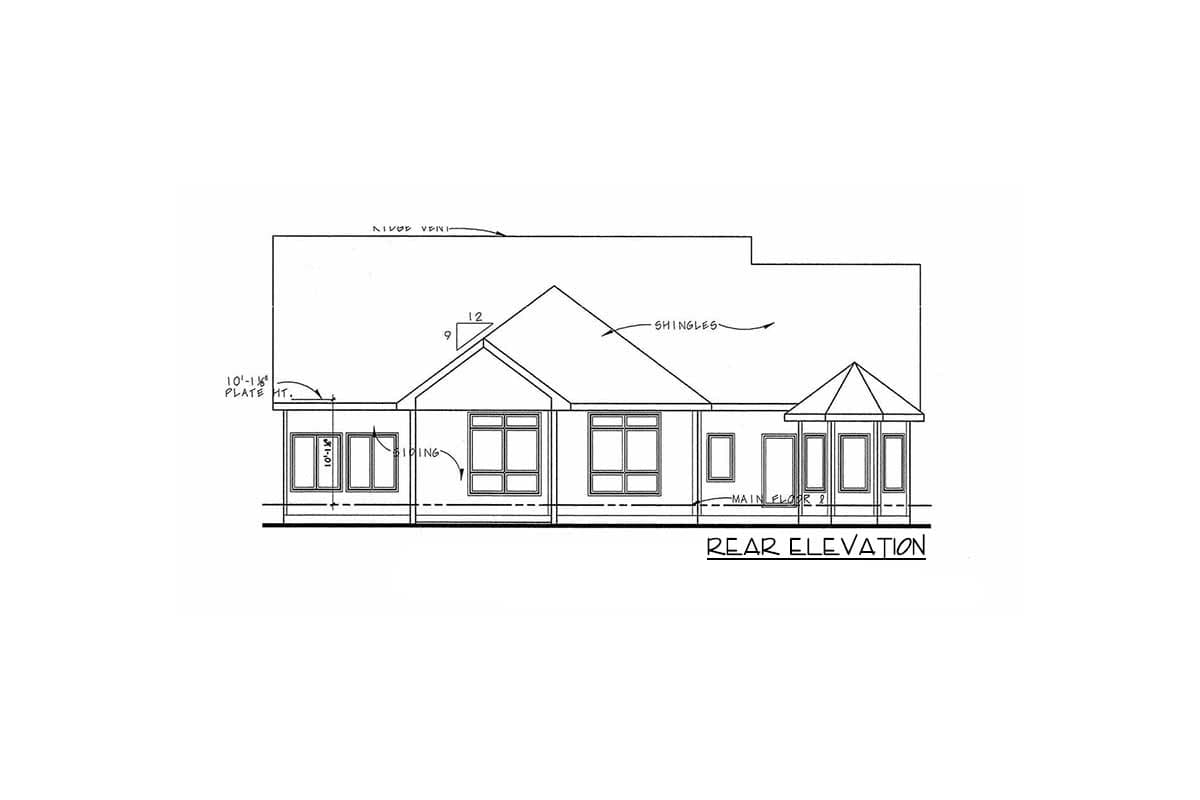

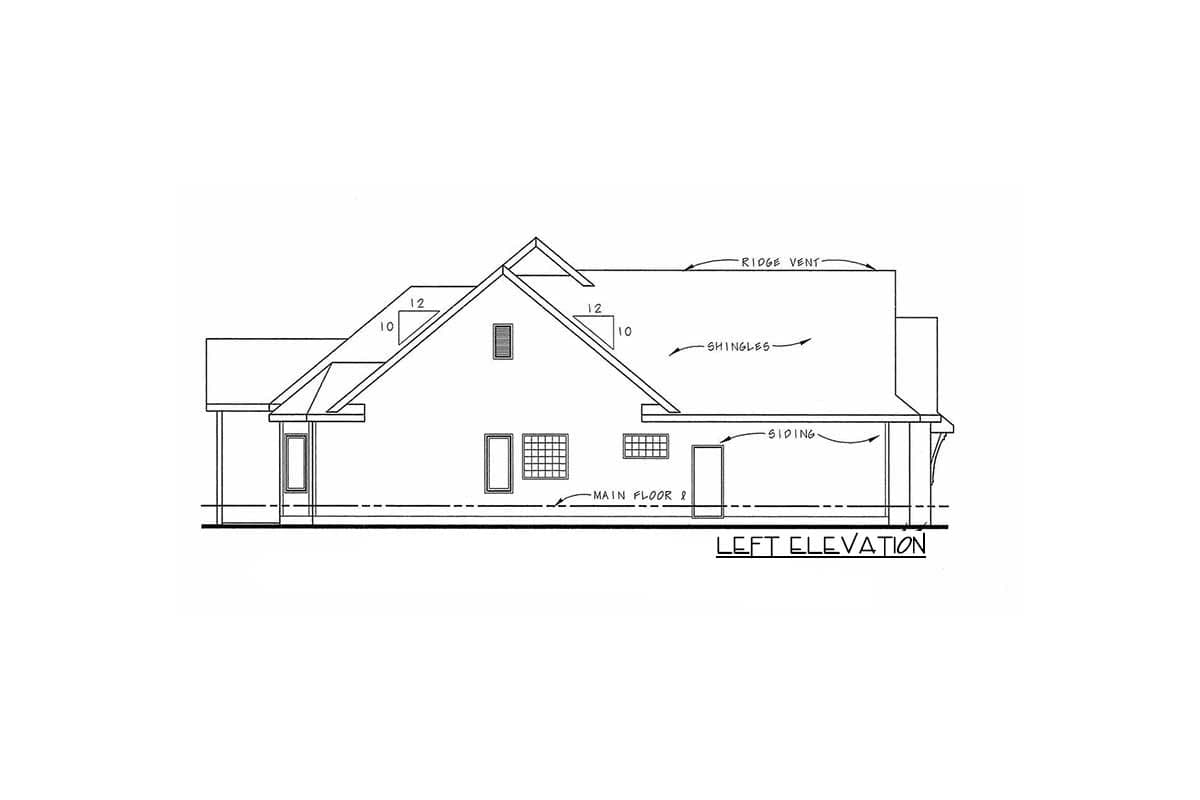

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
*Some plans include cabinet elevations. Please contact us for more information.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

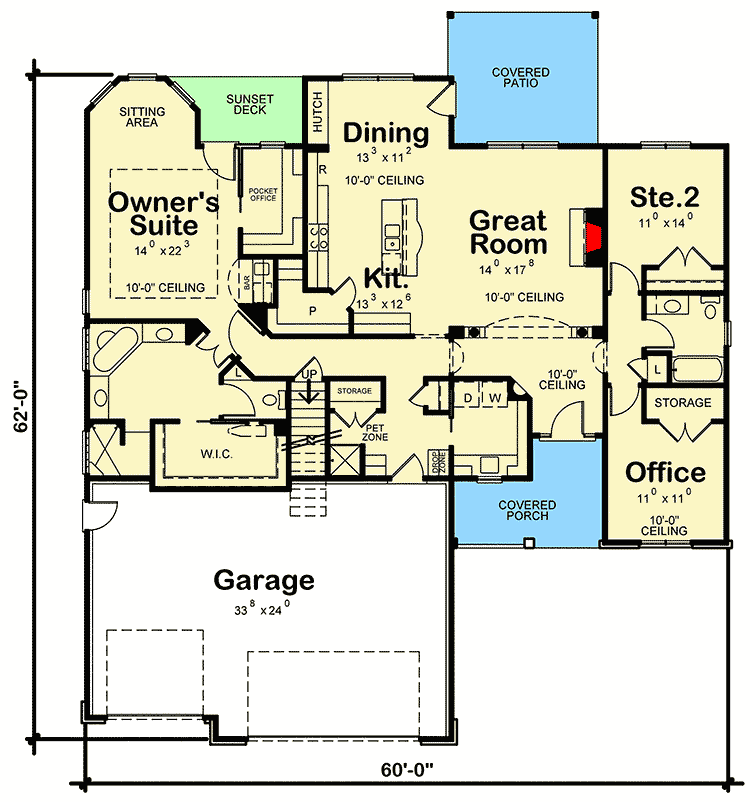

2-Bed Craftsman Ranch Home Plan with Options - 42535DB floor plan - Main Level

Unfinished Attic

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

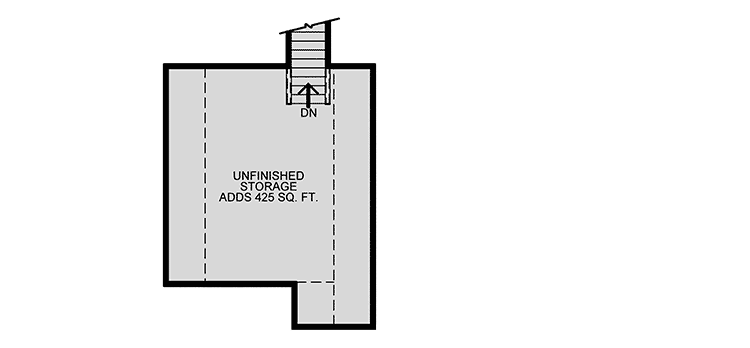

2-Bed Craftsman Ranch Home Plan with Options - 42535DB floor plan - Unfinished Attic

Optional Layouts

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

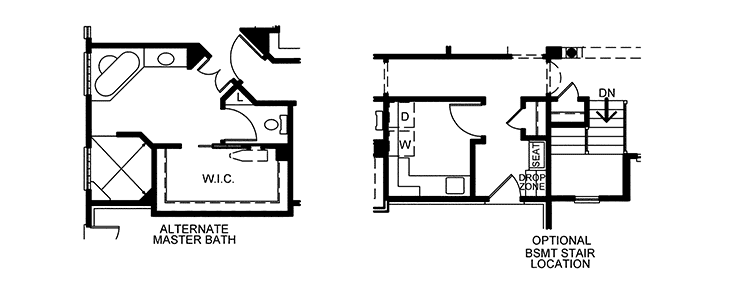

2-Bed Craftsman Ranch Home Plan with Options - 42535DB floor plan - Optional Layouts

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,083 sq. ft.
  • 1st Floor: 2,083 sq. ft.
  • Bonus: 425 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 60' 0"
  • Depth: 62' 0"
  • Max ridge height: 25' 0"

Garage

  • Type: Attached
  • Area: 798 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 12 on 10
  • Secondary Pitch: 12 on 9

Architectural Style

Special features

2-Bed Craftsman Ranch Home Plan with Options

  • 2,083

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • Study Set - Digital $685
  • PDF - Single-Build $1,105
  • PDF - Unlimited Build $1,605
  • CAD + PDF - Single-Build $1,830
  • CAD - Unlimited Build $2,330
  • View all purchase option online

About This Plan

  • A mixed material exterior and a shed dormer over the covered entry gives this home great curb appeal.
  • The great room is open to the kitchen and dining room and has a fireplace.
  • The kitchen has views extending in two directions and enjoys a corner walk-in pantry and an island with double-sink and dishwasher on one side and casual seating on the other.
  • The master suite has a sitting area and a sunset deck as well as a pocket office.
  • Stairs lead to a bonus room over the garage giving you expansion possibilities.
  • The house plans include an optional master bath and alternate basement entry giving you great flexibility.
  • Related Plans: Get alternate versions with house plans 40898DB, 42537DB, 42536DB and 42538DB.

Floor Plans

  • Main Level

  • Unfinished Attic

  • Optional Layouts

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,083 sq. ft.
  • 1st Floor: 2,083 sq. ft.
  • Bonus: 425 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 60' 0"
  • Depth: 62' 0"
  • Max ridge height: 25' 0"

Garage

  • Type: Attached
  • Area: 798 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 10
  • Secondary Pitch: 12 on 9
