Plan 61243UT
2 Bed Garage Apartment with a Half Bath in the Garage Level
Heated S.F.
900
Beds
2
Baths
1.5
Stories
2
Cars
2
What's Included
Plan Details

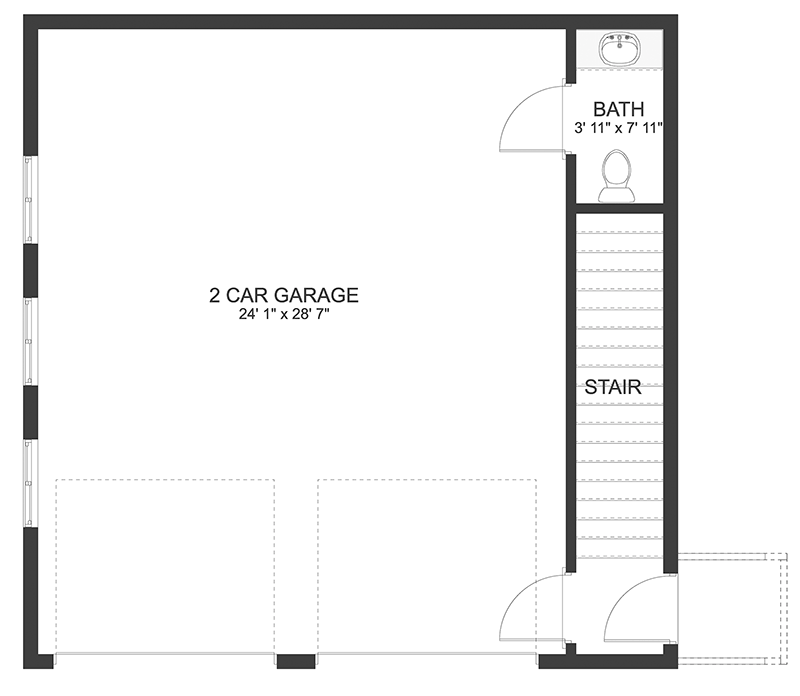

  • Side by side 10' by 8' garage doors give you parking for 2 cars on the main floor of this 2 bed garage apartment.
  • A half bath in the back-right corner is handy to clean up after working on the cars.
  • Stairs run along the right side deposit you at a landing. A door in front takes you to Bed 2. Turn to your left and there is the living room that opens to the kitchen.
  • A second bedroom is in the back-left corner.
What's Included
  • General notes
  • Foundation plan

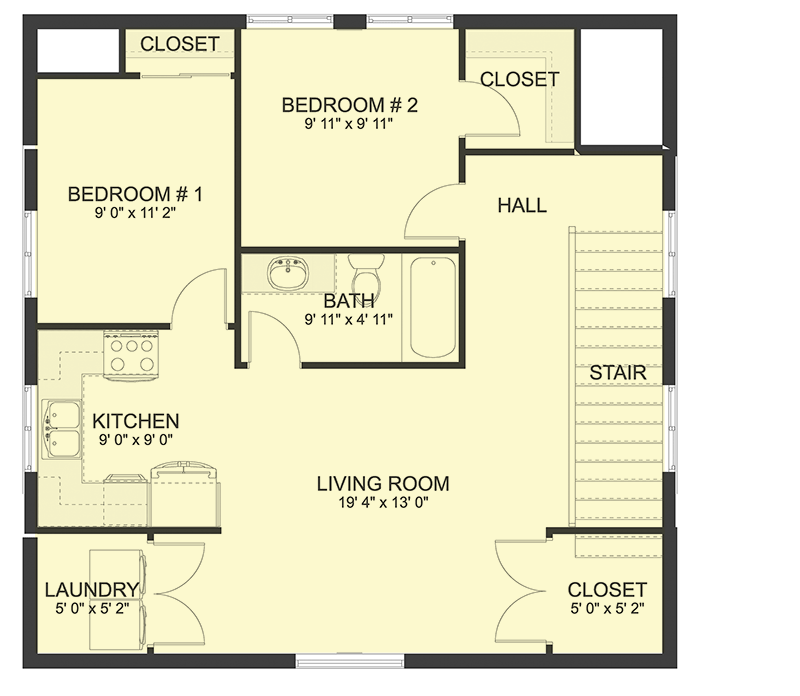

  • Detailed floor plans
  • Floor framing
  • Roof framing
  • Elevations

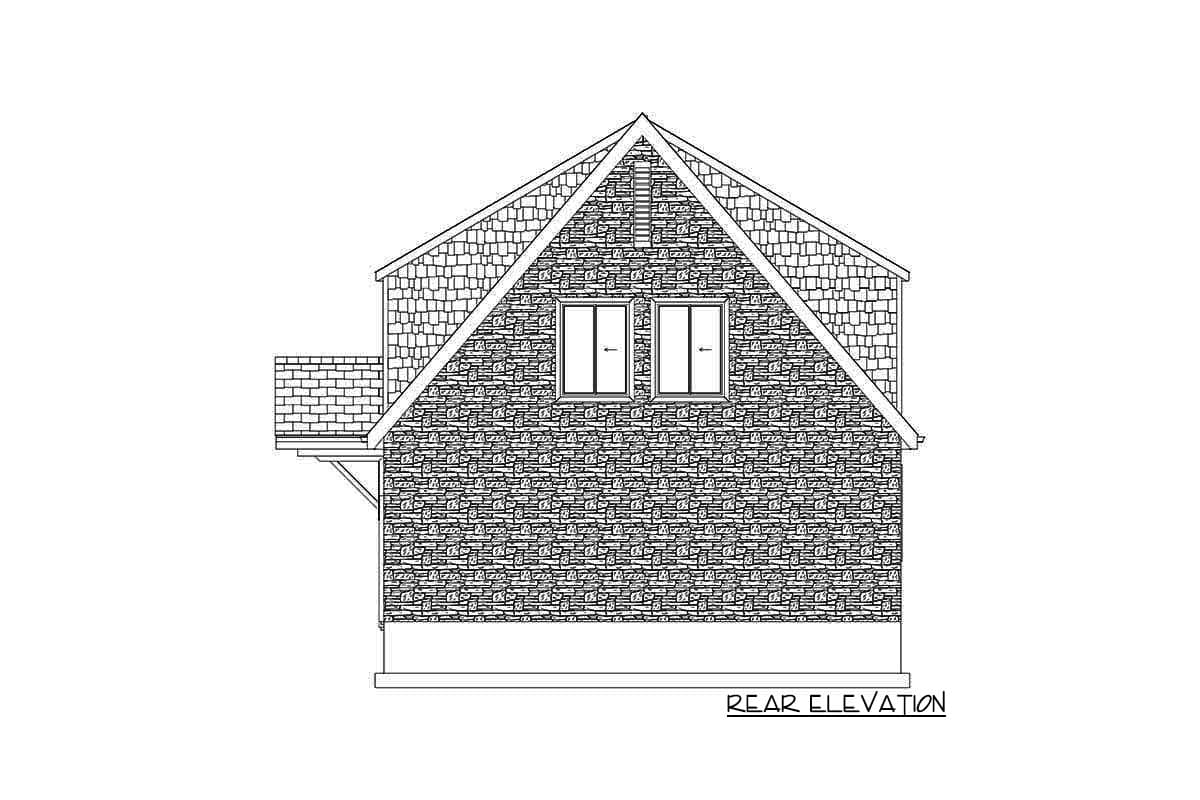

  • Cross sections
  • Electrical plans
  • General details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

2 Bed Garage Apartment with a Half Bath in the Garage Level

  • 900

    Heated s.f.

  • 2

    Beds

  • 1.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 900 sq. ft.
  • 2nd Floor: 900 sq. ft.

Dimensions

  • Width: 30' 0"
  • Depth: 30' 0"
  • Max ridge height: 29' 6"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1
  • Half bathrooms: 1

Garage

  • Type: Drive Under, Attached
  • Area: 900 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Stem Wall
    • Optional Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 14 on 12
  • Secondary Pitch: 7 on 12
  • Framing Type: Stick
