Plan 790011GLV

2-Bed House Plan with Single-Level Living

Heated S.F.
1,747
Beds
2
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 790011GLV

Main Level
Main Level

Plan 790011GLV

M-F 9am-5pm EST |

1-203-761-8500

Main Level

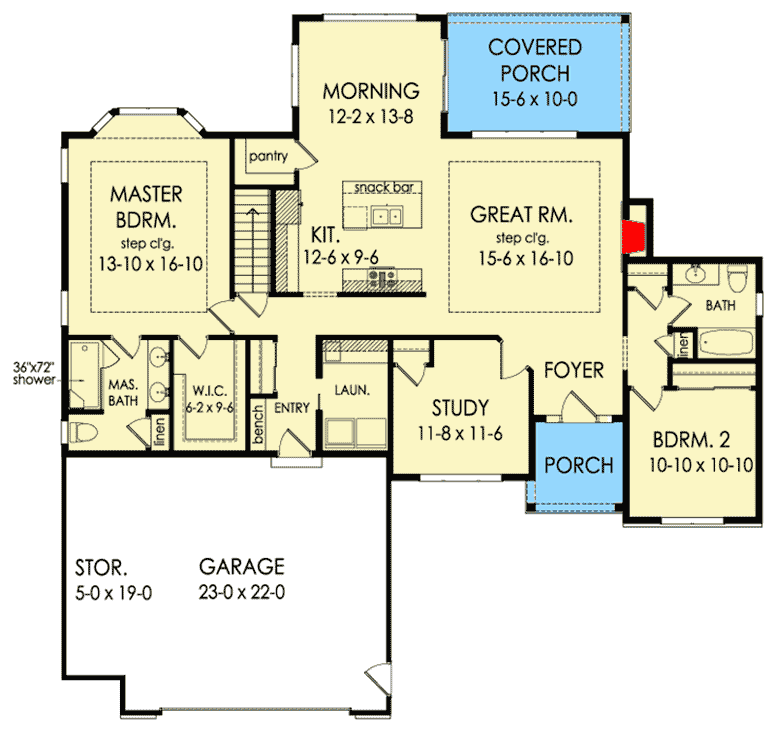

Plan 790011GLV: 2-Bed House Plan with Single-Level Living - Floor Plan - Main Level - Ranch, Traditional

Plan Details

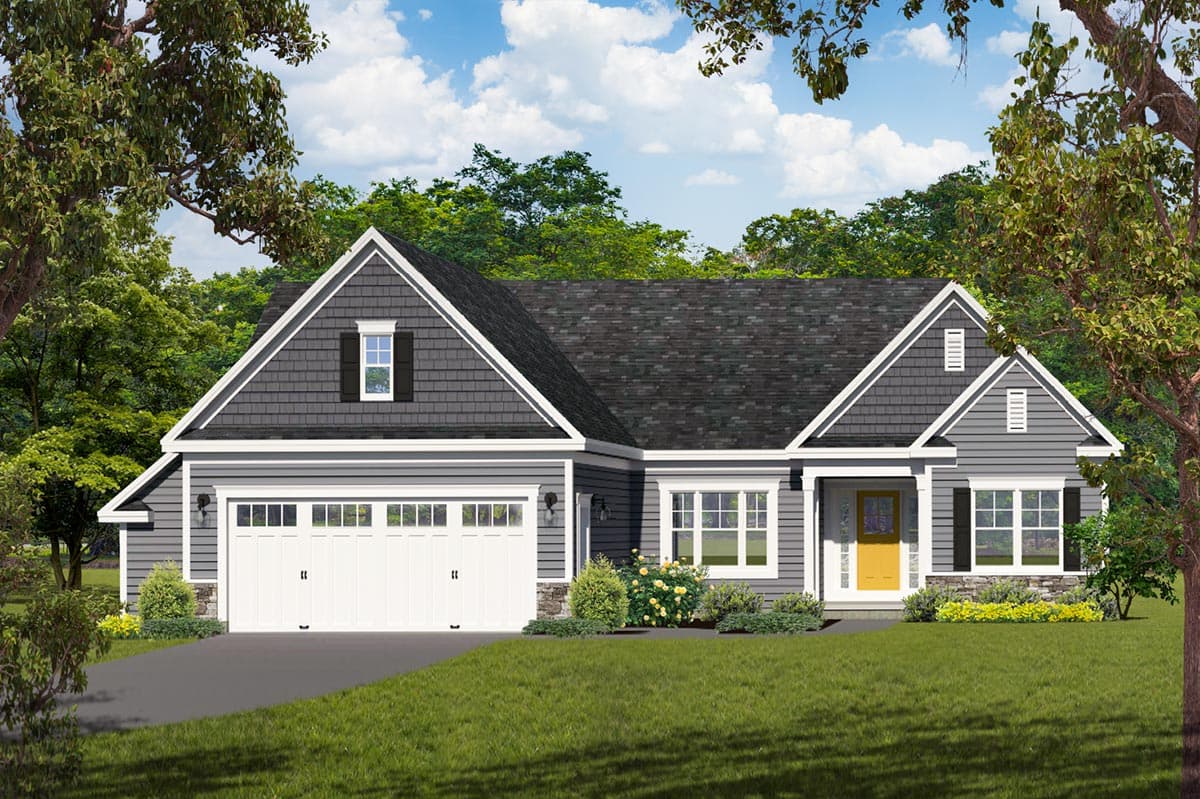

  • This 2-bed house plan has a clapboard exterior with gables accented with shingles and a tasteful stone skirt.
  • Inside, a split bedroom layout leaves the center portion of the home open for gatherings with family and friends.
  • The kitchen has a large island with double sink and dishwasher on the working side and seating for casual eats on the other.
  • A covered porch is accessible off the morning room giving you room for furniture and outdoor enjoyment.
  • A study gives you a quiet place to work or read.
  • An unfinished basement gives you room for expansion.

What's Included

  • Cover sheet with notes
  • Elevations
  • Basement and foundation plan and typical wall section
  • Detailed floor plans
  • Sections
  • Roof plan
  • Details
  • Reinforcing notes

What's Not Included

  • Electrical Plans
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,747 sq. ft.

1st Floor

1,747 sq. ft.

Optional Lower Level

1,747 sq. ft.

Porch, Combined

60 sq. ft.

Deck

155 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

59' 9"

Depth

59' 8"

Max Ridge Height

24' 1"

Garage

Type

Attached

Area

600 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

12 on 12

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

1,747 sq. ft.

1st Floor

1,747 sq. ft.

Optional Lower Level

1,747 sq. ft.

Porch, Combined

60 sq. ft.

Deck

155 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

59' 9"

Depth

59' 8"

Max Ridge Height

24' 1"

Garage

Type

Attached

Area

600 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

12 on 12

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Walk-in Pantry
