Plan 42120DB 2-Bed Modern Cottage Plan with Single Garage

2-Bed Modern Cottage Plan with Single Garage

Plan 42120DB

  • 682

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Stories

  • 1

    Cars

  • This 2-bedroom, Modern Cottage delivers a compact floor plan for low-maintenance living.
  • The modern exterior highlights a contrasting color scheme with a gable / flat roof combo and a wraparound porch welcoming you inside.
  • The communal spaces are in the front of the home with U-shaped cabinetry forming the kitchen.
  • Discover a laundry closet and full bathroom framing the hallway that leads to the bedrooms.
  • Note: Please allow up to 20 business days for delivery.
  • Related Plans: Get an alternate garage treatment with house plan 42118DB and remove the garage with house plan 42108DB.

This house plan set has the following details:

  • General Notes

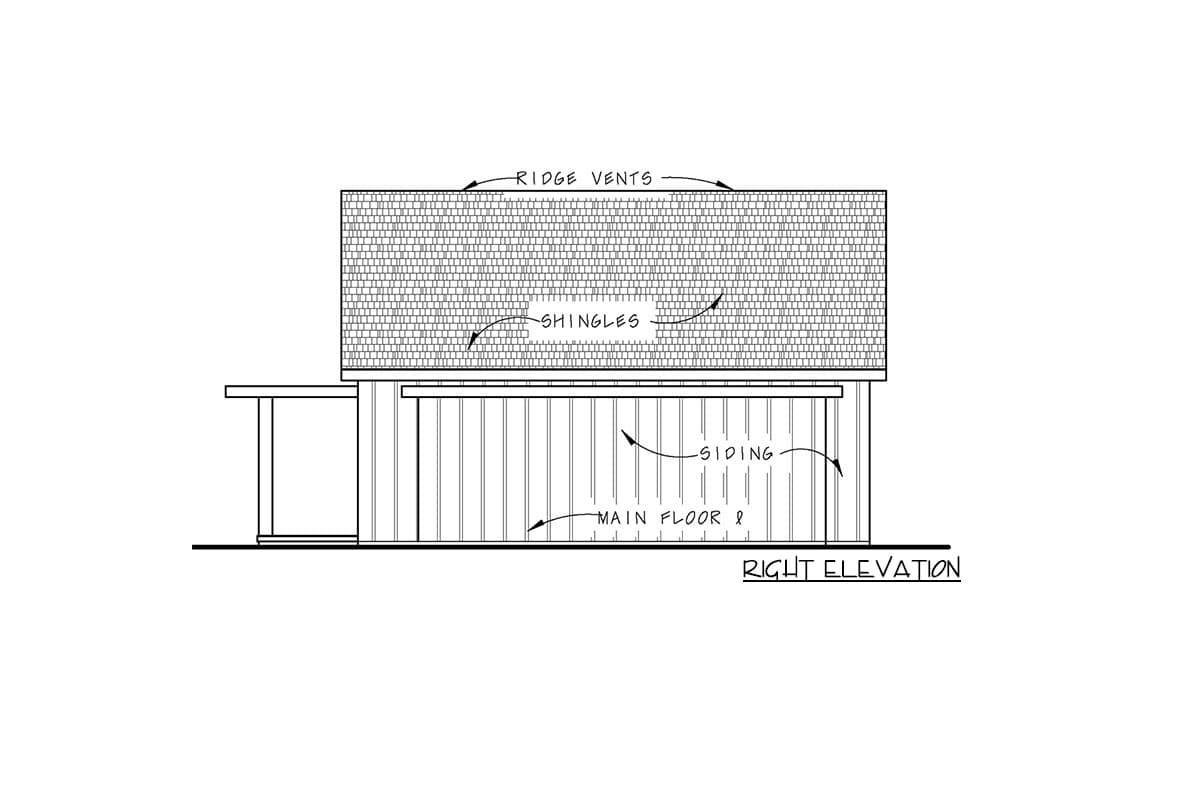

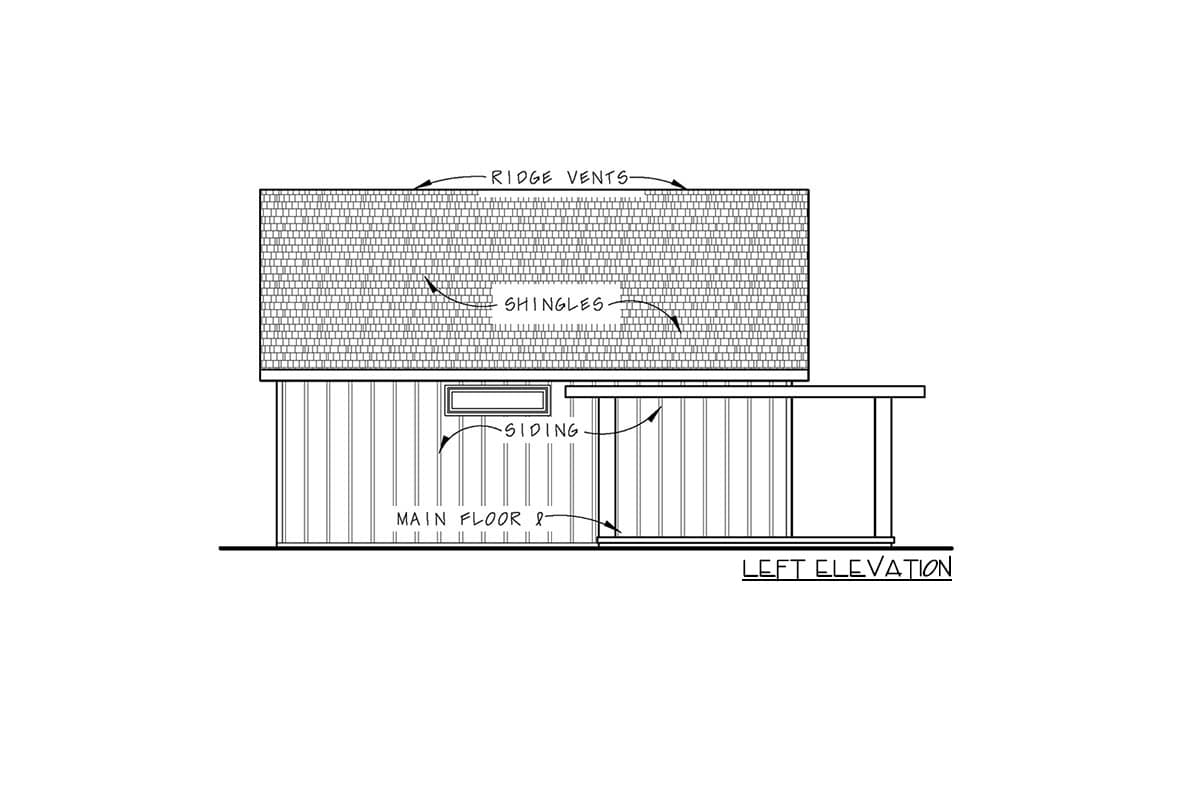

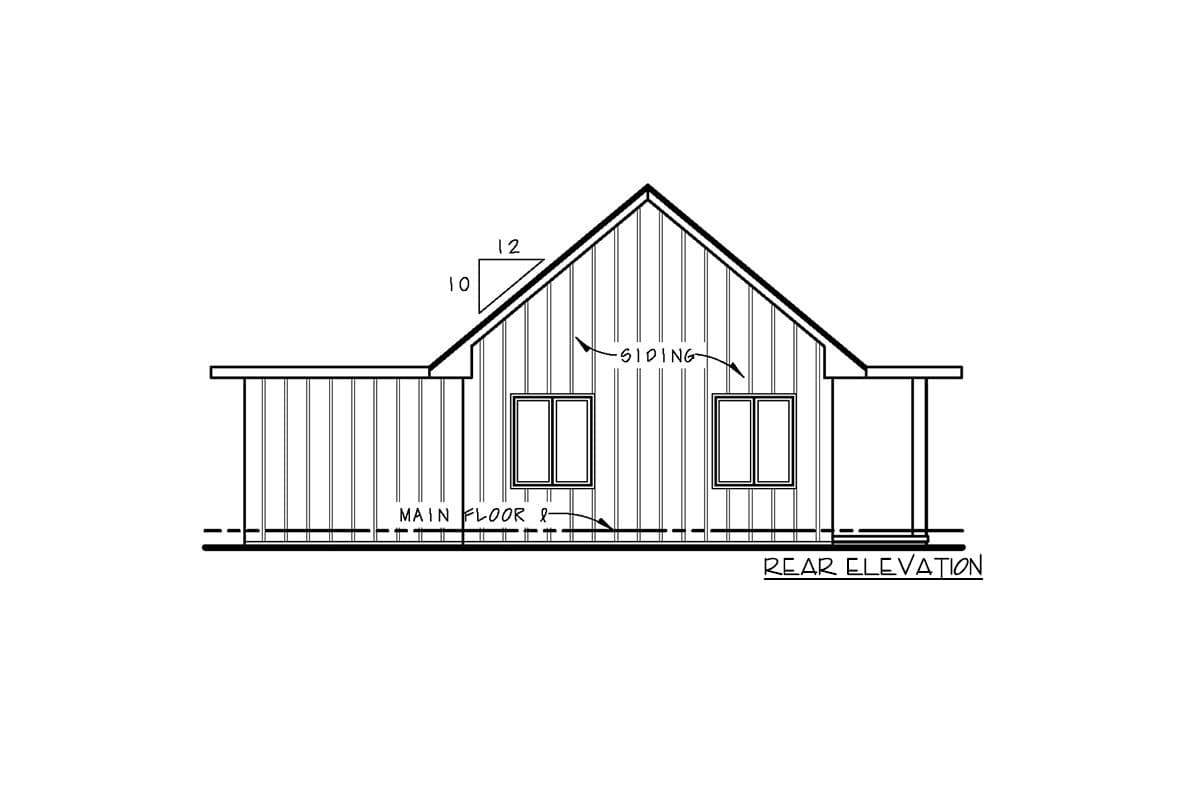

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
*Some plans include cabinet elevations. Please contact us for more information.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

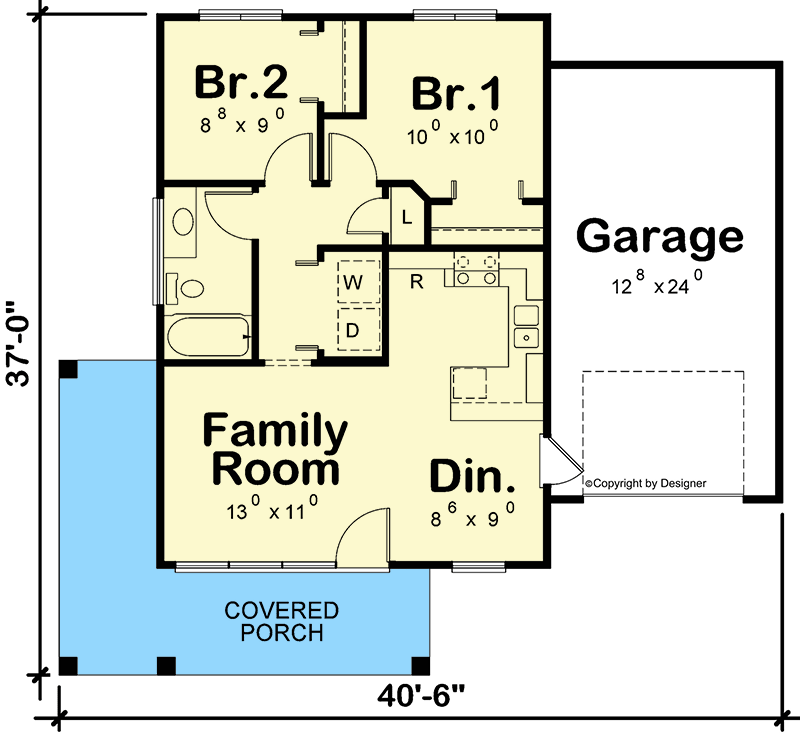

2-Bed Modern Cottage Plan with Single Garage - 42120DB floor plan - Main Level

Plan details

2-Bed Modern Cottage Plan with Single Garage

  • 682

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Floors

  • 1

    Car garage

Buy This Plan
  • Study Set - Digital $585
  • PDF - Single-Build $955
  • PDF - Unlimited Build $1,455
  • CAD + PDF - Single-Build $1,580
  • CAD - Unlimited Build $2,080
  • View all purchase option online

About This Plan

  • This 2-bedroom, Modern Cottage delivers a compact floor plan for low-maintenance living.
  • The modern exterior highlights a contrasting color scheme with a gable / flat roof combo and a wraparound porch welcoming you inside.
  • The communal spaces are in the front of the home with U-shaped cabinetry forming the kitchen.
  • Discover a laundry closet and full bathroom framing the hallway that leads to the bedrooms.
  • Note: Please allow up to 20 business days for delivery.
  • Related Plans: Get an alternate garage treatment with house plan 42118DB and remove the garage with house plan 42108DB.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 682 sq. ft.
  • 1st Floor: 682 sq. ft.
  • Porch, Front: 188 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 21' 8"
  • Depth: 40' 6"
  • Max ridge height: 37' 0"

Garage

  • Type: Attached
  • Area: 321 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 12 on 12
