Plan 550004LAN

2-Bed Modern Scandinavian-Style House Plan Under 1200 Square Feet

Heated S.F.
1,192
Beds
2
Baths
2
Stories
1

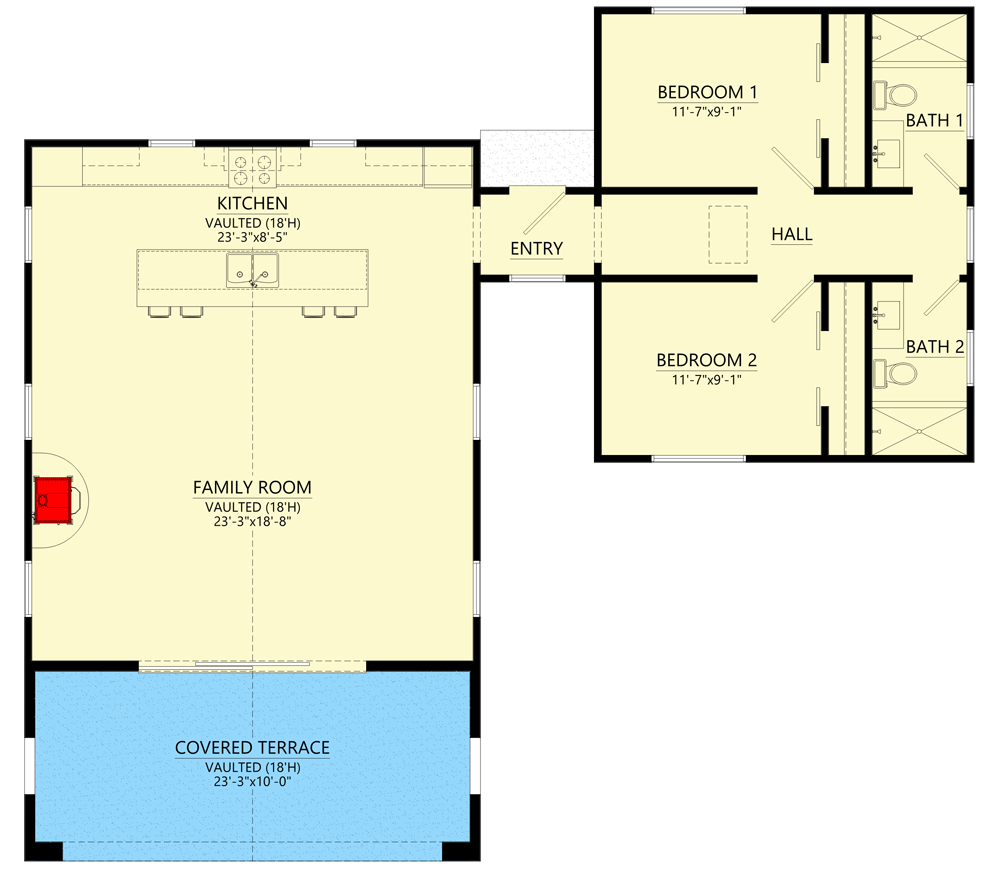

Floor Plan

Plan 550004LAN

Main Level
Main Level

Plan 550004LAN

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 550004LAN: 2-Bed Modern Scandinavian-Style House Plan Under 1200 Square Feet - Floor Plan - Main Level - Contemporary, Mid Century Modern, Modern, Scandinavian

Plan Details

  • This 2-bed modern Scandinavian-style house plan gives you 1,192 square feet of heated living with two distinct sections: a main portion for gathering with friends and a separate-but-connected sleeping section.
  • The entry is located in the middle and puts you at the pivot point between the two sections.
  • The entertaining side of the home gives you an open floor plan with the kitchen open to the family room in back. The entire space is vaulted (18' max height) with the vault centered on the island.
  • Sliding doors open to a 10'-deep covered and vaulted terrace.
  • A hallway divides the bedrooms, each of which has its own bathroom.
  • NOTE: The rendering shows the home from the rear.

What's Included

  • Detailed dimensioned floor plan(s)
  • Building sections
  • Attic plan (when applicable)

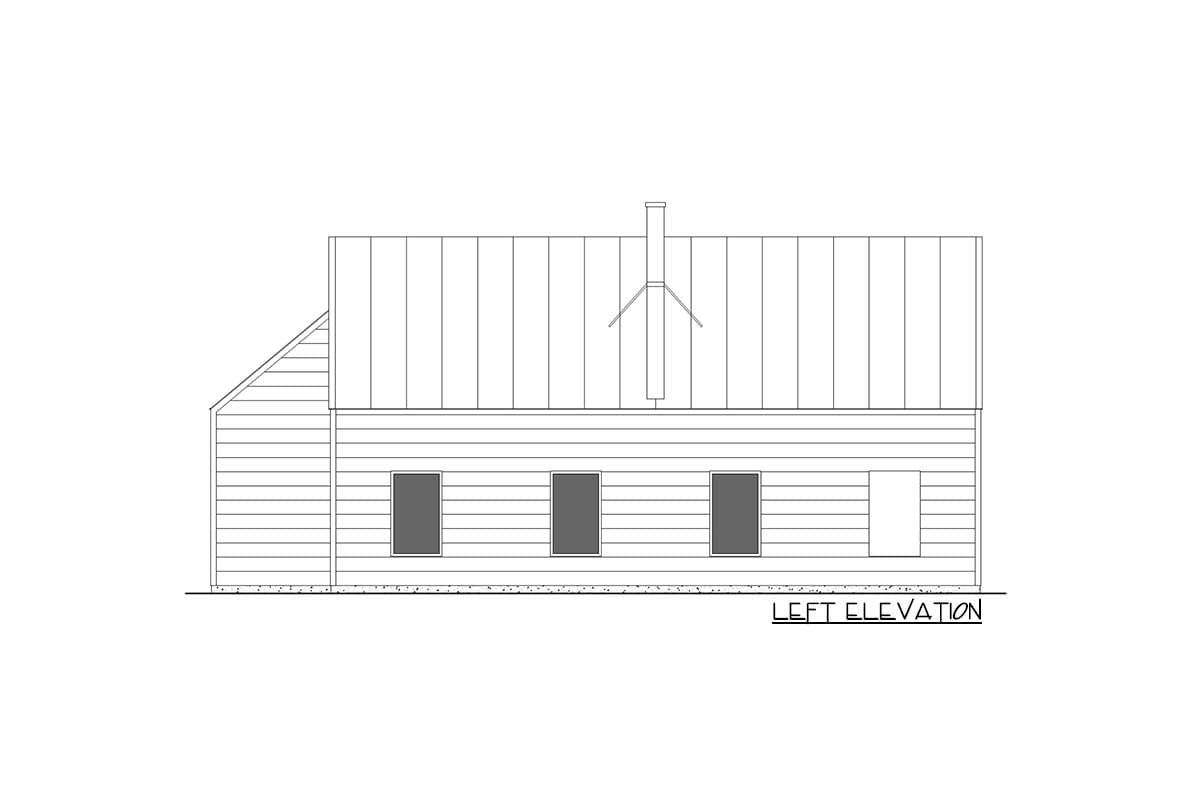

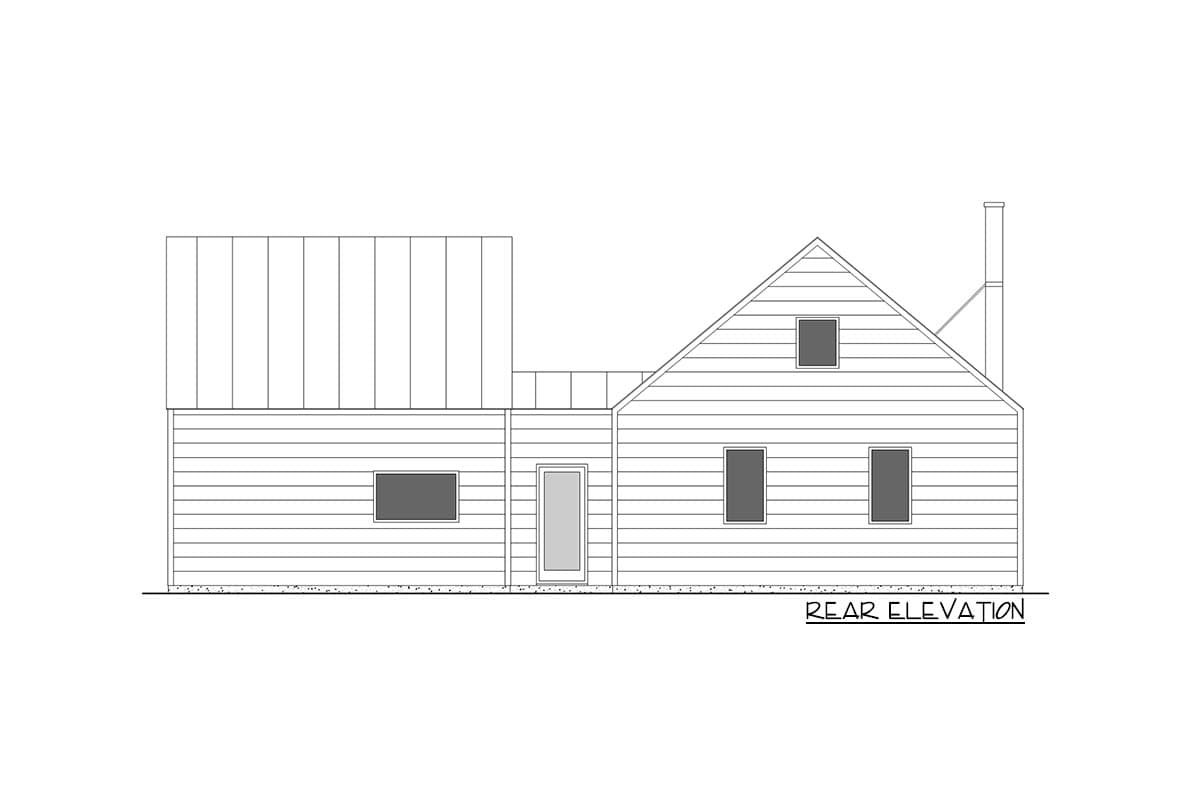

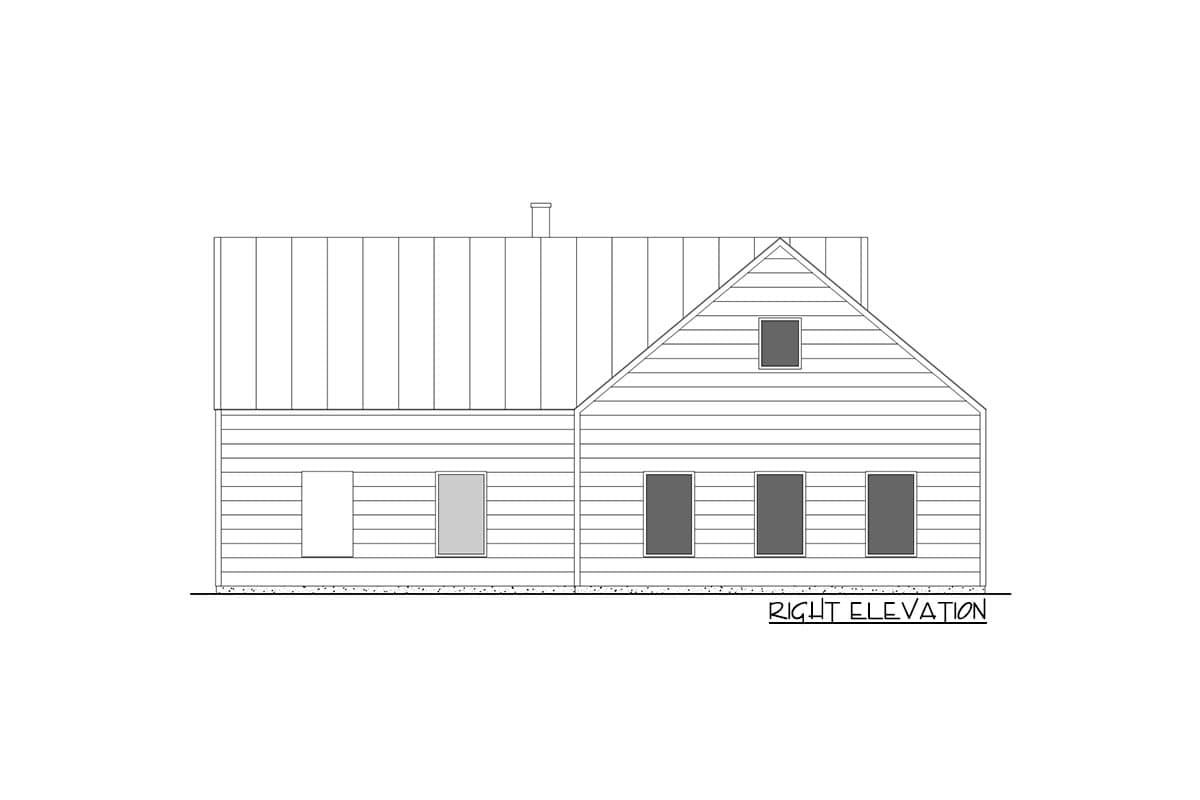

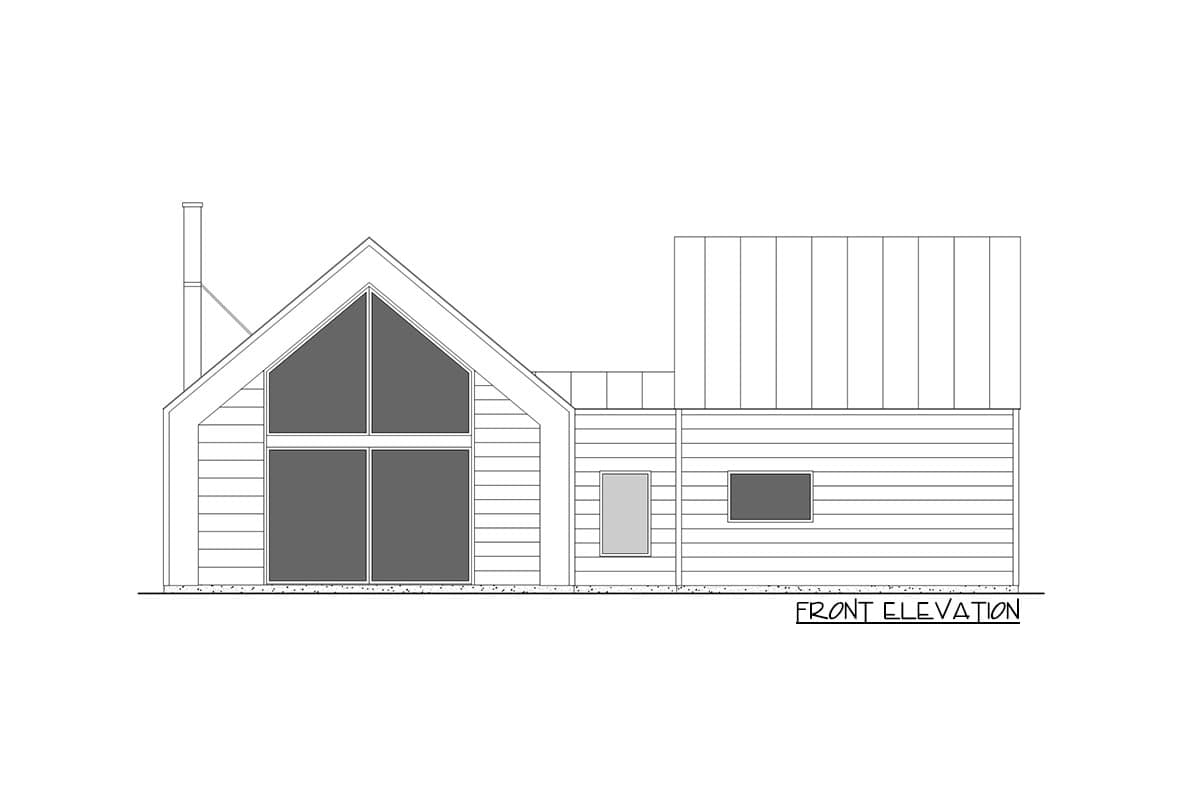

  • All four exterior elevations (plus exterior elevations and sections for detached garage, when included)
  • Typical wall sections and details
  • Roof plan and roof framing details
  • Suggested electrical layout plan

What's Not Included

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,192 sq. ft.

1st Floor

1,192 sq. ft.

Porch, Rear

18 sq. ft.

Covered Patio

240 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

50' 0"

Depth

45' 0"

Max Ridge Height

20' 4"

Ceiling Heights

First Floor

8'

First Fl Vaulted

17' 8''

Roof Details

Primary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Contemporary

Mid Century Modern

Modern

Scandinavian

Special Features

Accessible Design

Bedrooms - Clustered

Flex Room

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room

Square Footage Breakdown

Total Heated Area

1,192 sq. ft.

1st Floor

1,192 sq. ft.

Porch, Rear

18 sq. ft.

Covered Patio

240 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

50' 0"

Depth

45' 0"

Max Ridge Height

20' 4"

Ceiling Heights

First Floor

8'

First Fl Vaulted

17' 8''

Roof Details

Primary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Contemporary

Mid Century Modern

Modern

Scandinavian

Special Features

Accessible Design

Bedrooms - Clustered

Flex Room

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room
