Plan 790130GLV

Exclusive

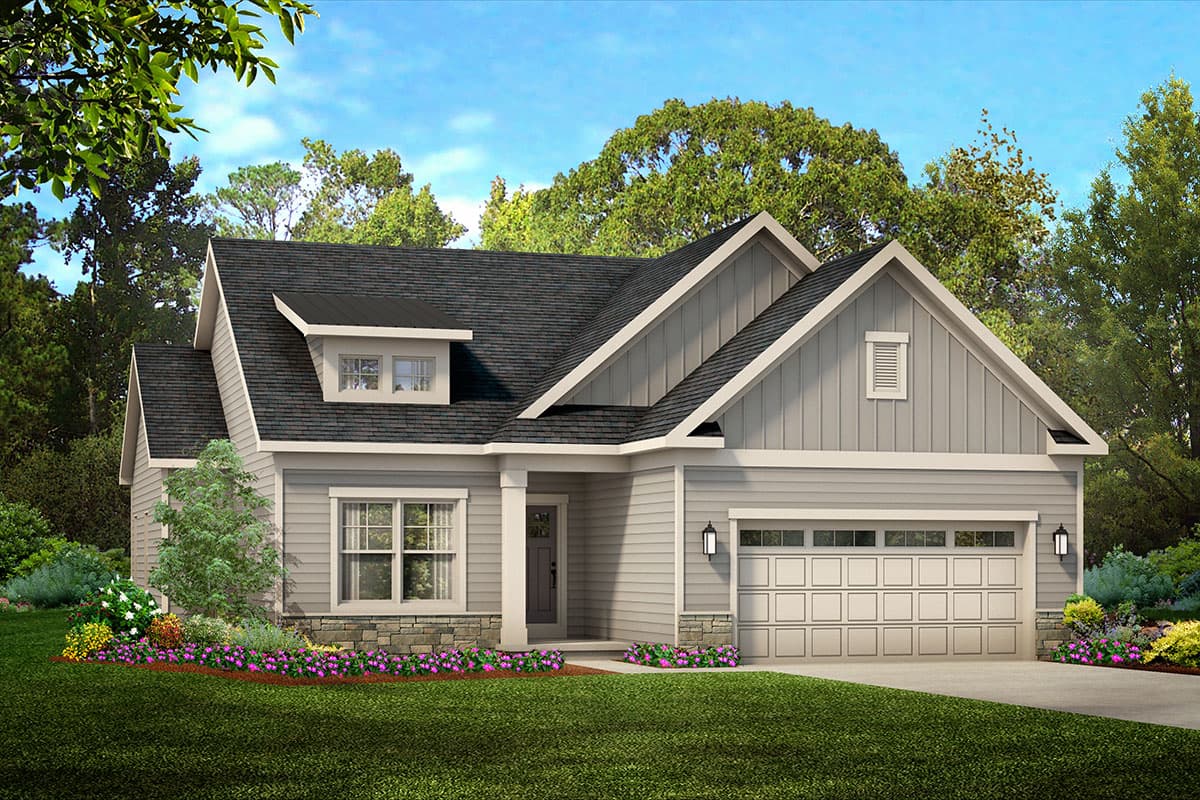

2-Bed New American Craftsman Home Plan Under 1400 Square Feet

Heated S.F.
1,386
Beds
2
Baths
2
Stories
1
Cars
2

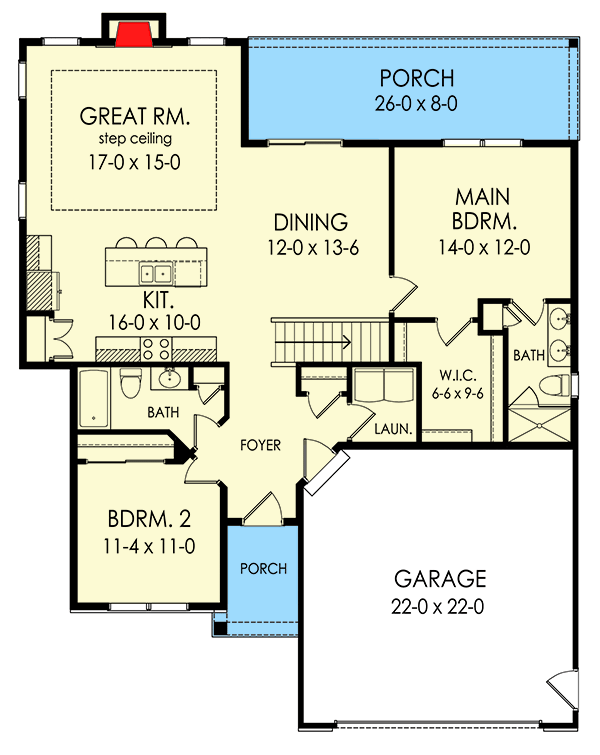

Floor Plan

Plan 790130GLV

Main Level
Main Level

Plan 790130GLV

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 790130GLV: 2-Bed New American Craftsman Home Plan Under 1400 Square Feet - Floor Plan - Main Level - Craftsman, New American, Northwest, Ranch, Traditional

Plan Details

  • At just under 1,400 square feet of living space, this New American Craftsman home plan features a functional split bedroom layout.
  • The combined great room, kitchen, and dining area are enhanced by a fireplace and loads of natural light. Sliding doors on the dining room wall take you to a 26' wide and 8' deep front porch.
  • Enjoy cooking in this easy kitchen, that includes a snack bar at the kitchen island.
  • The master bedroom sits behind the 2-car garage, and is joined by a 4-fixture bath with a linen closet. A second bedroom resides just off the foyer.
  • Enter from the 2-car garage to find a coat closet next to the laundry room.
  • Related Plan: Get a smaller version with a 2-car garage with house plan 790085GLV.

What's Included

  • Cover sheet with notes

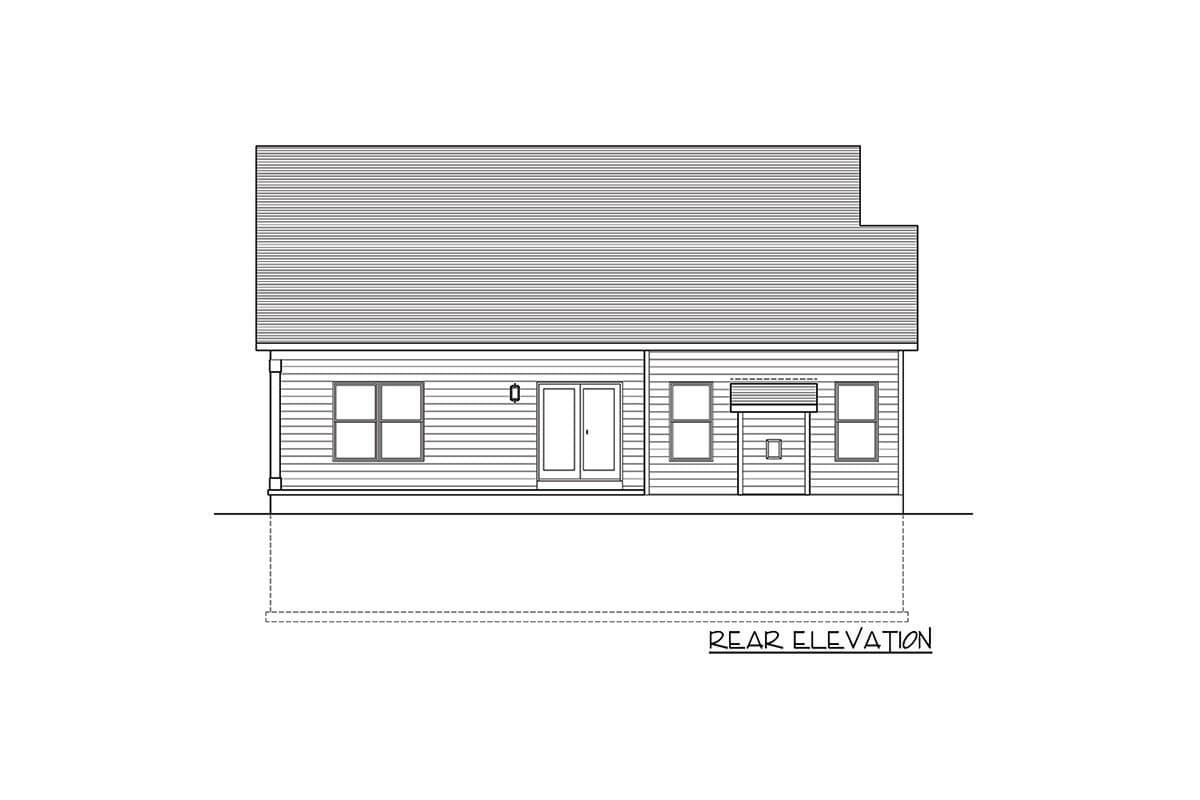

  • Elevations
  • Basement and foundation plan and typical wall section
  • Detailed floor plans
  • Sections
  • Roof plan
  • Details
  • Reinforcing notes

What's Not Included

  • Electrical Plans
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,386 sq. ft.

1st Floor

1,386 sq. ft.

Basement Unfinished

1,260 sq. ft.

Porch, Front

50 sq. ft.

Porch, Rear

208 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

44' 0"

Depth

54' 4"

Max Ridge Height

25' 0"

Garage

Type

Attached

Area

480 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

10 on 12

Architectural Style

Craftsman

New American

Northwest

Ranch

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

1,386 sq. ft.

1st Floor

1,386 sq. ft.

Basement Unfinished

1,260 sq. ft.

Porch, Front

50 sq. ft.

Porch, Rear

208 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

44' 0"

Depth

54' 4"

Max Ridge Height

25' 0"

Garage

Type

Attached

Area

480 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

10 on 12

Architectural Style

Craftsman

New American

Northwest

Ranch

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Exclusive
