Plan 135031GRA 2-Bed New American Craftsman Plan with Angled Garage

4,882 2 3.5 2 4
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

2-Bed New American Craftsman Plan with Angled Garage

Plan 135031GRA

  • 4,882

    Heated s.f.

  • 2

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 4

    Cars

  • Central to this 2-bedroom, New American Craftsman home plan is a large great room, dining area, and kitchen; ideal for entertaining or hosting large family gatherings.
  • The 4-car garage protrudes from the home at an angle, creating a parking courtyard that precedes the front porch. Enter from the garage to find a mudroom bordered by a powder bath and pocket office.
  • Enjoy the convenience of a main-level master bedroom, which features a spa-like ensuite with 5 fixtures and a walk-in closet. A second bedroom near the foyer completes this level.
  • A reading nook and loft provide cozy spaces upstairs for all to enjoy, and a covered deck allows you to enjoy the views from a higher vantage point.
  • Retreat to the walk-out lower level and discover a generously-sized recreation room with a wet bar, third bedroom, and music room. Ample unfinished space provides the homeowner with plenty of room for storage.

  • All elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

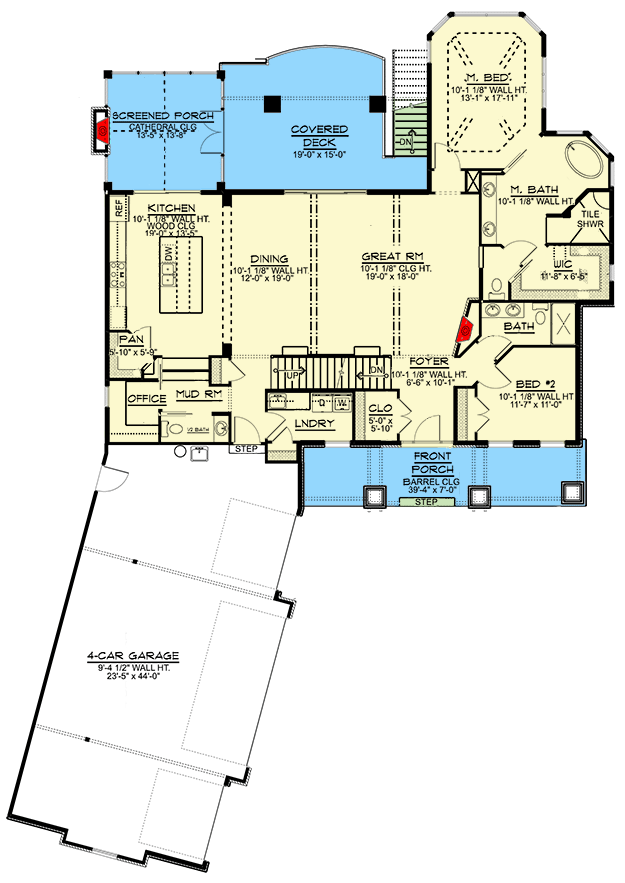

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
2-Bed New American Craftsman Plan with Angled Garage - 135031GRA floor plan - Main Level

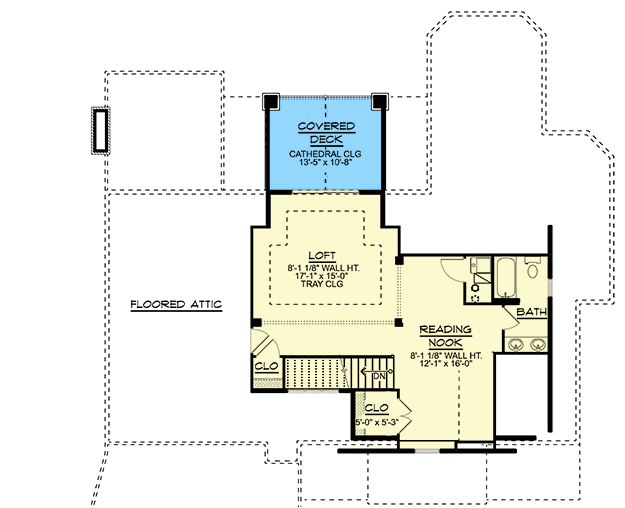

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
2-Bed New American Craftsman Plan with Angled Garage - 135031GRA floor plan - 2nd Floor

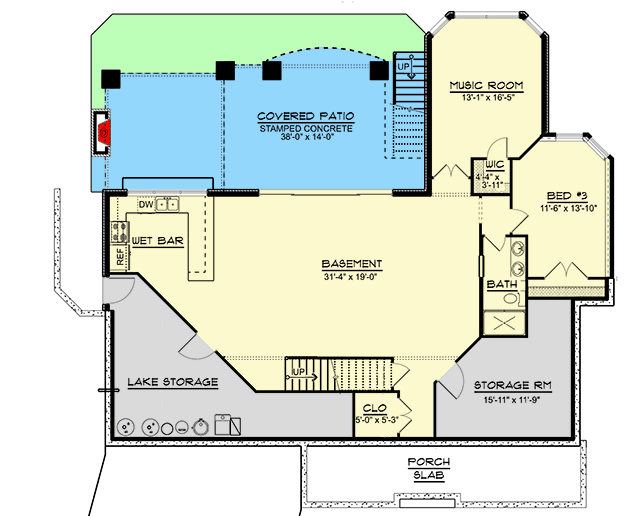

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
2-Bed New American Craftsman Plan with Angled Garage - 135031GRA floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,882 sq. ft.
  • Lower Level: 2,072 sq. ft.
  • 1st Floor: 2,072 sq. ft.
  • 2nd Floor: 738 sq. ft.
  • Covered Patio: 821 sq. ft.
  • Deck: 510 sq. ft.
  • Porch, Combined: 450 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Slab, Walkout, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 101' 0"
  • Depth: 71' 6"
  • Max ridge height: 28' 6"

Garage

  • Type: Attached
  • Area: 1215 sq. ft.
  • Count: 4 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Truss

Architectural Style

Special features

2-Bed New American Craftsman Plan with Angled Garage

  • 4,882

    Heated s.f.

  • 2

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - Single-Build $1,350
  • 5 Sets $1,525
  • 5 Sets + PDF $1,600
  • PDF - Unlimited Build $1,850
  • CAD + PDF - Single-Build $2,600
  • CAD - Unlimited Build $3,100
  • View all purchase option online

About This Plan

  • Central to this 2-bedroom, New American Craftsman home plan is a large great room, dining area, and kitchen; ideal for entertaining or hosting large family gatherings.
  • The 4-car garage protrudes from the home at an angle, creating a parking courtyard that precedes the front porch. Enter from the garage to find a mudroom bordered by a powder bath and pocket office.
  • Enjoy the convenience of a main-level master bedroom, which features a spa-like ensuite with 5 fixtures and a walk-in closet. A second bedroom near the foyer completes this level.
  • A reading nook and loft provide cozy spaces upstairs for all to enjoy, and a covered deck allows you to enjoy the views from a higher vantage point.
  • Retreat to the walk-out lower level and discover a generously-sized recreation room with a wet bar, third bedroom, and music room. Ample unfinished space provides the homeowner with plenty of room for storage.

Floor Plans

  • Main Level

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,882 sq. ft.
  • Lower Level: 2,072 sq. ft.
  • 1st Floor: 2,072 sq. ft.
  • 2nd Floor: 738 sq. ft.
  • Covered Patio: 821 sq. ft.
  • Deck: 510 sq. ft.
  • Porch, Combined: 450 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Walkout, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 101' 0"
  • Depth: 71' 6"
  • Max ridge height: 28' 6"

Garage

  • Type: Attached
  • Area: 1215 sq. ft.
  • Count: 4 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Truss
