Plan 360101DK 2-Bed New American Garage Apartment with 18'-Tall RV Bay

1,244 1 1.5 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

2-Bed New American Garage Apartment with 18'-Tall RV Bay

Plan 360101DK

  • 1,244

    Heated s.f.

  • 1

    Beds

  • 1.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This 2-bed garage apartment has a rustic vibe with a board and batten exterior with wood doors and decorative brackets.
  • The left bay shelters an RV and can be built to whatever depth you like. Two additional bays give you parking for your non-RV vehicles.
  • An open gathering space greets you at the top of the stairs with a C-shaped kitchen with peninsula seating in back.
  • Two bedrooms share a bathroom and have views out the front.
  • Buy the plan as-is or ask us to make changes and we'll get you a quote to get you a customized version of this copyrighted house plan.

This plan includes the following elements:

  • All Elevations
  • Birds Eye Roof Plan
  • Floor plans
  • Foundation Plan
  • Suggested Electrical Layout
  • General Construction Details
  • Some plans include a Cross Section through the structure (but not all do); write us to find out if your plan has these - [email protected]
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
2-Bed New American Garage Apartment with 18'-Tall RV Bay - 360101DK floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

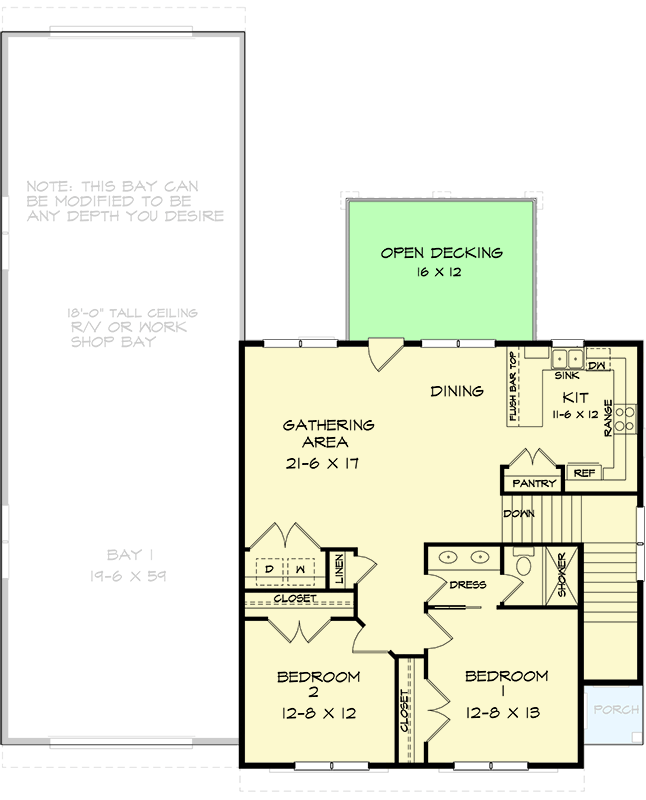

2-Bed New American Garage Apartment with 18'-Tall RV Bay - 360101DK floor plan - 2nd Floor
