Plan 62556DJ 2 Bed Northwest Townhouse Plan

1,228 2 2.5 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

2 Bed Northwest Townhouse Plan

Plan 62556DJ

  • 1,228

    Heated s.f.

  • 2

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • Only 20' wide, this Northwest townhouse offers two bedrooms in a compact footprint.
  • The family room is large and can be seen right from the foyer.
  • In back, the kitchen and dining area are combined into one big room.
  • Sliding glass doors take you out to the backyard.
  • Each bedroom on the upper floor gets its own bathroom and the laundry closet lies convenient to both bedrooms.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.

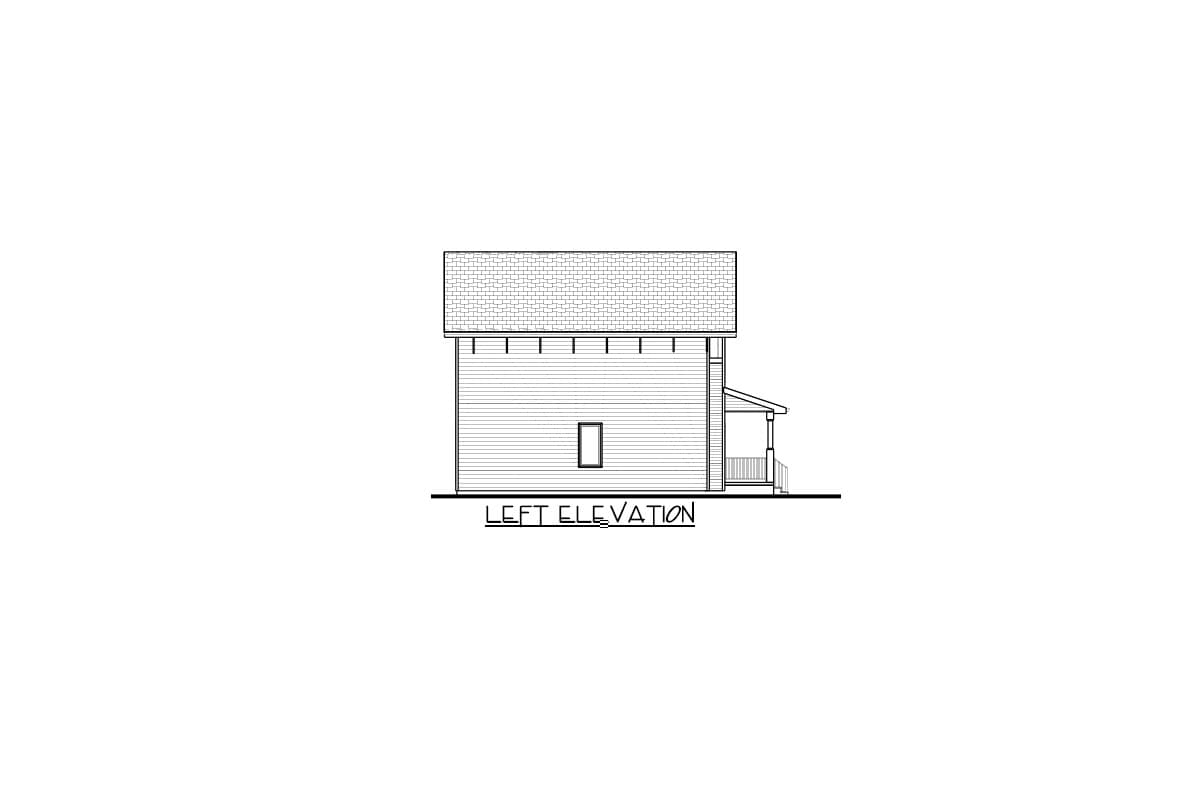

  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
2 Bed Northwest Townhouse Plan - 62556DJ floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
2 Bed Northwest Townhouse Plan - 62556DJ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,228 sq. ft.
  • 1st Floor: 640 sq. ft.
  • 2nd Floor: 588 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 20' 0"
  • Depth: 38' 0"
  • Max ridge height: 29' 0"

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 4 on 12

Architectural Style

Special features

2 Bed Northwest Townhouse Plan

  • 1,228

    Heated s.f.

  • 2

    Beds

  • 2.5

    Baths

  • 2

    Floors

Buy This Plan
  • PDF - Single-Build $1,100
  • 5 Sets + PDF $1,350
  • PDF - Unlimited Build $1,600
  • CAD + PDF - Single-Build $1,600
  • CAD Unlimited + PDF $2,100
  • View all purchase option online

About This Plan

  • Only 20' wide, this Northwest townhouse offers two bedrooms in a compact footprint.
  • The family room is large and can be seen right from the foyer.
  • In back, the kitchen and dining area are combined into one big room.
  • Sliding glass doors take you out to the backyard.
  • Each bedroom on the upper floor gets its own bathroom and the laundry closet lies convenient to both bedrooms.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,228 sq. ft.
  • 1st Floor: 640 sq. ft.
  • 2nd Floor: 588 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 20' 0"
  • Depth: 38' 0"
  • Max ridge height: 29' 0"

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 4 on 12
