Plan 52400WM

2-Bed Traditional Duplex House Plan with Open-Concept Living Space - 1792 Sq Ft

Heated S.F.
1,792
Units
2
Width
Depth

Floor Plan

Plan 52400WM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 52400WM

M-F 9am-5pm EST |

1-203-761-8500

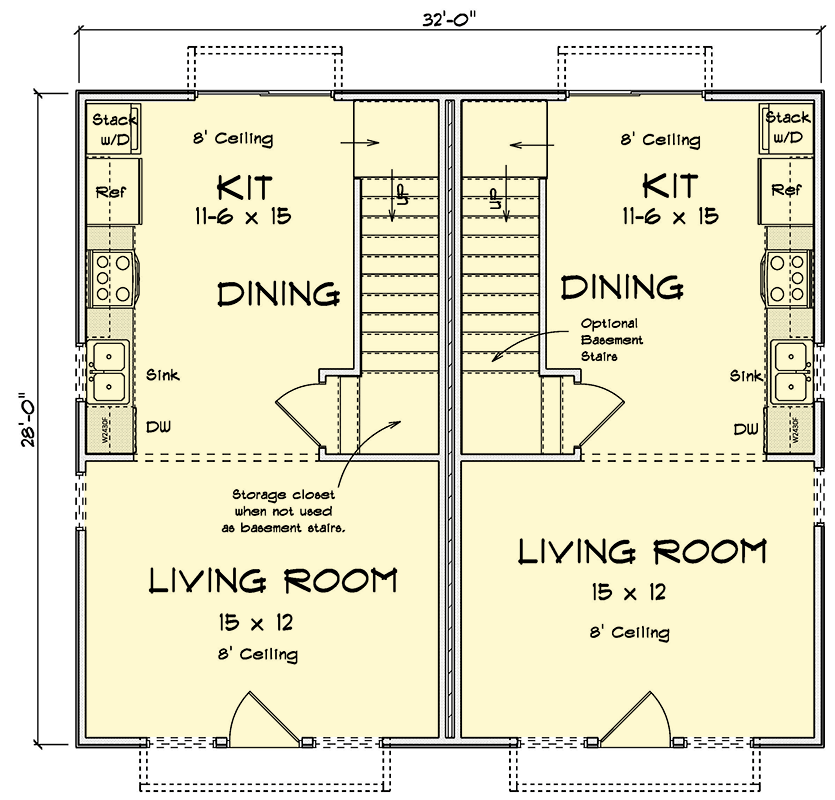

Main Level

Plan 52400WM: 2-Bed Traditional Duplex House Plan with Open-Concept Living Space - 1792 Sq Ft - Floor Plan - Main Level - Country, Traditional

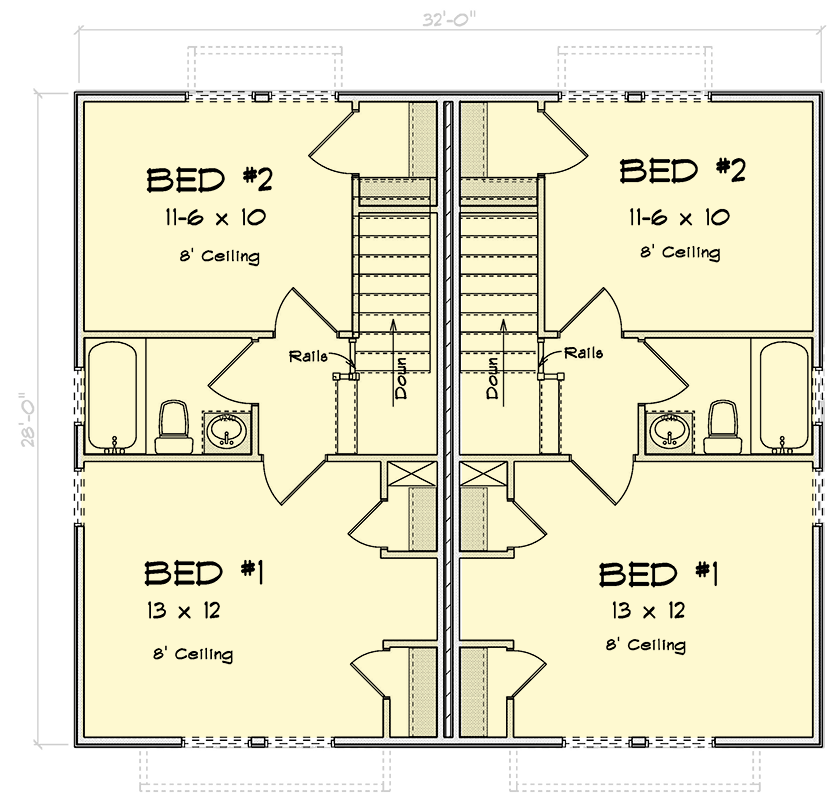

2nd Floor

Plan 52400WM: 2-Bed Traditional Duplex House Plan with Open-Concept Living Space - 1792 Sq Ft - Floor Plan - 2nd Floor - Country, Traditional

Plan Details

  • This two-story multi-family house plan gives you 2 units each with 896 square feet of heated living space (448 sq. ft. on the first floor, 448 sq. ft. on the second floor), 2 beds and 1 bath.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A
Heated Area
896Sq. Ft.
448 Sq. Ft. 1st
448 Sq. Ft. 2nd
Beds
2Beds
Baths
1Full Bath
Dimensions
16'width
28'depth
26'height
Unit B
Heated Area
896Sq. Ft.
448 Sq. Ft. 1st
896 Sq. Ft. 2nd
Beds
2Beds
Baths
1Full Bath
Dimensions
16'width
28'depth
26'height

What's Included

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,792 sq. ft.

1st Floor

896 sq. ft.

2nd Floor

896 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

32' 0"

Depth

28' 0"

Max Ridge Height

26' 10"

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

8 on 12

Framing Type

Stick Or Truss

Architectural Style

Country

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

1,792 sq. ft.

1st Floor

896 sq. ft.

2nd Floor

896 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

32' 0"

Depth

28' 0"

Max Ridge Height

26' 10"

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

8 on 12

Framing Type

Stick Or Truss

Architectural Style

Country

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - Upstairs

* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping!Let's go back to the top.
