Plan 77627FB

Exclusive

2 Bedroom Getaway with Expansive Views
Heated S.F.
1,817
Beds
2
Baths
2.5 - 3.5
Stories
2
Cars
2
Floor Plan

Plan 77627FB

Main Level
slide image 0
Second Level
slide image 1
Lower Level
slide image 2

Plan 77627FB

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Second Level
floor plan image Second Level

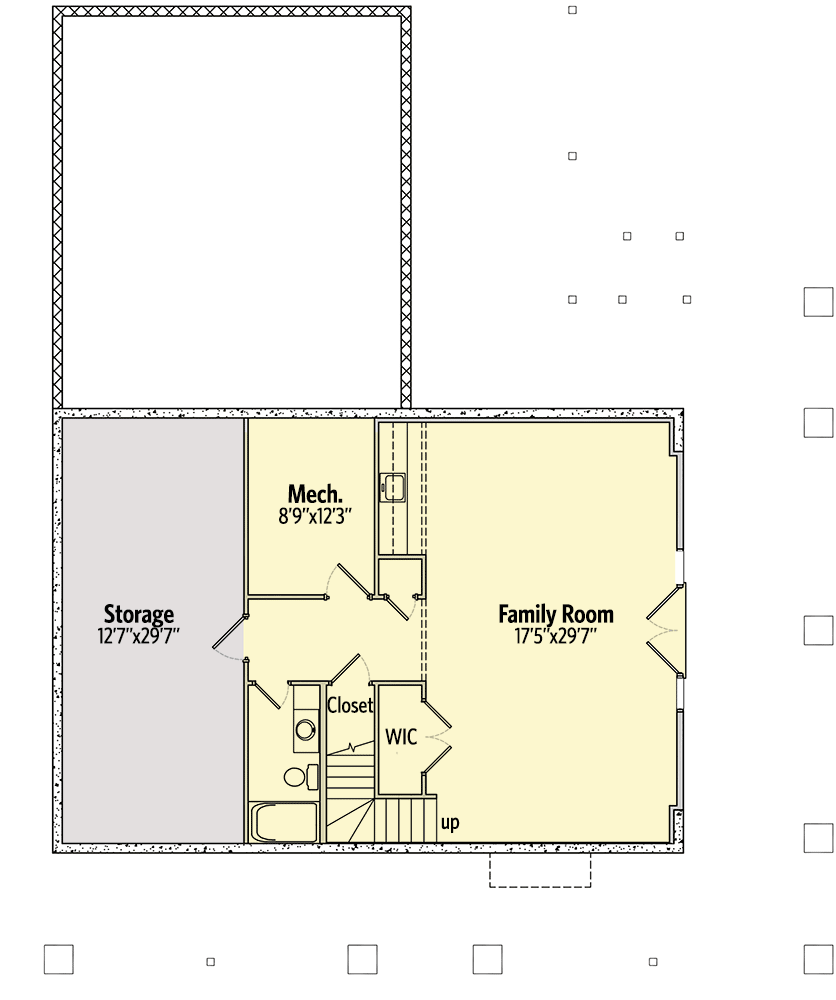

Lower Level
floor plan image Lower Level
Plan Details
  • A gorgeous deck wraps around this Vacation getaway house plan and you also get a large screened porch.
  • Vaulted ceilings rise up in the living room, kitchen and dining area making the home feel huge.
  • Get two walk-in closets in the first floor master suite plus a door from the master bathroom right into the laundry room - a wonderful convenience!
  • Bedroom 2 is off by itself up on the second floor, giving both bedrooms privacy.
  • An open rail on the stairs lets you see into the vaulted great room below.
What's Included

  • Cover page
  • Foundation plan
  • Floor Plan
  • Elevations
  • Section View
  • Construction details
  • Electrical Layout
  • Roof Plan (if needed)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

1,817 sq. ft.

1st Floor

1,359 sq. ft.

2nd Floor

458 sq. ft.

Basement Unfinished

1,277 sq. ft.

Screened Porch

410 sq. ft.

Deck

872 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

53' 10"

Depth

66' 11"

Max Ridge Height

28' 4"

Garage

Type

Attached

Area

698 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

8'

Second Floor

8'

Room

Ceiling Type

Height

Living Room

Cathedral

0' 0''

Dining Room

Cathedral

0' 0''

Kitchen

Cathedral

0' 0''

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick And Truss

Architectural Style

Cottage

Country

Lake House

Mountain

Vacation

Special Features

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Wrap Around Porch

Plan Collections

Exclusive

Lake House Plans
