2 Bedroom Ranch with Vaulted Spaces

Plan 21723DR

  • 1,318

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Stories

  • 1

    Cars

  • Step in off the covered front porch and note the vaulted spaces. A closet straight ahead helps reduce clutter.
  • The living room is separated from the kitchen and dining area with pocket doors.
  • Note the corner pantry and built-in desk area in the kitchen.
  • Two bedrooms share a bath. The master has a vaulted ceiling. Laundry is conveniently located between the bedrooms.
  • Expand downstairs and gain room for expansion.
  • Related Plan: For a smaller version, see house plan 21877DR.

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

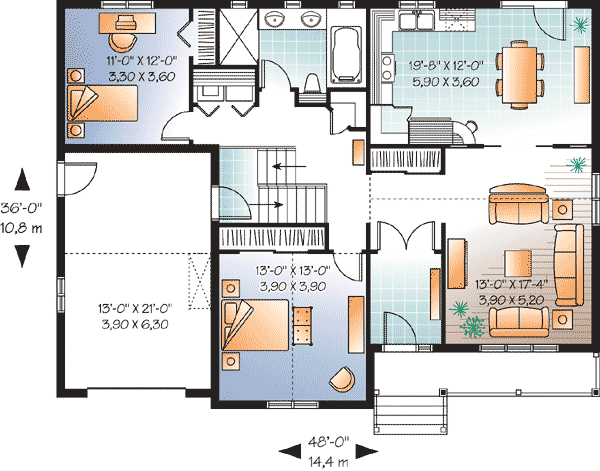

2 Bedroom Ranch with Vaulted Spaces - 21723DR floor plan - Main Level

Architectural Style

Plan Collections

2 Bedroom Ranch with Vaulted Spaces

  • 1,318

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Floors

  • 1

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,318 sq. ft.
  • 1st Floor: 1,318 sq. ft.

Dimensions

  • Width: 48' 0"
  • Depth: 36' 0"
  • Max ridge height: 24' 5"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Garage

  • Type: Attached
  • Area: 293 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Daylight, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"
