Plan 135240GRA

2-Car 600 Sq Ft Detached Garage Plan with Flexible Loft Above

Heated S.F.
0
Beds
0
Baths
1
Stories
2
Cars
2

Floor Plan

Plan 135240GRA

Main Level
Main Level
Loft Above
Loft Above

Plan 135240GRA

M-F 9am-5pm EST |

1-203-761-8500

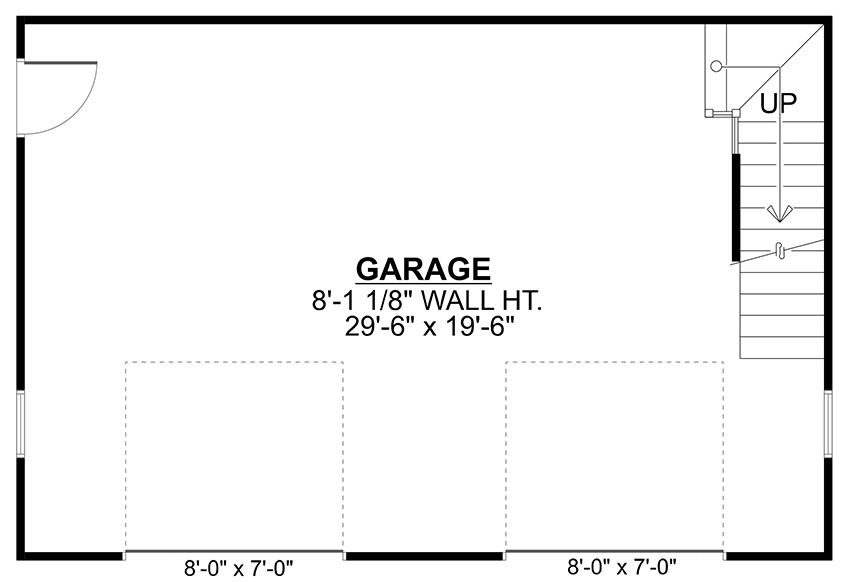

Main Level

Plan 135240GRA: 2-Car 600 Sq Ft Detached Garage Plan with Flexible Loft Above - Floor Plan - Main Level - Craftsman, Traditional

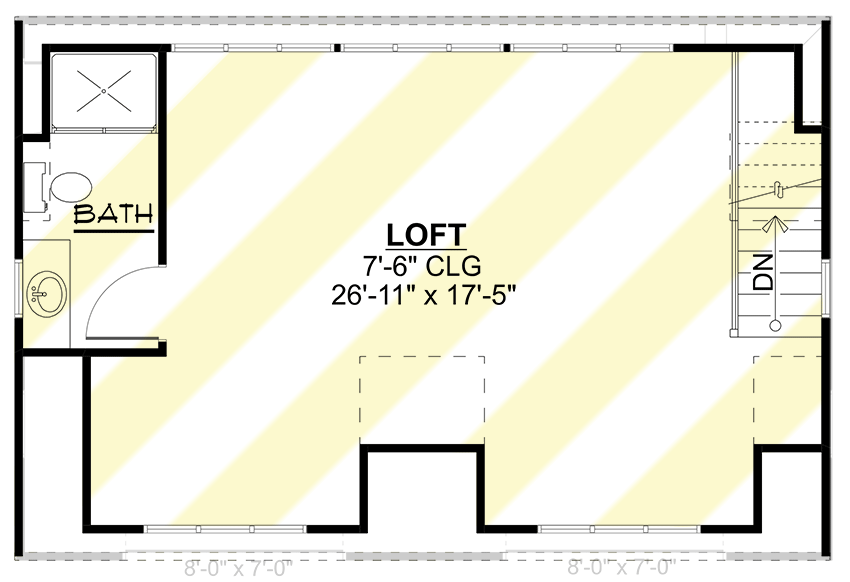

Loft Above

Plan 135240GRA: 2-Car 600 Sq Ft Detached Garage Plan with Flexible Loft Above - Floor Plan - Loft Above - Craftsman, Traditional

Plan Details

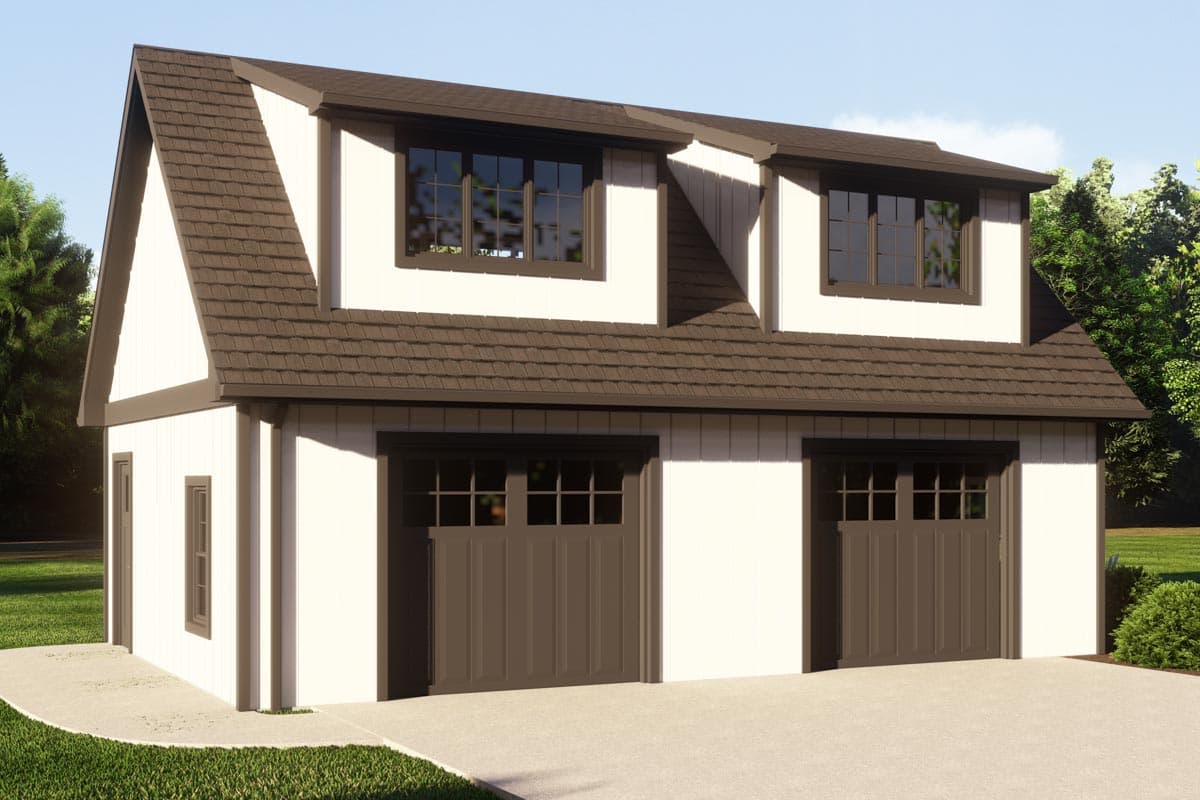

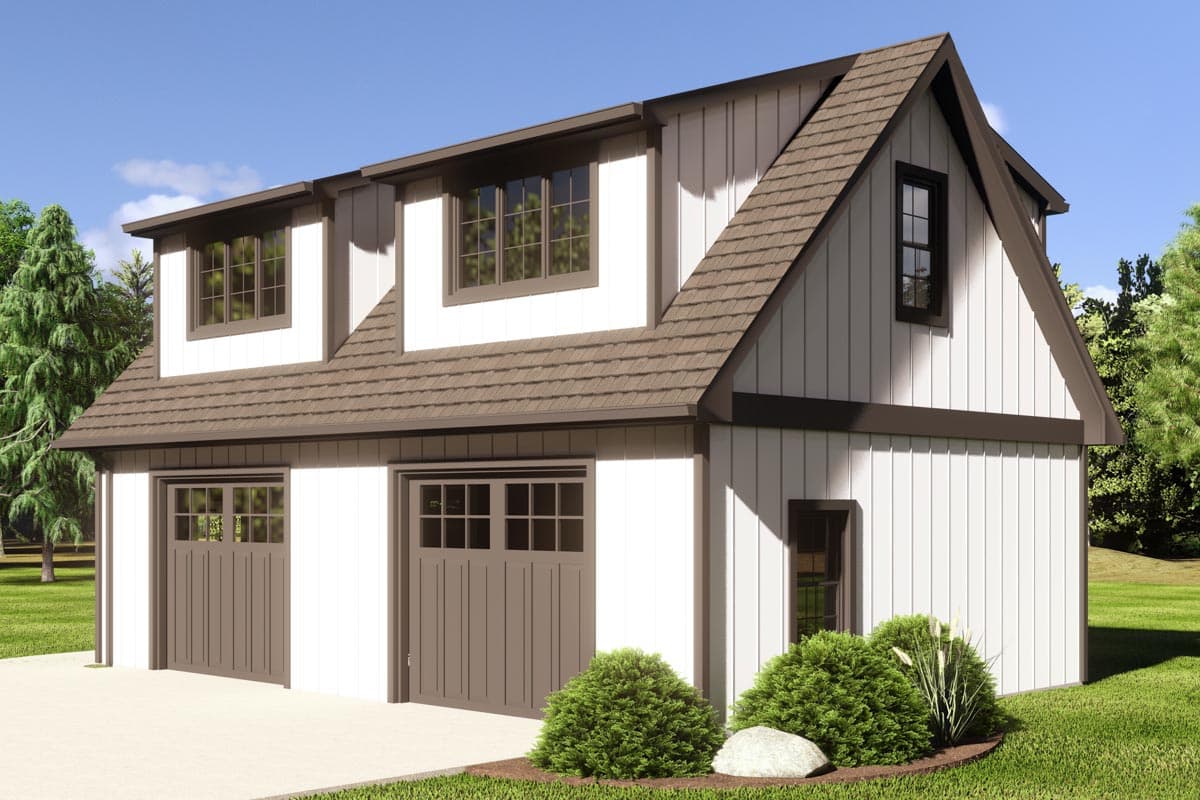

  • A shed dormer across the front of this detached 2-car 598 square foot garage adds both curb appeal and functionality to this design.
  • Two sets of 8' by 7' barn doors open to give you parking for a car in each bay.

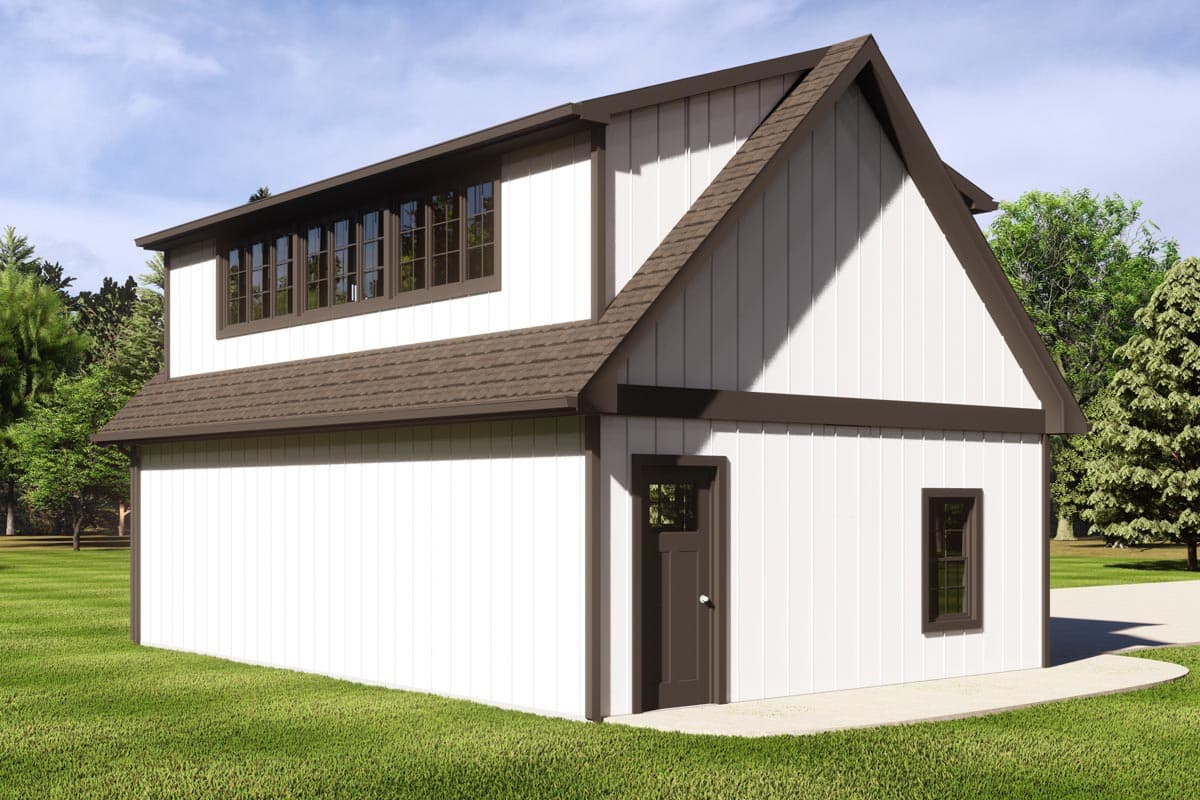

  • A main door on the side and stairs that take you to the 464 square foot open loft above giving you the flexibility to use this as a work-from-home space, a play room, or simply for storage.

What's Included

  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Loft

464 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

30' 0"

Depth

20' 0"

Max Ridge Height

19' 11"

Garage

Type

Detached

Area

598 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

7' 6"

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Architectural Style

Craftsman

Traditional

Special Features

Loft

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Loft

464 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

30' 0"

Depth

20' 0"

Max Ridge Height

19' 11"

Garage

Type

Detached

Area

598 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

7' 6"

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Architectural Style

Craftsman

Traditional

Special Features

Loft
