Plan 940001JNK

2-Car Detached Garage with 1 Bedroom Apartment Above - 950 Sq Ft Garage and 737 Sq Ft Apartment

Heated S.F.
737
Beds
1
Baths
1
Stories
2
Cars
2

Floor Plan

Plan 940001JNK

Main Level
Main Level
2nd Floor
2nd Floor

Plan 940001JNK

M-F 9am-5pm EST |

1-203-761-8500

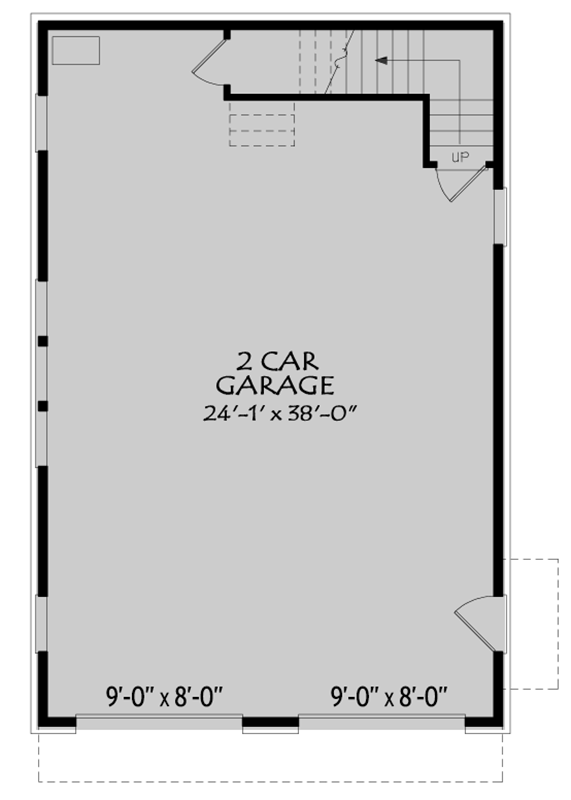

Main Level

Plan 940001JNK: 2-Car Detached Garage with 1 Bedroom Apartment Above - 950 Sq Ft Garage and 737 Sq Ft Apartment - Floor Plan - Main Level - Carriage, Craftsman, Farmhouse, Modern Farmhouse, Traditional

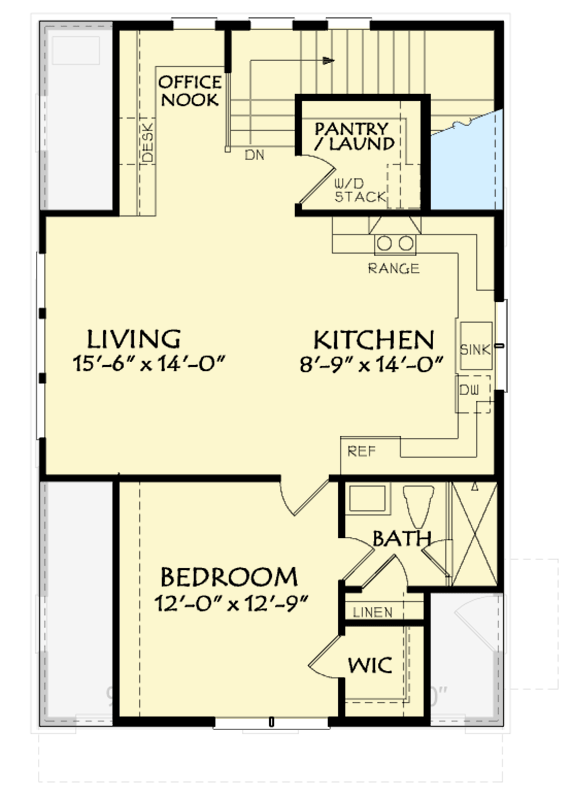

2nd Floor

Plan 940001JNK: 2-Car Detached Garage with 1 Bedroom Apartment Above - 950 Sq Ft Garage and 737 Sq Ft Apartment - Floor Plan - 2nd Floor - Carriage, Craftsman, Farmhouse, Modern Farmhouse, Traditional

Plan Details

  • This charming 737 sq. ft. Modern Farmhouse carriage house plan features a comfortable 1-bedroom, 1-bathroom living space above a spacious 950 sq. ft., 2-car detached garage, boasting a clean white exterior with board and batten and shingle siding accents.
  • Ascend to the second floor where the entire living space unfolds, designed for efficient living with a 9-foot ceiling and an open-concept layout that seamlessly connects key areas for a bright and airy feel.
  • The heart of this compact home offers a well-appointed kitchen, complete with a convenient butler's walk-in pantry, flowing into a bright dining area and cozy living space, ideal for relaxing or intimate gatherings.
  • The private master suite, located upstairs for ultimate tranquility, includes a full bathroom and is thoughtfully positioned to maximize living space, providing a serene retreat, complete with an upstairs laundry for convenience.
  • The expansive 950 sq. ft. garage on the ground level offers ample room for two vehicles, with additional space perfect for a workshop, storage, or even a home gym, catering to a variety of hobbies and practical needs.

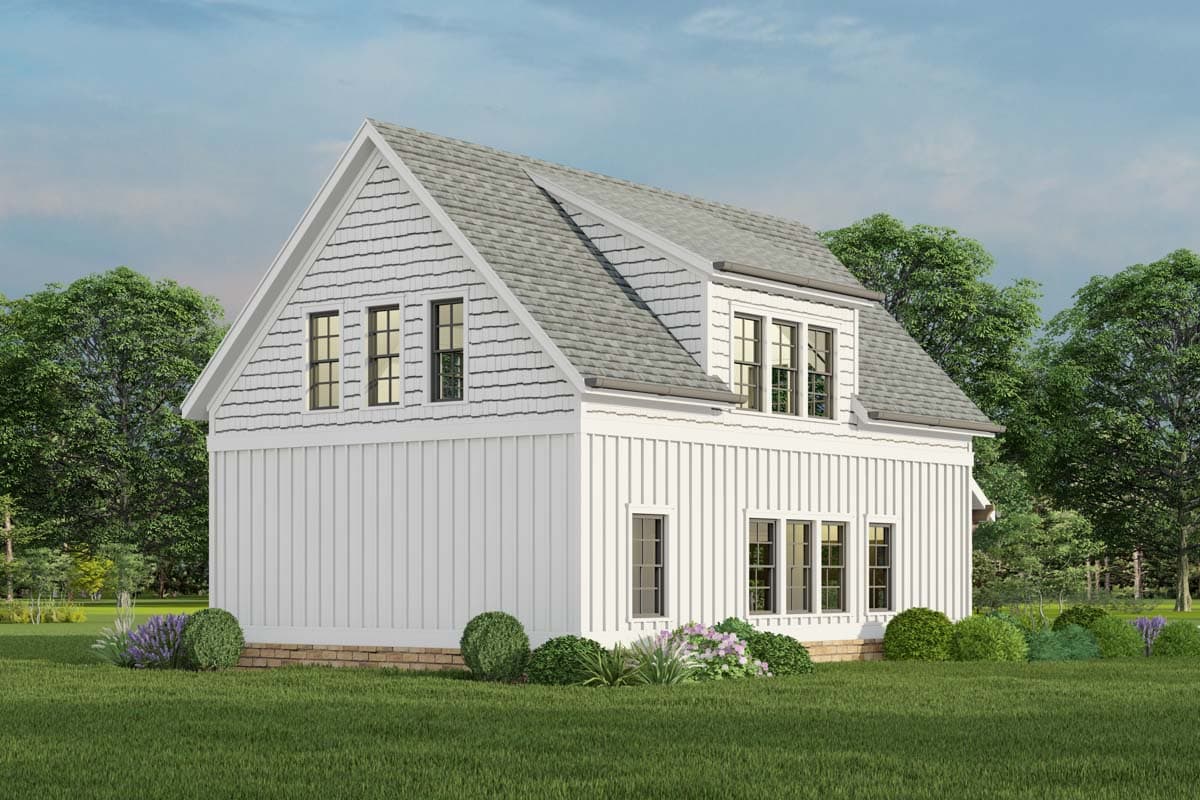

  • The exterior showcases a classic Modern Farmhouse aesthetic with a charming metal shed roof over the garage doors, complemented by decorative wooden brackets, dark gray barn-style lighting, and a distinctive gabled roofline.

What's Included

  • Covered Sheet
  • Front & Rear elevations - 1/4" scale - hatched w/ materials
  • Right & Left elevations - 1/4" scale - hatched w/ materials
  • Roof Over view Plan Foundation Plan
  • Floor plans - w/ Kitchen & Bath elevations
  • Sections, stair sections, typical wall section details, and miscellaneous details
  • Separate electrical plans
  • Typical Detail sheet

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

737 sq. ft.

2nd Floor

737 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

25' 0"

Depth

38' 0"

Max Ridge Height

27' 6"

Garage

Type

Detached

Area

950 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Carriage

Craftsman

Farmhouse

Modern Farmhouse

Traditional

Special Features

Butler Walk-in Pantry

Laundry - Upstairs

Master Suite - Upstairs

Plan Collections

ADU

Square Footage Breakdown

Total Heated Area

737 sq. ft.

2nd Floor

737 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

25' 0"

Depth

38' 0"

Max Ridge Height

27' 6"

Garage

Type

Detached

Area

950 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Carriage

Craftsman

Farmhouse

Modern Farmhouse

Traditional

Special Features

Butler Walk-in Pantry

Laundry - Upstairs

Master Suite - Upstairs

Plan Collections

ADU
