Plan 720053DA

2-Car Detached Garage with Balcony Off Upstairs Loft

Heated S.F.
804
Beds
0
Baths
0
Stories
2
Cars
2

Floor Plan

Plan 720053DA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 720053DA

M-F 9am-5pm EST |

1-203-761-8500

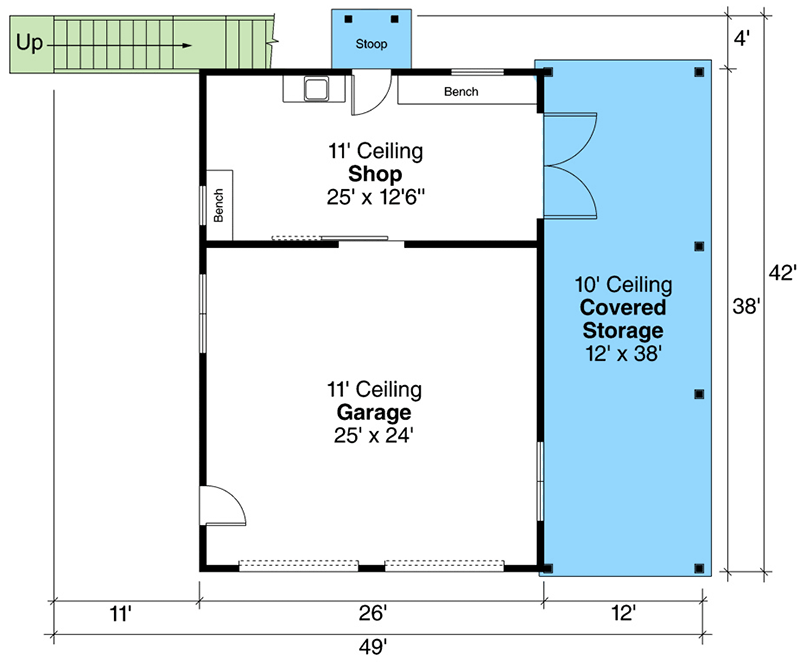

Main Level

Plan 720053DA: 2-Car Detached Garage with Balcony Off Upstairs Loft - Floor Plan - Main Level - Country, Craftsman, Rustic

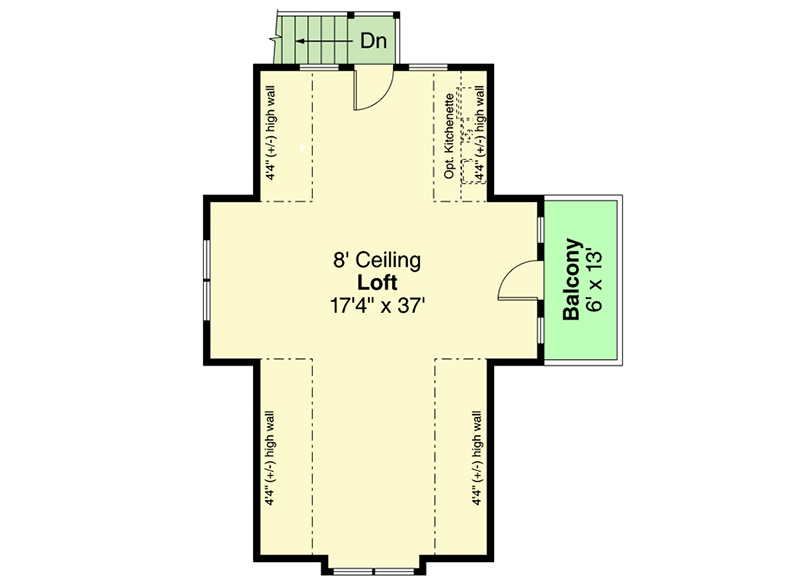

2nd Floor

Plan 720053DA: 2-Car Detached Garage with Balcony Off Upstairs Loft - Floor Plan - 2nd Floor - Country, Craftsman, Rustic

Plan Details

  • This detached garage plan can park up to 2 cars. Each garage door measures 9' wide and 8' tall.
  • At the back of the garage is a separated shop area. Outside, a set of stairs takes you to the loft above.
  • The loft has a door to a small balcony.
  • Related Plan: Get an alternate version with house plan 720054DA.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

804 sq. ft.

2nd Floor

804 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

49' 0"

Depth

42' 0"

Max Ridge Height

27' 3"

Garage

Type

Detached, Carport

Area

988 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

11'

Roof Details

Primary Pitch

12 on 12

Architectural Style

Country

Craftsman

Rustic

Special Features

Loft

Workshop

Square Footage Breakdown

Total Heated Area

804 sq. ft.

2nd Floor

804 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

49' 0"

Depth

42' 0"

Max Ridge Height

27' 3"

Garage

Type

Detached, Carport

Area

988 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

11'

Roof Details

Primary Pitch

12 on 12

Architectural Style

Country

Craftsman

Rustic

Special Features

Loft

Workshop
